Toyota COROLLA Engine Oil Pump — Figure 1501

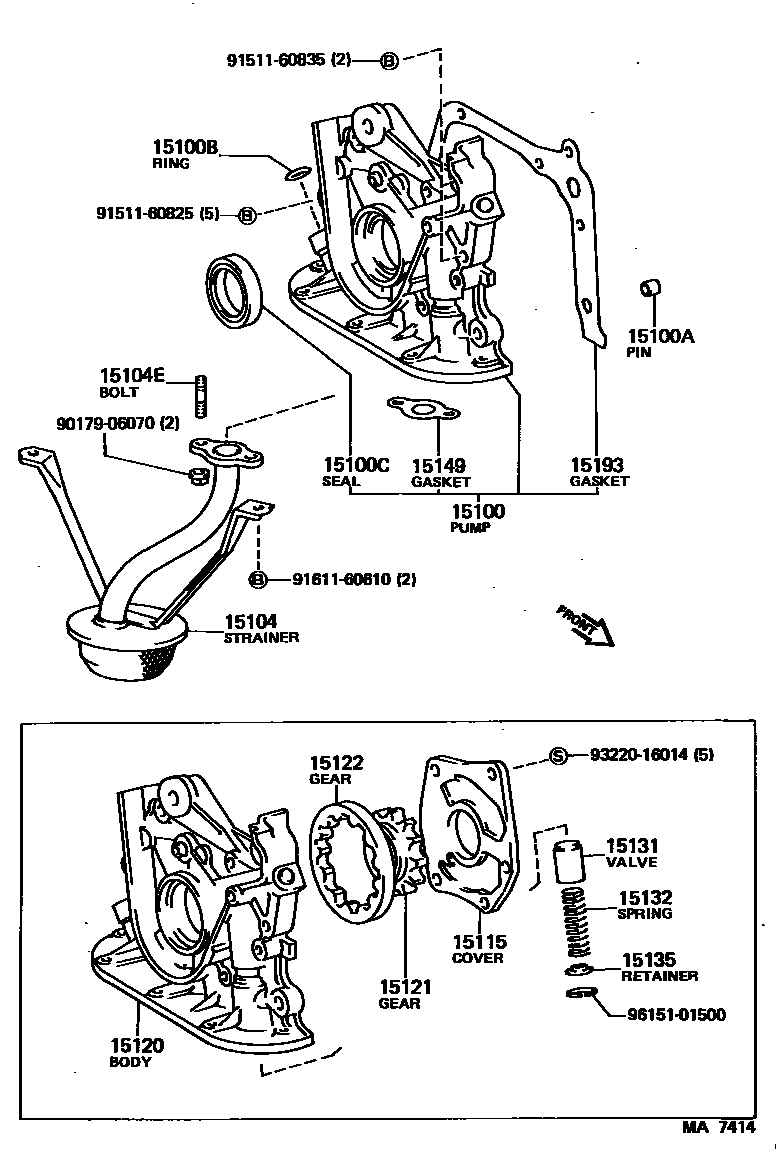

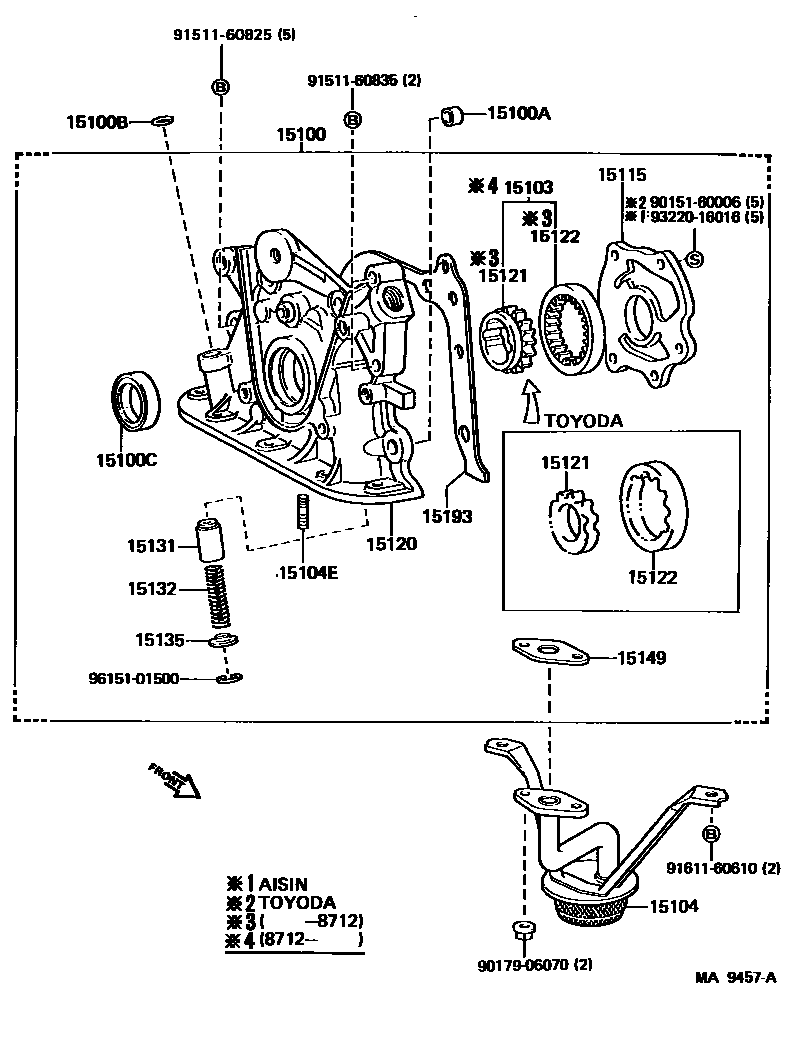

Toyota COROLLA EPC diagram 1501, Engine Oil Pump, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15100 | Oil pump assembly | 15100-09010 · 15100-09030 · 15100-19025 |
| 15100A | Ring pin (for oil pump assembly) | 90253-11021 |
| 15100B | O-ring (for oil pump) | 96711-19010 |
| 15100C | Seals (for oil pump) | 90311-32001 |
| 15103 | Oil pump gear assembly | 15103-15020 |
| 15104 | Oil filter sub-assembly | 15104-15080 |
| 15104E | Stud bolts (for oil filter) | 90116-06022 · 90116-06049 |
| 15115 | oil pump cover | 15115-01020 · 15115-01030 · 15115-15010 · 15115-16010 |
| 15120 | Oil pump body sub-assembly | 15101-01020 · 15101-01030 · 15120-15011 · 15120-16010 |
| 15121 | Oil pump driving gear | 15121-01020 · 15121-01030 · 15121-01040 · 15121-15010 · 15121-16010 |
| 15122 | Oil pump driven gear | 15122-01020 · 15122-01030 · 15122-01040 · 15122-15010 · 15122-16010 |
| 15131 | Oil pump pressure reducing valve | 15131-01020 · 15131-24010 |
| 15132 | Oil pump pressure reducing valve spring | 15132-01020 · 15132-40010 |
| 15135 | Oil pump pressure reducing valve retaining ring | 15135-01020 · 15135-15010 |
| 15149 | Oil filter flange gasket | 15149-15010 |
| 15193 | oil pump gasket | 15197-15011 |
