Toyota COROLLA Engine Mounting — Figure 1107

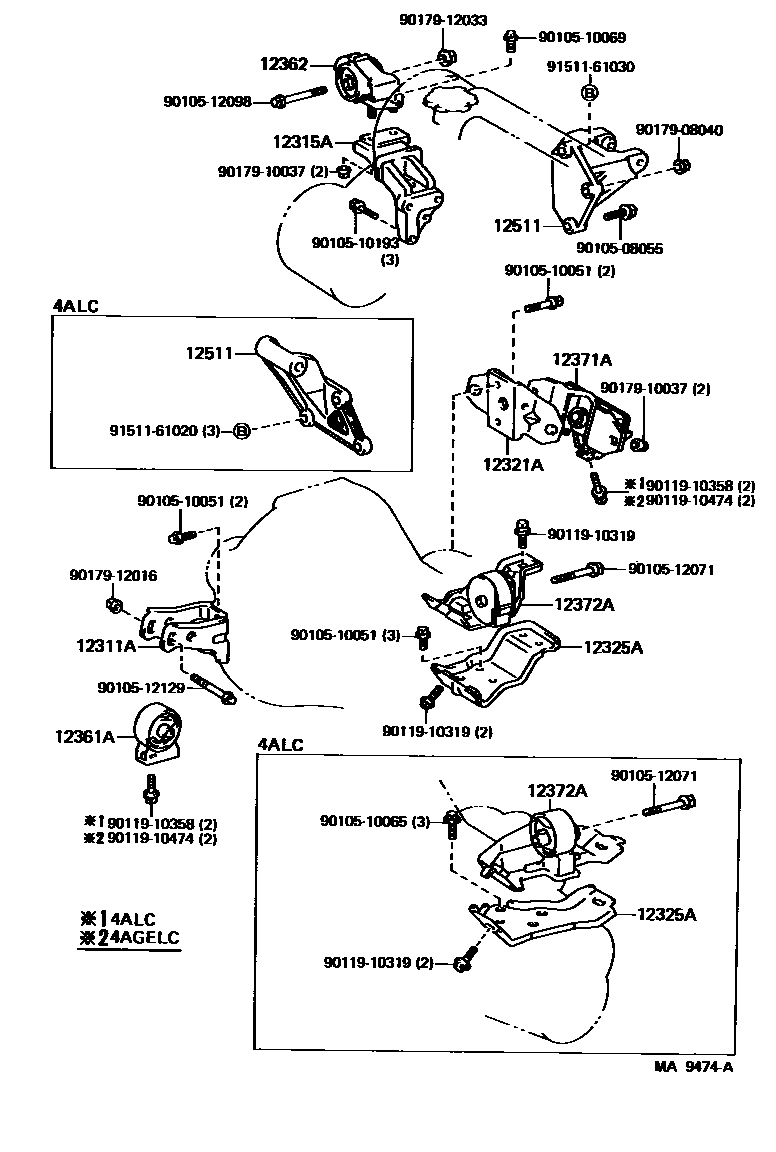

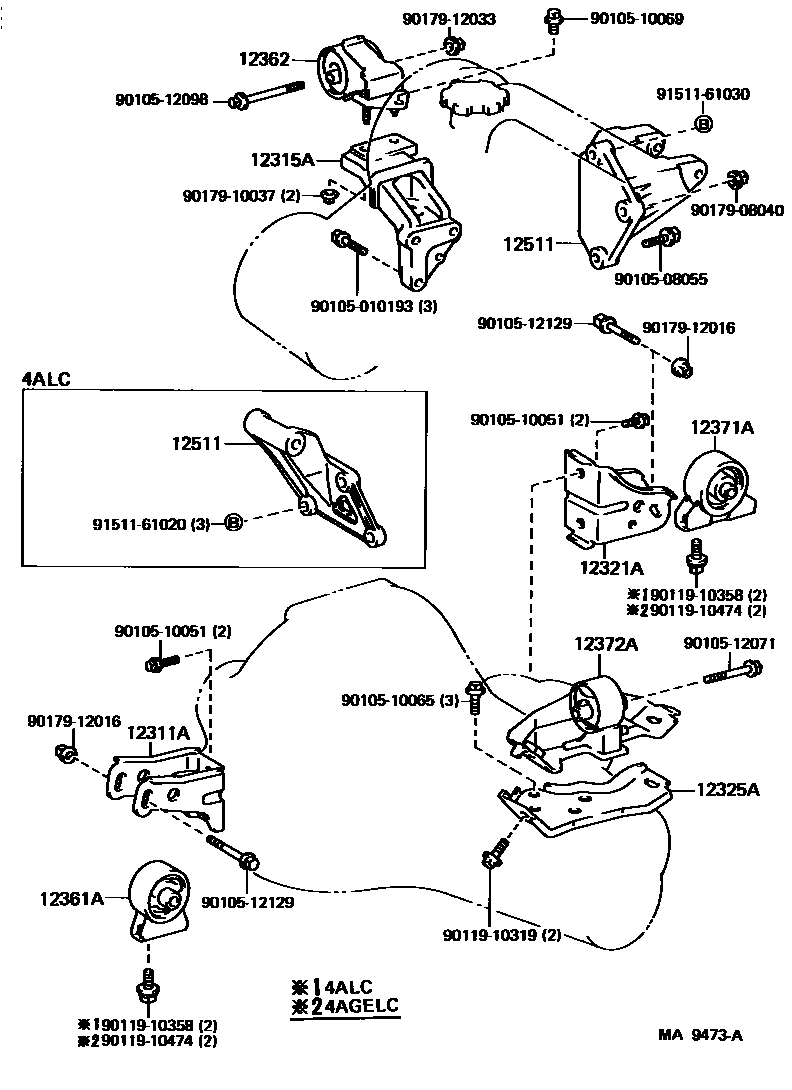

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-15080 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-15050 · 12315-16010 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-15010 · 12321-15020 · 12321-16010 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-15010 · 12325-15020 · 12325-16010 · 12325-16040 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-15090 · 12361-15091 · 12361-15101 · 12361-16030 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-01030 · 12362-02020 · 12362-16020 |
| 12371A | Engine rear mount vibration isolation pad | 12371-01040 · 12371-11080 · 12371-15121 · 12371-16040 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-01040 · 12372-02030 · 12372-11030 · 12372-16010 · 12372-16021 |
| 12511 | No. 1 generator bracket | 12511-16021 · 12511-16030 |
