Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 16 PNC and OE references.

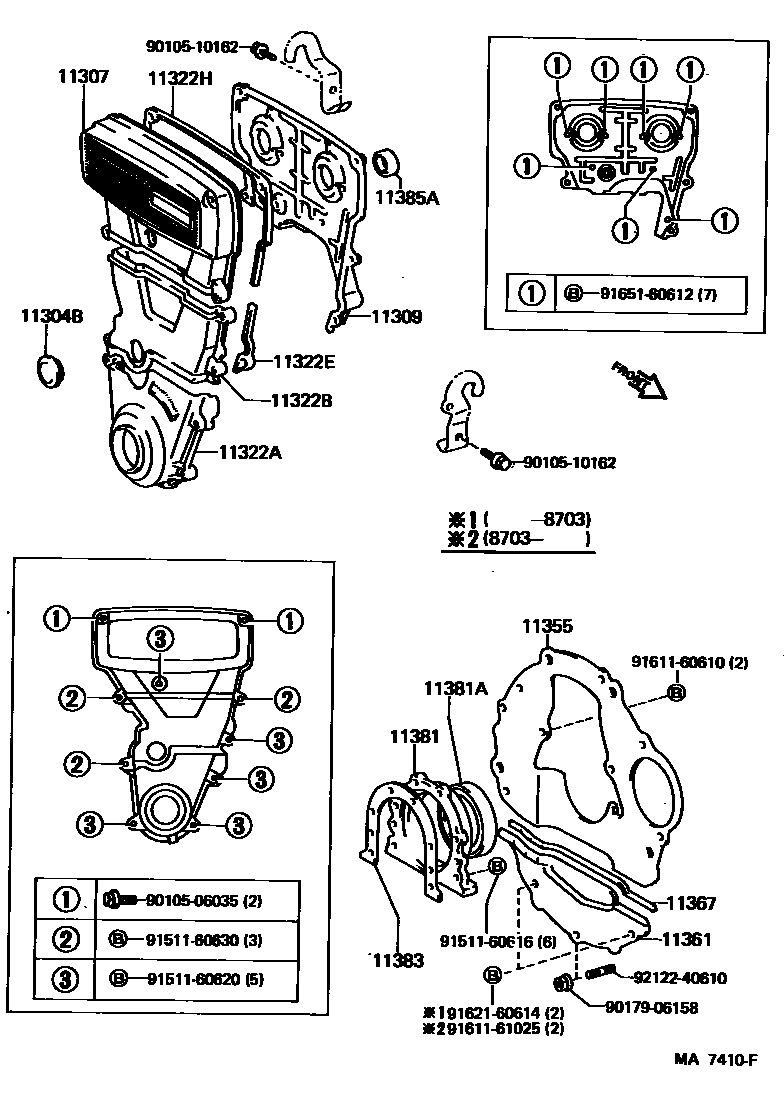

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — MA7410F
Timing Gear Cover & Rear End Plate — MA7410F (198609 – 999999)

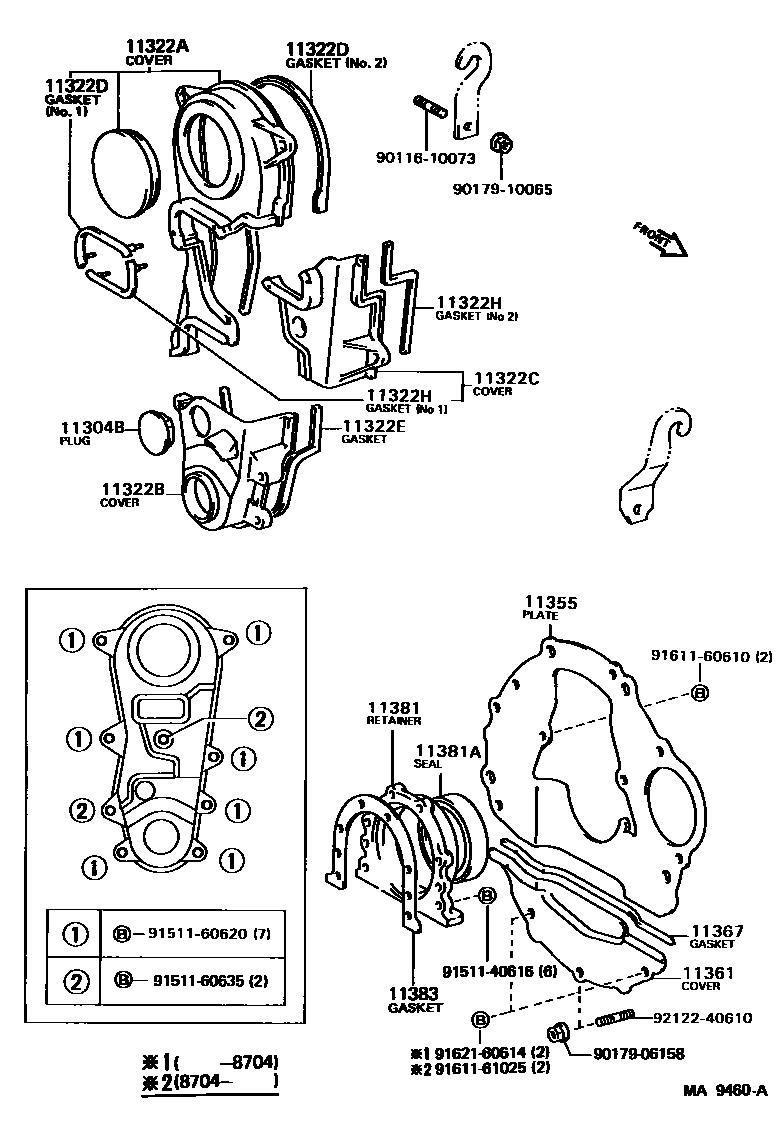

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — MA9460A
Timing Gear Cover & Rear End Plate — MA9460A (198702 – 999999)

PNC and OE references

PNCPart nameOE numbers
11304BHalf-round plug (for No. 2 timing chain cover)90950-01391 · 90950-01535
11307No. 3 timing belt cover sub-assembly11304-16020
11309No. 4 timing belt cover sub-assembly11325-16011
11322ANo. 1 timing belt cover11302-15031 · 11302-16011
11322BNo. 2 timing belt cover11303-15031 · 11303-16021
11322CNo. 3 timing belt cover11304-15010
11322DNo. 1 timing belt cover gasket11328-15030 · 11346-15010
11322ENo. 2 timing belt cover gasket11329-15030 · 11329-16010
11322HNo. 3 timing belt cover gasket11319-15010 · 11319-16011 · 11346-15010
11355rear end plate11355-15050 · 11355-15060
11361Flywheel housing bottom cover11361-01020 · 11361-15021 · 11361-16020 · 11361-16040
11367Flywheel housing lower gasket11367-15030
11381RETAINER, ENGINE REAR OIL SEAL11381-15010
11381ASEAL, ENGINE REAR OIL90311-70004
11383Engine rear oil seal seat gasket11383-15010
11385AOil seal (for camshaft)90311-35008 · 90311-35013
