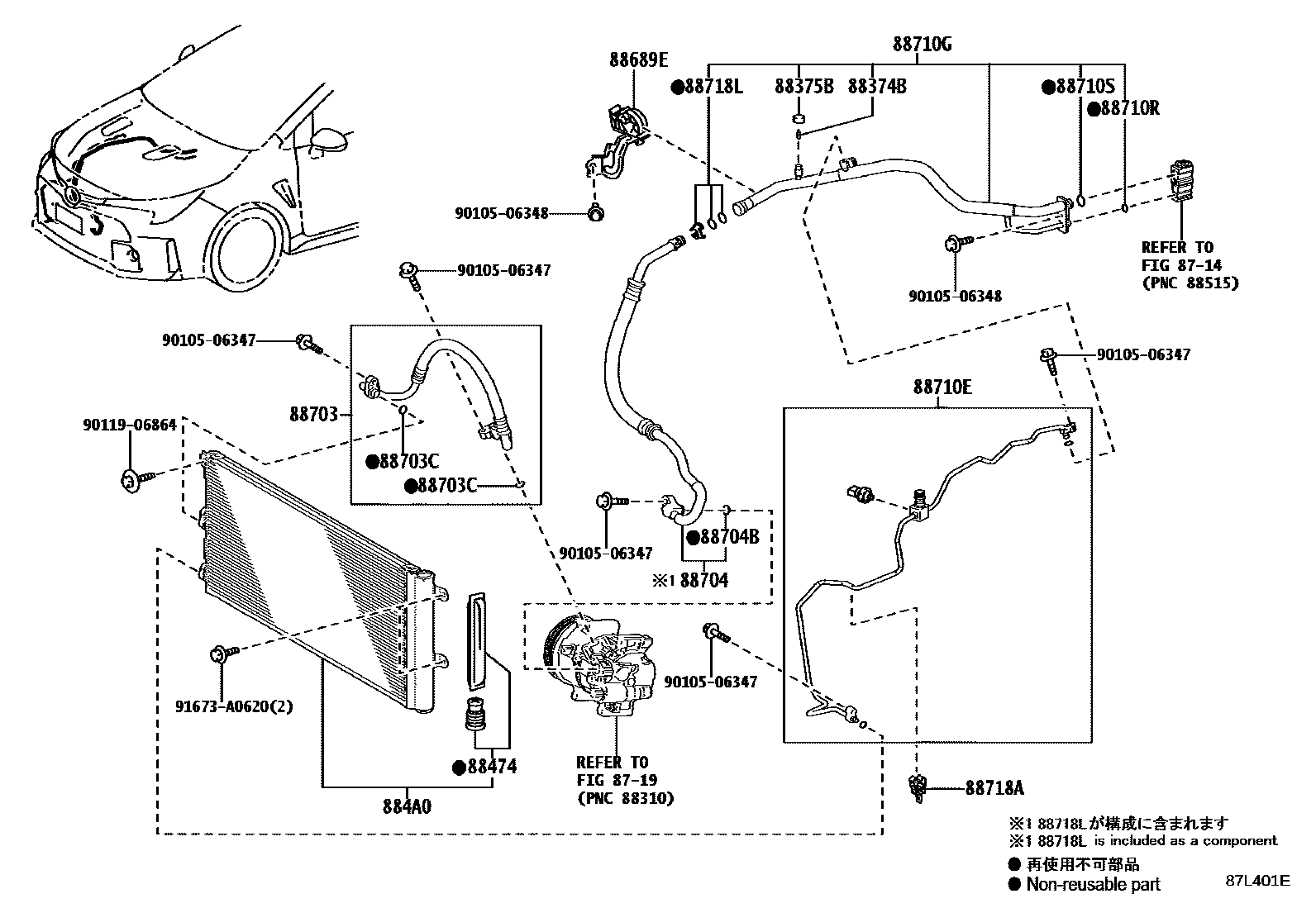

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30310 |
| 88474 | cooler dryer | 88474-12010 |
| 884A0 | ENSEMBLE CONDENSEUR DE CLIMATISEUR | 884A0-52040 |
| 88689E | SUPPORT, REFROIDISSEUR, NO.1 | 88688-12A40 |
| 88703 | Discharge hose sub-assembly | 88703-12B00 |
| 88703C | JOINT, TORIQUE(POUR TUYAU DECHARGE) | 90099-14120 |
| 88704 | Oil suction hose sub-assembly | 88704-12A70 |
| 88704B | JOINT, TORIQUE(POUR FLEXIBLE ASPIRATION) | 90099-14121 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-12C70 · 88710-12C71 |
| 88710G | No. 2 air conditioning pipe and accessories assembly | 88710-12A00 |
| 88710R | JOINT,TORIQUE, NO.1(POUR ENS. TUYAU & ACCESSOIRE, A/C, NO.2) | 90099-14119 |
| 88710S | JOINT, TORIQUE,NO.2(POUR ENS. TUYAU & ACCESSOIRE, A/C, NO.2) | 90099-14121 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-47110 |
| 88718L | Pipe clamp | 88718-52280 |
