Toyota COROLLA 后视镜 — Figure 8701

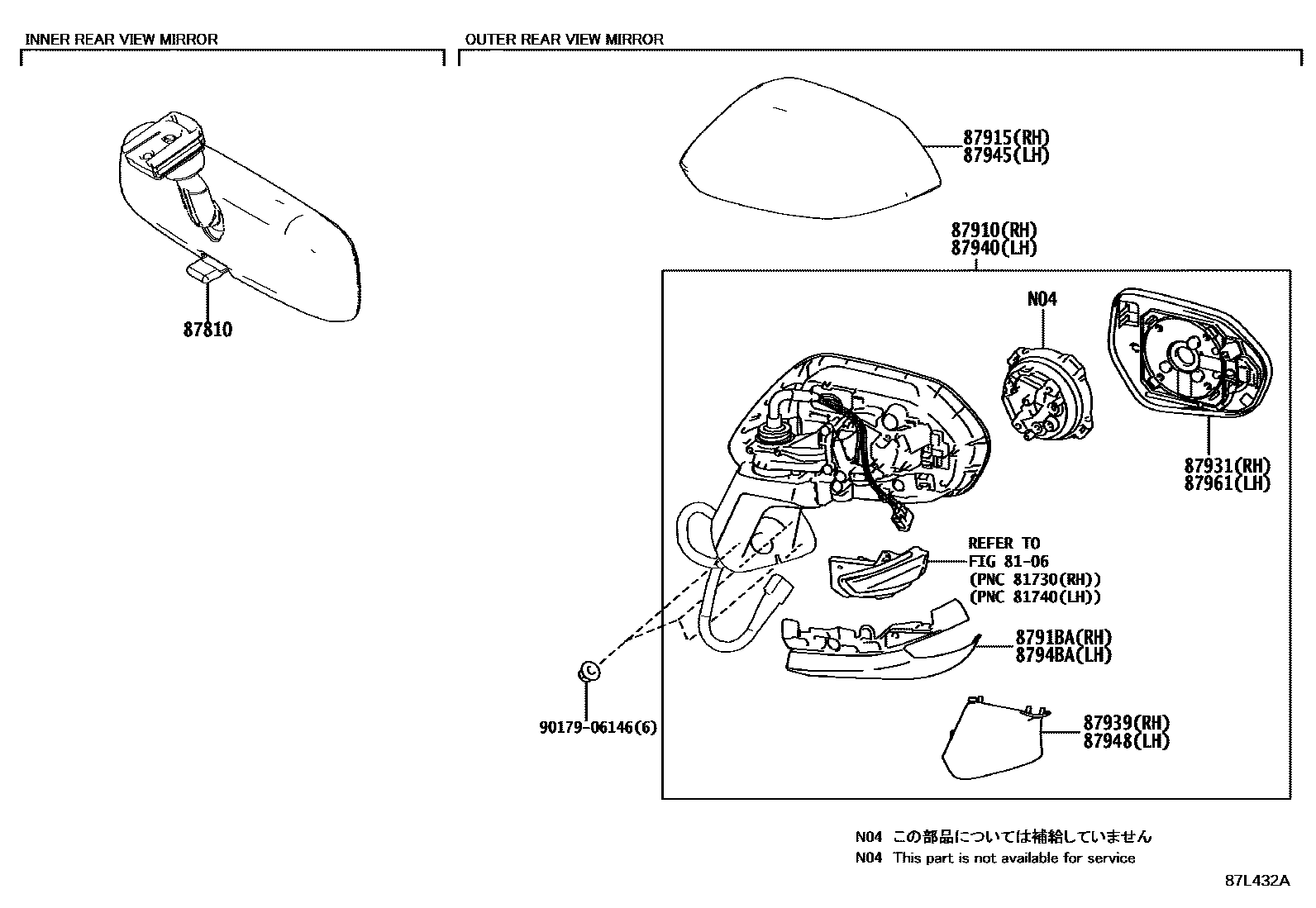

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-28140 |
| 87910 | Right exterior rearview mirror assembly | 87910-12F80 · 87910-12F90 |
| 8791BA | CACHE, RETROVISEUR EXT, MD NO.3 | 8791B-12G30 |
| 87931 | Right exterior rearview mirror | 87902-33110 · 87902-33150 |
| 87939 | Right exterior rearview mirror hole cover | 87939-12G30 |
| 87940 | Left exterior rearview mirror assembly | 87940-12G00 · 87940-12G10 |
| 87948 | Left exterior rearview mirror hole cover | 87948-12G50 |
| 8794BA | CACHE, RETROVISEUR EXT, MG NO.3 | 8794B-12G50 |
| 87961 | Left exterior rearview mirror | 87907-12040 · 87907-33090 |
