Toyota COROLLA antenna — Figure 8604

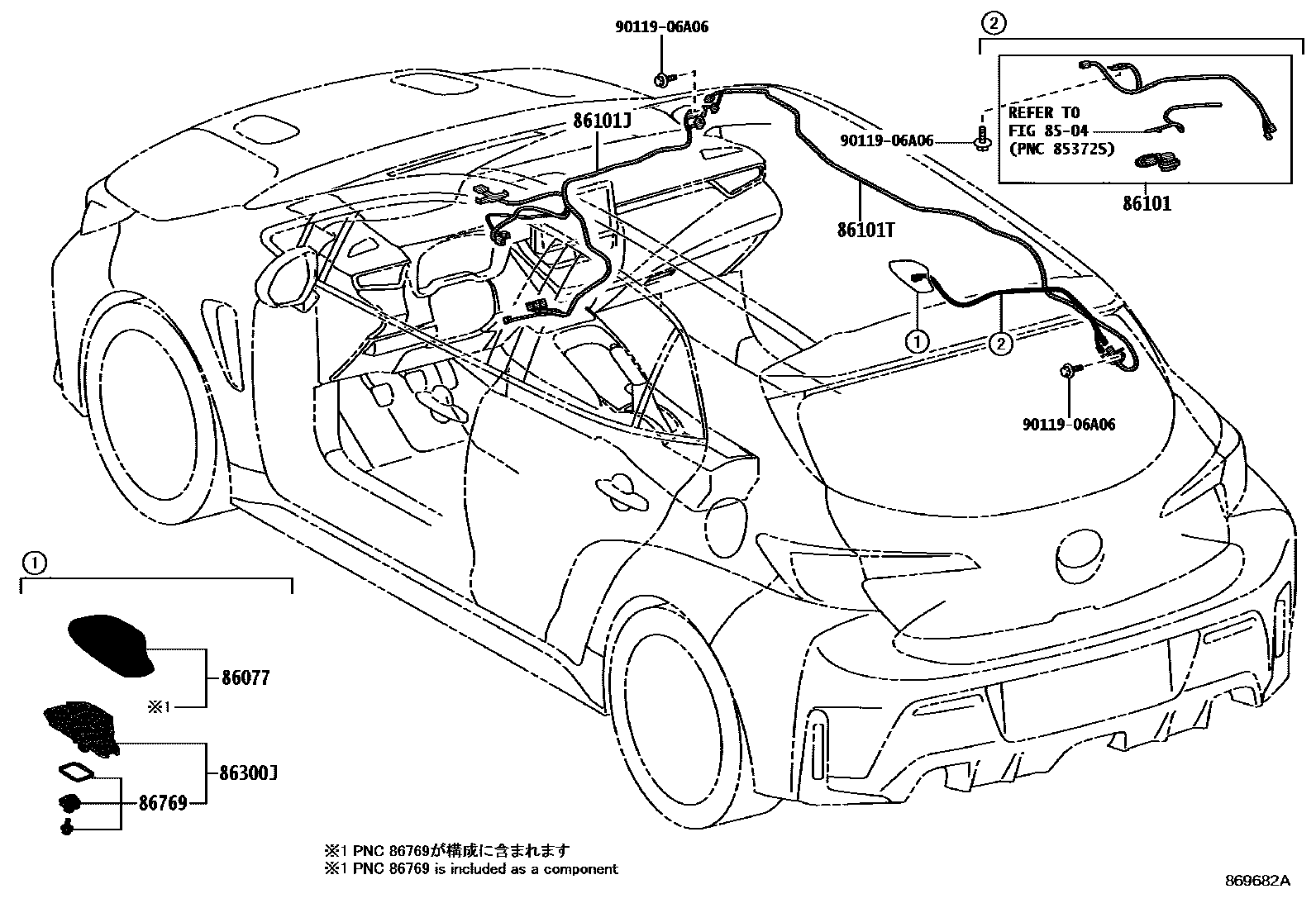

Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-12M90 · 86101-12R30 · 86101-12R40 · 86101-12T60 |
| 86101J | No. 2 antenna wire sub-assembly | 86101-12N90 · 86101-12P00 |
| 86101T | Antenna wire sub-assembly | 86101-12R90 · 86101-12S00 |
| 86300J | Roof antenna assembly | 86760-42030 · 86760-42050 |
| 86769 | LOGEMENT, ANTENNE DE TOIT | 86769-K0010 |
