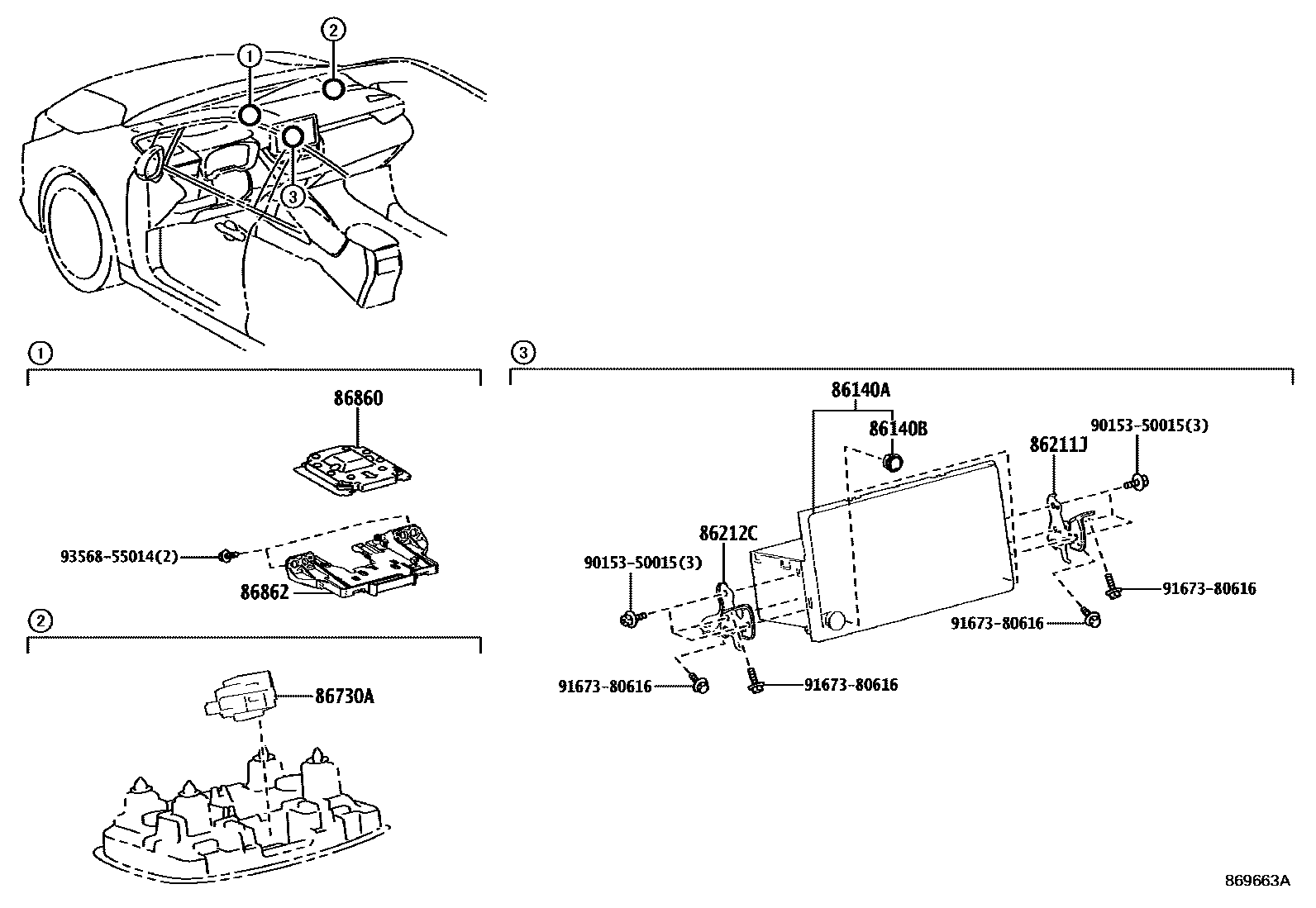

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86140-12A70 · 86140-12E00 · 86140-12E10 · 86140-12E50 · 86140-12E60 · 86140-12F40 · 86140-12F50 · 86140-12F60 |
| 86140B | Radio and display receiver switch button | 90010-23064 · 90010-23071 |
| 86211J | No. 1 radio bracket | 86211-12470 |
| 86212C | No. 2 radio bracket | 86212-12460 |
| 86730A | Telephone amplifier assembly | 86730-42100 |
| 86860 | Navigation antenna assembly | 86880-42010 |
| 86862 | Navigation antenna bracket | 86862-42010 |
