Toyota COROLLA 收音机、放大器和冷凝器 — Figure 8601

Toyota COROLLA EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 4 PNC and OE references.

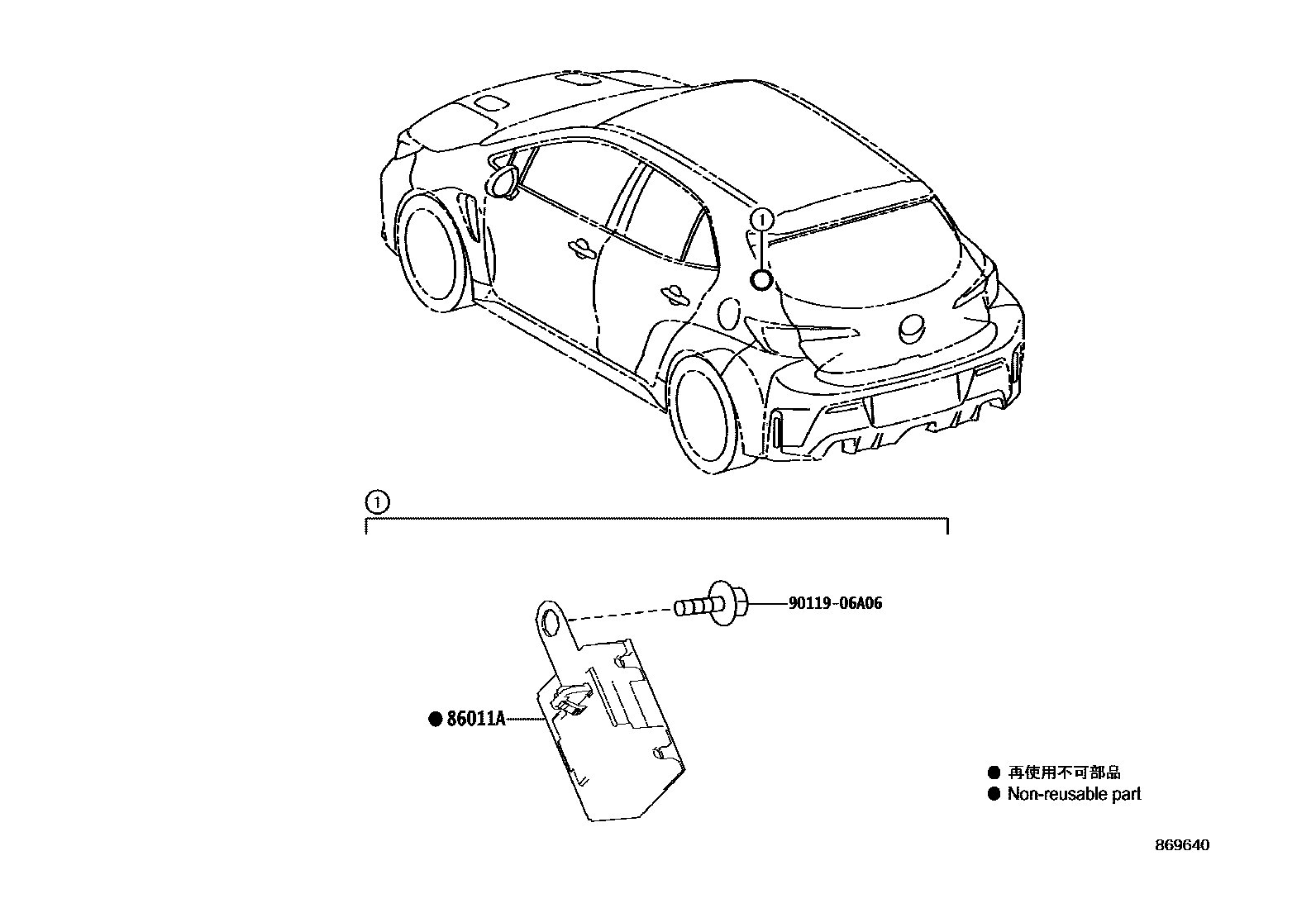

Toyota COROLLA 收音机、放大器和冷凝器 EPC diagram — 869640
收音机、放大器和冷凝器 — 869640 (202210 – 999999)

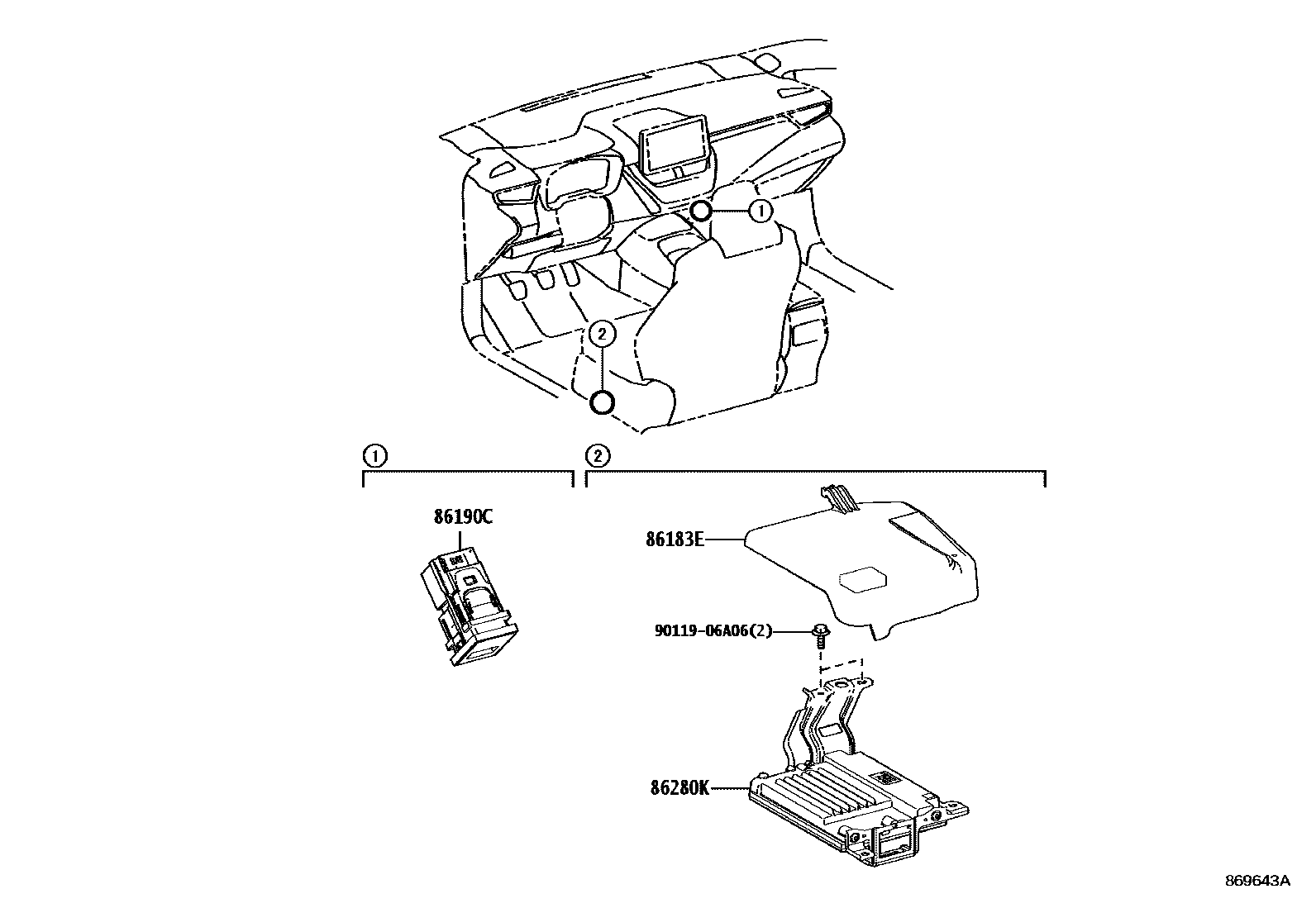

Toyota COROLLA 收音机、放大器和冷凝器 EPC diagram — 869643A
收音机、放大器和冷凝器 — 869643A (202210 – 999999)

PNC and OE references

PNCPart nameOE numbers
86011Aradio settings phase modulator90980-04204
86183Eaudio amplifier cover86183-12020
86190CStereo socket connector assembly No. 186190-12080
86280KStereo parts amplifier assembly86280-12300 · 86280-12301
