Toyota COROLLA 仪表 — Figure 8301

Toyota COROLLA EPC diagram 8301, 仪表, with 2 images and 4 PNC and OE references.

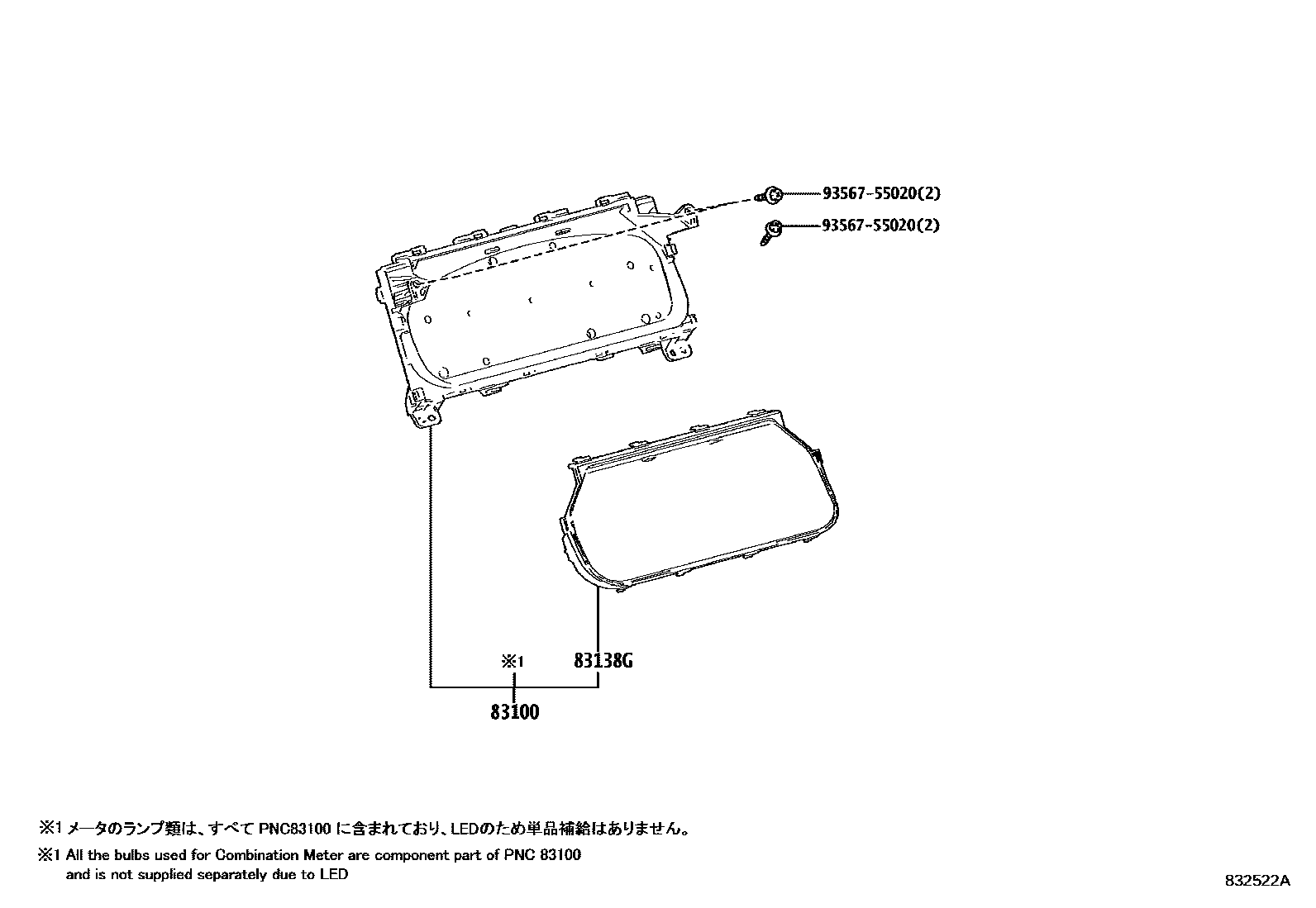

Toyota COROLLA 仪表 EPC diagram — 832522A
仪表 — 832522A (202210 – 999999)

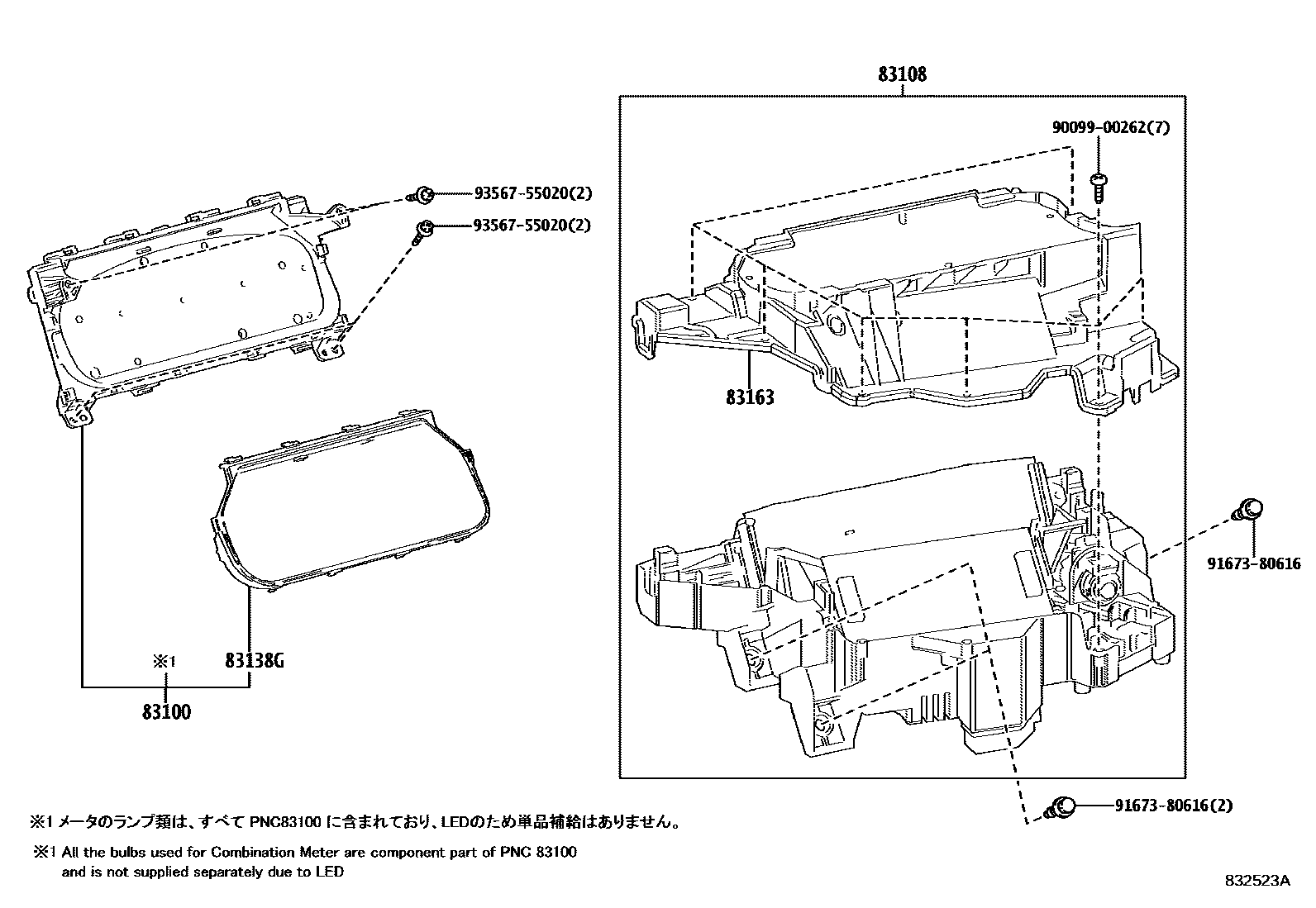

Toyota COROLLA 仪表 EPC diagram — 832523A
仪表 — 832523A (202409 – 999999)

PNC and OE references

PNCPart nameOE numbers
83100Combined instrument assembly83800-1AQ70 · 83800-1AQ71 · 83800-1AQ72 · 83800-1AQ73 · 83800-1AQ90 · 83800-1AQ91 · 83800-1AQ92 · 83800-1AQ93 · 83800-1AS90 · 83800-1AV40 · 83800-1EW80 · 83800-1EW90
83108Instrument rearview mirror sub-assembly83108-1E261
83138GInstrument cluster glass83852-16760
83163No. 1 instrument cluster rearview mirror panel83163-1E240
