Toyota COROLLA 线束和卡夹 — Figure 8202

Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 11 images and 93 PNC and OE references.

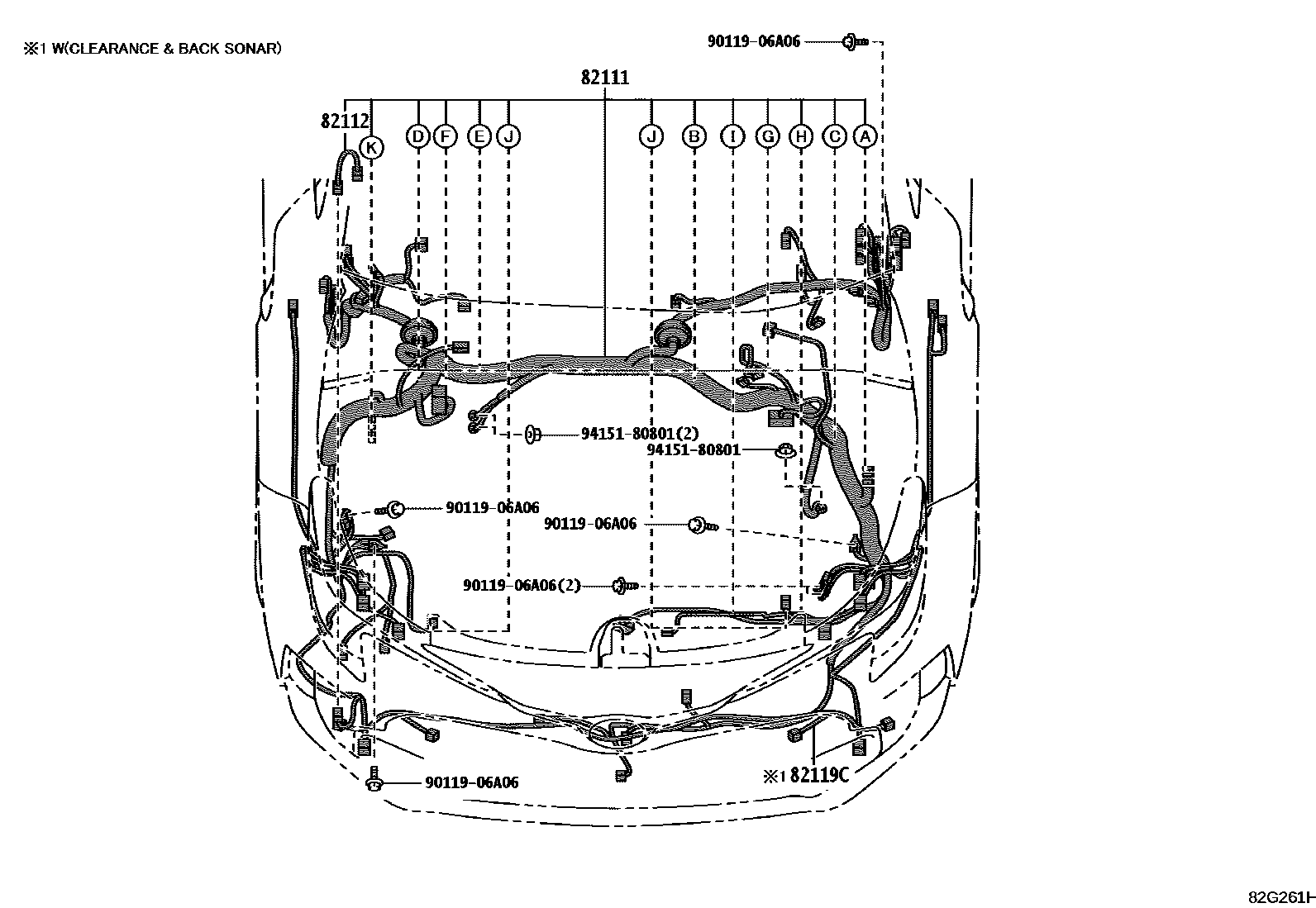

Toyota COROLLA 线束和卡夹 EPC diagram — 82G261H
线束和卡夹 — 82G261H (202210 – 999999)

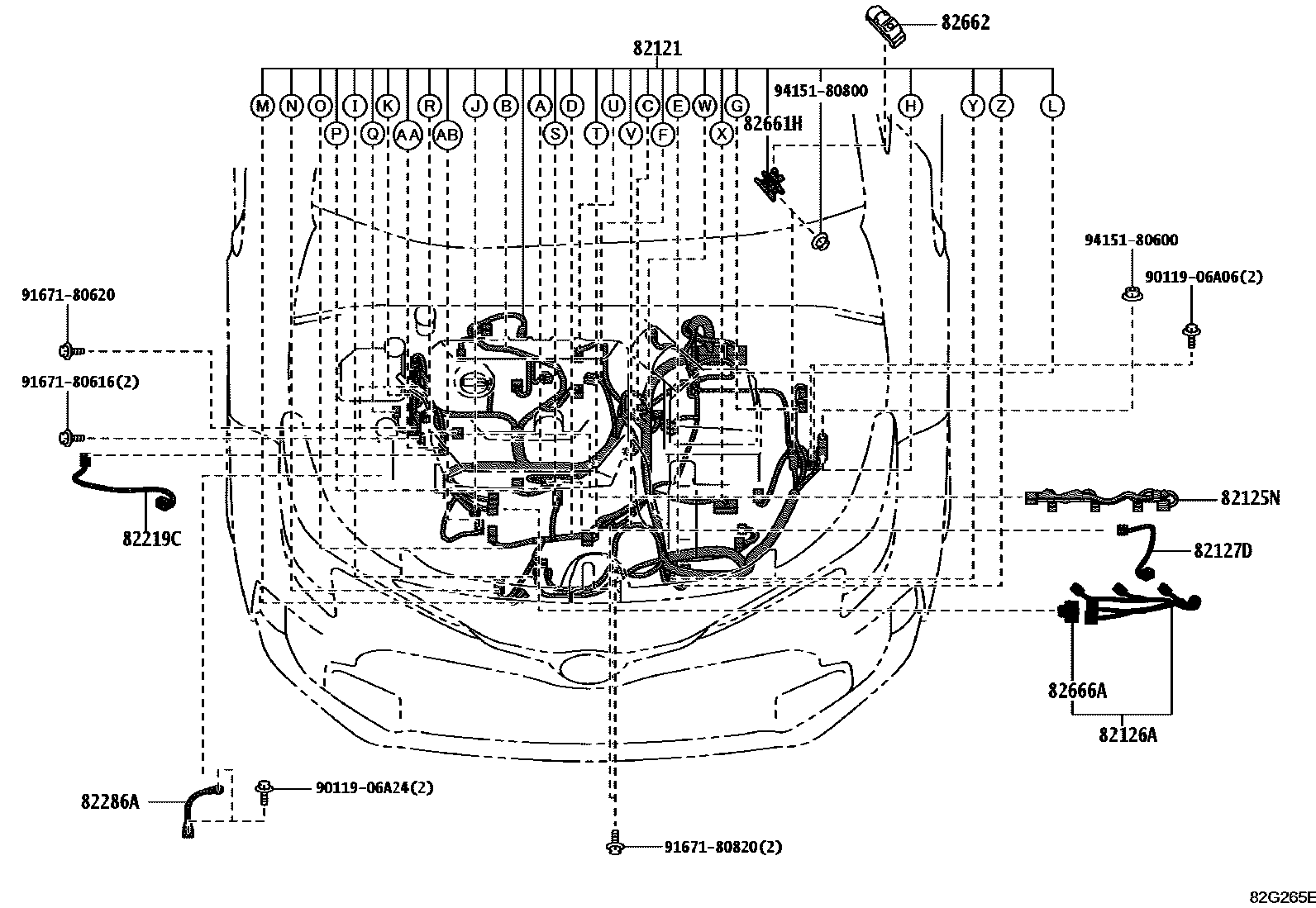

Toyota COROLLA 线束和卡夹 EPC diagram — 82G265E
线束和卡夹 — 82G265E (202210 – 999999)

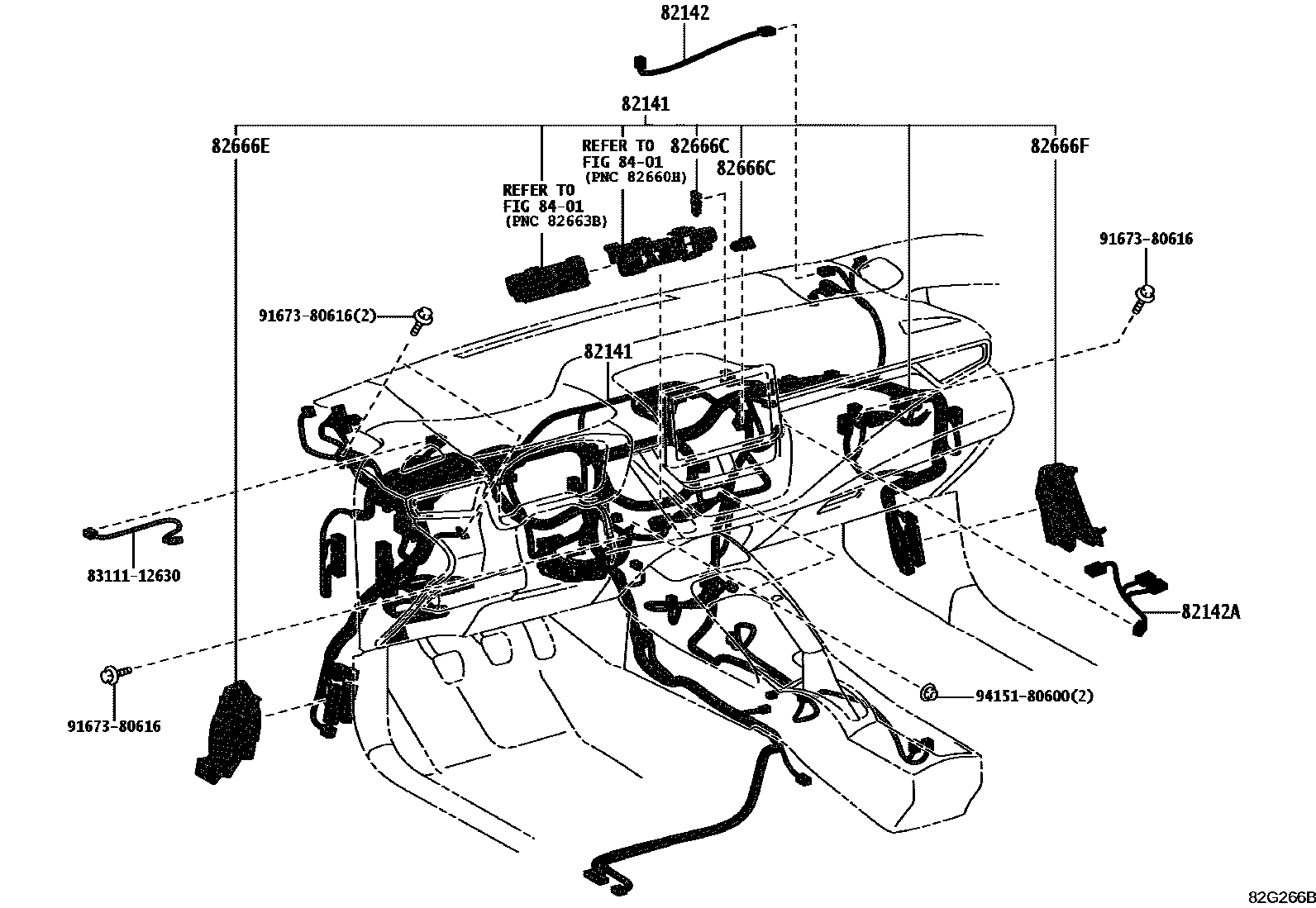

Toyota COROLLA 线束和卡夹 EPC diagram — 82G266B
线束和卡夹 — 82G266B (202210 – 999999)

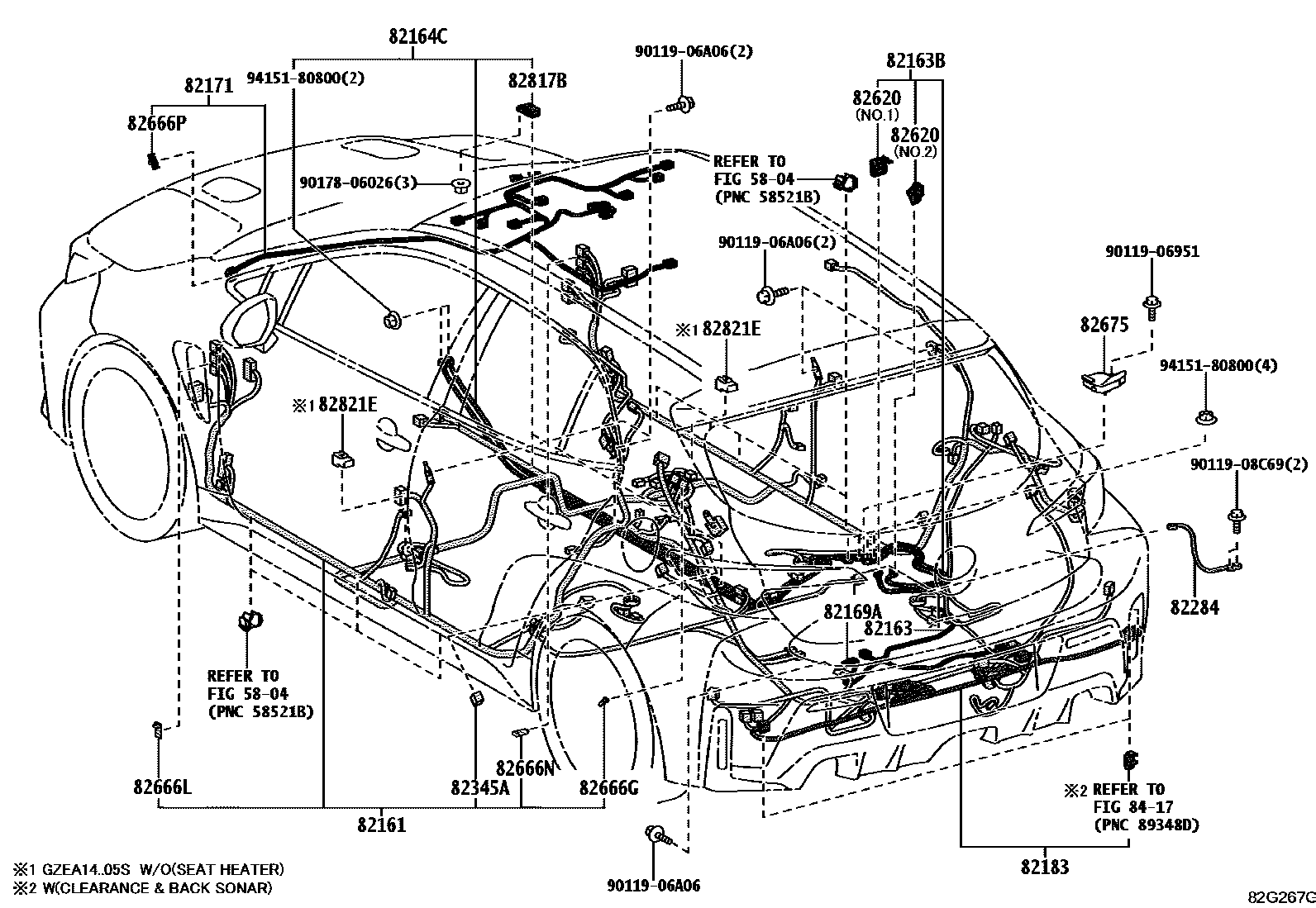

Toyota COROLLA 线束和卡夹 EPC diagram — 82G267G
线束和卡夹 — 82G267G (202210 – 999999)

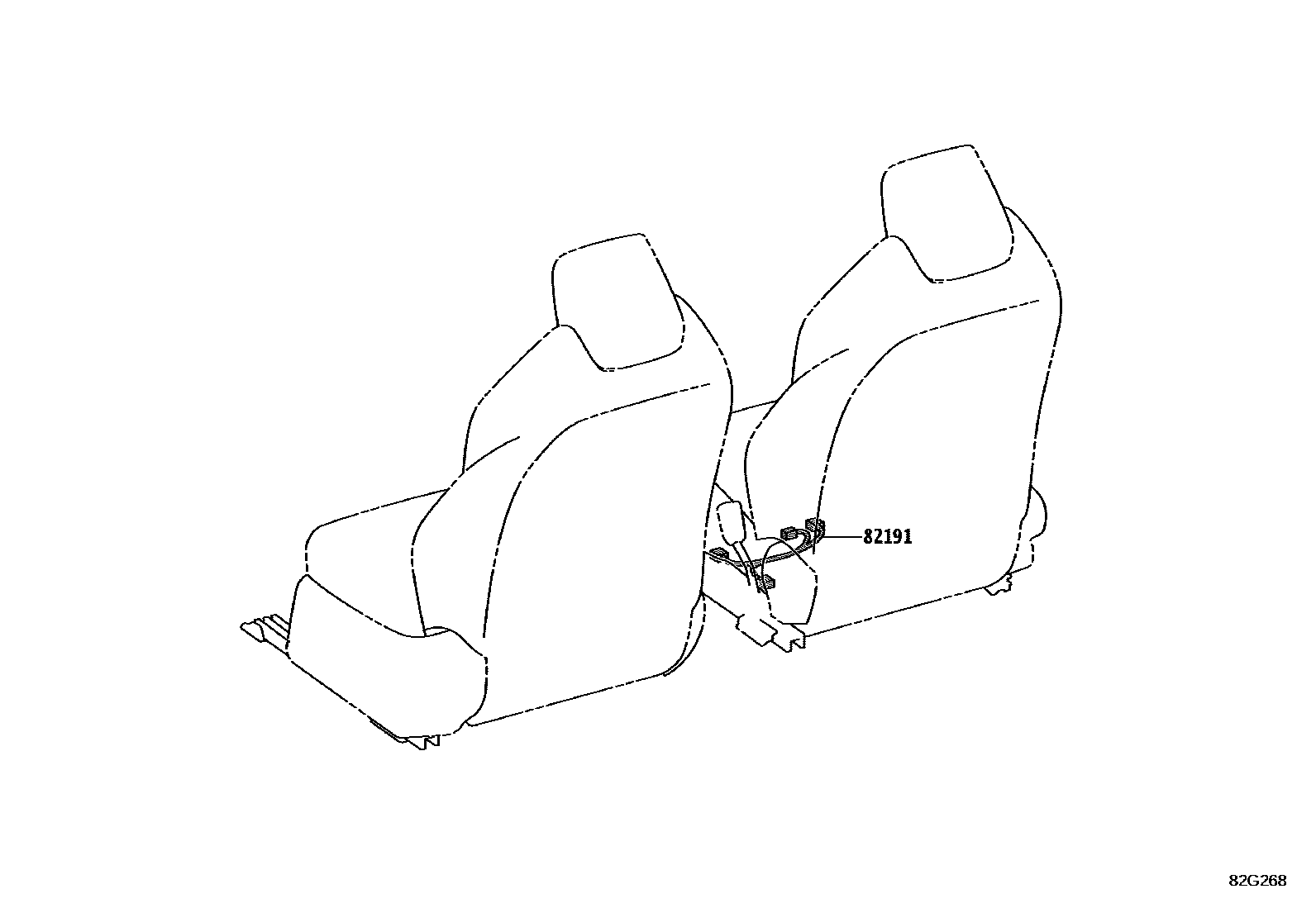

Toyota COROLLA 线束和卡夹 EPC diagram — 82G268
线束和卡夹 — 82G268 (202210 – 999999)

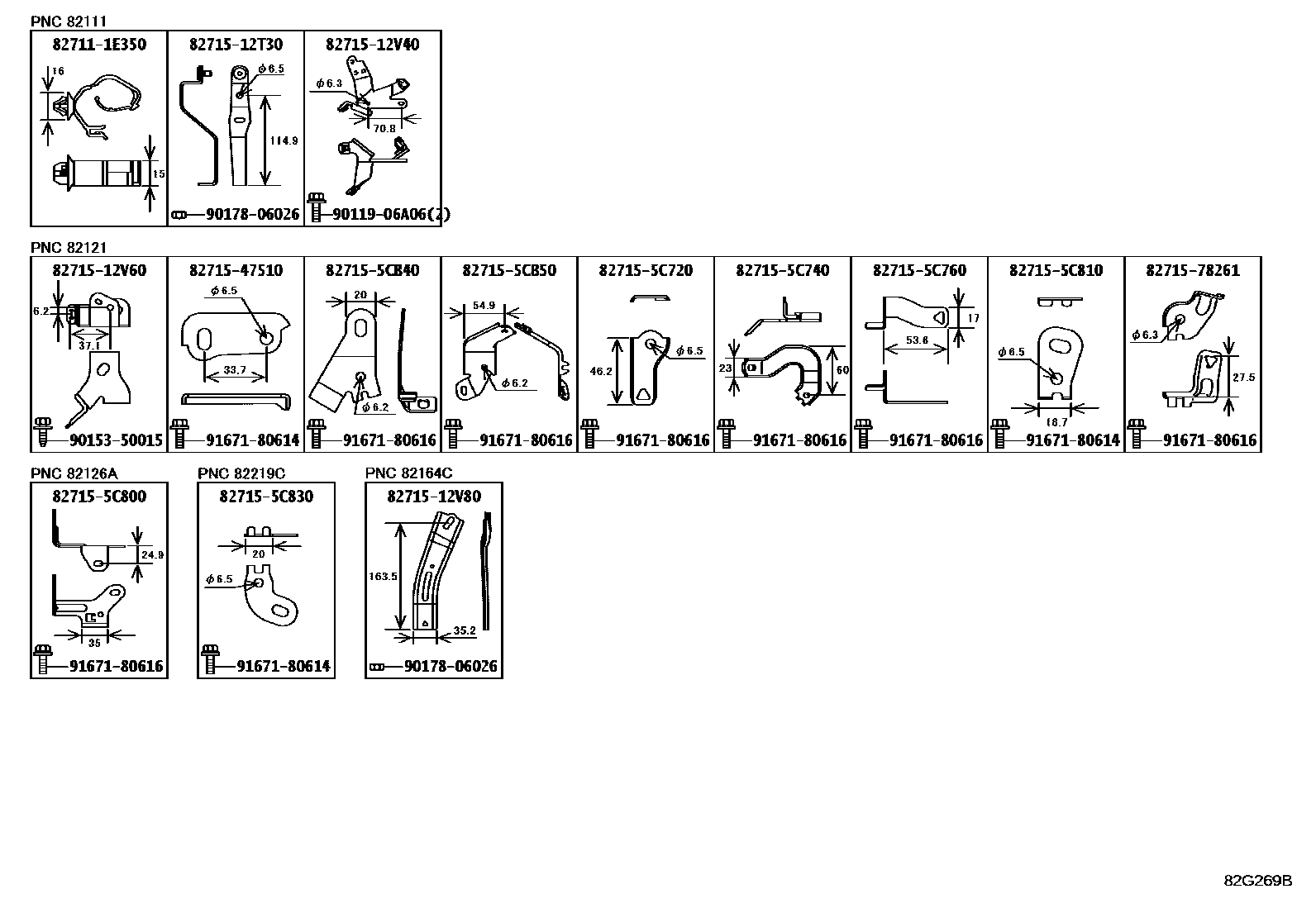

Toyota COROLLA 线束和卡夹 EPC diagram — 82G269B
线束和卡夹 — 82G269B (202210 – 999999)

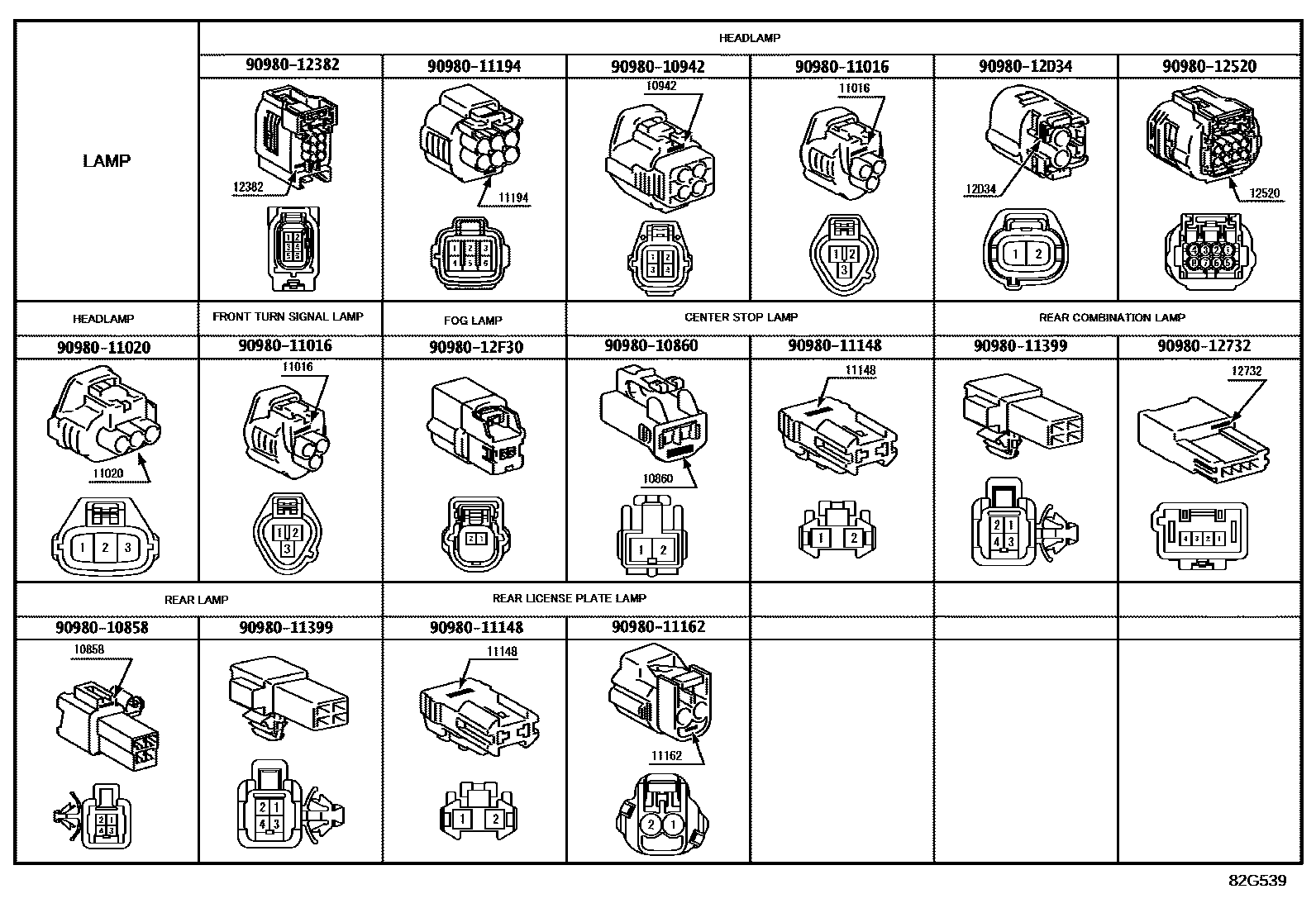

Toyota COROLLA 线束和卡夹 EPC diagram — 82G539
线束和卡夹 — 82G539 (202210 – 999999)

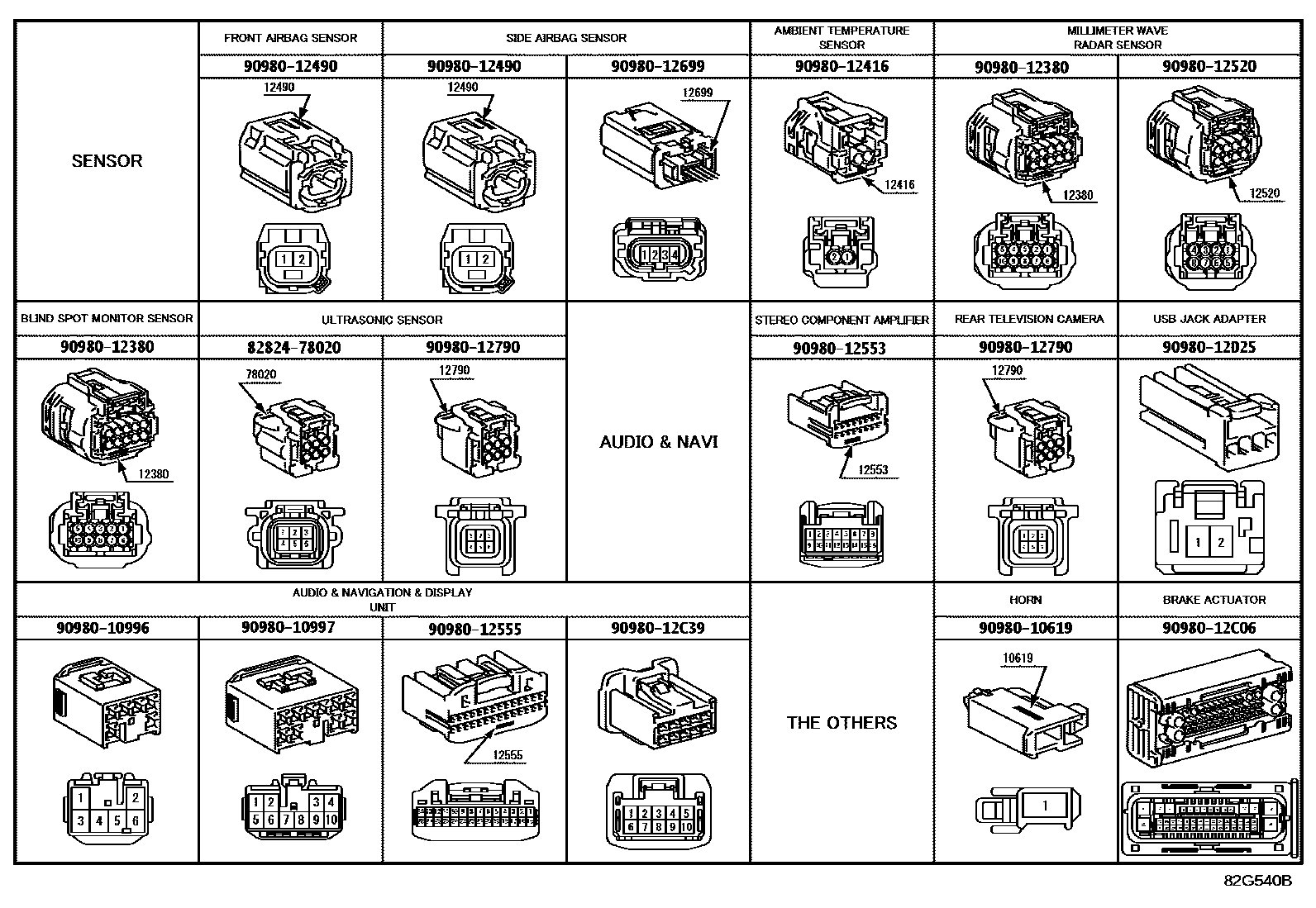

Toyota COROLLA 线束和卡夹 EPC diagram — 82G540B
线束和卡夹 — 82G540B (202210 – 999999)

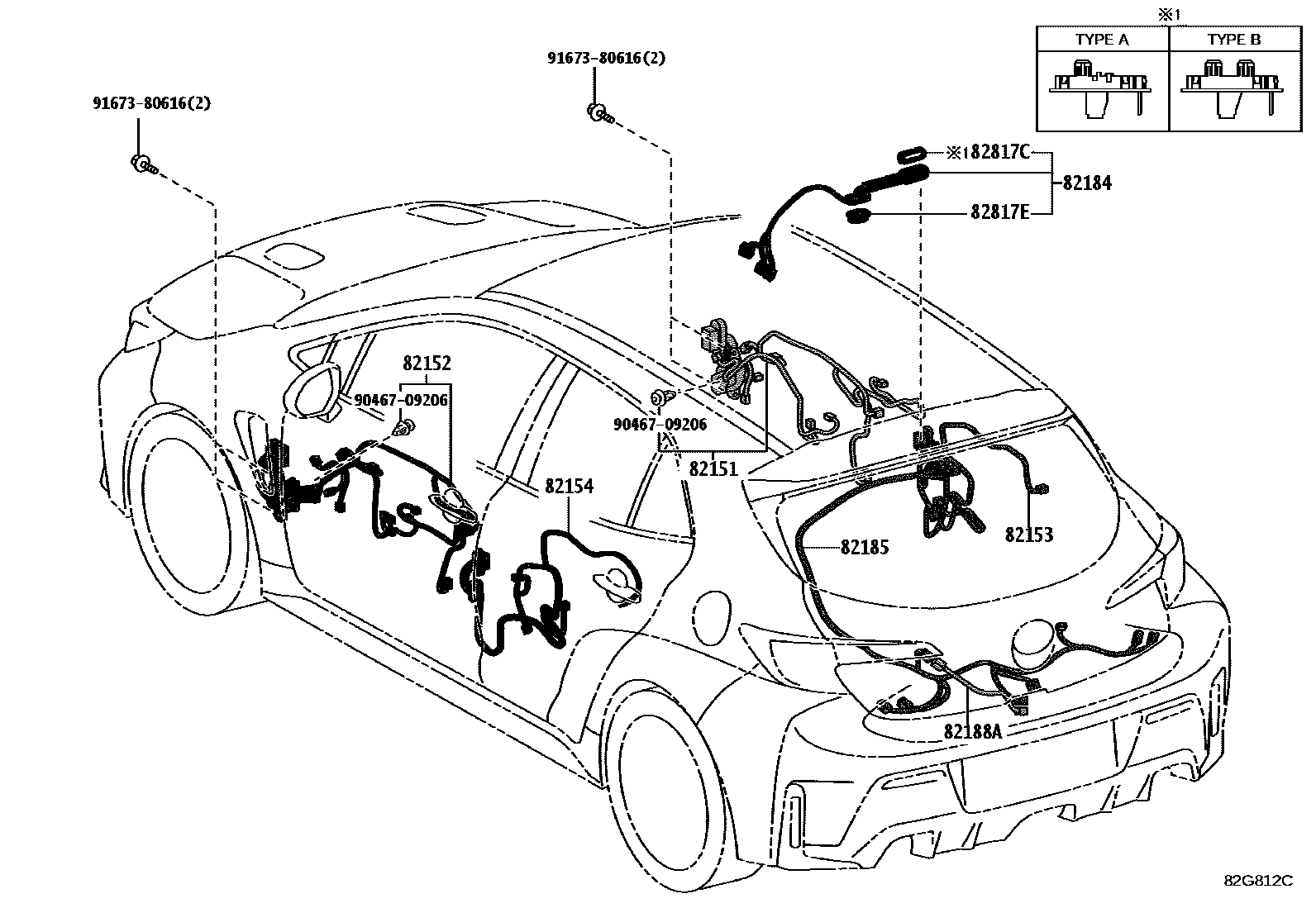

Toyota COROLLA 线束和卡夹 EPC diagram — 82G812C
线束和卡夹 — 82G812C (202210 – 999999)

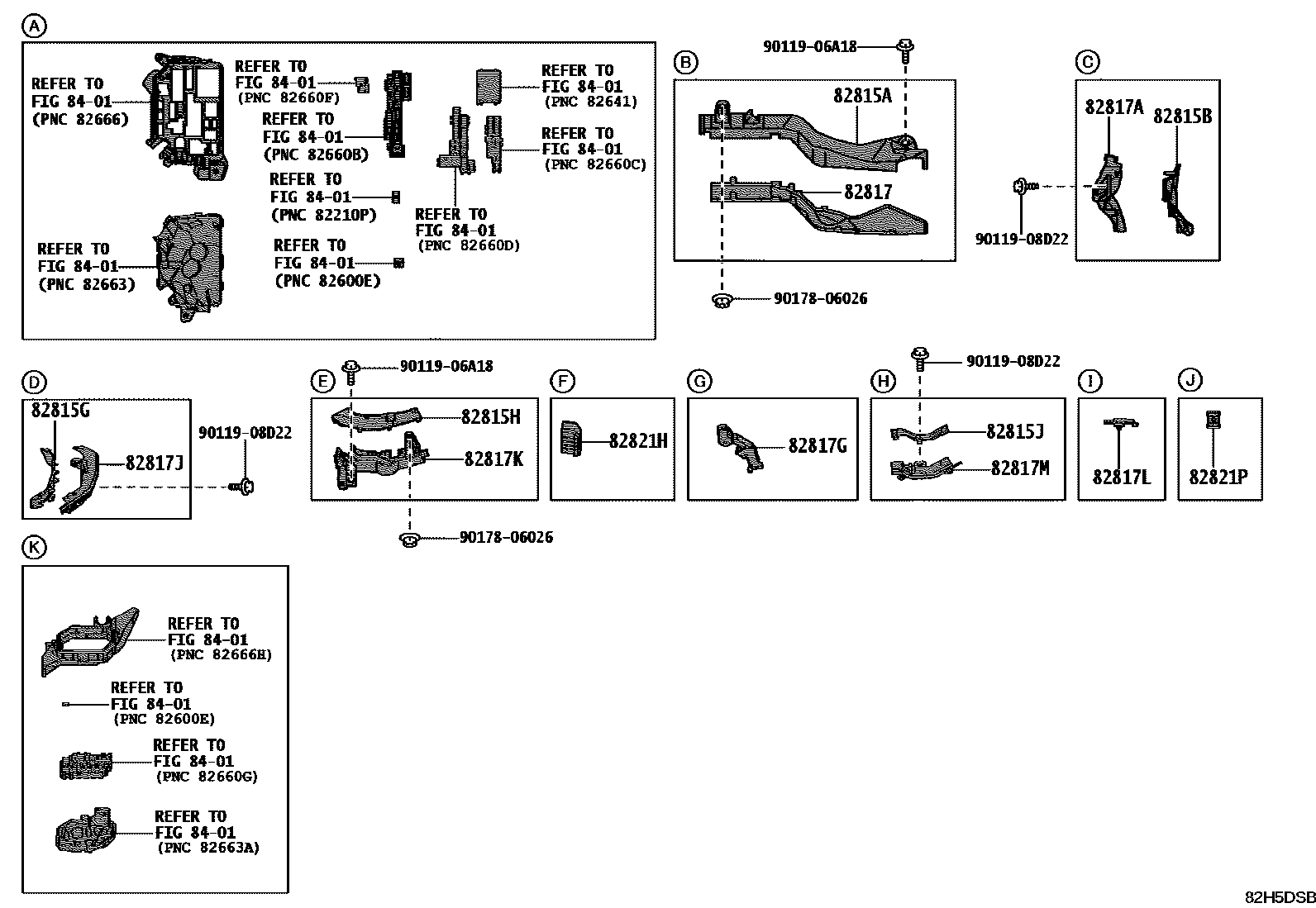

Toyota COROLLA 线束和卡夹 EPC diagram — 82H5DSB
线束和卡夹 — 82H5DSB (202210 – 999999)

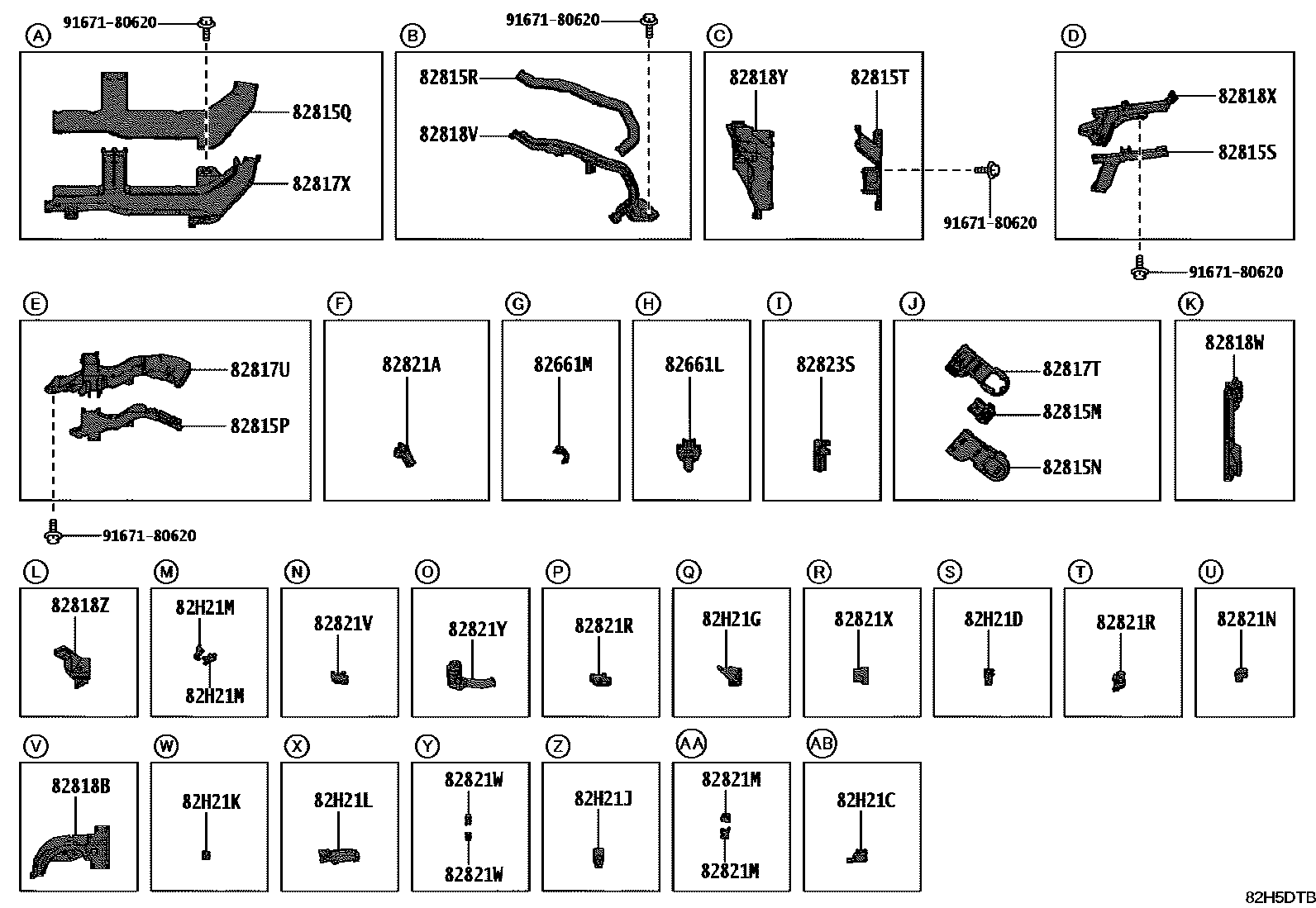

Toyota COROLLA 线束和卡夹 EPC diagram — 82H5DTB
线束和卡夹 — 82H5DTB (202210 – 999999)

PNC and OE references

PNCPart nameOE numbers
82111Engine room main wiring harness82111-1HP80 · 82111-1HP90 · 82111-1HP91 · 82111-1HP92 · 82111-1KN60 · 82111-1L751 · 82111-1LC00 · 82111-1LC20 · 82111-1LC30 · 82111-1LC40
82112Engine room wiring harness No. 282112-12240
82119CFIL, COMPARTIMENT MOTEUR, NO.582119-12100 · 82119-12110
82121Engine wiring harness82121-12R20 · 82121-12R21 · 82121-12W50
82125NEngine No. 5 wiring harness82125-52150
82126ACABLE, MOTEUR, NO.682126-52020
82127DEngine No. 7 wiring harness82127-12010
82141Dashboard wiring harness82141-1XE60 · 82141-1XE61 · 82141-1XE70 · 82141-1XM00 · 82141-1XP10 · 82141-1XP20 · 82141-1XP40 · 82141-1XP50 · 82141-1XP51 · 82145-12F80 · 82145-12F90 · 82145-12G00
82142Instrument panel wiring harness No. 282142-12670
82142AInstrument panel wiring harness No. 282140-12B60
82151Right front door wiring harness82151-1AF60 · 82151-1AJ30
82152Left front door wiring harness82152-1AE10 · 82152-1AG00
82153Rear door wiring harness No. 182153-12D40 · 82153-12D70
82154Rear door wiring harness No. 282154-12C90 · 82154-12D20
82161floor wiring harness82161-1EJ60 · 82161-1EJ70 · 82161-1EJ71 · 82161-1HC40 · 82161-1HC50 · 82161-1HJ90 · 82161-1HK00
82163Floor wiring harness No. 382163-12430
82163BNo. 5 floor wiring harness82165-12060
82164CNo. 4 floor wiring harness82164-12190
82169ACABLE, PLANCHER, NO.682169-12140 · 82169-52030
82171Roof No. 1 wiring harness82171-12W80 · 82171-1A740
82183Luggage No. 3 wiring harness82169-12040 · 82183-12100
82184Rear door No. 1 wiring harness82184-12C00 · 82184-12C50
82185Rear door wiring harness No. 282185-12A40 · 82185-12A70
82188ARear door No. 3 wiring harness82184-12A90
82191Front right seat wiring harness82191-12130
82219Csensor harness82219-52100
82284Ground wire82284-12030
82286ALine 282286-12050
82345Adiode82345-22051
82620Fuse box assembly82620-50230 · 82620-50260
82661HCACHE, BLOC RELAIS82661-12360
82661LCOUVERCLE DE BLOC DE RELAIS NO. 282661-76010
82661MCOUVERCLE DE BLOC DE RELAIS NO. 382661-76030
82662Relay box upper cover82662-12J10
82666AConnector holder No. 282666-48130
82666CNo. 4 connector holder82666-26180
82666ENo. 6 connector holder82666-12670
82666FNo. 7 connector holder82666-12680
82666GNo. 8 connector holder82666-12590
82666LNo. 9 connector holder82666-22070
82666NNo. 10 connector holder82666-26180
82666PNo. 11 Connector Block82666-60220
82675Terminal block82675-12360
82815AWiring harness protector cover82815-12600
82815BWiring harness protector cover82815-12630
82815GWiring harness protector cover82815-12L00
82815HWiring harness protector cover82815-12L10
82815JNo. 7 wire harness protector cover82815-12L40
82815MNo. 10 wire harness protector cover82815-33J10
82815NNo. 11 wire harness protector cover82815-33L00
82815PNo. 12 wire harness protector cover82815-52600
82815QNo. 13 wire harness protector cover82815-52620
82815RNo. 14 wire harness protector cover82815-52630
82815SNo. 15 wire harness protector cover82815-52650
82815TNo. 16 wire harness protector cover82815-52660 · 82815-52B60
82817No. 1 wire harness protection device82817-12N20
82817ANo. 2 wire harness protection device82817-12N60
82817BNo. 3 wire harness protection device82817-52N50
82817CNo. 4 wire harness protection device82817-12Q00 · 82817-1AA90
82817ENo. 6 wire harness protection device82817-47L50
82817GNo. 8 wire harness protection device82817-12W30
82817JNo. 9 wire harness protection device82817-12Y70
82817KNo. 10 wire harness protection device82817-12Y80
82817LNo. 11 wire harness protection device82817-12Z10
82817MNo. 12 wire harness protection device82817-12Z20
82817TNo. 15 wire harness protection device82817-33S70
82817UNo. 16 wire harness protection device82817-52L90
82817XNo. 17 wire harness protection device82817-52M10
82818BNo. 3 wire harness protection device82817-52T40
82818VPROTECTEUR, FAISCEAU DE FILS, NO.1882817-52M20
82818WPROTECTEUR, FAISCEAU DE FILS, NO.1982817-52M30
82818XPROTECTEUR, FAISCEAU DE FILS, NO.2082817-52M40
82818YPROTECTEUR, FAISCEAU DE FILS, NO.2182817-52M50 · 82817-52T50
82818ZPROTECTEUR, FAISCEAU DE FILS, NO.2282817-52M60
82821AConnector cover82821-12780
82821EConnector cover90980-12373
82821HConnector cover82821-48270
82821MConnector cover82821-30600
82821NCOUVERCLE, CONNECTEUR82821-33420
82821PCOUVERCLE, CONNECTEUR82821-30650
82821RConnector cover82821-33690
82821VConnector cover82821-33770
82821WConnector cover82821-33780
82821XConnector cover82821-33870
82821YCOUVERCLE, CONNECTEUR82821-48100
82823SBOUCHON, BORNE DEMARREUR82823-20080
82H21CCACHE, CONNECTEUR82821-02110
82H21DCACHE, CONNECTEUR82821-50860
82H21GCACHE, CONNECTEUR82821-52290
82H21JCACHE, CONNECTEUR82821-33410
82H21KCACHE, CONNECTEUR82821-33810
82H21LCACHE, CONNECTEUR82821-33680
82H21MCACHE, CONNECTEUR82821-33700
