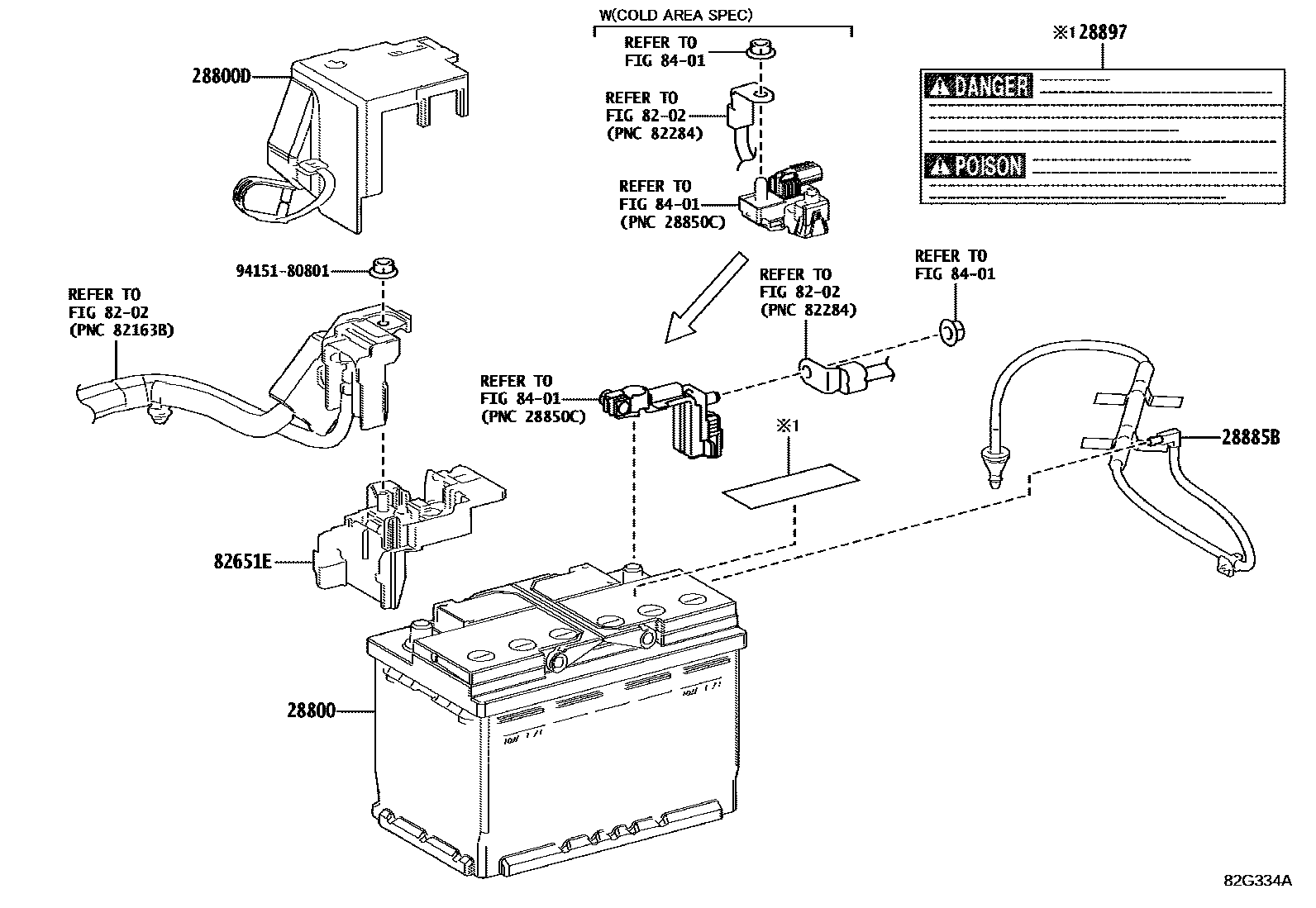

Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-31451 · 28800-31452 · 28800-31453 · 28800-31571 · 28800-31572 · 28800-31573 |
| 28800D | Connector cover (for battery terminals) | 82821-50730 |
| 28885B | battery hose | 28885-18020 · 28885-18050 |
| 28897 | Battery warning nameplate | 28897-31021 · 28897-46020 |
| 82651E | BLOC, TERMINAL | 82651-50010 |
