Toyota COROLLA Headlamp — Figure 8101

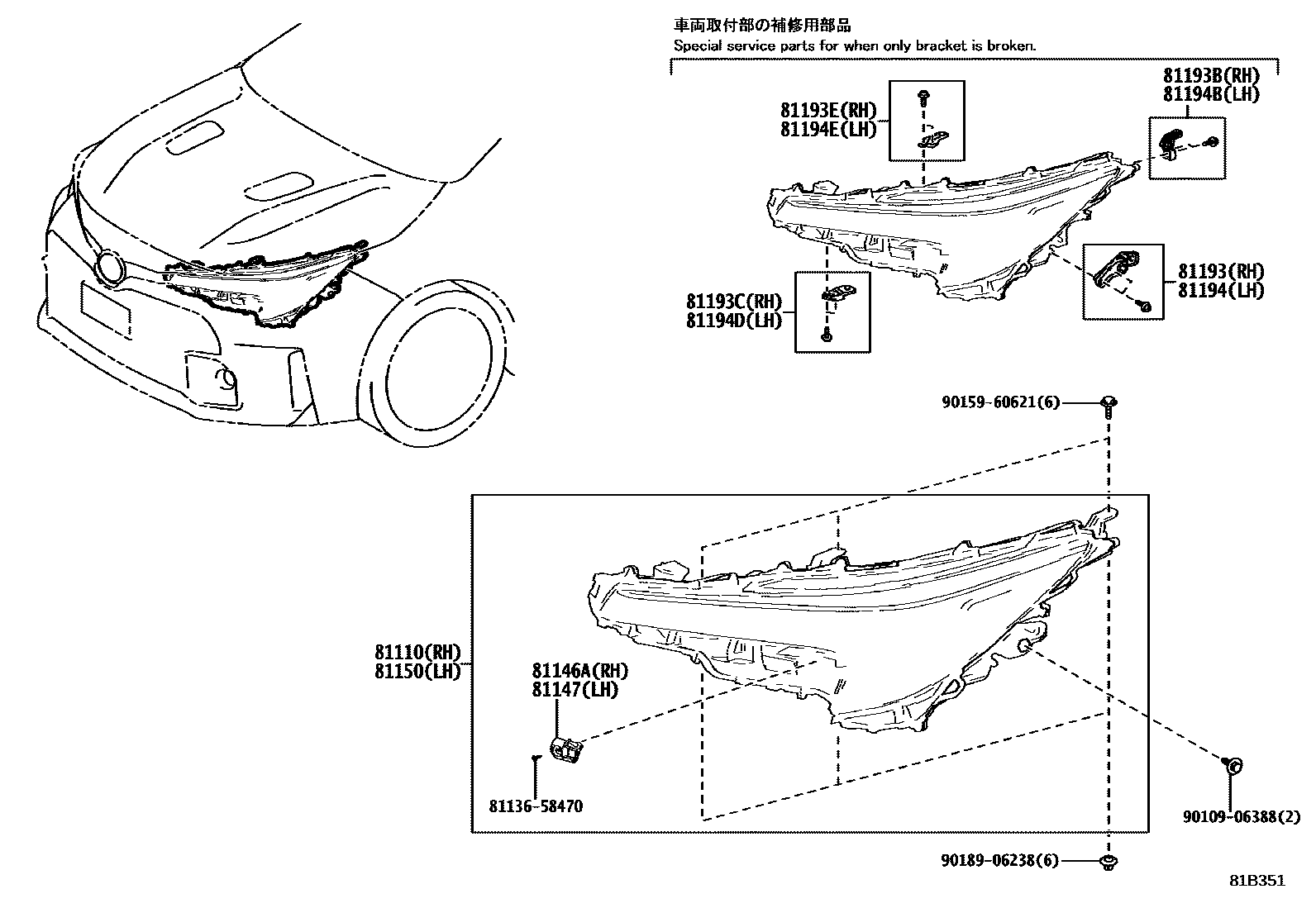

Toyota COROLLA EPC diagram 8101, Headlamp, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-12N20 |
| 81146A | Right headlight accessories | 81146-12L00 |
| 81147 | Left headlight accessories | 81186-12L00 |
| 81150 | Left headlight assembly | 81150-12N20 |
| 81193 | Right headlight upper protective ring | 81193-12250 |
| 81193B | No. 2 headlight upper protection ring on the right | 81193-12260 |
| 81193C | Right headlight upper right protection ring | 81193-12270 |
| 81193E | RETENUE, PROTECTEUR PHARE, SUP. DR. NO.3 | 81193-12280 |
| 81194 | Left headlight upper protective ring | 81194-12250 |
| 81194B | No. 2 headlight upper protective ring on the left | 81194-12260 |
| 81194D | Left headlight upper left protective ring | 81194-12270 |
| 81194E | RETENUE, PROTECTEUR PHARE, SUP. GAUCHE NO.3 | 81194-12280 |
