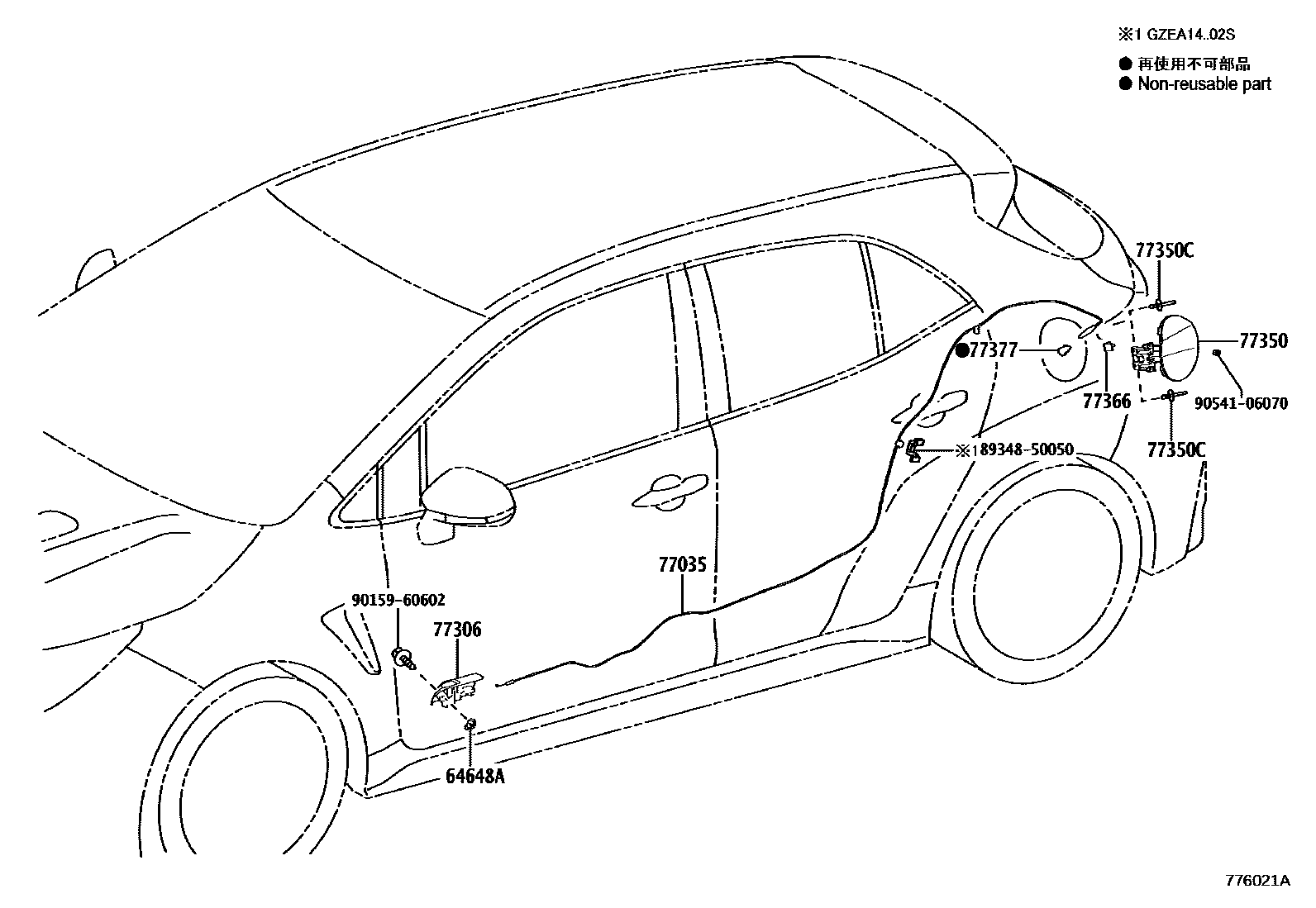

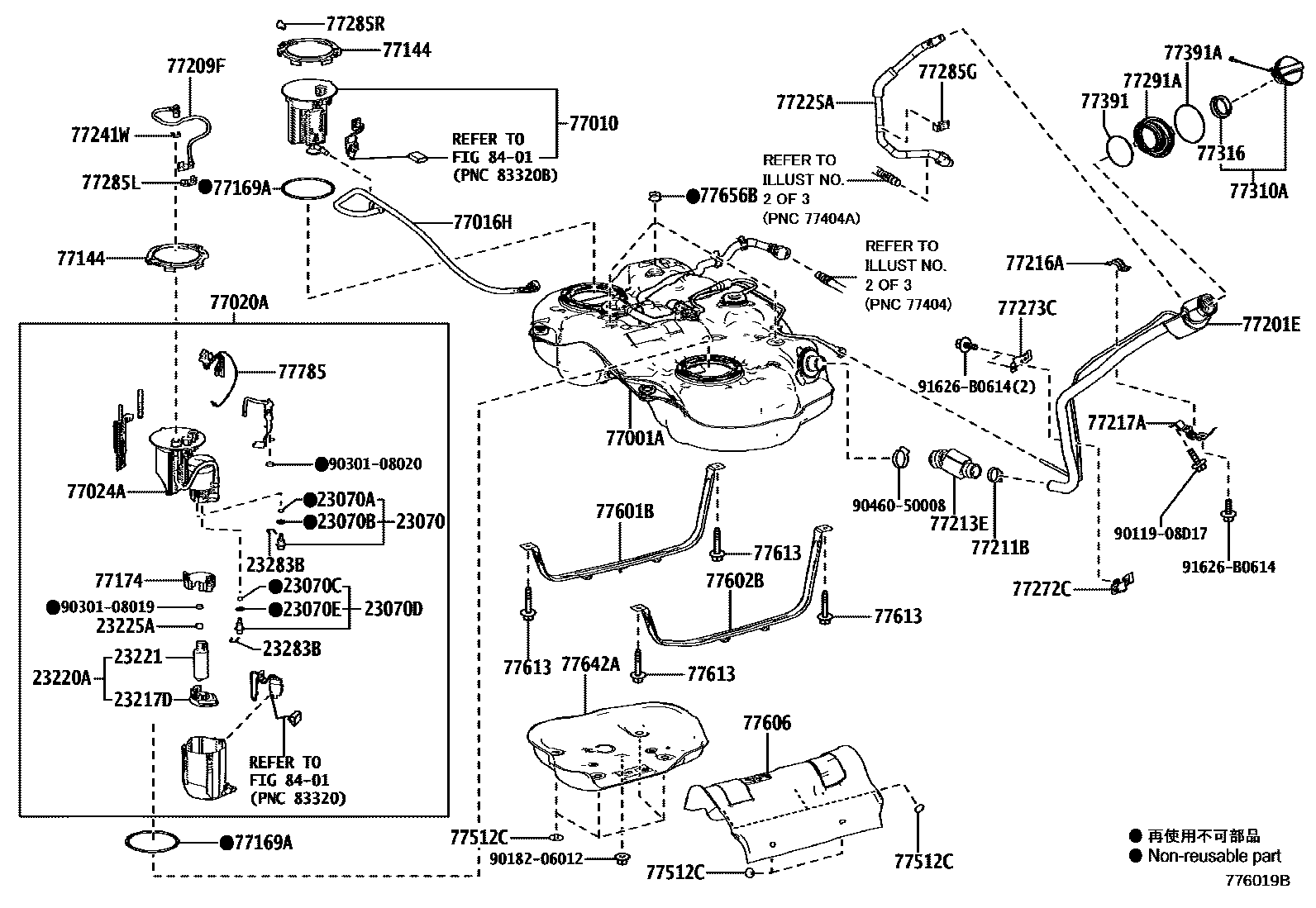

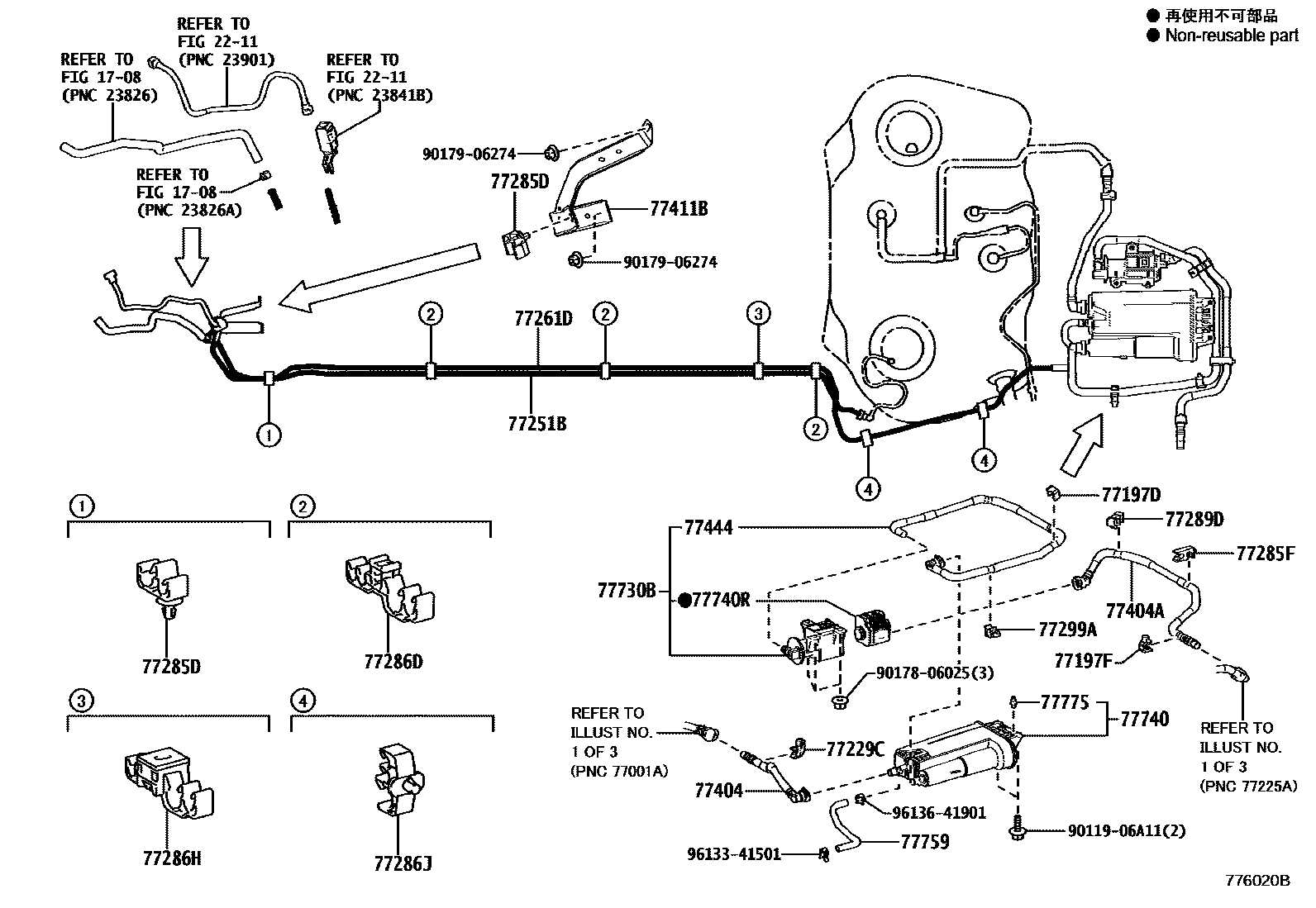

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 3 images and 73 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-31030 |
| 23070A | JOINT, TORIQUE, NO.1(POUR SOUP PRINC CARB) | 90301-04013 |
| 23070B | JOINT, TORIQUE, NO.2(POUR SOUP PRINC CARB) | 90301-15024 |
| 23070C | JOINT, TORIQUE, NO.3(POUR SOUP PRINC CARB) | 90301-04013 |
| 23070D | ENS. SOUPAPE, PRINC CARBURANT, NO.2 | 23070-36010 |
| 23070E | JOINT, TORIQUE, NO.4(SOUP PRNC CARB) | 90301-15024 |
| 23217D | fuel pump filter | 23217-31080 |
| 23220A | Fuel pump assembly with filter | 23220-31330 |
| 23221 | fuel pump | 23221-31130 |
| 23225A | fuel pump septum | 23225-31010 |
| 23283B | SUPPORT REGULATEUR PRESSION ESSENCE | 23283-36010 |
| 64648A | Trunk door lock opener seal | 64648-32020 |
| 77001A | Fuel tank sub-assembly | 77001-12C80 |
| 77010 | Fuel tank vent pipe assembly | 77010-10180 |
| 77016H | Fuel return ventilation pipe sub-assembly | 77016-12070 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-12B40 |
| 77024A | Fuel absorber sub-assembly | 77024-12270 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-12670 · 77035-12740 |
| 77144 | Fuel pump instrument fixture | 77144-30030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-47040 |
| 77174 | No. 1 oil suction pipe bracket | 77174-78010 |
| 77197D | No. 2 evaporation vent pipe clamp | 77197-42020 |
| 77197F | No. 2 evaporation vent pipe clamp | 77197-47010 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-12D20 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-12380 |
| 77211B | Clamp (for fuel filler tube) | 90460-40007 |
| 77213E | Fuel tank to filler pipe hose | 77213-52270 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-53020 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-47090 |
| 77225A | No. 5 fuel evaporation vent pipe | 77225-12060 |
| 77229C | Snorkel clamp | 77229-30060 |
| 77241W | Pipe joint clip | 77241-60550 |
| 77251B | main fuel pipe | 77251-12A40 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-12740 |
| 77272C | SUPPORT NO. 3 TUBE RENIFLARD | 77274-42010 |
| 77273C | No. 2 snorkel holder | 77273-42020 |
| 77285D | No. 1 fuel pipe clamp | 77286-75010 |
| 77285F | No. 1 fuel pipe clamp | 77285-42190 |
| 77285G | No. 1 fuel pipe clamp | 77285-47120 |
| 77285L | No. 1 fuel pipe clamp | 77285-12210 |
| 77285R | No. 1 fuel pipe clamp | 77285-30350 |
| 77286D | No. 2 fuel pipe clamp | 77298-10070 |
| 77286H | No. 3 fuel pipe clamp | 77298-10080 |
| 77286J | No. 4 fuel pipe clamp | 77286-47050 |
| 77289D | No. 5 fuel pipe clamp | 77299-50030 |
| 77291A | Fuel tank filler pipe cover | 77291-12260 |
| 77299A | No. 5 fuel pipe clamp | 77299-12060 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-12020 |
| 77310A | Fuel tank cap assembly | 77300-53030 |
| 77316 | fuel tank cap gasket | 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-12580 |
| 77350C | rivets | 90269-06017 |
| 77366 | Fuel filler cap hinge spring | 77366-52011 · 77366-52030 |
| 77377 | Fuel filler cap lock retainer | 77377-12090 · 77377-12100 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-33060 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-12240 |
| 77404A | Fuel tank vent hose sub-assembly | 77404-12250 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-12020 |
| 77444 | fuel tank vent hose | 77404-12230 |
| 77512C | SUPPORT, RESERVOIR CARB | 77512-35140 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-52070 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-52020 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-12240 |
| 77613 | Fuel tank strap fixing bolts | 90119-10995 |
| 77642A | No. 2 fuel tank protective shell | 77642-52120 |
| 77656B | No. 6 fuel tank liner | 77656-30030 |
| 77730B | ENS. CARTOUCHE, CHARBON AV TUYAU SORTIE | 77730-12040 |
| 77740 | Carbon canister assembly | 77740-33220 |
| 77740R | Leak detection pump sub-assembly | 90910-14008 |
| 77759 | Carbon canister hose | 77759-12130 |
| 77775 | Carbon canister outlet duct | 77775-33010 |
| 77785 | fuel pump wiring harness | 77785-33150 |
