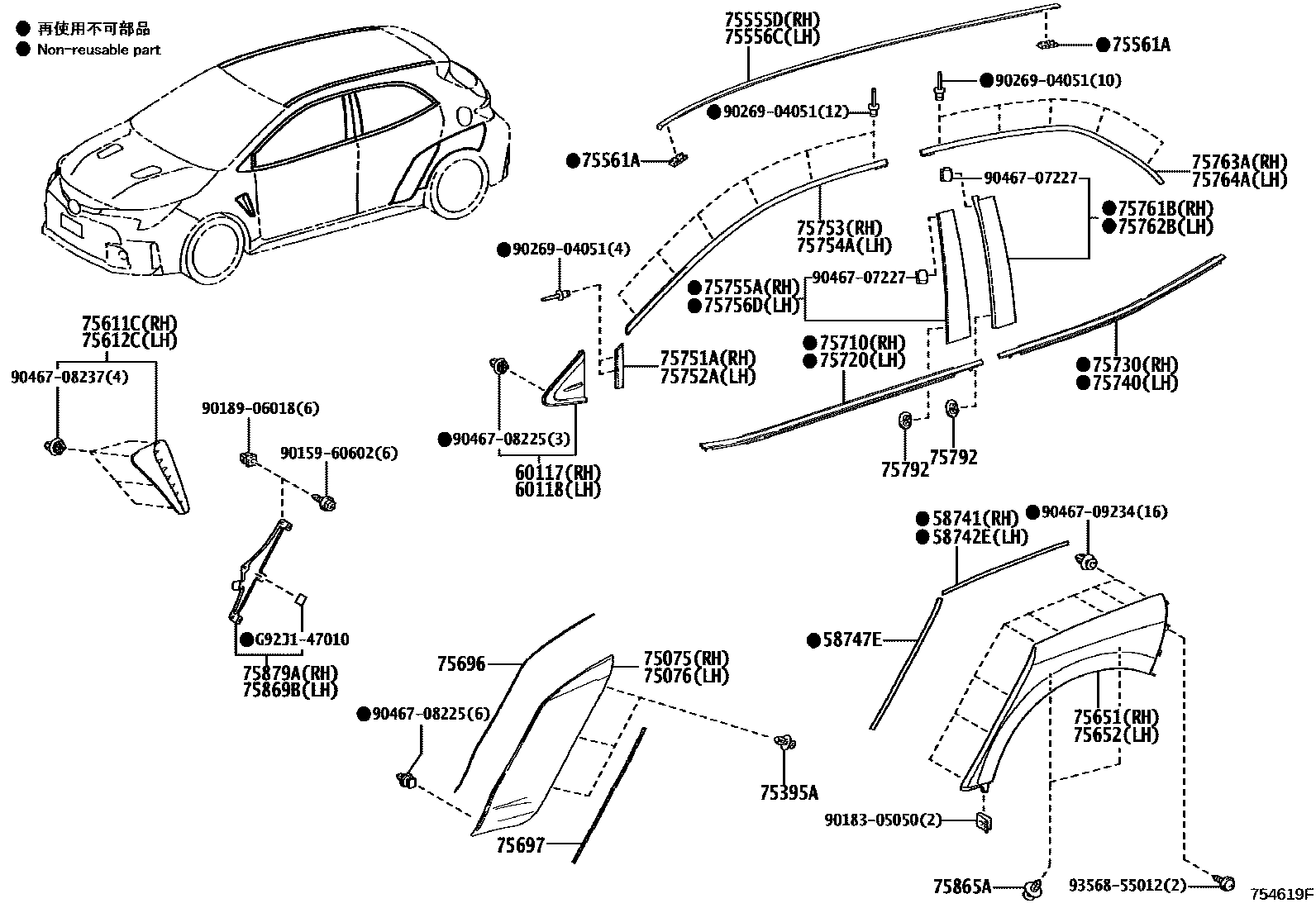

Toyota COROLLA 侧防护条 — Figure 7503
Toyota COROLLA EPC diagram 7503, 侧防护条, with 2 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58741 | PROTECTEUR DE PANNEAU DROIT DE CUSTODE | 58747-12020 |
| 58742E | PROTECTEUR DE PANNEAU GAUCHE DE CUSTODE | 58747-12020 |
| 58747E | Rear side panel protectors | 75687-12030 |
| 60117 | Right front pillar upper cover sub-assembly | 60117-12070 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-12070 |
| 75075 | Right rear door outer protective strip sub-assembly | 75061-12902 |
| 75076 | Left rear door outer protective strip sub-assembly | 75062-12902 |
| 75395A | No. 1 outer protective strip clip | 90467-05170 |
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-12210 · 75555-12240 · 75555-12250 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75556-12220 · 75556-12260 · 75556-12270 |
| 75561A | Roof drain channel side decorative strip clip | 75561-33030 · 75561-52050 |
| 75611C | Right front fender outer protective strip | 75611-12430 |
| 75612C | Left front fender outer protective strip | 75612-12390 |
| 75651 | Right side outer protective strip | 75651-12918 |
| 75652 | Left side outer protective strip | 75652-12918 |
| 75696 | No. 1 body outer protective strip lining | 75696-12100 |
| 75697 | No. 2 body outer protective strip lining | 75697-12050 |
| 75710 | Right front door waistline protection strip assembly | 75710-12890 |
| 75720 | Left front door waistline protection strip assembly | 75720-12A30 |
| 75730 | Right rear door waistline protection strip assembly | 75730-12441 |
| 75740 | Left rear door waistline protection strip assembly | 75740-12531 |
| 75751A | MOULURE, CADRE VITRE PORTE AV, MD(COTE MONTANT AV) | 75751-12250 |
| 75752A | MOULURE, CADRE VITRE PORTE AV, MG(COTE MONTANT AV) | 75752-12250 |
| 75753 | Protective strip on right front door window frame | 75753-12100 |
| 75754A | Protective strip on left front door window frame | 75754-12080 |
| 75755A | MOULURE, CADRE VITRE PORTE AV, MD(COTE MONTANT CTRL) | 75755-12140 |
| 75756D | MOULURE, CADRE VITRE PORTE AV, MG(COTE MONTANT CTRL) | 75756-12160 |
| 75761B | MOULURE, CADRE VITRE PORTE ARR, MD(COTE MONTANT CTRL) | 75761-12090 |
| 75762B | MOULURE, CADRE VITRE PORTE ARR, MG(COTE MONTANT CTRL) | 75762-12090 |
| 75763A | Protective strip on right rear door window frame | 75763-12110 |
| 75764A | Protective strip on left rear door window frame | 75764-12120 |
| 75792 | Car door window frame protective strip clip | 75792-47010 |
| 75850C | OEILLET, NO.1 | 90189-06237 |
| 75851 | Right side door sill panel protective strip | 75851-12907 |
| 75851C | VIS(POUR MOULURE BAS DE CAISSE CARROSSERIE) | 90162-40034 |
| 75851F | OEILLET(MOULURE BAS DE CAISSE CARROSSERIE) | 90189-06006 |
| 75852 | Left side door sill panel protective strip | 75852-12907 |
| 75865A | Rear side panel protective strip clip | 90467-07220 |
| 75867A | Door sill panel protective strip clip | 75867-33040 |
| 75869B | Left side panel opening fixing | 75879-12030 |
| 75879A | Right side panel opening fixing | 75869-12050 |
