Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

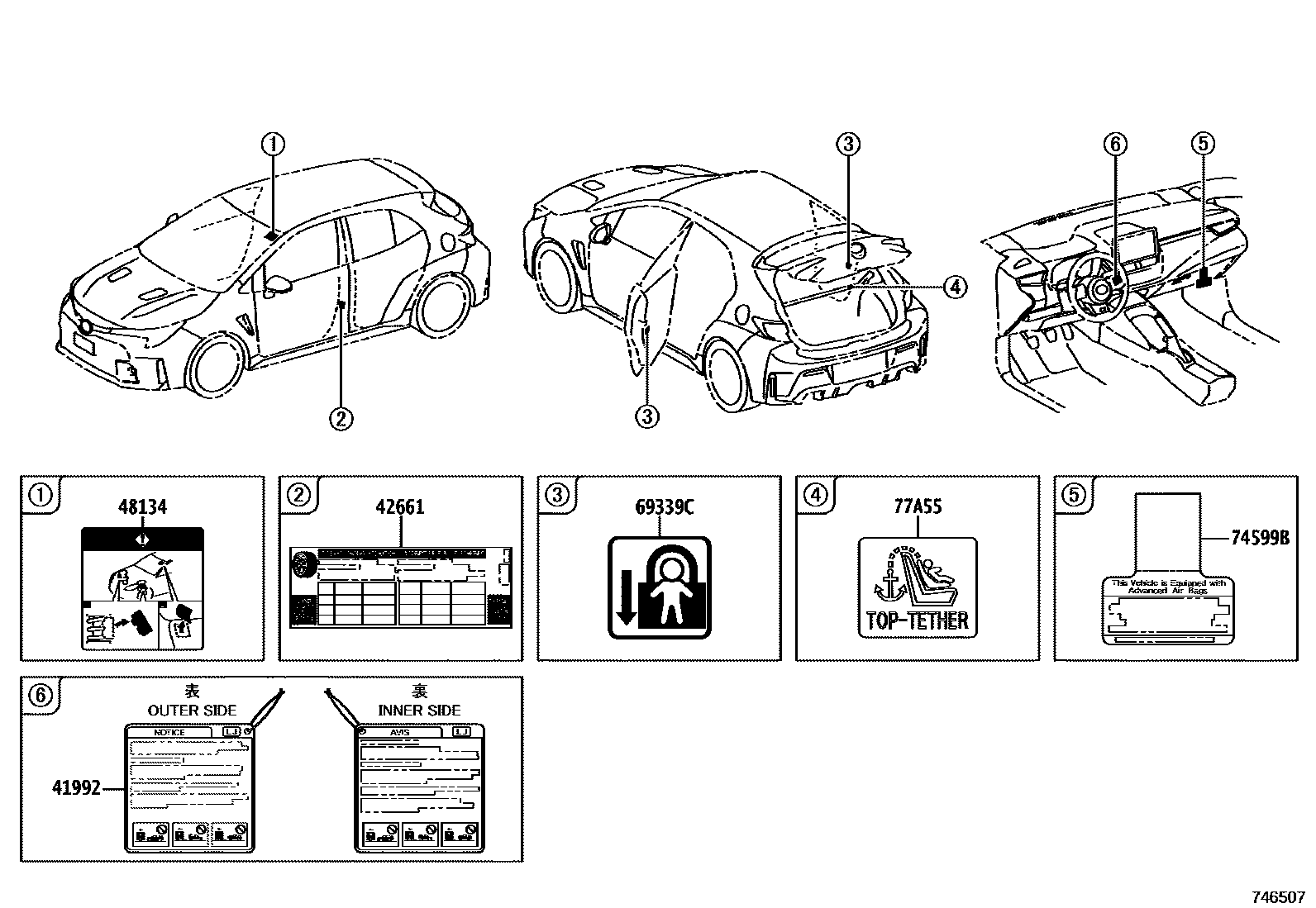

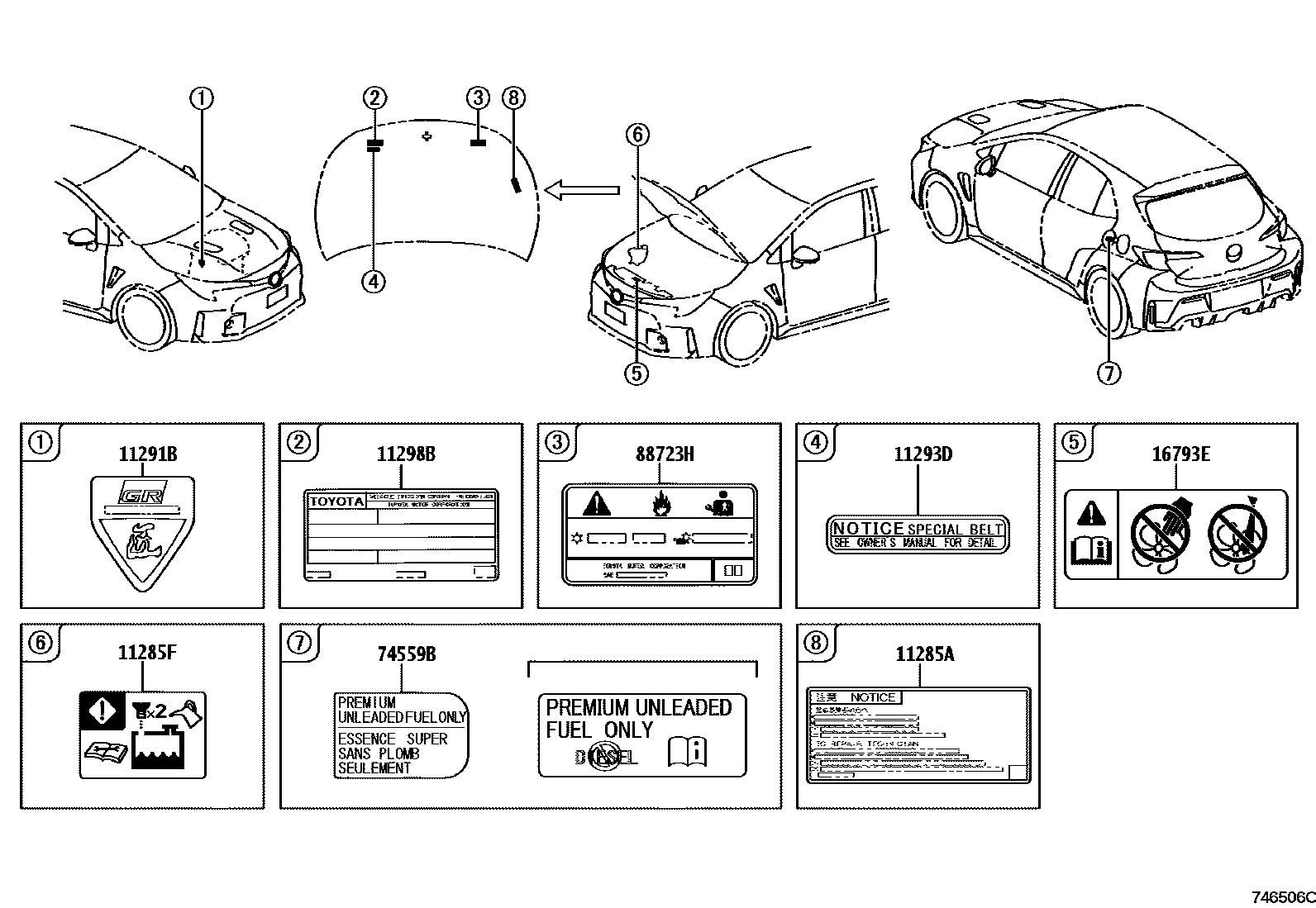

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-47010 |
| 11285F | ETIQUETTE, AVERT.SUR LE SYSTEME DE LIQUIDE DE REFROID. | 11285-11030 |
| 11291B | PLAQUE INDICATRICE DE MOTEUR | 11291-18030 · 11291-18050 |
| 11293D | engine warning label | 11295-33010 |
| 11298B | Emission Control Information Label | 11298-18020 · 11298-18021 · 11298-18022 |
| 16793E | ETIQUETTE, PRECAUTION VENT REFROIDISSEMENT | 16793-36030 |
| 41992 | Differential attention label | 41992-42030 |
| 42661 | ETIQUETTE, INFORMATIONS PRESSION PNEUS | 42661-12L20 · 42661-12T80 · 42661-12V00 |
| 48134 | ETIQUETTE, AVIS ENTRETOISE RESSORT HELICOIDAL AVANT | 48134-12010 |
| 69339C | Child Restraint Information Label | 69339-33040 |
| 74559B | fuel information label | 74559-20110 · 74559-60030 |
| 74599B | Driver and passenger air bag information labels | 74599-48020 |
| 77A55 | ETIQUETTE, INFORMATIONS MARQUE CERTIFICATION | 77A55-12010 |
| 88723H | Cooler maintenance warning label | 88723-12350 |
