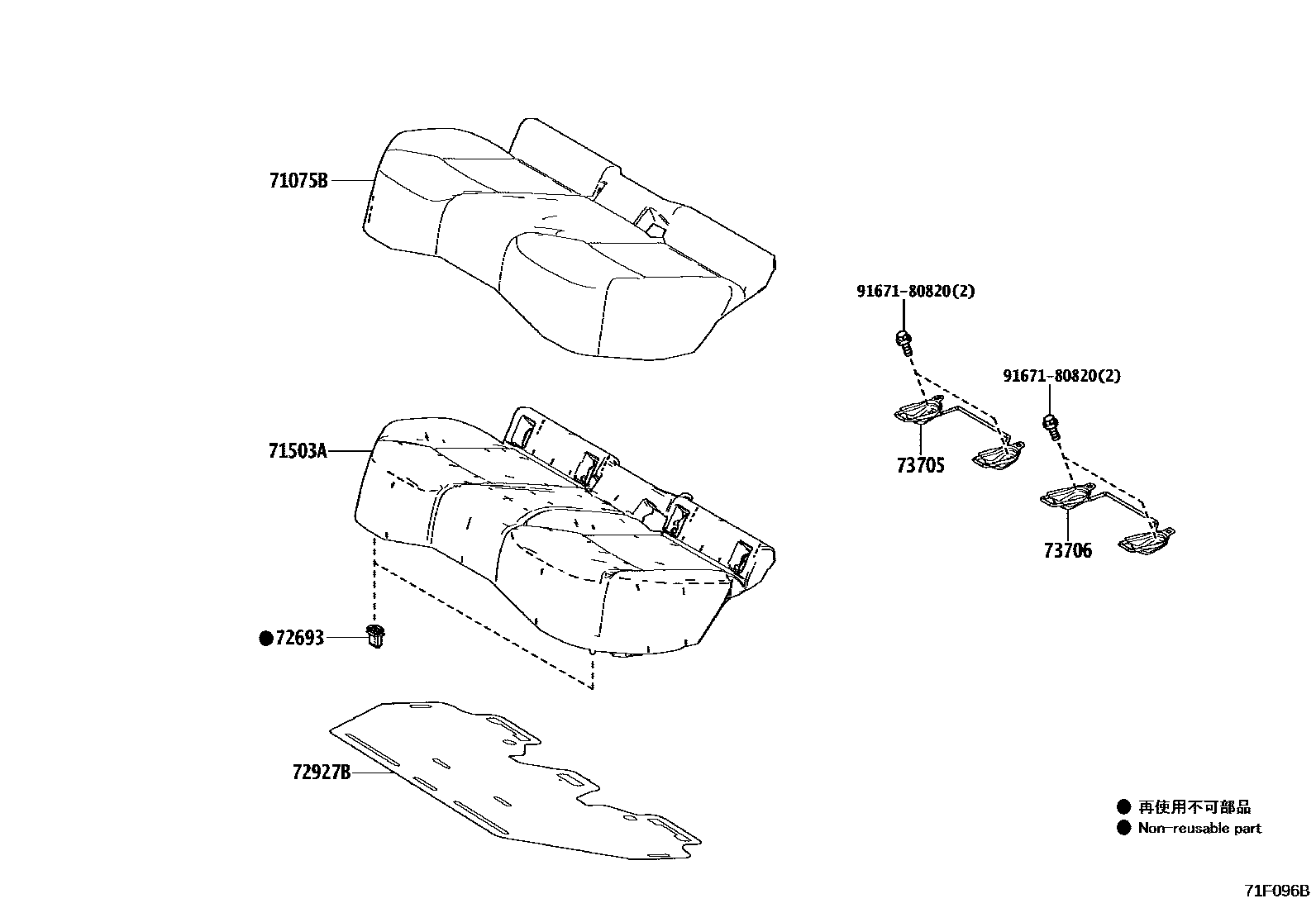

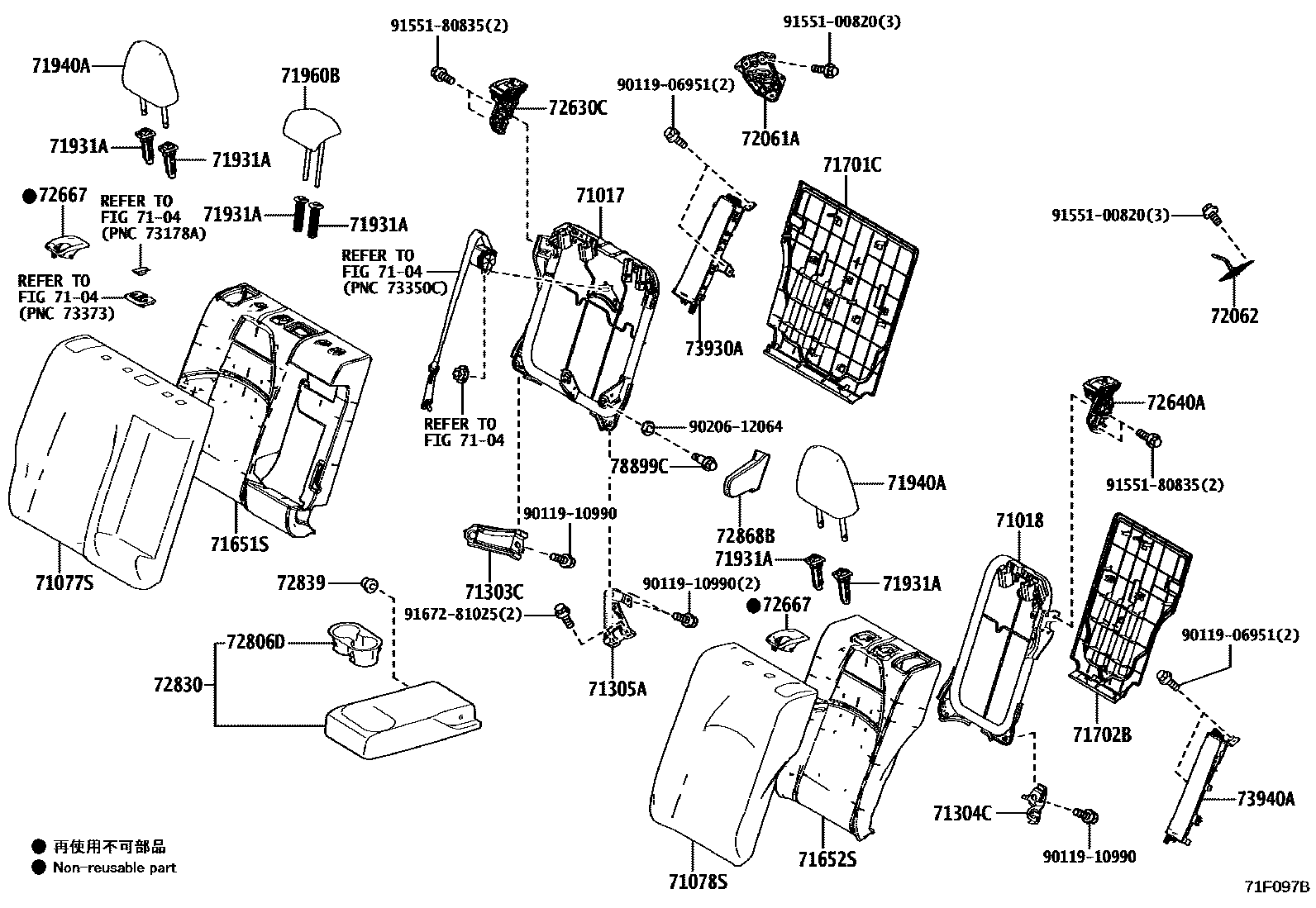

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-12C20 |
| 71018 | Rear left seat back frame sub-assembly | 71018-12540 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-12230 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-12100 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-47040 |
| 71503A | SS-ENS. REMBOURRAGE, COUSSIN SIEGE ARRIERE | 71503-12540 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-12B90 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-12A20 |
| 71701C | Rear right seat back panel sub-assembly | 71701-12010 |
| 71702B | Rear left seat back panel sub-assembly | 71702-12010 |
| 72061A | SOUS-ENS. BASE, VERROUILLAGE ARRIERE DE SIEGE ARRIERE, MD | 72061-12020 |
| 72062 | SOUS-ENS. BASE, VERROUILLAGE ARRIERE DE SIEGE ARRIERE, MG | 72062-12020 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72839 | Rear seat armrest hinge gasket | 72839-22010 |
| 72927B | Rear seat cushion lower cover | 72927-12030 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-12170 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73705-12180 |
| 78899C | BOULON, SIEGE AUX ARR | 78899-60070 |
