Toyota COROLLA 中央扶手箱和支架 — Figure 5806

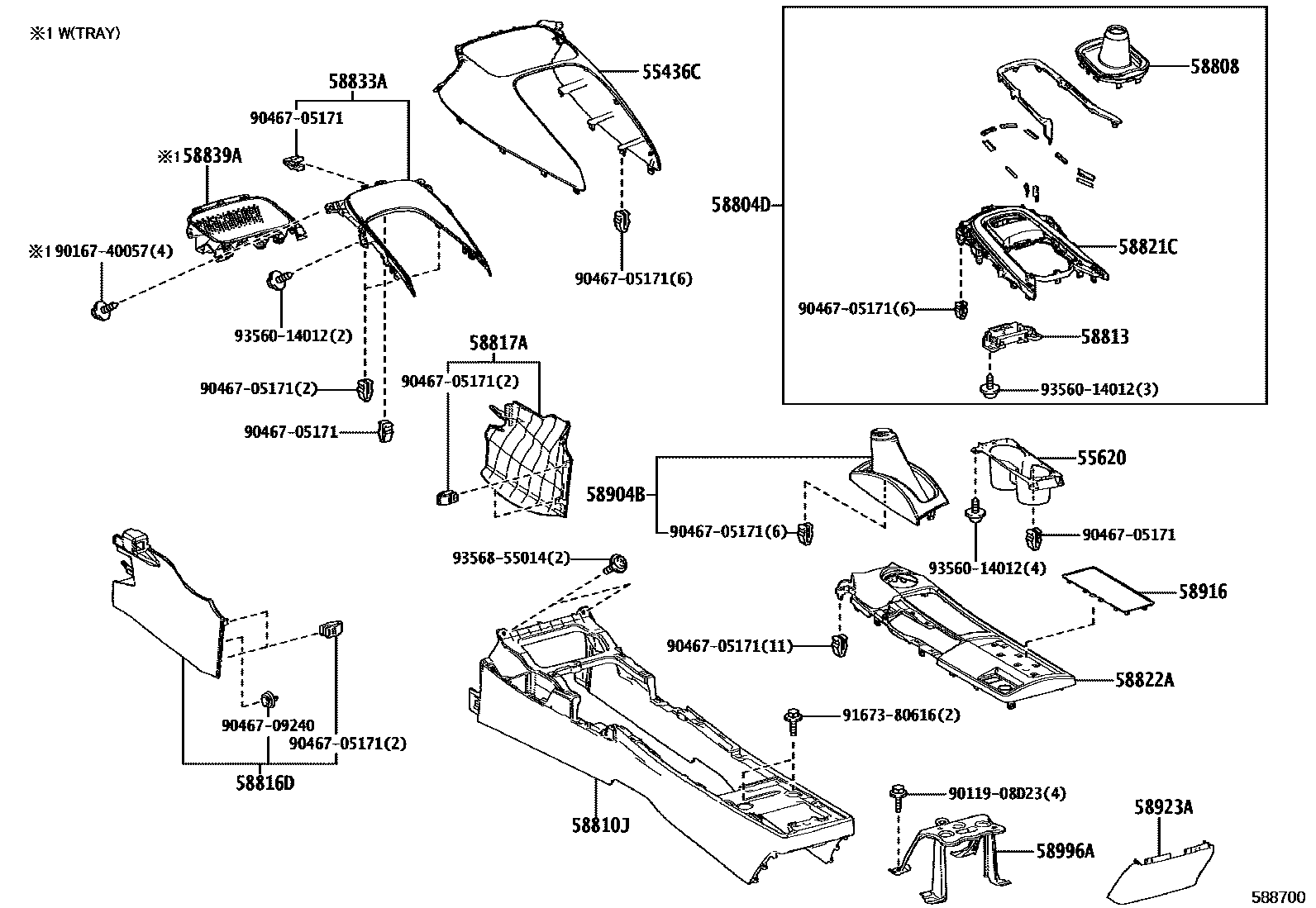

Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58813 | Upper armrest box | 58813-12180 · 58813-12190 |
| 58821C | Armrest box upper panel | 58821-12370 · 58821-12380 |
| 58822A | Rear armrest box upper panel | 58822-12410 · 58822-12411 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-12270 |
