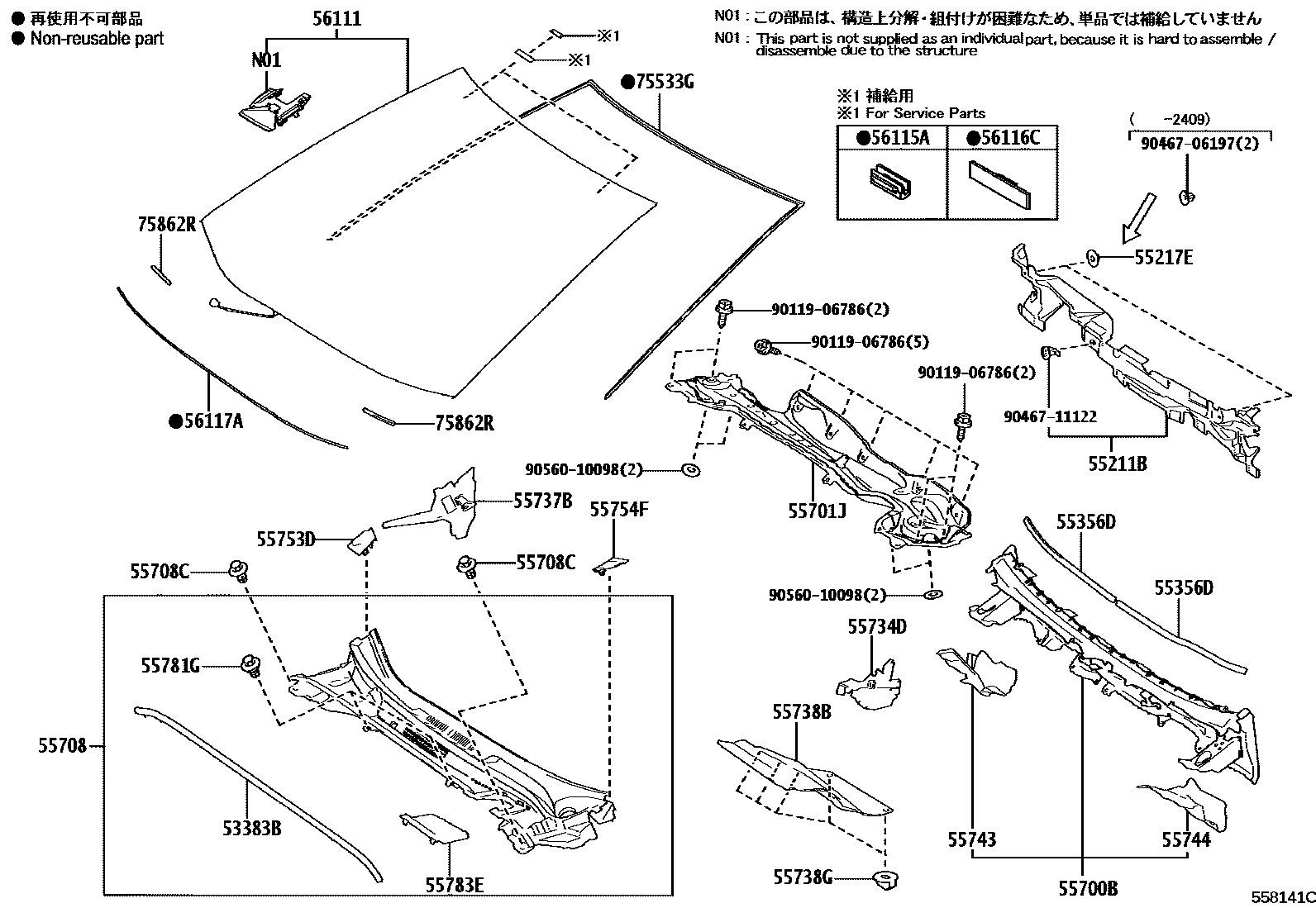

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-12230 |
| 55211B | Front panel silencer | 55211-12780 |
| 55217E | ARRETOIR, SILENCIEUX TABLEAU DE BORD | 55217-51010 |
| 55356D | Dashboard No. 2 Cushion Pad | 55356-12260 |
| 55700B | ENS. AUVENT | 55700-12C30 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-12B90 |
| 55708 | SOUS-ENS. AERATEUR, VENTILATEUR DESSUS DE TABLIER | 55708-12570 · 55708-12580 |
| 55708C | ATTACHE, AERATEUR VENT DESSUS TABLIER | 90467-09242 |
| 55734D | PLAQUE, PROTECTION EAU | 55734-12260 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-12160 |
| 55738B | Front panel cover No. 1 protective piece | 55738-12160 |
| 55743 | Right front upper outer corner panel | 55743-12080 |
| 55744 | Left front upper outer corner panel | 55744-12080 |
| 55753D | Right front water pumping device guard | 55753-12140 |
| 55754F | PROTECTION, EXTRACTION EAU AUVENT, MG | 55754-12080 |
| 55781G | Ventilation grille clips on front apron | 90467-07224 |
| 55783E | AERATEUR, VENT DESSUS TABLIER, CENTRAL | 55783-12340 |
| 56111 | windshield | 56101-1A900 · 56101-1A901 · 56101-1A934 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 75533G | Windshield outer protective strip | 75533-12710 |
| 75862R | PROTECTION, MOULURE BAS DE CAISSE, NO.2 | 75862-24030 |
