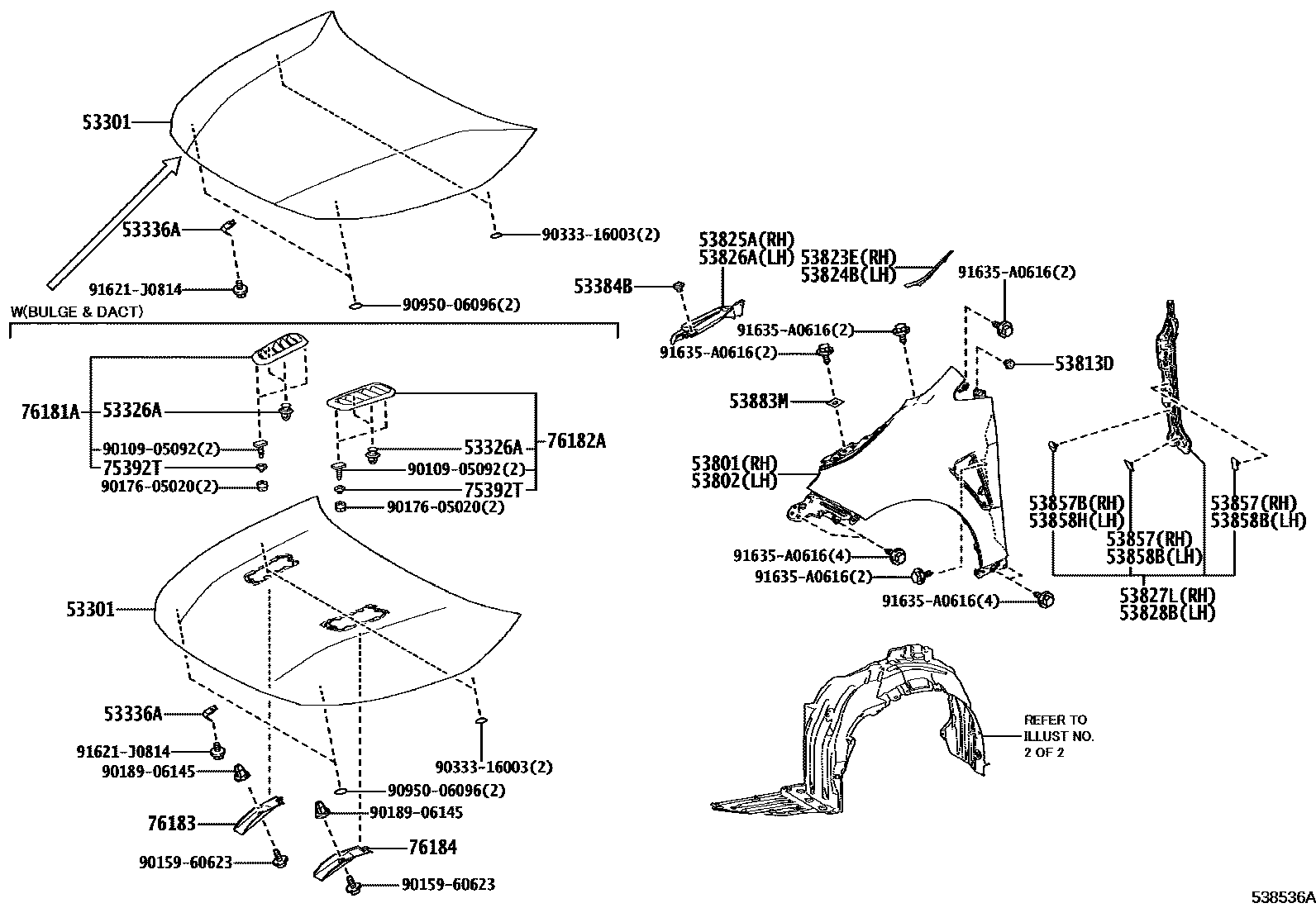

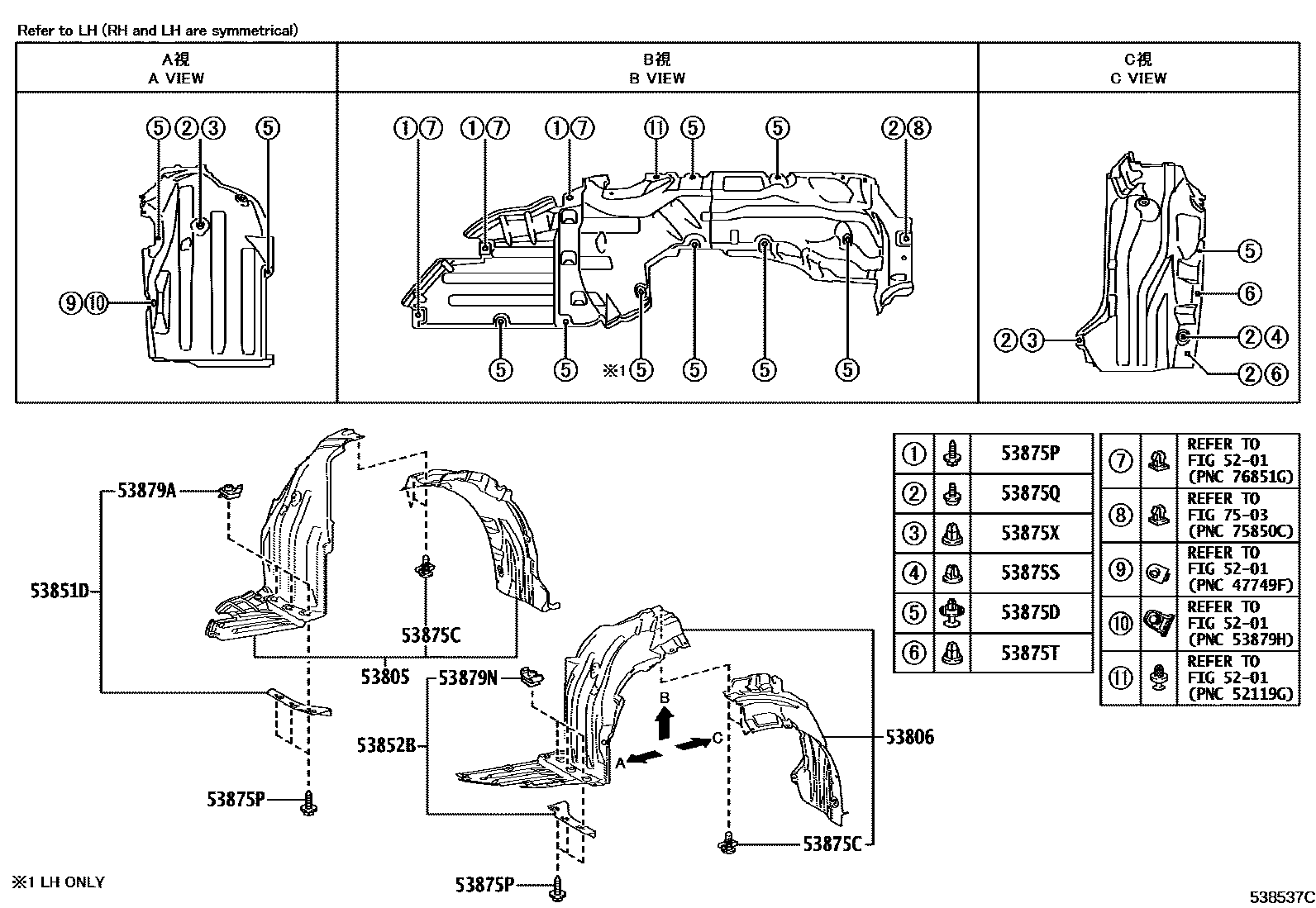

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-12B50 · 53301-12B90 |
| 53326A | ATTACHE, MOULURE DU CAPOT | 75867-33030 |
| 53336A | Engine cover strut bracket | 53336-12020 |
| 53384B | Engine cover center cushion | 53384-78010 |
| 53801 | Right front fender sub-assembly | 53801-12B40 |
| 53802 | Left front fender sub-assembly | 53802-12B40 |
| 53805 | Right front fender splash guard sub-assembly | 53805-12150 |
| 53806 | Left front fender splash guard sub-assembly | 53806-12150 |
| 53813D | front fender extension | 53813-47040 |
| 53823E | No. 2 right front side panel protector | 53823-12060 |
| 53824B | No. 2 left front side panel protector | 53824-12050 |
| 53825A | Right front fender protection piece | 53825-12100 |
| 53826A | Protection piece on left front fender | 53826-12080 |
| 53827L | Right front fender side panel protector | 53827-12150 |
| 53828B | Left front fender side panel protector | 53828-12150 |
| 53851D | Right front fender outer panel pad | 53851-12190 |
| 53852B | Left front fender exterior panel pad | 53852-12190 |
| 53857 | Right front fender external panel fixing piece | 53857-12010 |
| 53857B | Right front fender external panel fixing piece | 53857-47011 |
| 53858B | Left front fender external panel fixing piece | 53857-12010 |
| 53858H | RETENUE, EXTENSION D'OUVERTURE DE ROUE AVANT, GA | 53857-47011 |
| 53875C | Front fender lining clip | 90467-05127 |
| 53875D | AGRAFE DE FIXATION DOUBLURE AILE AVANT, NO.2 | 90467-07214 |
| 53875P | VIS, NO.1 | 90159-60477 |
| 53875Q | VIS, NO.2 | 90159-60623 |
| 53875S | OEILLET, NO.1 | 90189-06006 |
| 53875T | OEILLET, NO.2 | 90189-06145 |
| 53875X | OEILLET, NO.3 | 90189-06236 |
| 53879A | Front fender lining fixing parts | 53879-47020 |
| 53879N | Left front fender lining fixing | 53879-47020 |
| 53883M | front fender seal | 53882-33060 |
| 75392T | RETENUE MOULURE EXTERIEURE NO. 1 | 75392-50030 |
| 76181A | RENFLEMENT, CAPOT, MD | 76181-12030 |
| 76182A | RENFLEMENT, CAPOT, MG | 76182-12030 |
| 76183 | Engine cover bump protector No. 1 | 76183-12040 |
| 76184 | No. 2 engine cover bump protector | 76184-12040 |
