Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

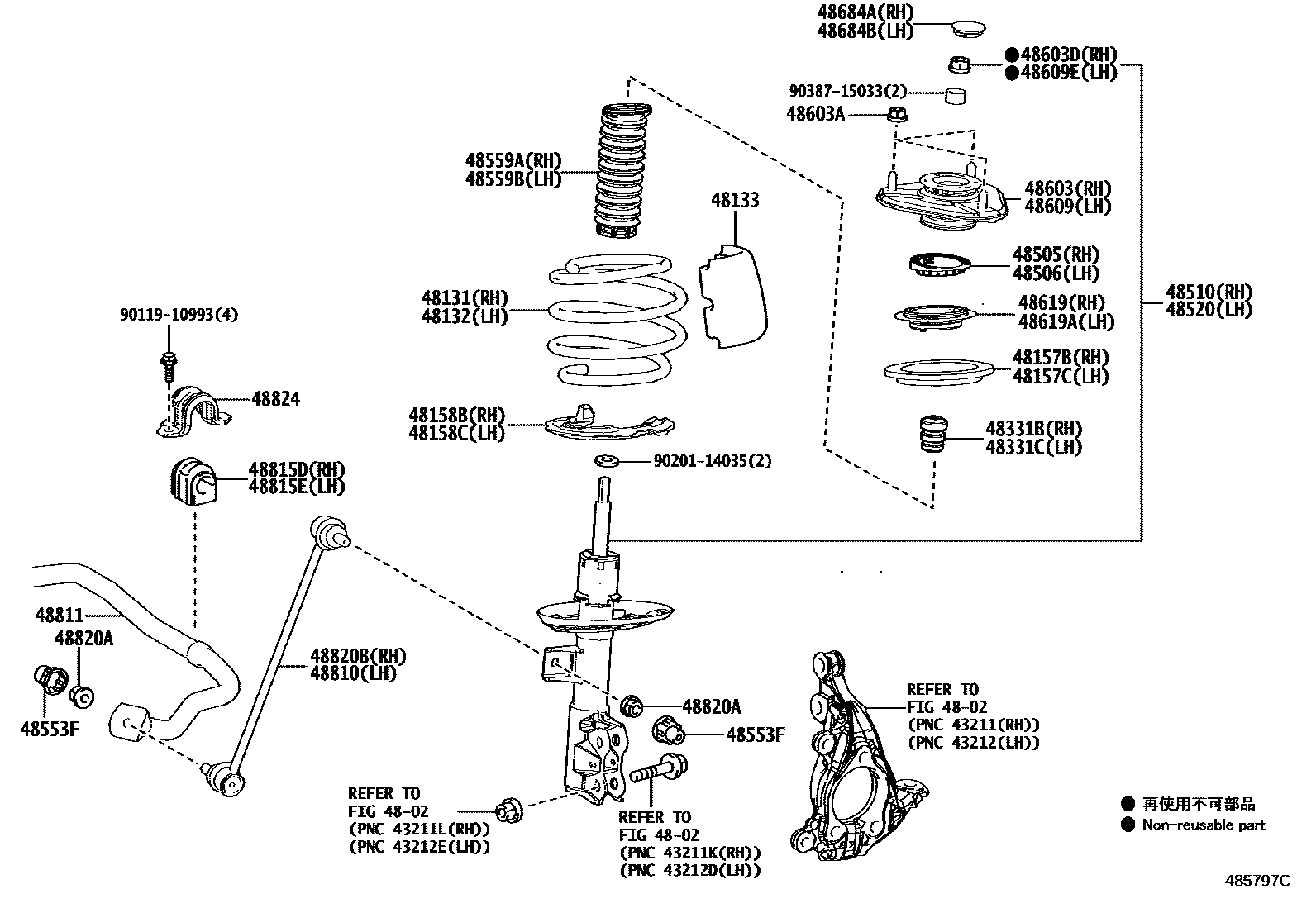

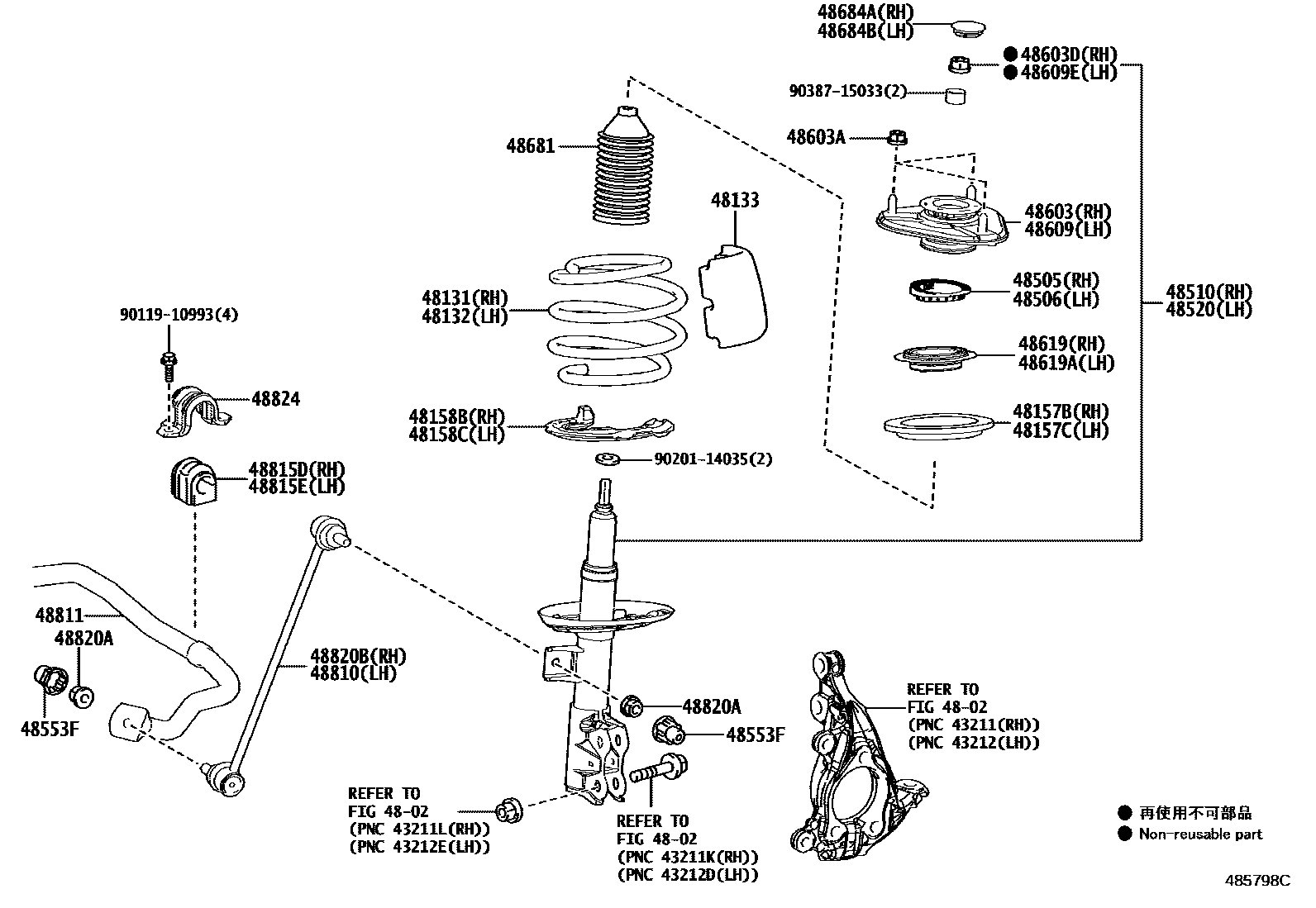

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-12K90 · 48131-12M70 |
| 48132 | Left front coil spring | 48131-12K90 · 48131-12M70 |
| 48133 | Front coil spring spacer | 48133-12010 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-33090 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-33090 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-33110 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-33110 |
| 48331B | Right front spring buffer block | 48331-47050 |
| 48331C | Left front spring buffer block | 48331-47050 |
| 48505 | Right front spring seat | 48159-12010 |
| 48506 | Left front spring seat | 48159-12010 |
| 48510 | Right front shock absorber assembly | 48510-80C88 · 48510-8Z586 · 48510-8Z587 |
| 48520 | Left front shock absorber assembly | 48520-80832 · 48520-8Z410 · 48520-8Z411 |
| 48553F | CAPUCHON | 48553-52030 |
| 48559A | Right front shock absorber No. 1 dust cover | 48559-33020 |
| 48559B | Left front shock absorber No. 1 dust cover | 48559-33020 |
| 48603 | Right front suspension bearing sub-assembly | 48609-47060 |
| 48603A | Nut (for front suspension mount) | 90178-10029 |
| 48603D | Nut (for front mount to right front shock absorber) | 90177-14007 |
| 48609 | Left front suspension bearing sub-assembly | 48609-47060 |
| 48609E | Nut (for front mount to left front shock absorber) | 90177-14007 |
| 48619 | Bearing installed on the right sliding column | 48619-33010 |
| 48619A | Bearing installed on the left sliding column | 48619-33010 |
| 48681 | No. 1 front suspension mount | 48479-21010 |
| 48684A | Right front suspension support dust cover | 48684-52010 |
| 48684B | Left front suspension support dust cover | 48684-52010 |
| 48810 | Left front stabilizer bar link assembly | 48820-42030 |
| 48811 | front stabilizer bar | 48811-12A90 |
| 48815D | Right front stabilizer bar bushing | 48815-10130 |
| 48815E | Left front stabilizer bar bushing | 48815-10130 |
| 48820A | Nut (for front stabilizer bar link) | 94151-21241 |
| 48820B | Right front stabilizer bar link assembly | 48820-42030 |
| 48824 | front stabilizer bar bracket | 48824-47020 |
