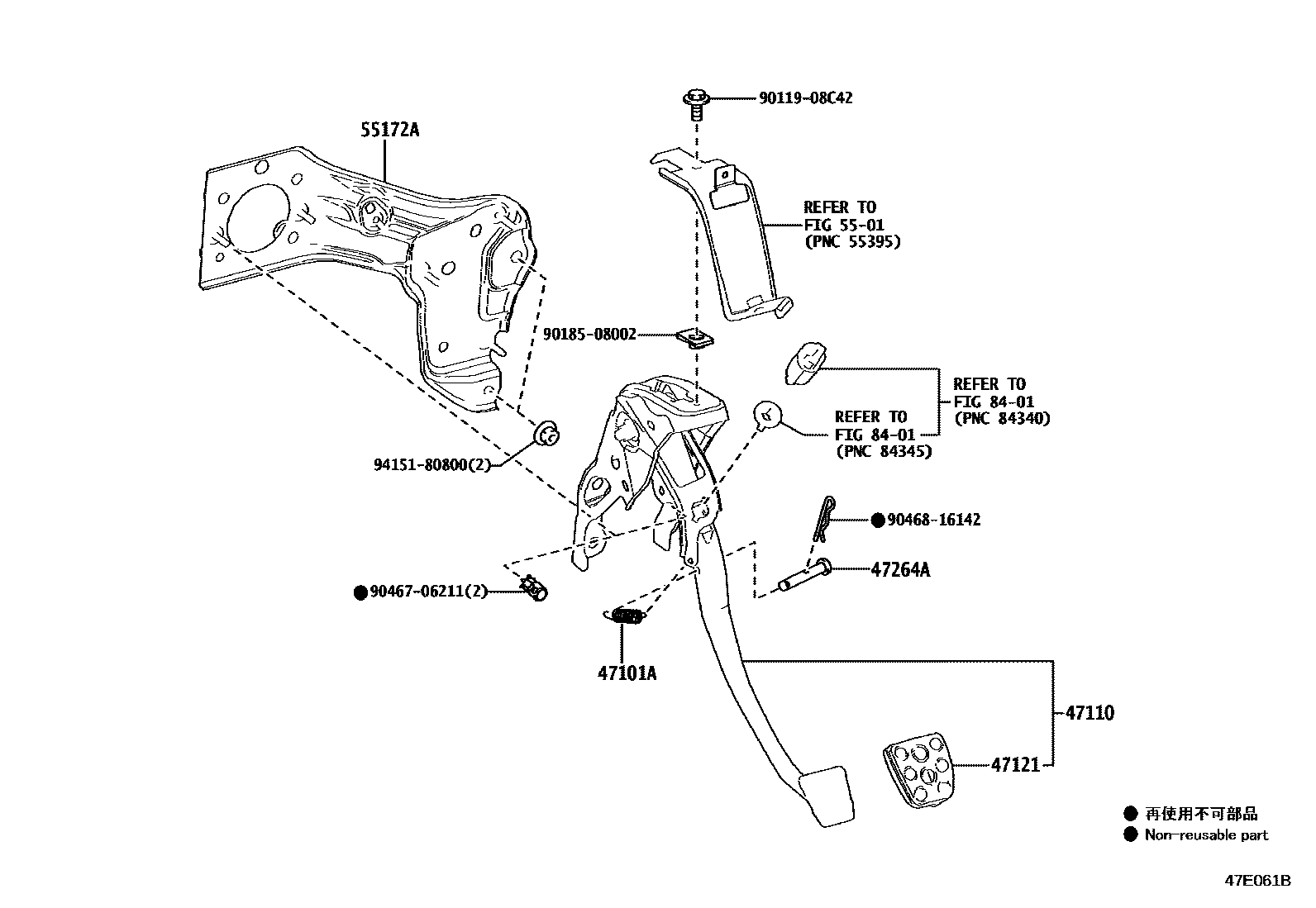

Toyota COROLLA Brake Pedal & Bracket — Figure 4701
Toyota COROLLA EPC diagram 4701, Brake Pedal & Bracket, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101A | Spring (for brake pedal return) | 90507-15010 |
| 47110 | Brake pedal bracket assembly | 47110-12480 · 47110-12550 |
| 47121 | brake pedal pad | 47121-10040 · 47121-12050 |
| 47264A | Pin (for push rod) | 90249-08221 · 90249-08309 |
| 55172A | BASE, SUPPORT PEDALE FREIN | 55172-12160 · 55172-12161 |
