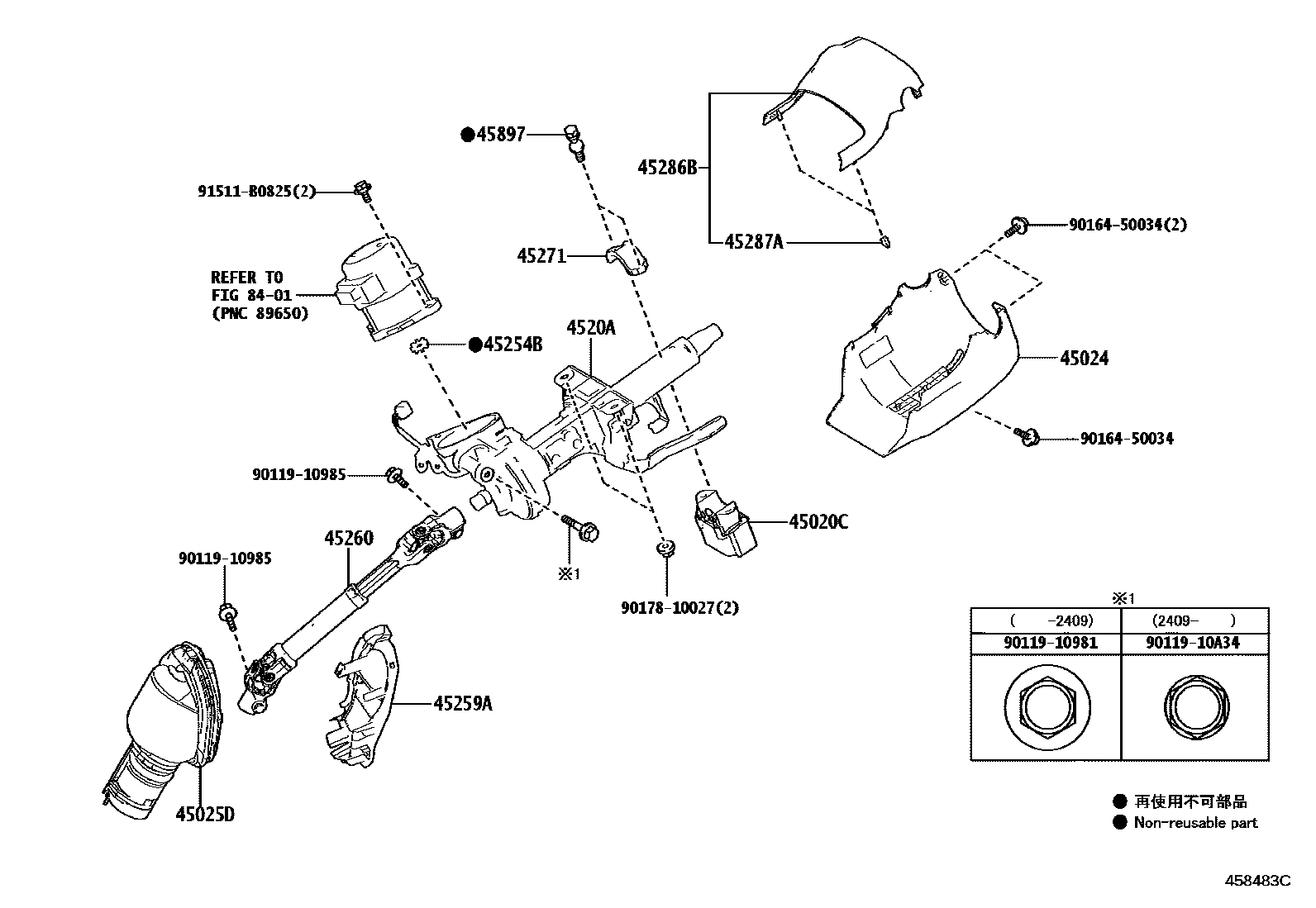

Toyota COROLLA Steering Column & Shaft — Figure 4501
Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020C | ENS. ACTIONNEUR, ANTIVOL DIRECTION(AV/ECU) | 45020-K0010 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-12360 |
| 4520A | Electric steering column sub-assembly | 4520A-12190 · 4520A-12360 · 4520A-76080 |
| 45254B | Electric steering motor shaft shock absorber | 45254-28040 |
| 45259A | Steering column hole cover silencer plate | 45259-76030 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-76030 |
| 45271 | Clamp on steering column | 45271-52030 |
| 45287A | ATTACHE(POUR CACHE DE COLONNE DE DIRECTION) | 90467-05171 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
