Toyota COROLLA 车轮和车轮盖 — Figure 4103

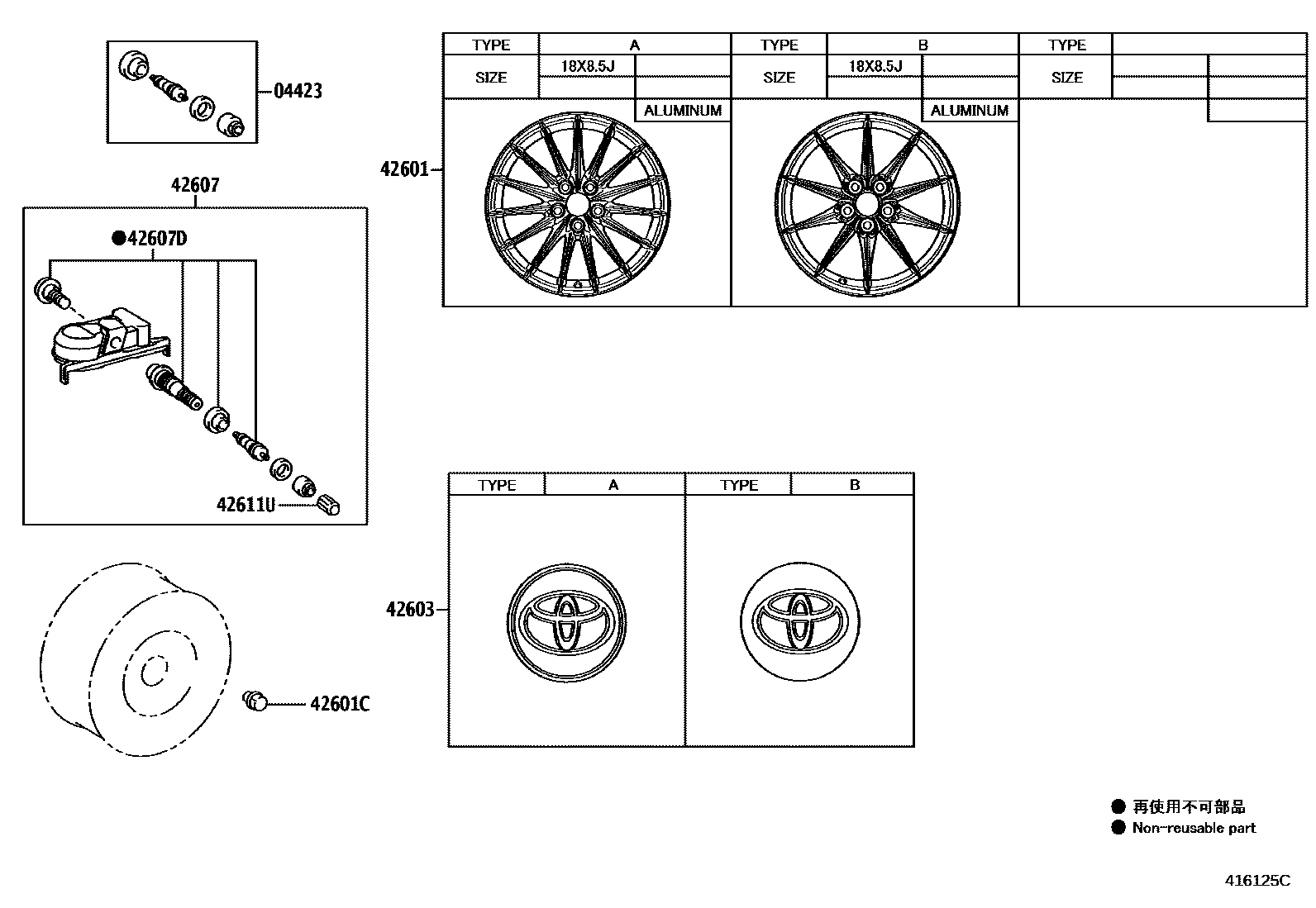

Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33060 |
| 42601 | spoke wheel | 42611-12F10 · 42611-12F30 · 42611-12F40 · 42611-12G80 |
| 42601C | Hub nut (for axle) | 90942-01033 · 90942-01115 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-42130 · 42603-48150 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-12040 · 42607-19005 |
| 42607D | SOUPAPE, CONTROLE PRESSION PNEU | 90942-05044 |
| 42611U | tire valve cover | 90942-05039 |
