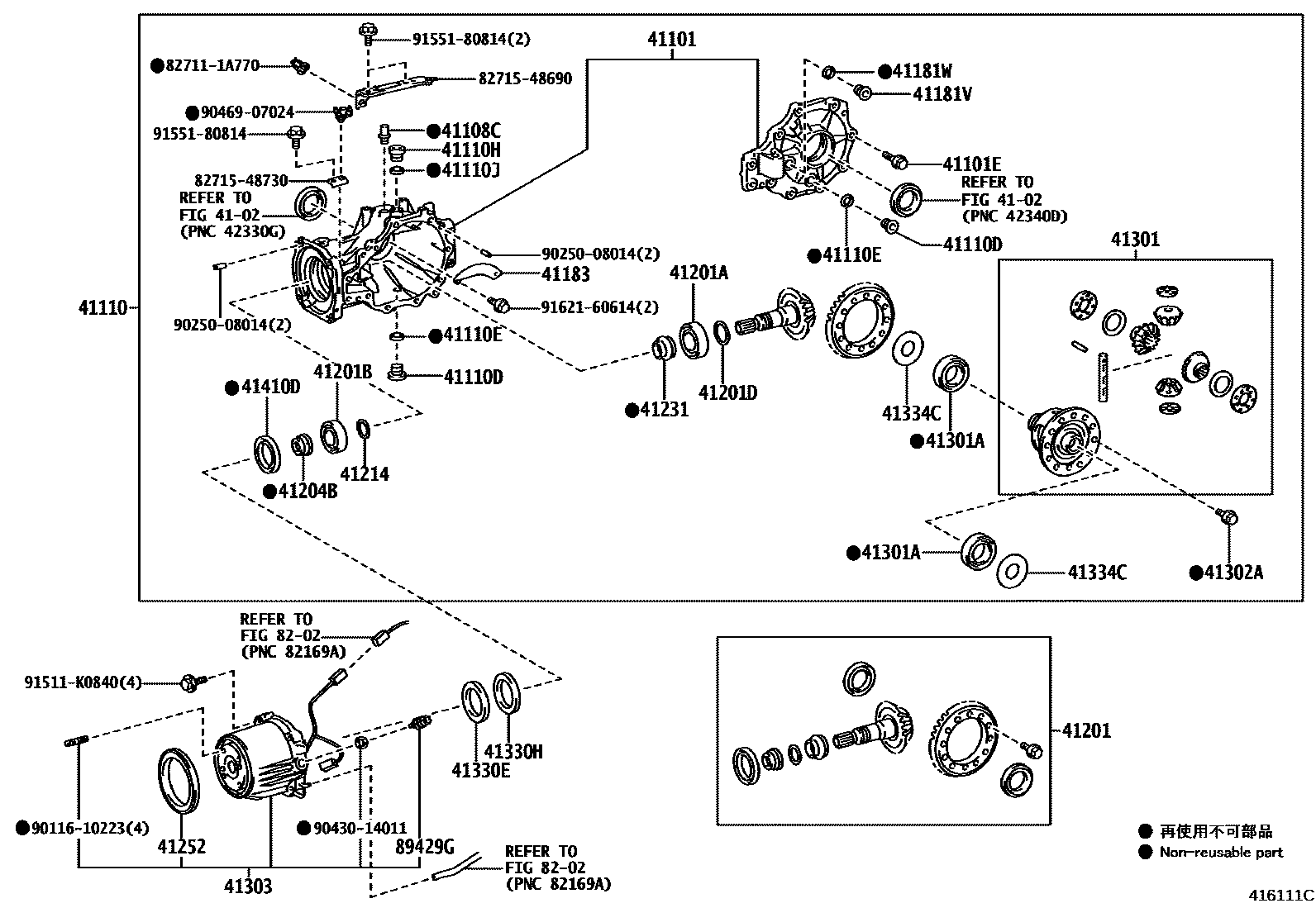

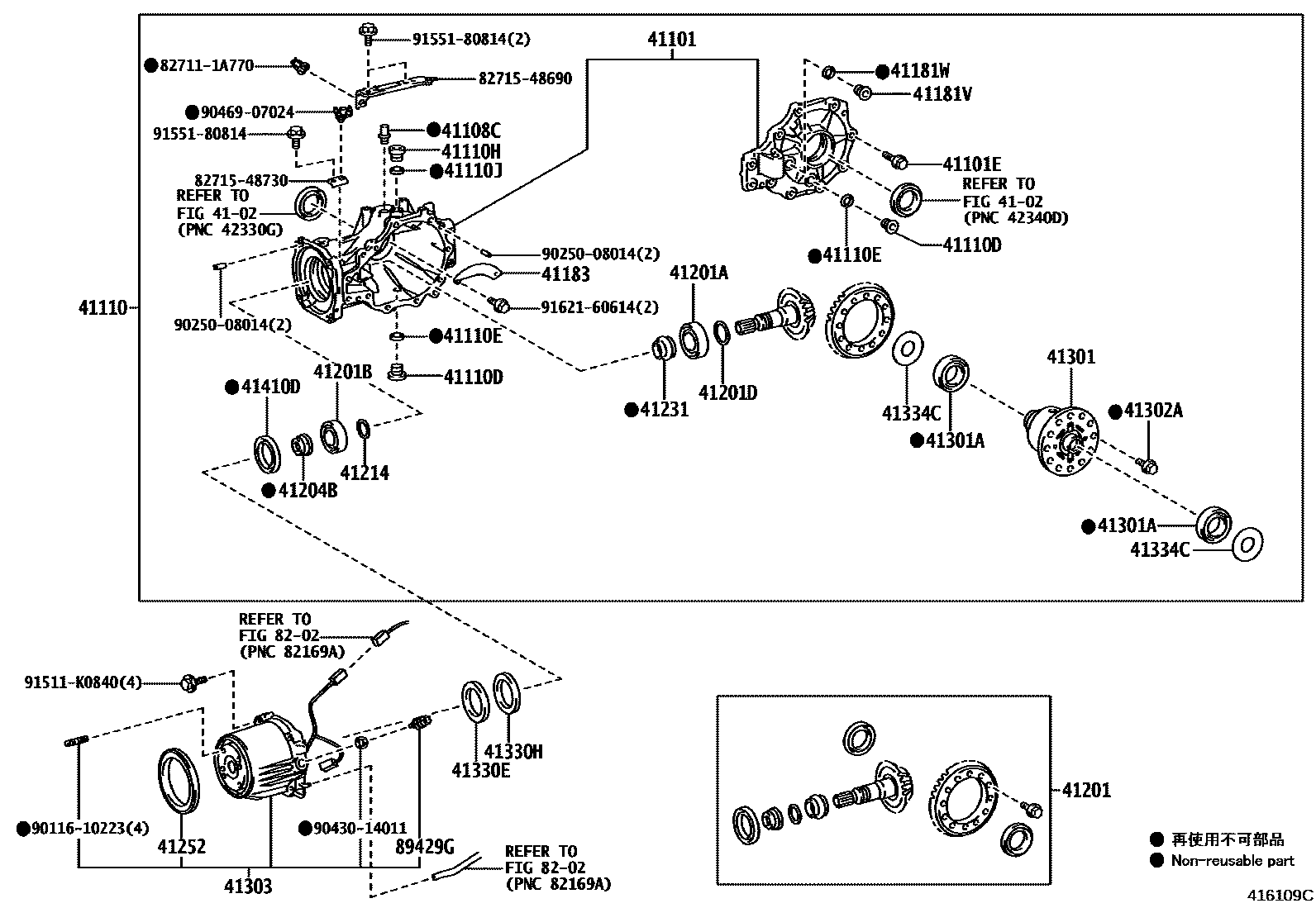

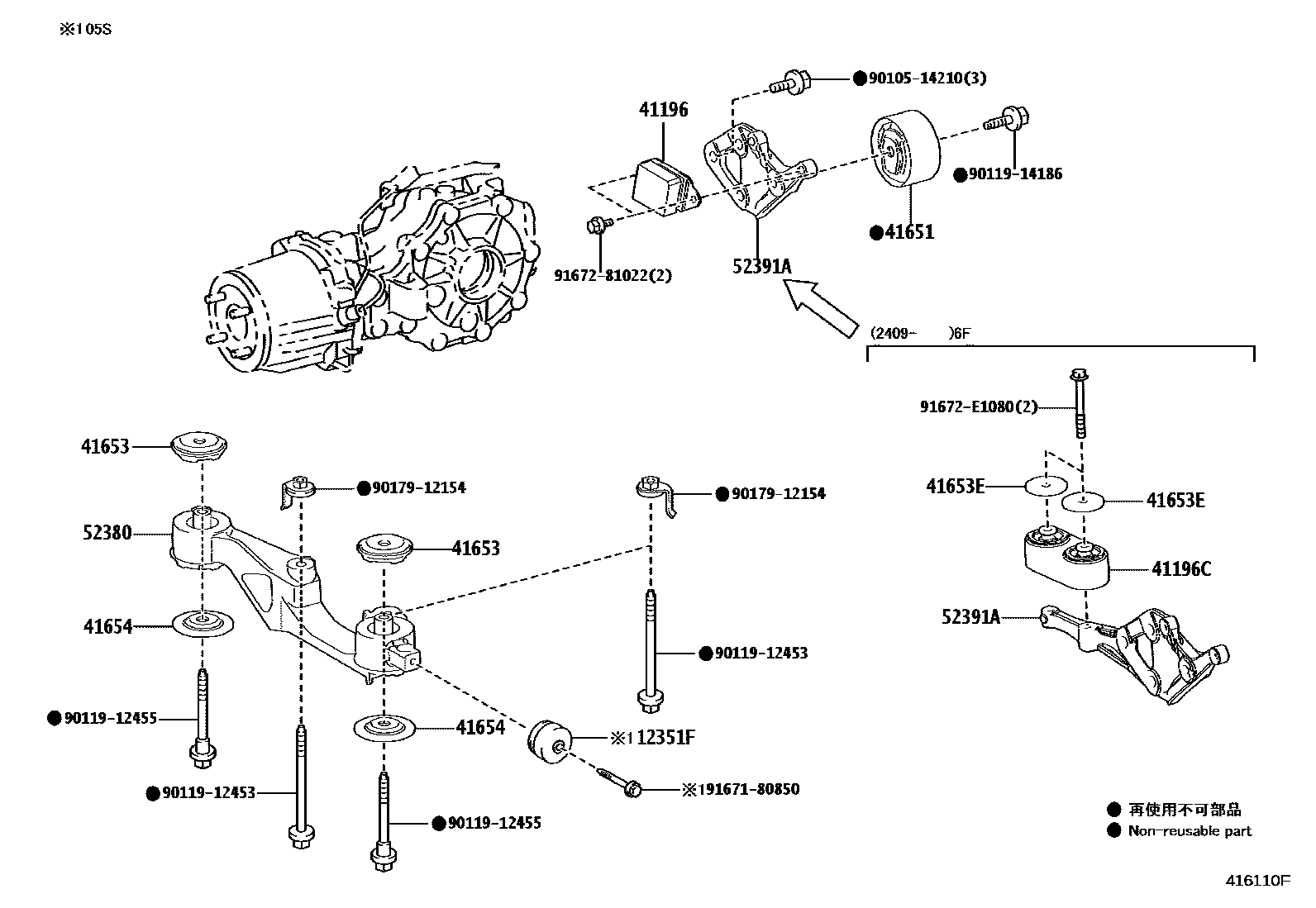

Toyota COROLLA 后桥壳和差速器 — Figure 4101
Toyota COROLLA EPC diagram 4101, 后桥壳和差速器, with 3 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12351F | AMORTISSEUR | 12351-22060 |
| 41101 | Rear differential bracket sub-assembly | 41101-52020 |
| 41101E | Bolt (for rear differential case) | 90105-10371 |
| 41108C | Breather plug (for rear differential case cover) | 90930-03075 |
| 41110 | Rear differential bracket assembly | 41110-52020 · 41110-52030 |
| 41110D | Screw plug (for rear differential drain port) | 90341-18051 |
| 41110E | Gasket (for rear differential drain plug) | 12157-10010 |
| 41110H | Plug (for rear differential oil filling port) | 90341-18006 |
| 41110J | Gasket (for rear differential oil plug) | 12157-10010 |
| 41181V | Plug (for rear differential oil filling port) | 90341-18023 |
| 41181W | Gasket (for differential oil filling plug) | 12157-10010 |
| 41183 | Rear differential breather plug oil baffle | 41183-48010 |
| 41196 | Rear differential power damper | 41196-52020 |
| 41196C | AMORTISSEUR, DYNAMIQUE DIFFERENTIEL ARR, NO.2 | 41196-48090 |
| 41201 | Rear differential final drive gear assembly | 41201-59405 |
| 41201A | Rear tapered bearing (for rear driving pinion) | 90366-35154 |
| 41201B | Front roller tapered bearing (for rear drive pinion) | 90366-30099 |
| 41201D | Flat washer (for rear differential drive pinion) | 90564-35041 · 90564-35043 · 90564-35045 · 90564-35047 · 90564-35049 · 90564-35051 · 90564-35053 · 90564-35055 · 90564-35057 · 90564-35059 · 90564-35061 · 90564-35063 · 90564-35065 · 90564-35071 · 90564-35073 · 90564-35075 · 90564-35077 · 90564-35079 · 90564-35081 · 90564-35083 · 90564-35085 · 90564-35087 · 90564-35089 · 90564-35091 · 90564-35093 · 90564-35095 · 90564-35165 · 90564-35167 |
| 41204B | Nut (for rear driving pinion) | 90178-30001 |
| 41214 | Rear differential drive pinion oil retaining ring | 90560-30012 |
| 41231 | Rear differential drive pinion bearing spacer | 41231-33030 |
| 41252 | Dust cover (for rear differential) | 41252-42013 |
| 41301 | Rear differential housing sub-assembly | 41301-48060 · 41301-52290 |
| 41301A | Bearings (for rear differential housing) | 90366-38048 |
| 41302A | Bolt (for rear differential case) | 90105-11060 |
| 41303 | Electromagnetic control coupling sub-assembly | 41303-52030 |
| 41330E | Tapered spring washer (for transmission coupling) | 90208-74003 |
| 41330H | Spacer (for transmission coupling) | 90560-68002 |
| 41334C | Flat washer (for rear differential side gear shaft) | 90564-30075 · 90564-30076 · 90564-30077 · 90564-30078 · 90564-30079 · 90564-30080 · 90564-30081 · 90564-30082 · 90564-30083 · 90564-30084 · 90564-30085 · 90564-30086 · 90564-30088 · 90564-30089 · 90564-30090 · 90564-30091 · 90564-30092 · 90564-30093 · 90564-30094 · 90564-30095 · 90564-30096 · 90564-30097 · 90564-30098 · 90564-30099 · 90564-30100 · 90564-30101 · 90564-30102 · 90564-30103 · 90564-30104 · 90564-30105 · 90564-30106 · 90564-30107 · 90564-30108 · 90564-30109 · 90564-30110 · 90564-30111 · 90564-30112 · 90564-30113 · 90564-30114 |
| 41410D | Diaphragm oil seal | 90310-54003 |
| 41651 | No. 1 rear differential fixed cushion | 41651-52020 |
| 41653 | Rear differential retainer upper block | 41653-42010 |
| 41653E | BUTOIR, FIXATION DIFFERENTIEL ARRIERE | 41653-48040 |
| 41654 | Rear differential retainer lower block | 41653-42020 |
| 52380 | Rear differential No. 1 bracket | 52380-52050 |
| 52391A | Rear differential bracket | 52391-52070 · 52391-52100 |
| 89429G | DETECT, TEMPER | 89429-53010 |
