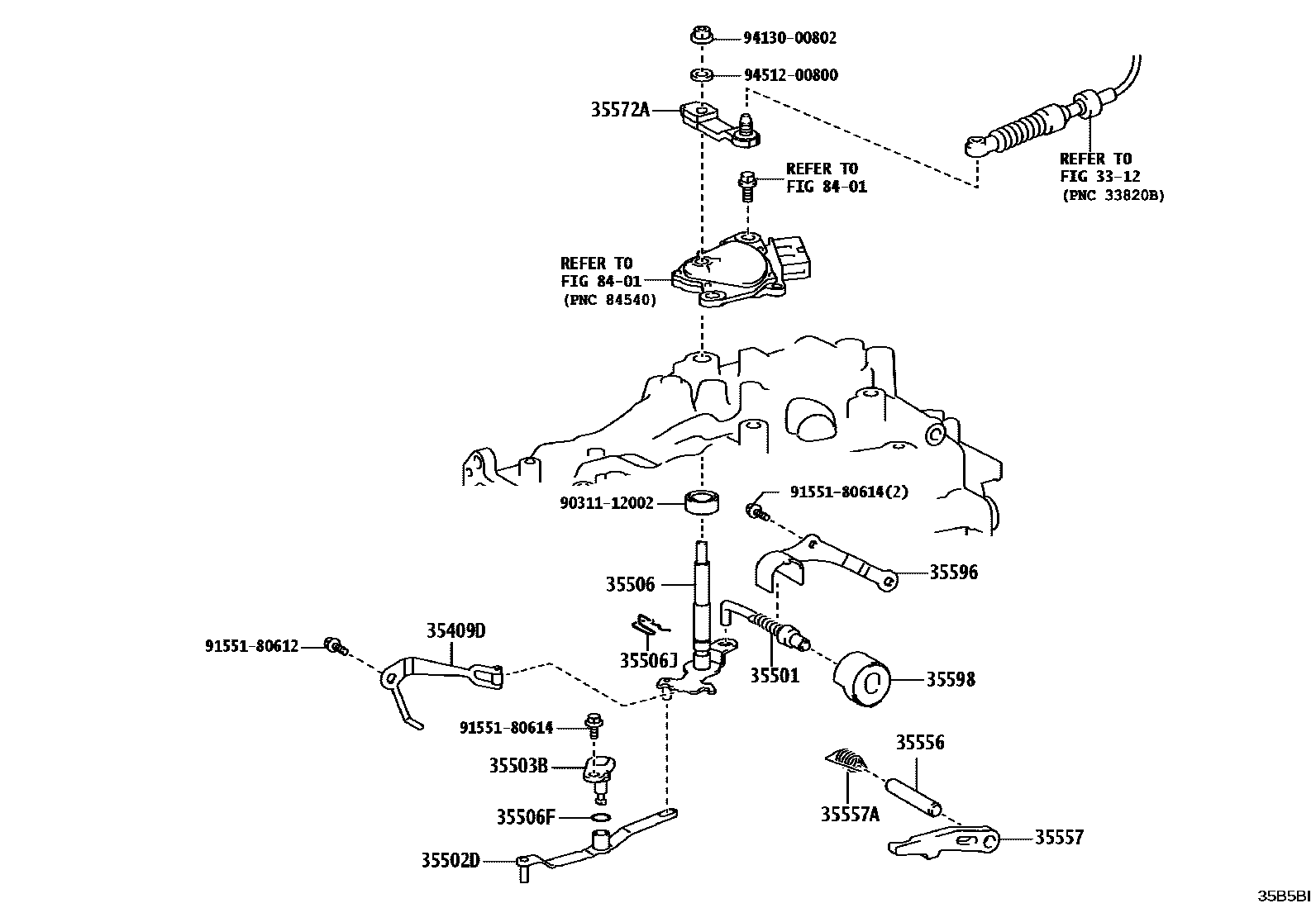

Toyota COROLLA 节气阀连杆和阀杆(ATM) — Figure 3513
Toyota COROLLA EPC diagram 3513, 节气阀连杆和阀杆(ATM), with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35409D | Manual lock spring sub-assembly | 35409-48060 |
| 35501 | Parking lock lever sub-assembly | 35501-48040 |
| 35502D | SOUS-ENS. LEVIER, LIAISON SOUP COM MANUELLE | 35502-48010 |
| 35503B | SOUS-ENS AXE, LIAISON SOUP COM MANUELLE | 35503-48010 |
| 35506 | Manual valve stem shaft sub-assembly | 35506-48022 |
| 35506F | Oil seal (for manual valve stem shaft) | 90301-09173 |
| 35506J | Stop spring (for manual valve stem shaft) | 90524-09004 |
| 35556 | Parking lock pawl shaft | 35556-48040 |
| 35557 | Parking pawl | 35557-48040 |
| 35557A | Torsion spring (for parking pawl) | 90508-29030 |
| 35572A | transmission control lever | 35572-52100 |
| 35596 | Claw block | 35596-48030 |
| 35598 | Parking lock cover | 35598-48040 |
