Toyota COROLLA 阀体和滤油网(ATM) — Figure 3512

Toyota COROLLA EPC diagram 3512, 阀体和滤油网(ATM), with 1 images and 14 PNC and OE references.

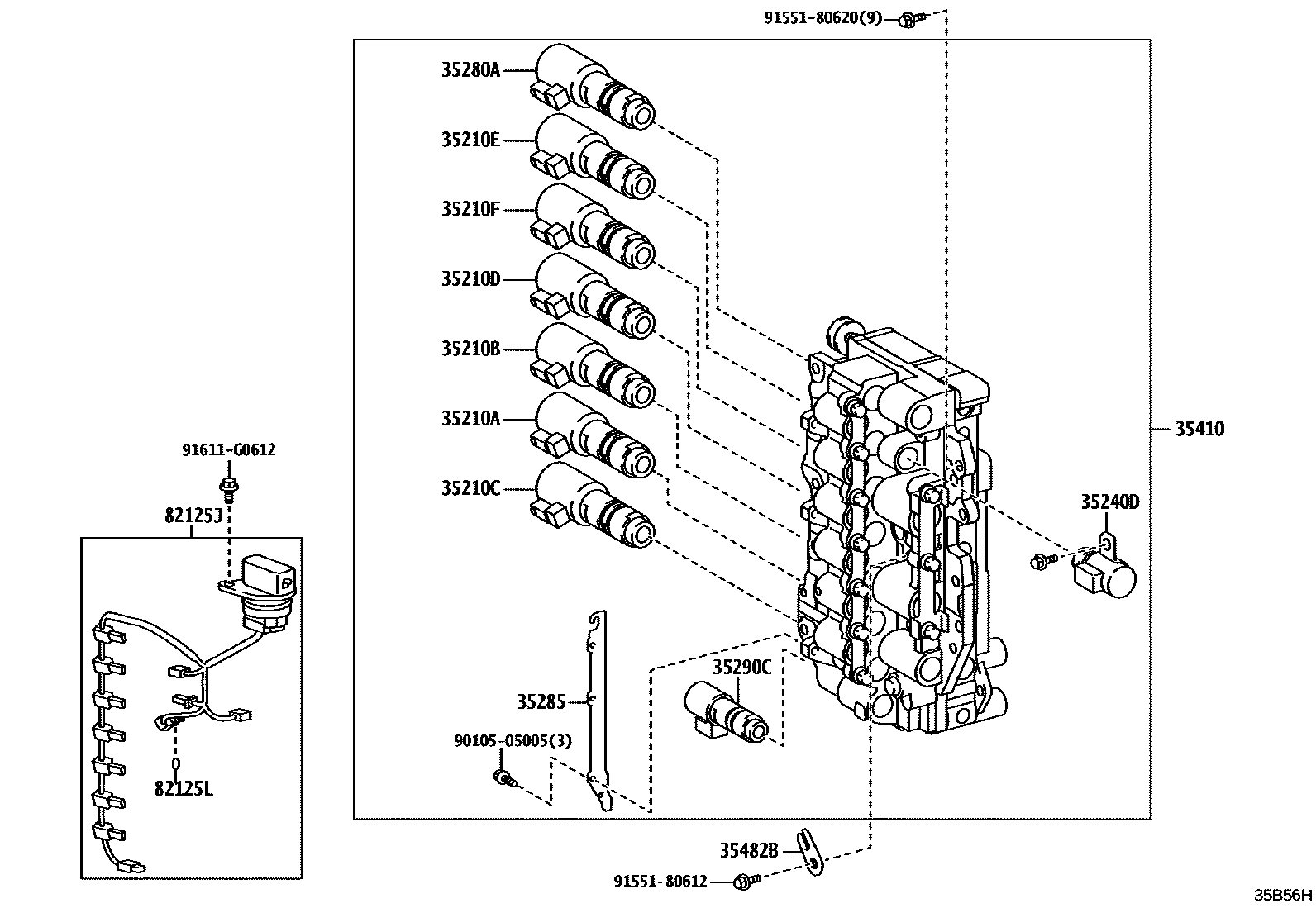

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — 35B56H
阀体和滤油网(ATM) — 35B56H (202409 – 999999)

PNC and OE references

PNCPart nameOE numbers
35210ASOUPAPE, SOLENOIDE(SL1)35210-33070
35210BSOUPAPE, SOLENOIDE(SL3)35210-33070
35210CSOUPAPE, SOLENOIDE(SL2)35210-33070
35210DSOUPAPE, SOLENOIDE(SL4)35210-33070
35210ESOUPAPE, SOLENOIDE(SL5)35210-33070
35210FSOUPAPE, SOLENOIDE(SL6)35210-33070
35240DSOUPAPE, SOLENOIDE(SL)35240-48020
35280ASOUPAPE, SOLENOIDE(SLU)35280-48030
35285Solenoid valve lock plate35285-48030
35290CSOUPAPE, SOLENOIDE(SLT)35290-06010 · 35290-48030
35410Transmission valve body assembly35410-52240
35482Btemperature sensor clip35482-73010
82125JTransmission wiring harness82125-33171
82125LO-ring (for transmission wiring harness)90301-06025
