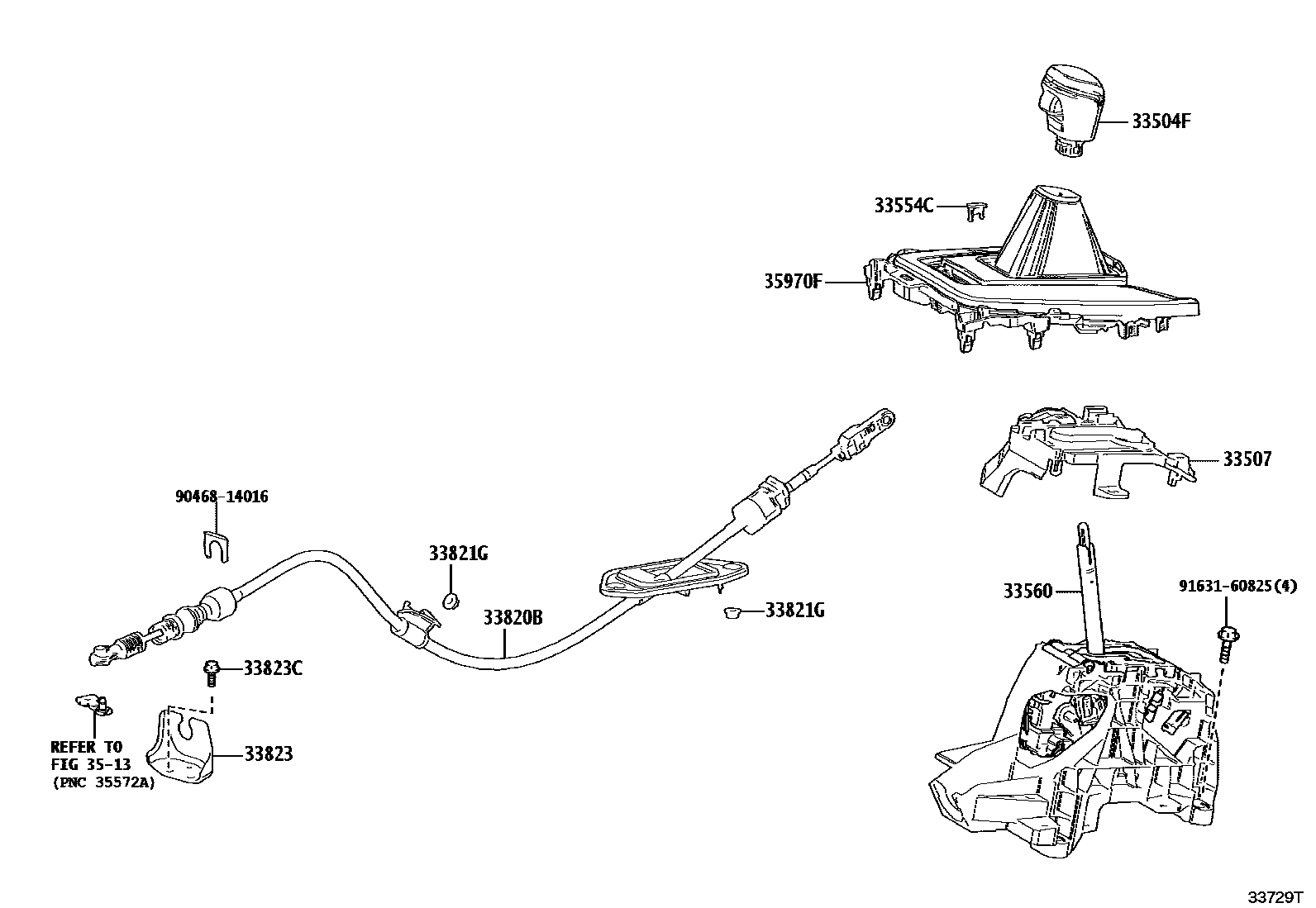

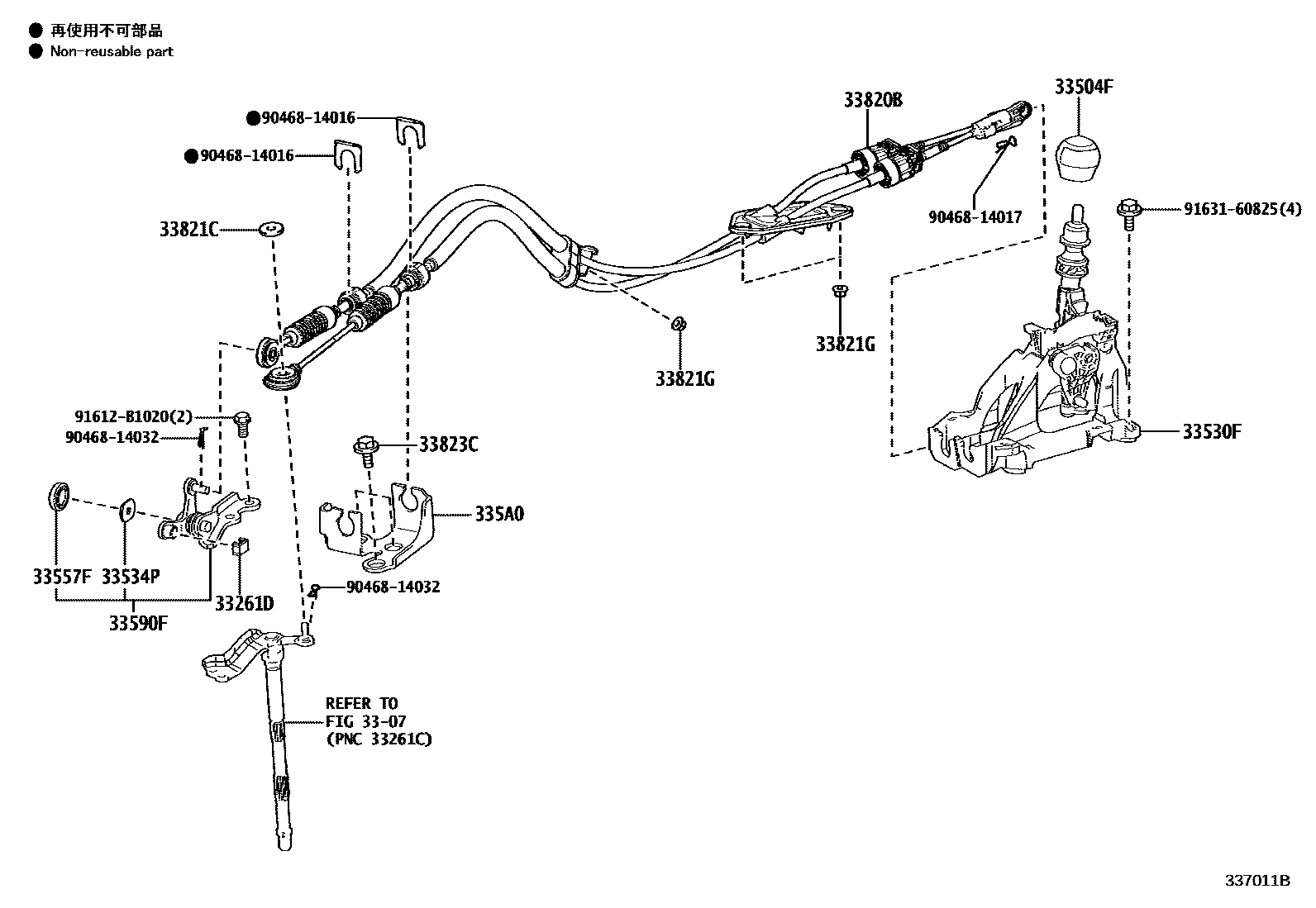

Toyota COROLLA Shift Lever & Retainer — Figure 3312
Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33261D | Bushing (for shift lever) | 33557-33010 |
| 33507 | Shift lever housing bracket sub-assembly | 33507-12030 |
| 33530F | Shift lever assembly (for floor shift) | 33530-52341 |
| 33534P | Flat washer (for No. 1 gear selector right-angle lever) | 90201-08028 |
| 33554C | Shift lock release button cover | 33554-12210 |
| 33557F | Control right-angle lever dust cover (for floor-mounted shifting) | 33557-20010 |
| 33560 | Shift lock control unit assembly | 33560-12650 |
| 33590F | Gear selection right-angle lever assembly (for floor shift) | 33590-20040 |
| 335A0 | Control cable bracket assembly | 33524-12150 · 335A0-52060 |
| 33820B | Transmission control cable assembly | 33820-12G50 · 33820-12K20 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08267 |
| 33821G | Nut (for transmission control cable) | 90179-06274 |
| 33823 | No. 1 transmission control cable bracket | 33823-52160 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08C60 · 91611-G0820 |
