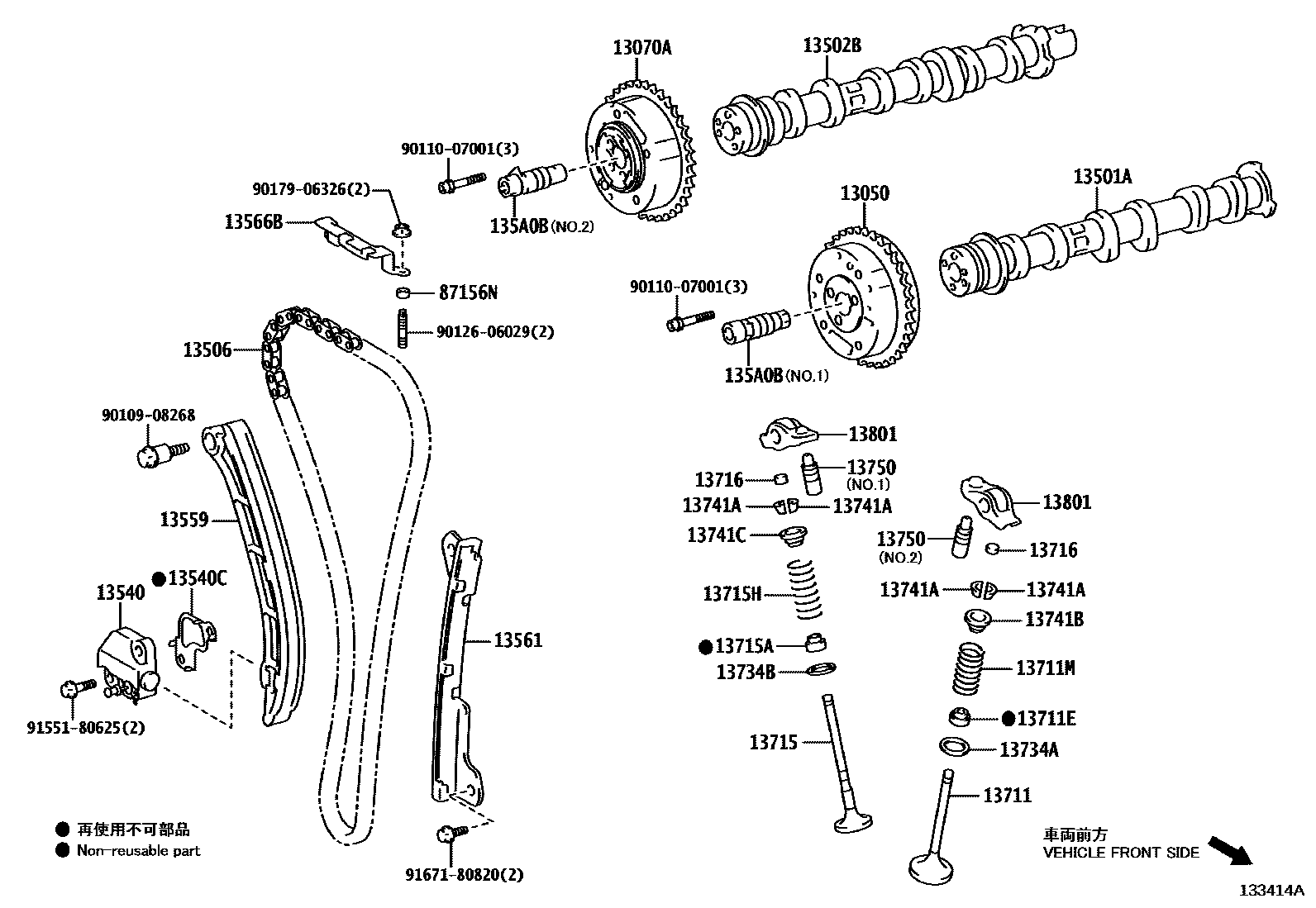

Toyota COROLLA Camshaft & Valve — Figure 1302
Toyota COROLLA EPC diagram 1302, Camshaft & Valve, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13050 | Camshaft timing gear assembly | 13050-18010 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-18020 |
| 13501A | SS-ENS. ARBRE A CAMES, ADMISSION | 13501-18020 |
| 13502B | SS-ENS. ARBRE A CAMES, ECHAPPEMENT | 13502-18020 |
| 13506 | Chain sub-assembly | 13506-18010 |
| 13540 | No. 1 chain tensioner assembly | 13540-18010 |
| 13540C | Pad (for chain tensioner) | 13552-18010 |
| 13559 | chain tensioner guide plate | 13559-18010 |
| 13561 | No. 1 chain shock absorber | 13561-18010 |
| 13566B | Timing chain guide plate | 13566-18010 |
| 135A0B | ENS. SOUPAPE, DISTRIB ARBRE A CAMES | 135A0-18010 · 135A0-25020 |
| 13711 | intake valve | 13711-18010 |
| 13711E | Intake valve stem oil seal | 90913-02126 |
| 13711M | RESSORT, COMPRESSION(POUR SOUPAPE ADMISSION) | 90501-32077 |
| 13715 | exhaust valve | 13715-18020 |
| 13715A | Exhaust valve stem oil seal | 90913-02127 |
| 13715H | RESSORT, COMPRESSION(POUR SOUPAPE ECHAPPEMENT) | 90501-36010 |
| 13716 | valve stem cover | 13716-25010 |
| 13734A | Intake valve spring seat | 13734-62020 |
| 13734B | Exhaust valve spring seat | 13734-62020 |
| 13741A | Valve spring seat lock plate | 90913-03028 |
| 13741B | Intake valve spring seat ring | 13741-36010 |
| 13741C | Exhaust valve spring seat ring | 13741-36010 |
| 13750 | Valve lash adjuster assembly | 13750-18010 · 13750-70020 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-25010 |
| 87156N | ENTRETOISE, PLAQUE AMORTISSEMENT | 87156-52010 |
