Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 2 images and 6 PNC and OE references.

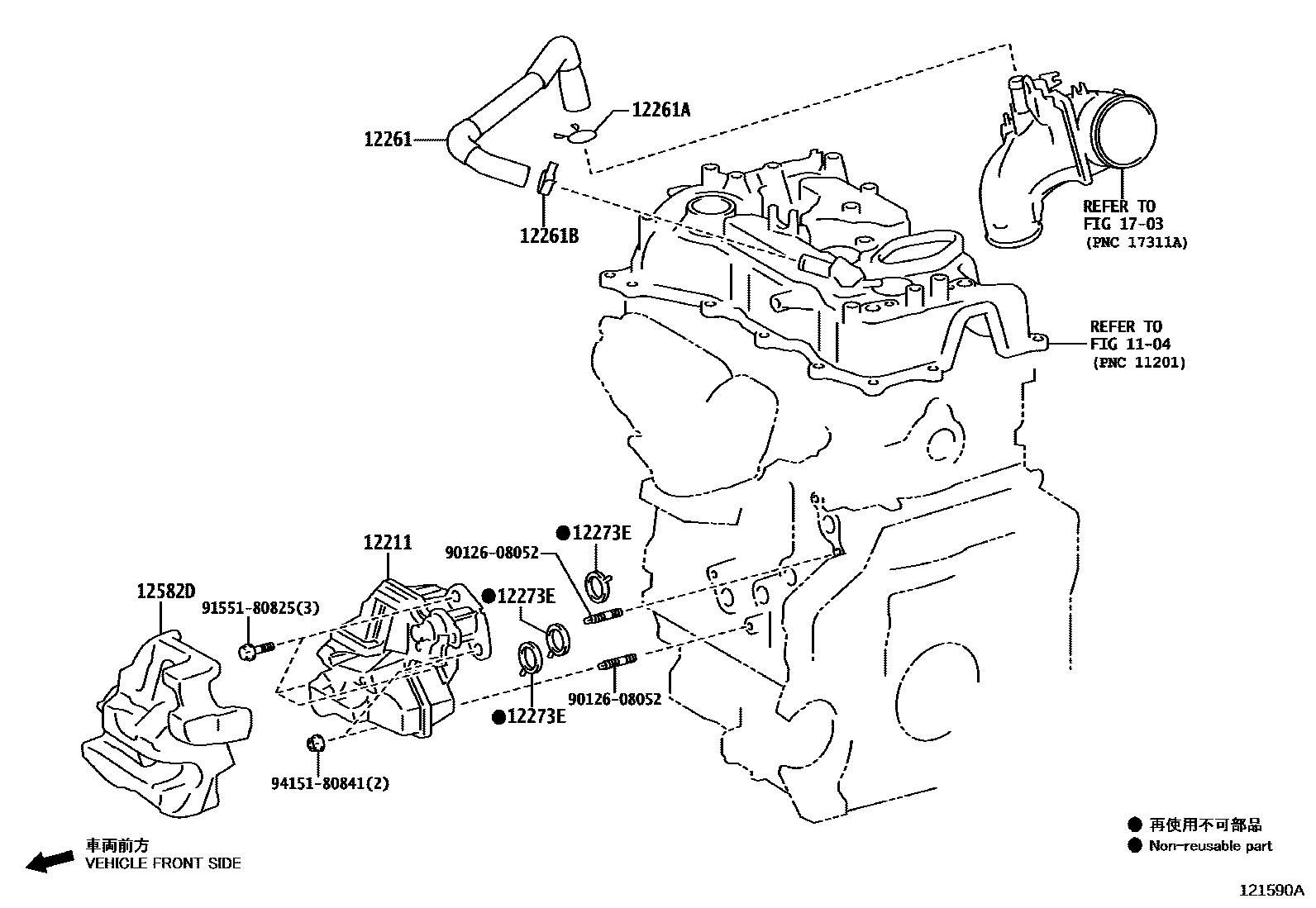

Toyota COROLLA Ventilation Hose EPC diagram — 121590A
Ventilation Hose — 121590A (202210 – 202409)

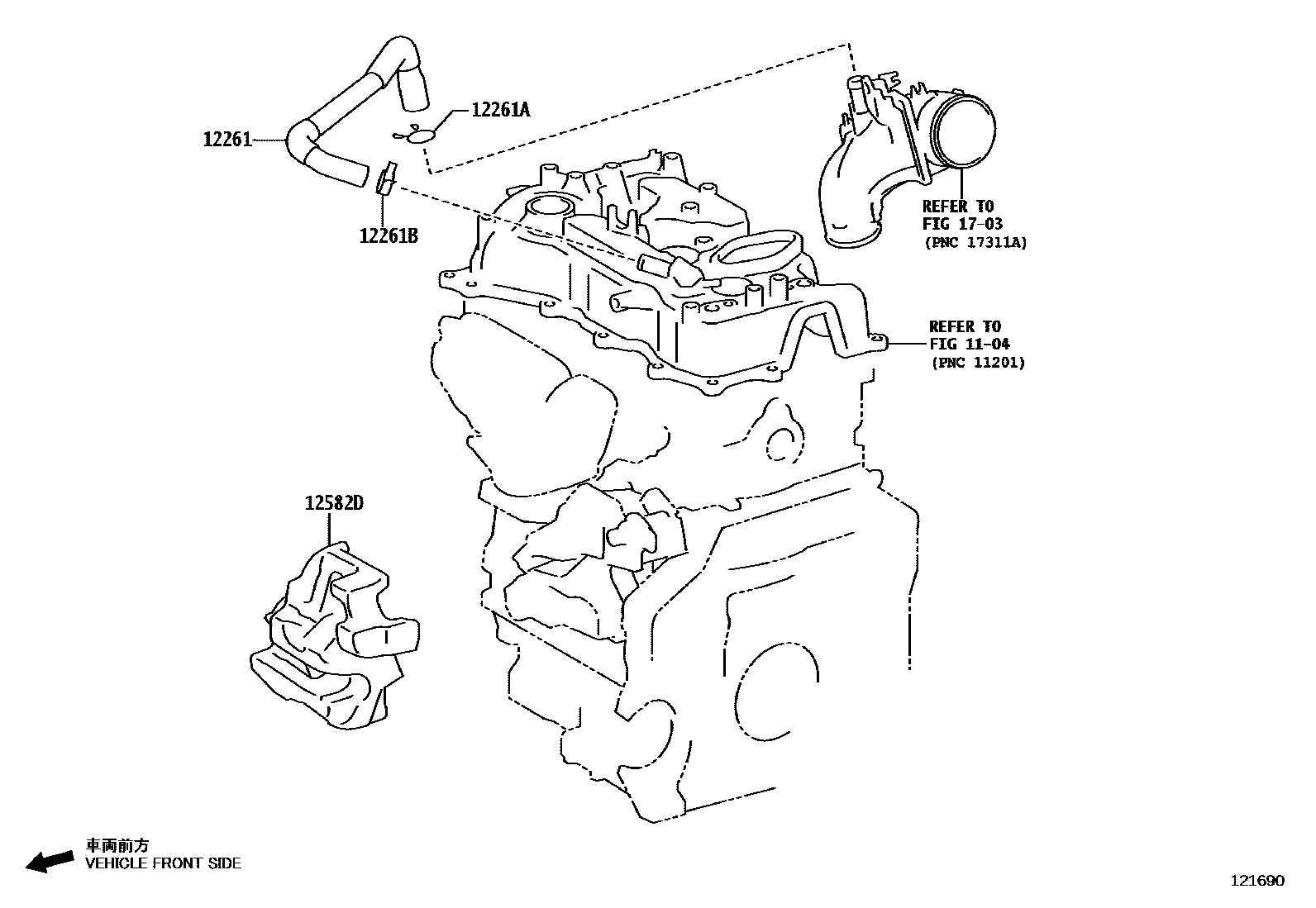

Toyota COROLLA Ventilation Hose EPC diagram — 121690
Ventilation Hose — 121690 (202409 – 999999)

PNC and OE references

PNCPart nameOE numbers
12211Ventilation box No. 112211-18010
12261Ventilation Hose12261-18010
12261AClip or clip (for vent hose)90467-24038
12261BClip or clip (for vent hose)96136-42201
12273EJOINT(POUR CARTER VENTILATION)12273-24010
12582DISOLANT, BLOC-CYLINDRES, NO.212582-18010
