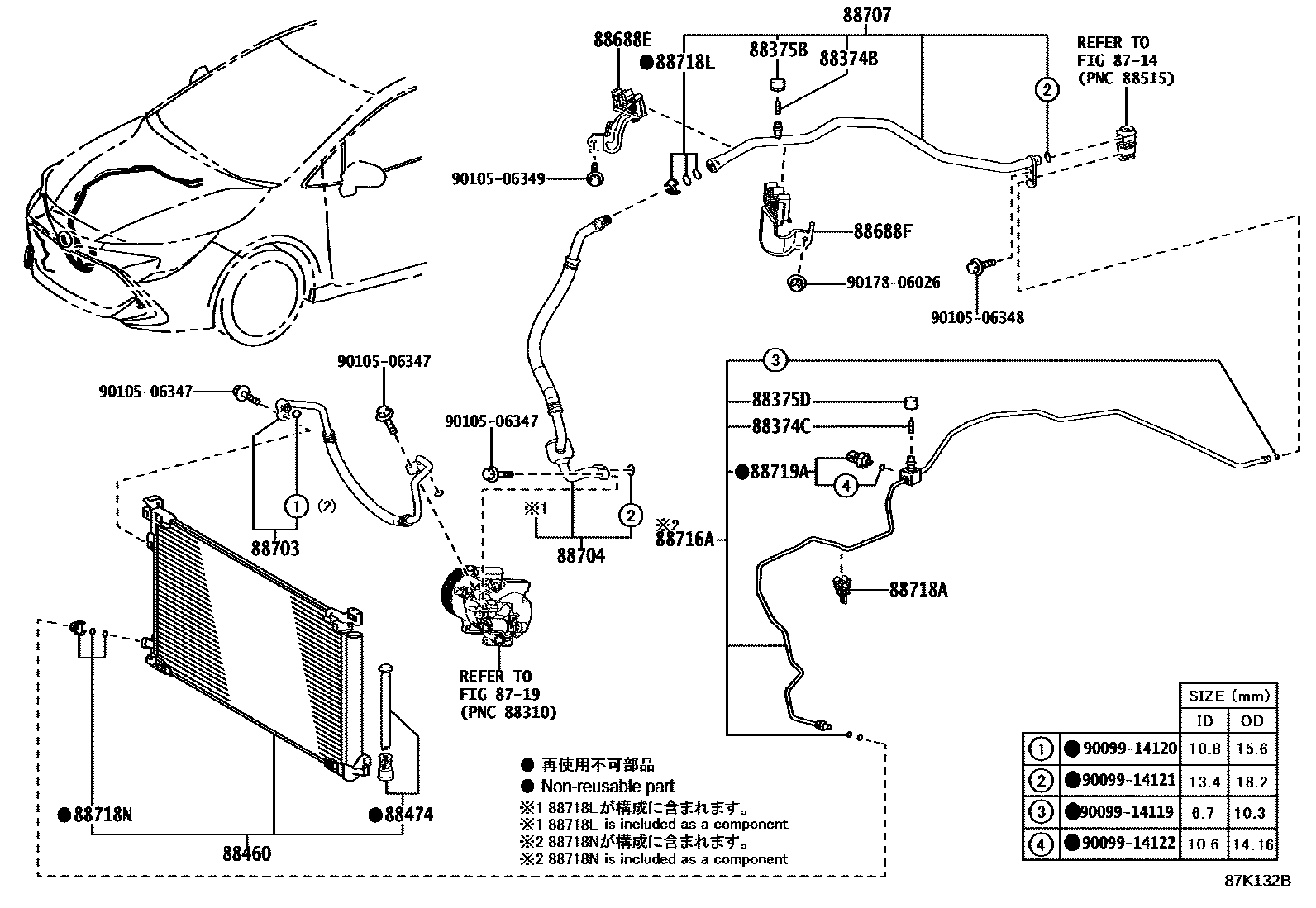

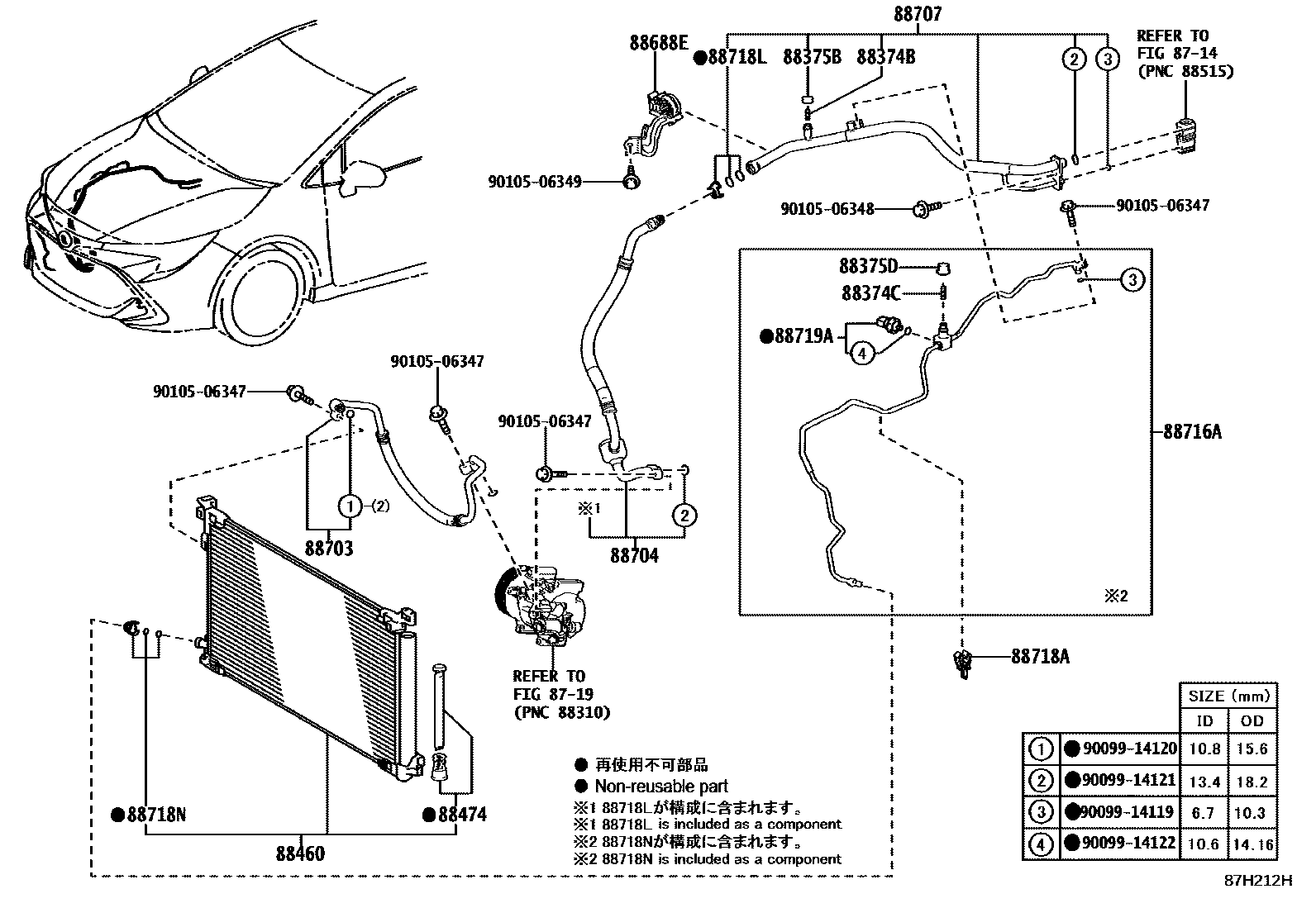

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30310 |
| 88375D | No. 2 maintenance valve cover | 88375-30320 |
| 88460 | Air conditioning condenser assembly | 884A0-12010 · 884A0-12120 |
| 88474 | cooler dryer | 88474-12010 · 88474-12020 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-12A20 · 88688-12A40 |
| 88688F | Cooler No. 2 refrigerant hose bracket | 88688-10560 |
| 88703 | Discharge hose sub-assembly | 88703-12A20 |
| 88704 | Oil suction hose sub-assembly | 88704-12A20 · 88704-12B80 |
| 88707 | Suction pipe sub-assembly | 88707-12441 · 88710-12A00 |
| 88716A | Cooler refrigerant liquid pipe A | 88710-12B00 · 88710-12C10 · 88710-12C11 · 88710-12C12 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-47110 |
| 88718L | Pipe clamp | 88718-52280 |
| 88718N | FIXATION, TUYAUTERIE | 88718-1E150 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
