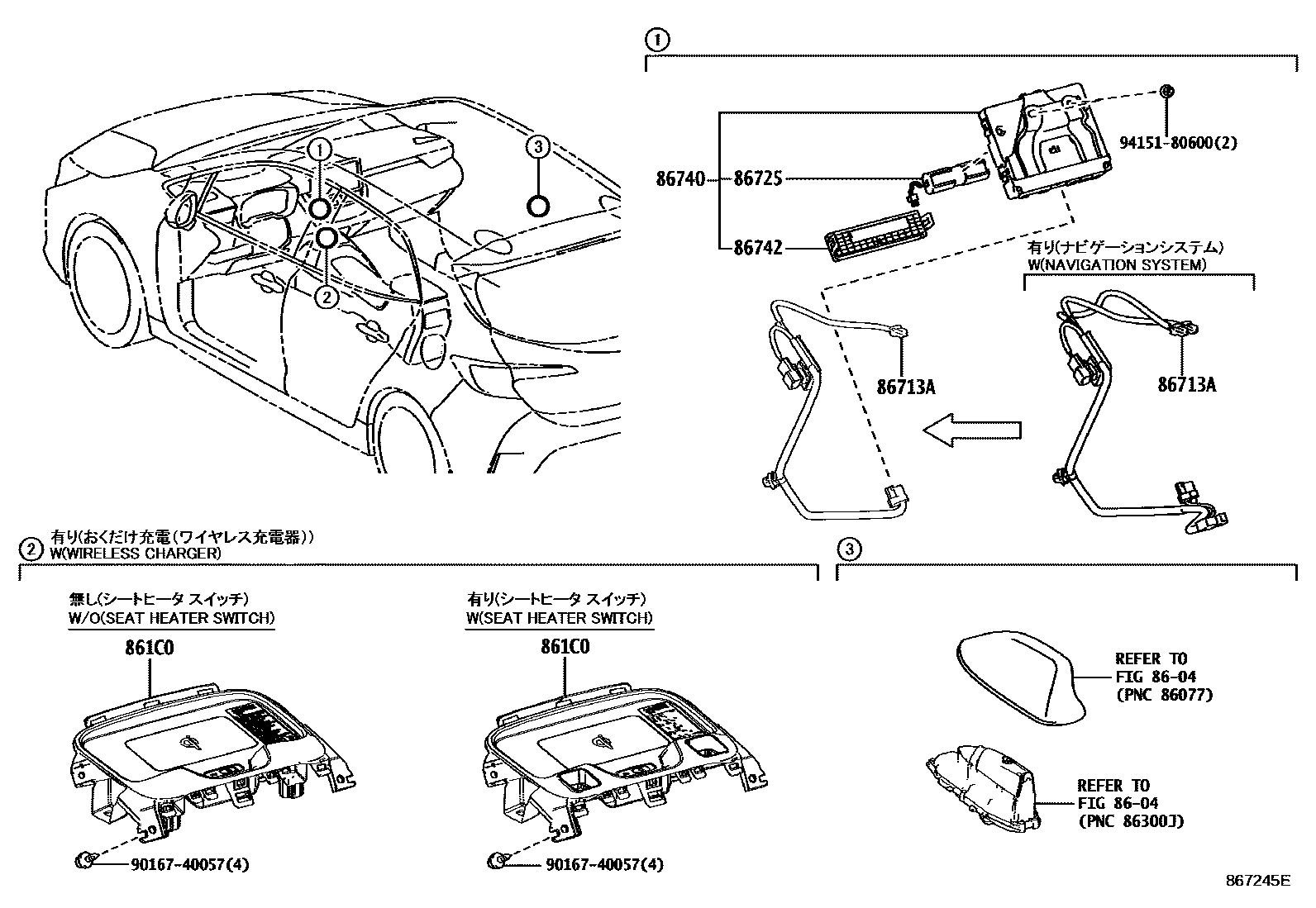

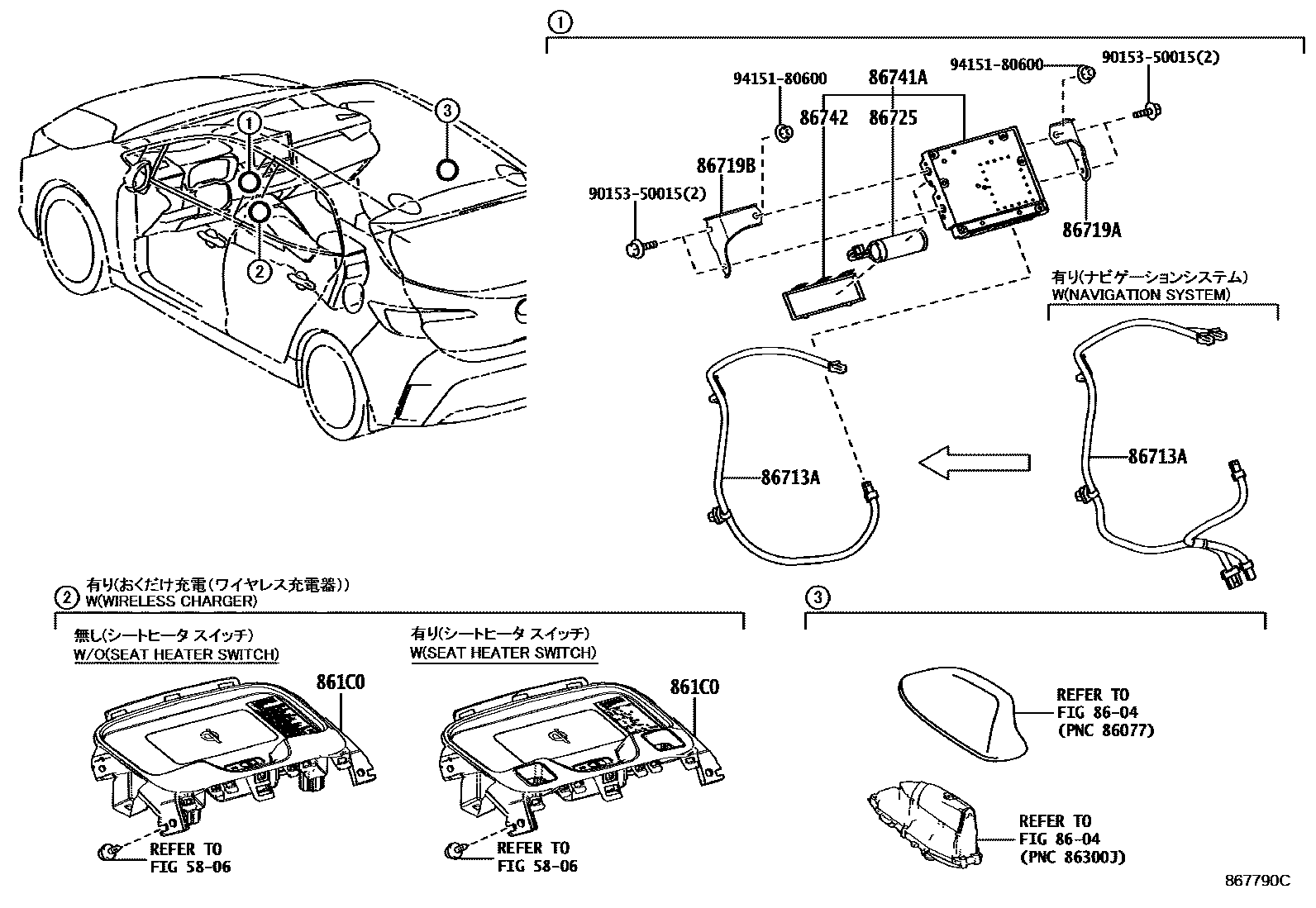

Toyota COROLLA 车载电话和呼救装置 — Figure 8615
Toyota COROLLA EPC diagram 8615, 车载电话和呼救装置, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 861C0 | ENSEMBLE CHASSIS, CHARGEUR SANS FIL PORTABLE | 861C0-12010 · 861C0-12011 · 861C0-12020 |
| 86713A | Telephone ECU harness (to transceiver) | 86713-12010 · 86713-12030 · 86713-12060 · 86713-12070 · 86713-12080 |
| 86719A | Phone holder No. 1 | 86719-12010 |
| 86719B | Phone holder No. 2 | 86719-12020 |
| 86725 | mobile phone battery | 86725-06020 · 86725-78010 |
| 86740 | Telephone transceiver assembly | 86740-12090 |
| 86741A | Telecommunications transceiver | 86741-06091 · 86741-06092 · 86741-48110 · 86741-48111 |
| 86742 | transceiver cover | 86742-06020 · 86742-12010 · 86742-78010 |
