Toyota COROLLA 遥控门锁 — Figure 8420

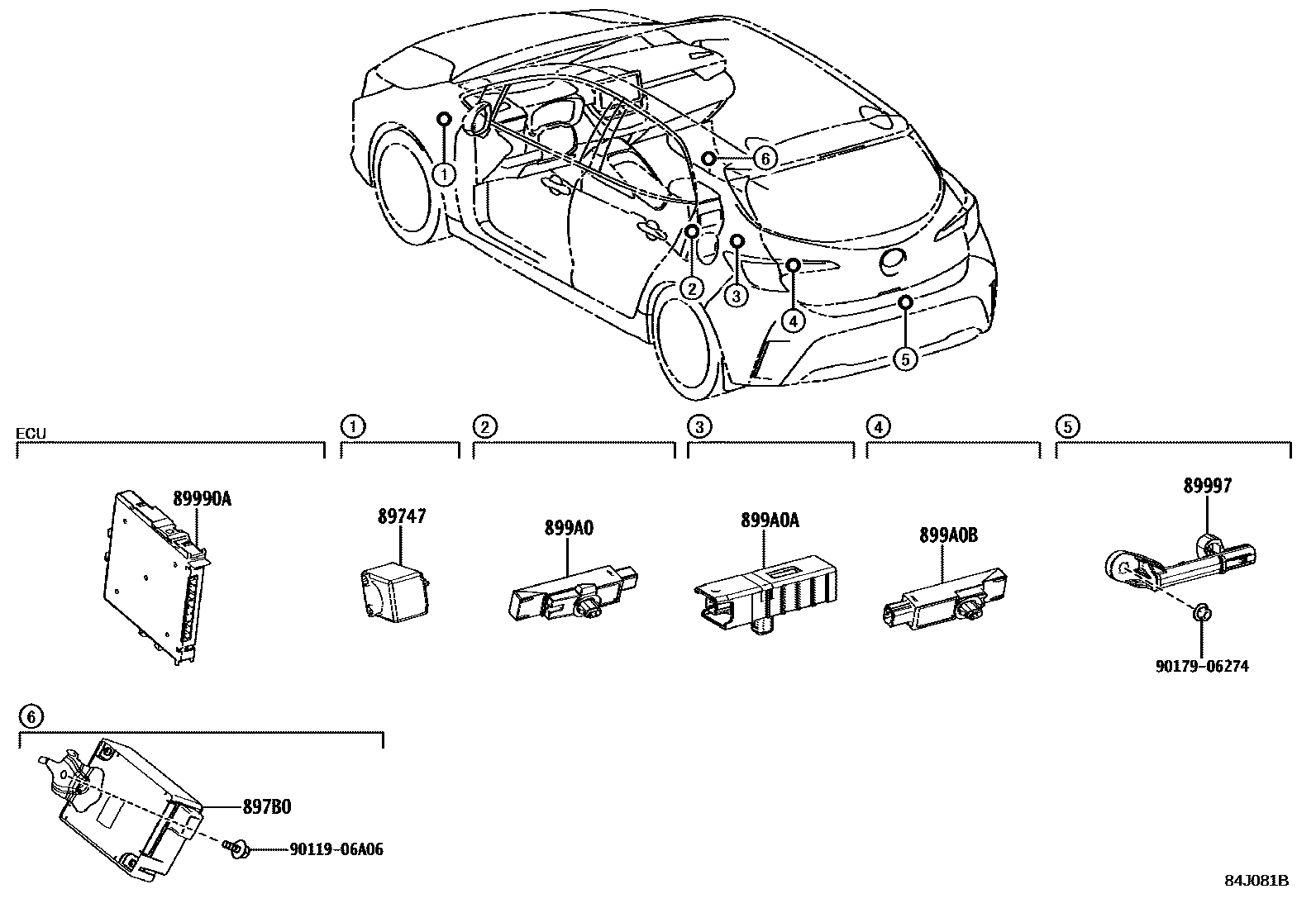

Toyota COROLLA EPC diagram 8420, 遥控门锁, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89747 | Remote door lock buzzer | 89747-30040 |
| 897B0 | Electronic key and tire pressure detection system receiver assembly | 897B0-12050 · 897B0-12060 · 897B0-12190 |
| 89990A | Smart key ECU assembly | 899H0-12050 · 899H0-12051 · 899H0-12222 · 899H0-12230 · 899H0-12231 · 899H0-12610 · 899H0-12690 |
| 89997 | electronic key antenna | 89997-30100 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-12080 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-12090 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-12130 |
