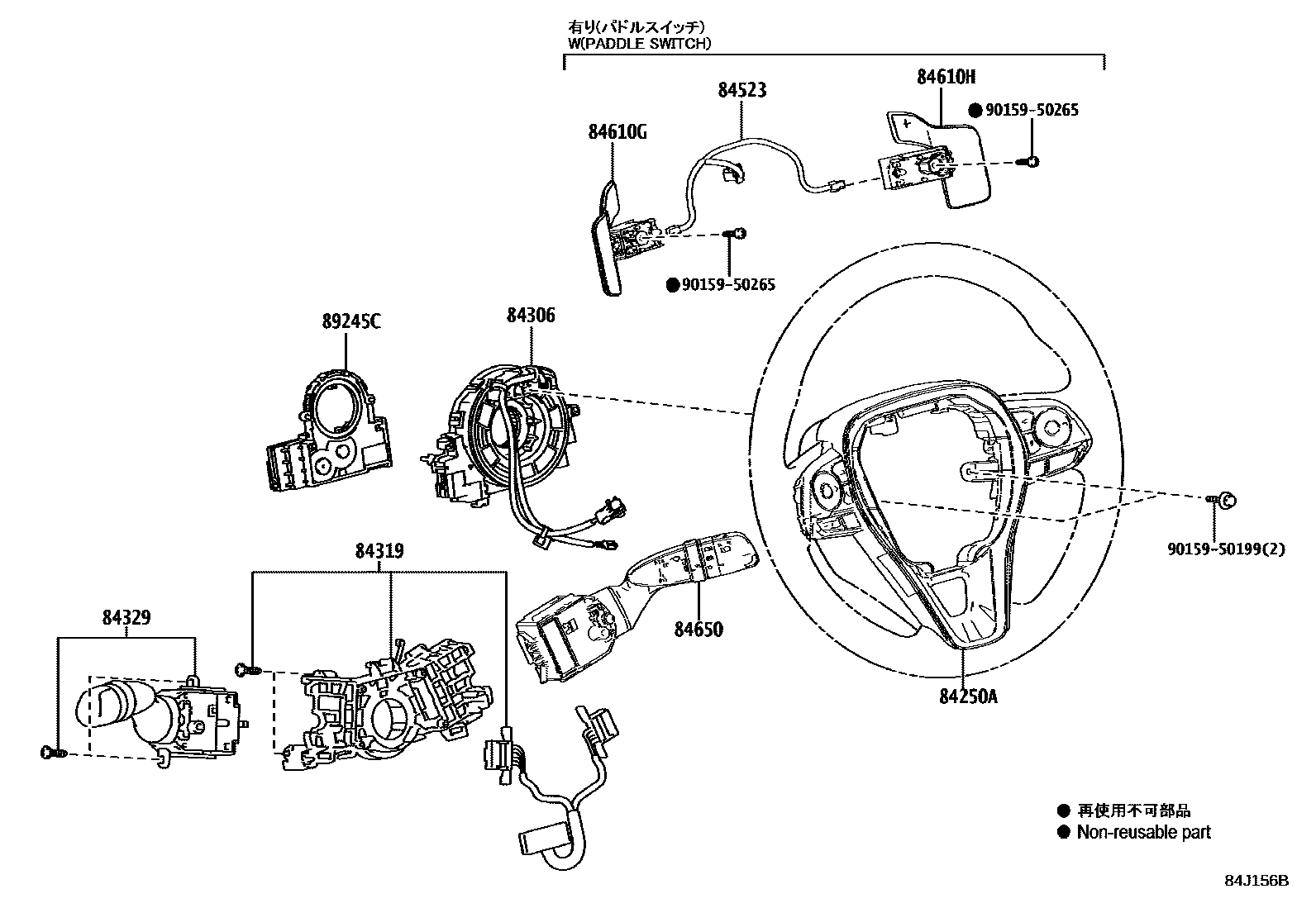

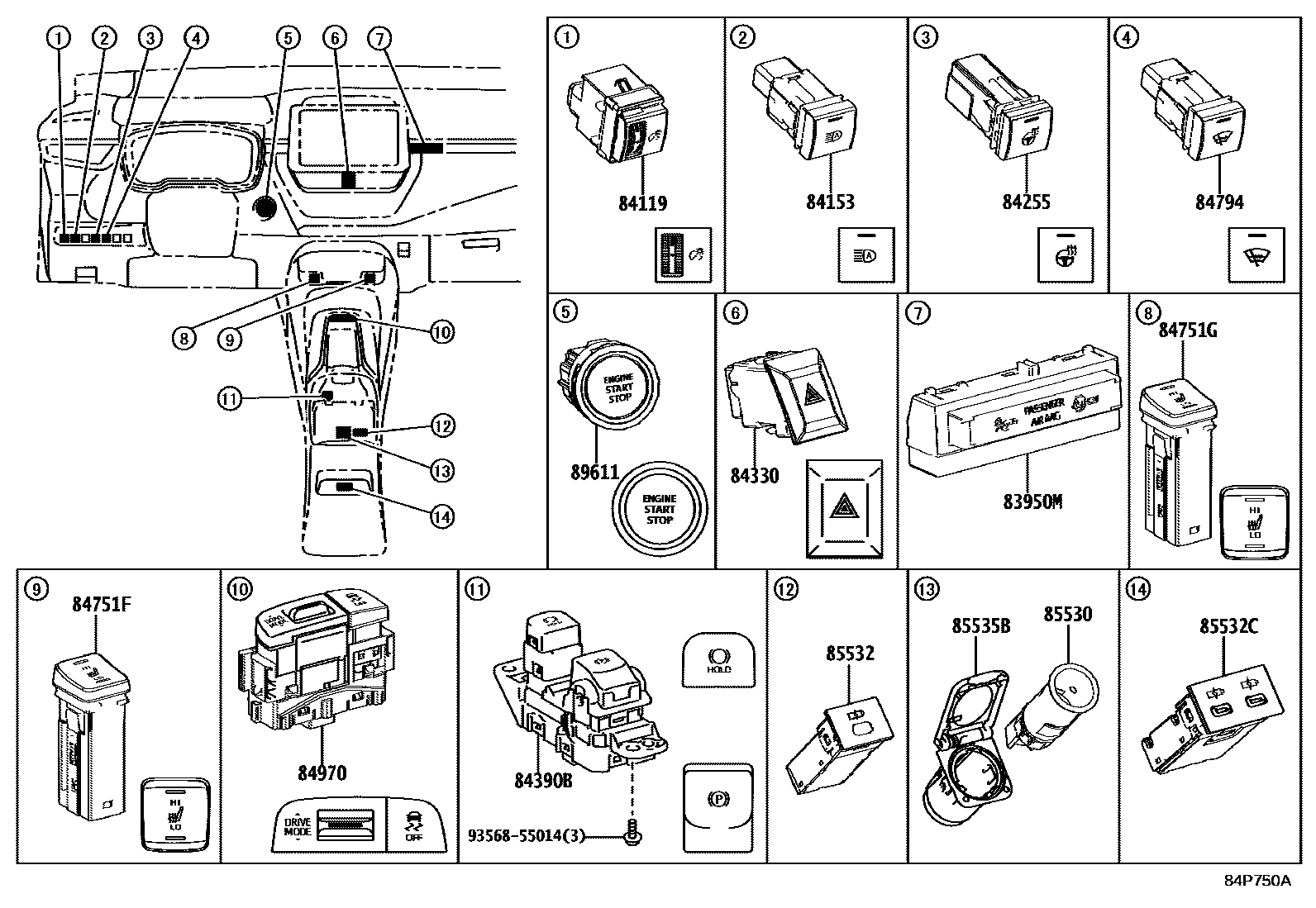

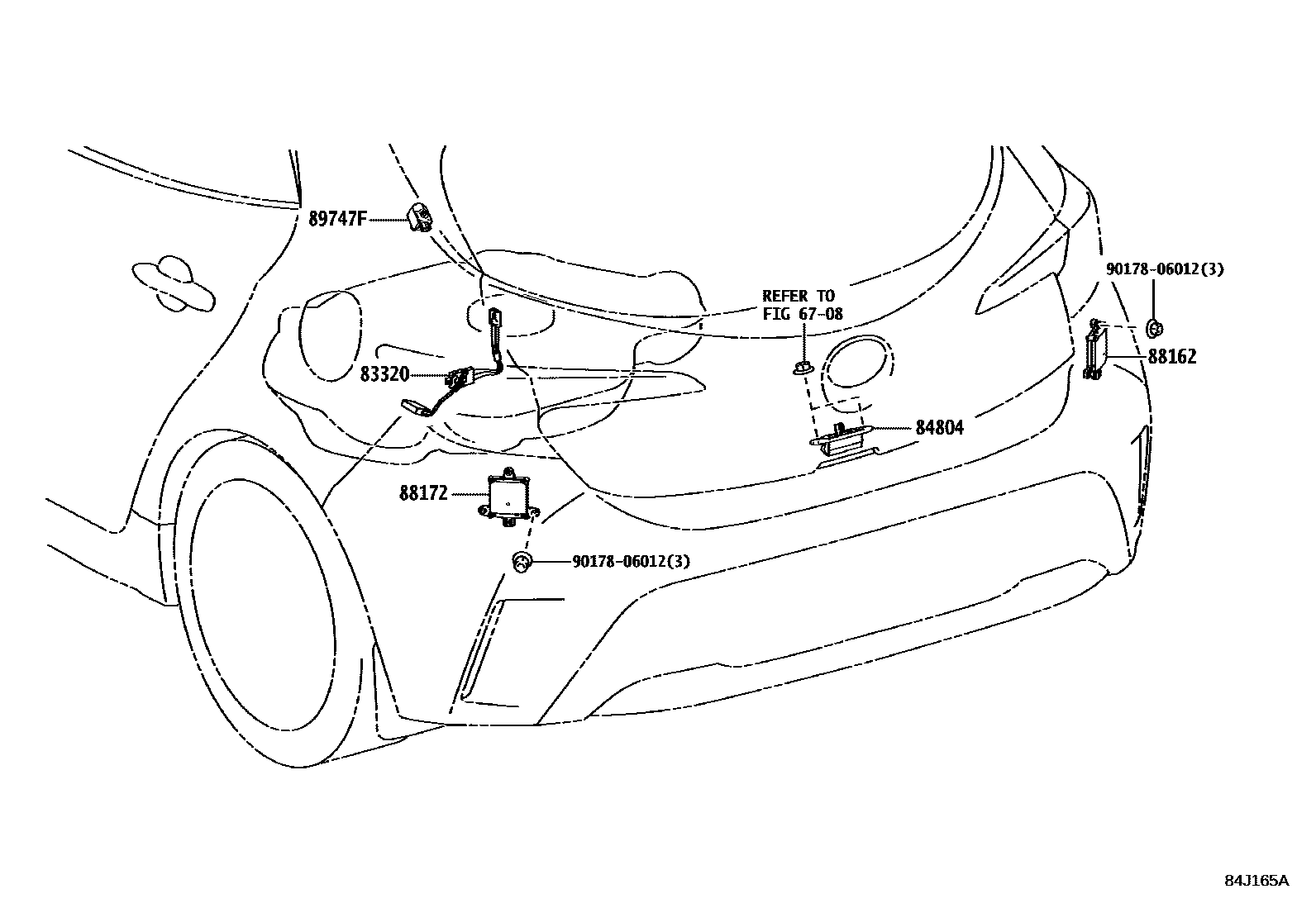

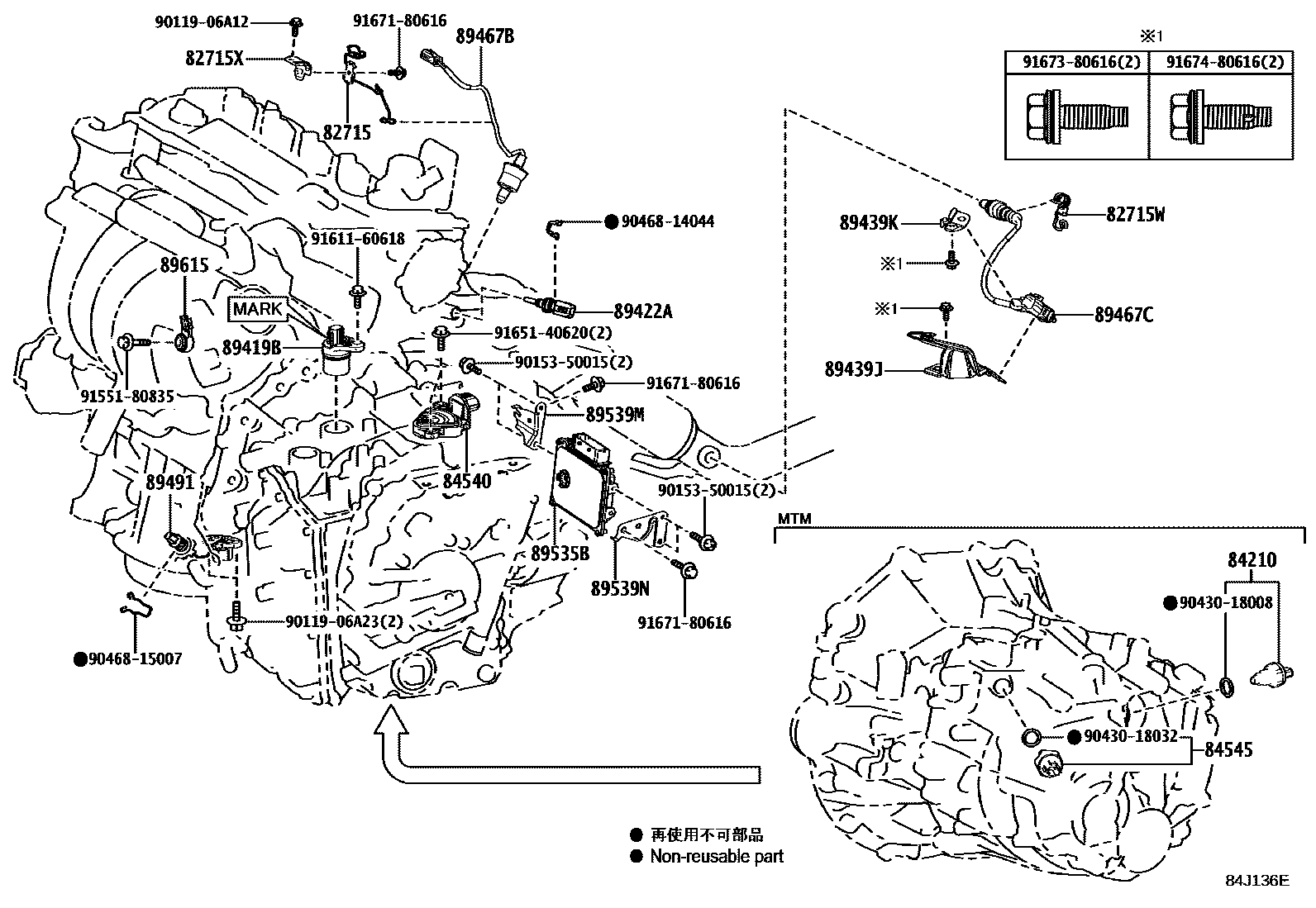

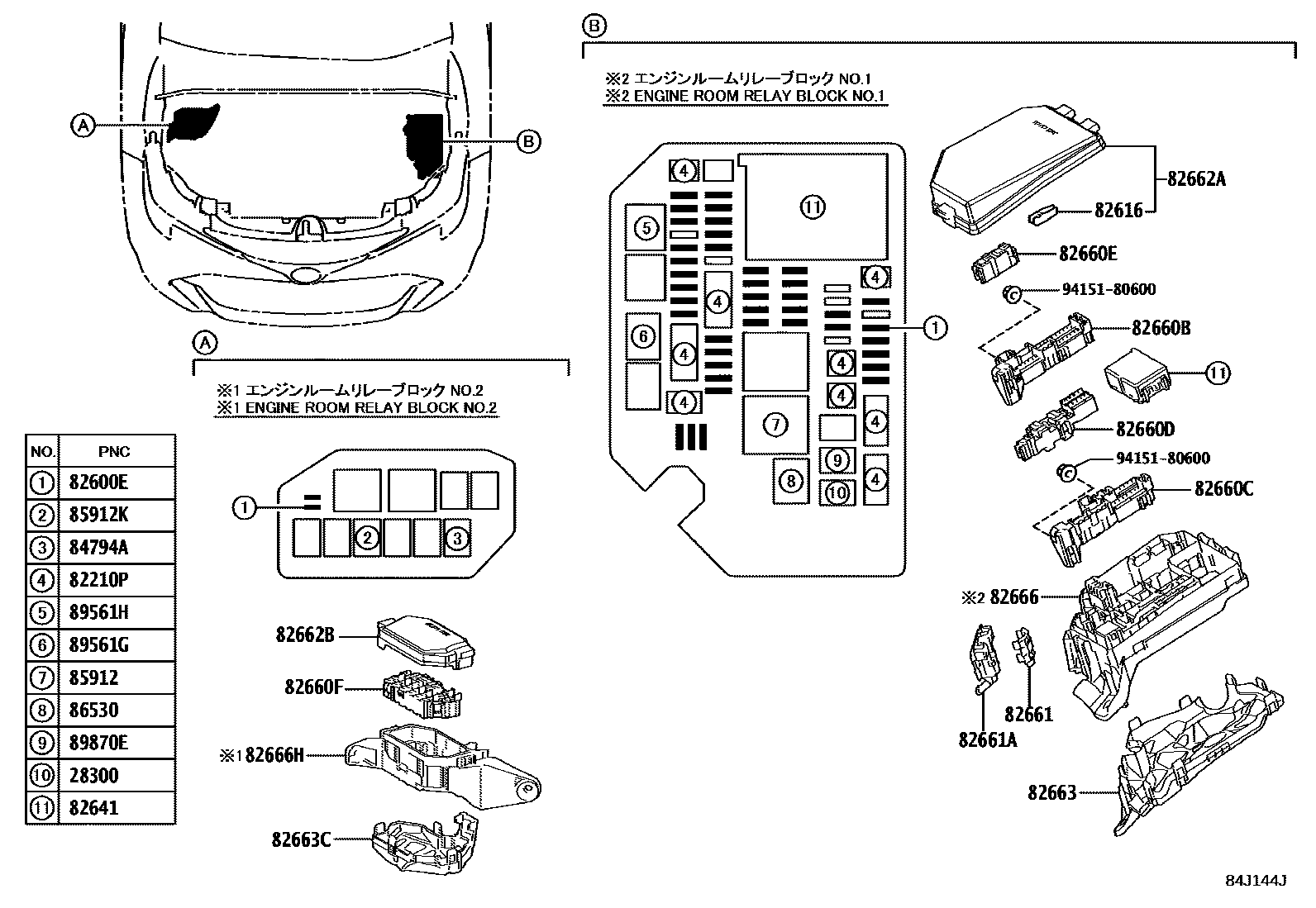

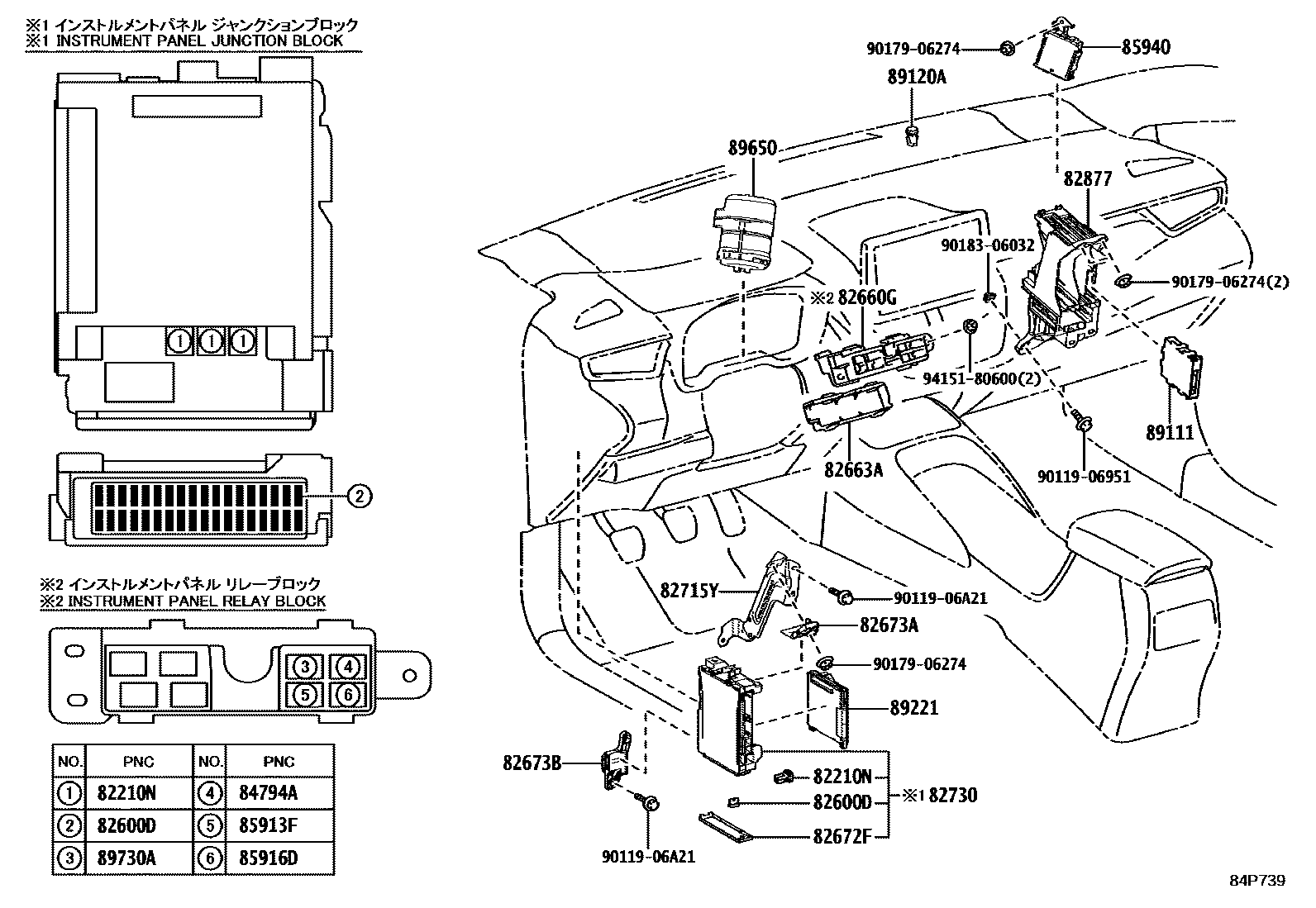

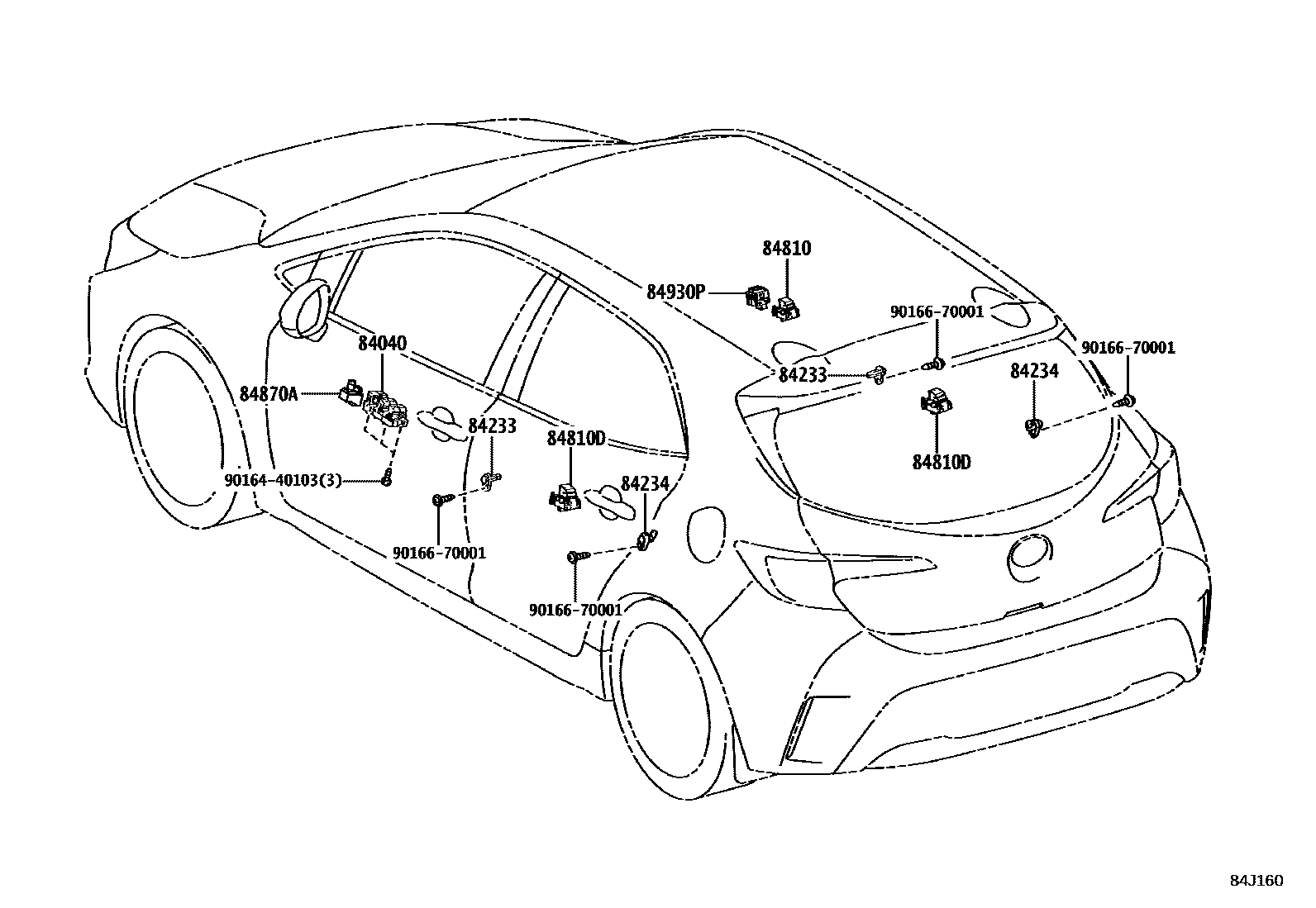

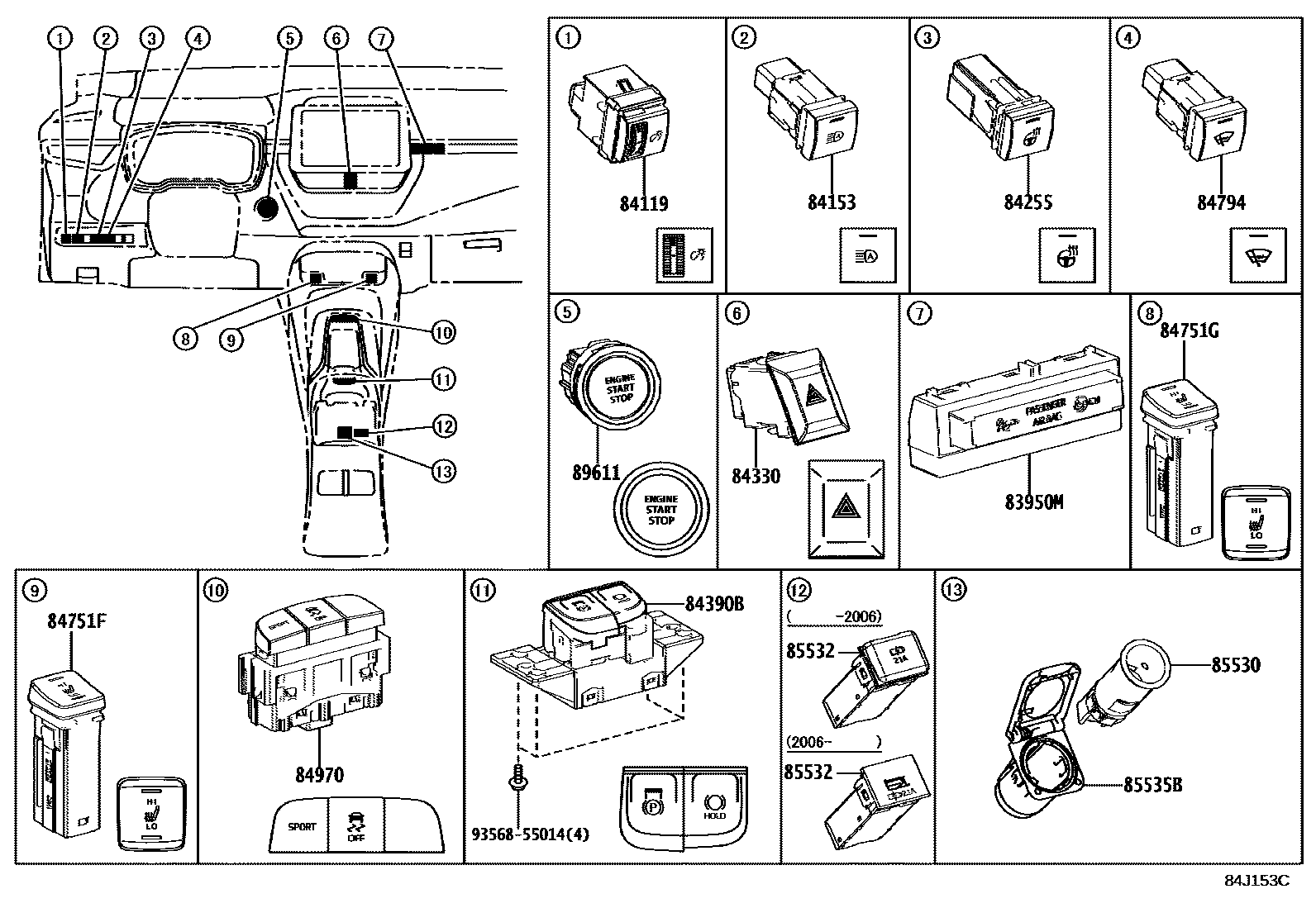

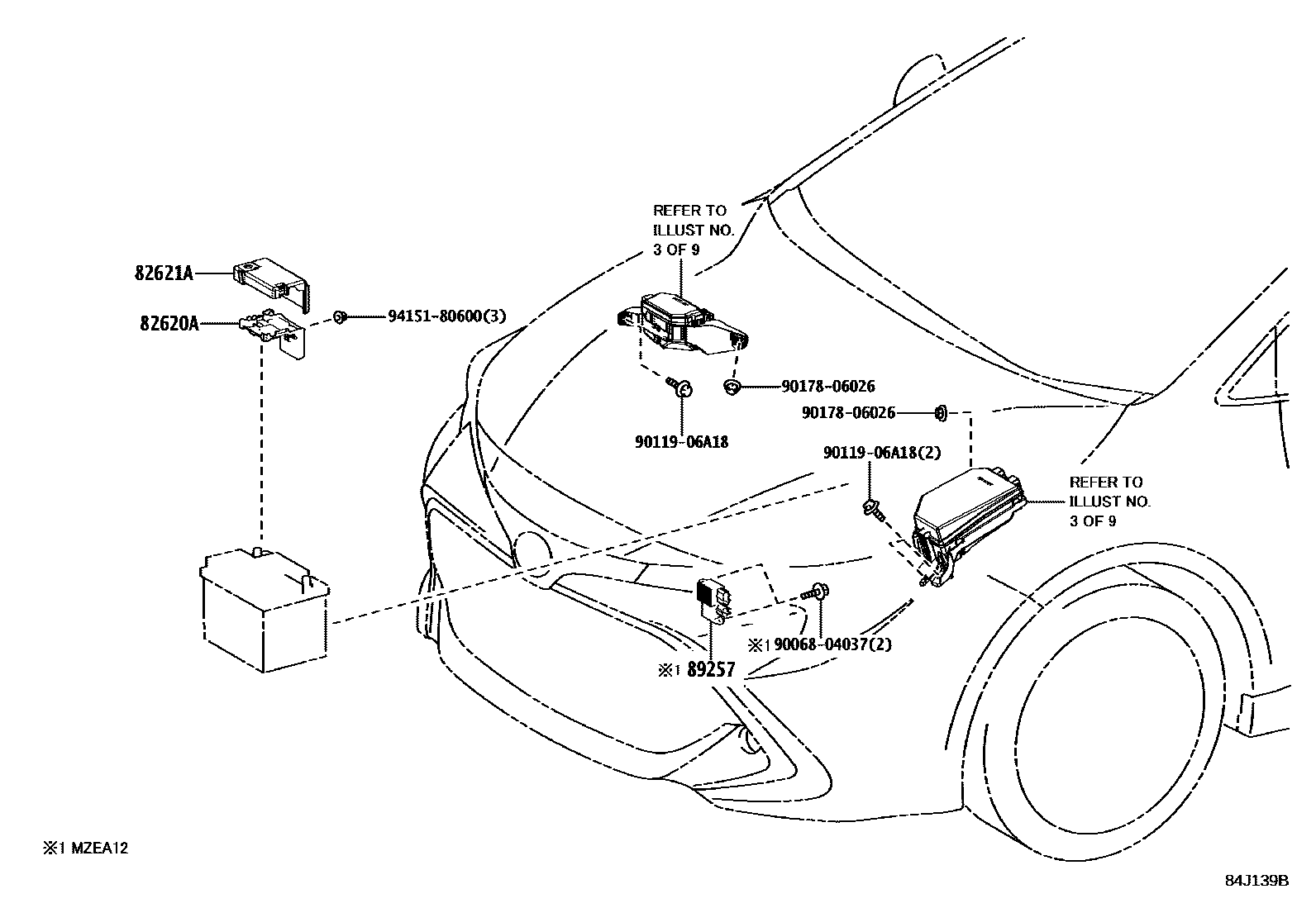

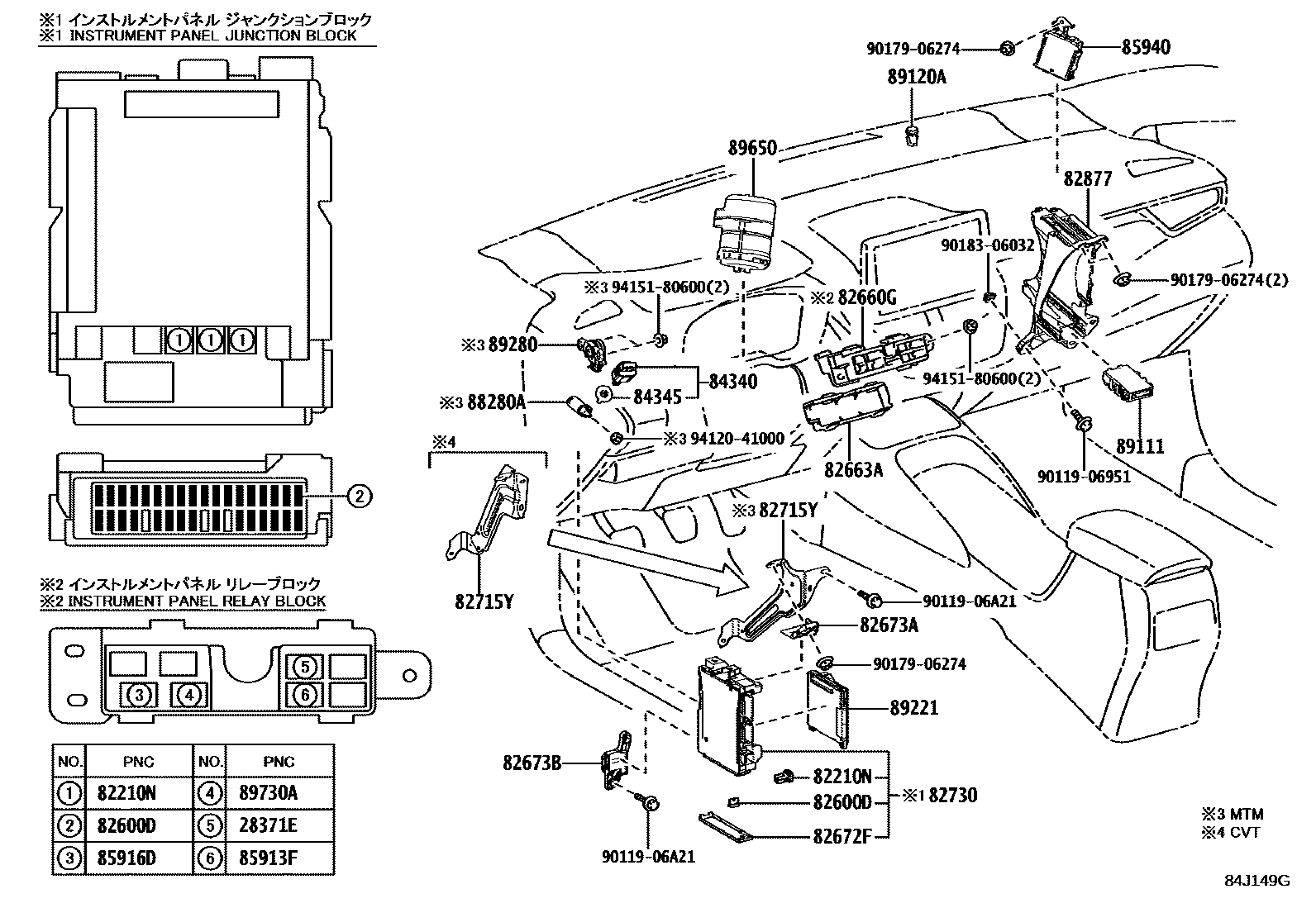

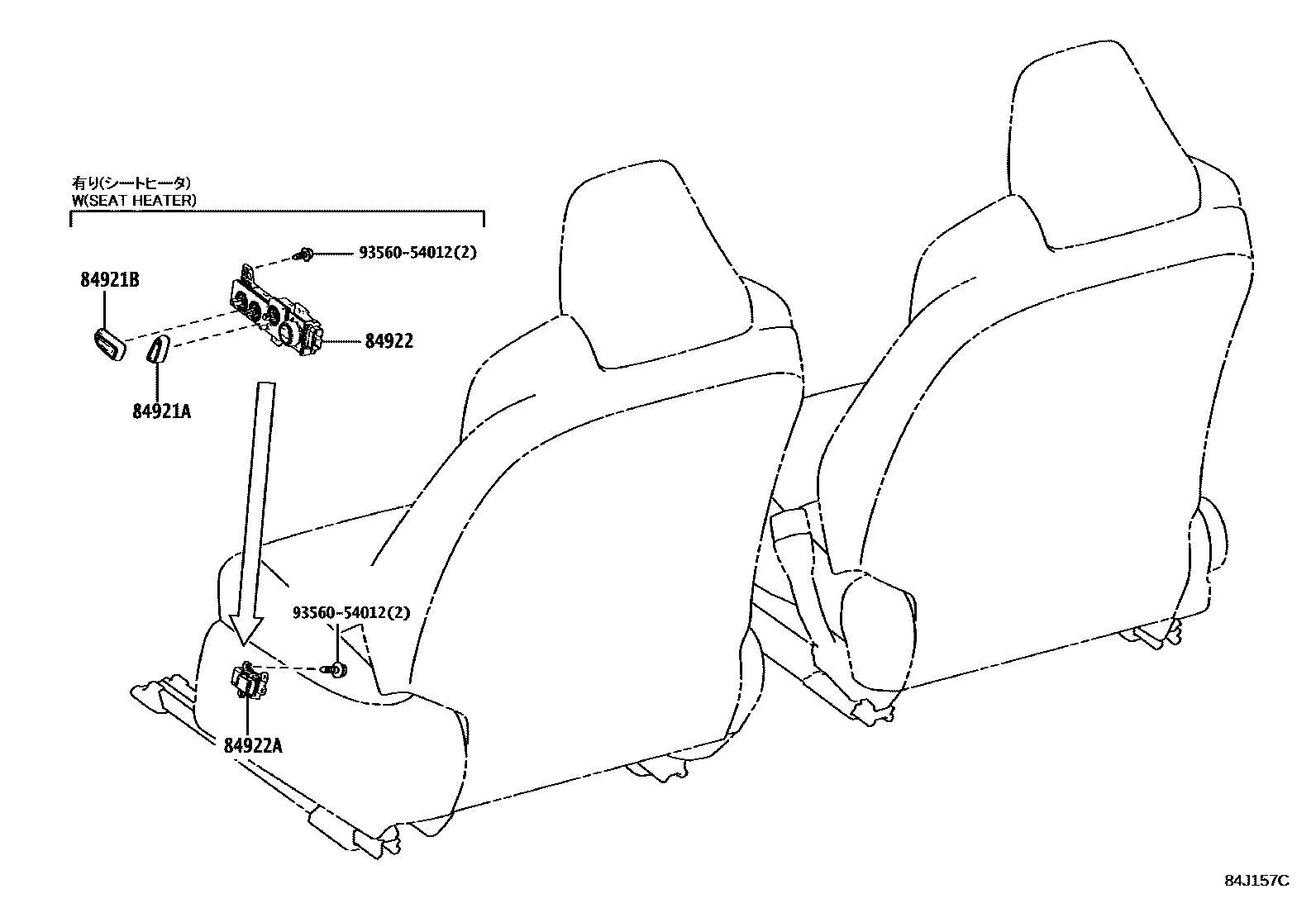

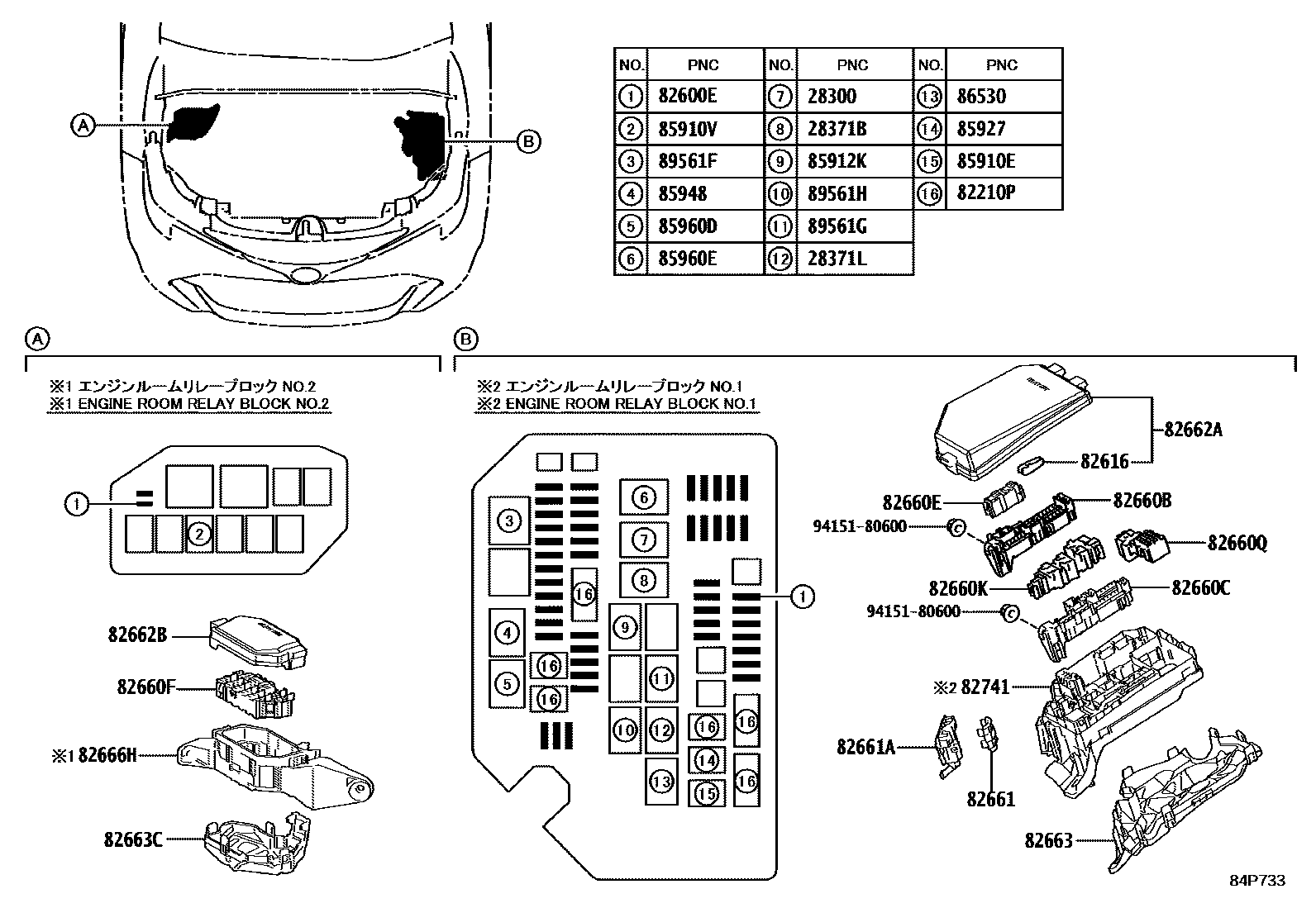

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 13 images and 116 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 |
| 28371B | RELAIS, IGR | 90987-02027 |
| 28371E | RELAIS ALLUMAGE NO.4 | 90987-02027 |
| 28371L | RELAIS, IGP | 90987-02027 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08294 · 90982-08295 · 90982-08296 · 90982-08299 · 90982-08300 · 90982-08301 · 90982-08302 · 90982-08303 · 90982-08304 · 90982-08305 · 90982-08307 · 90982-08308 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09025 · 90982-09026 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-12310 |
| 82621A | Fuse cover | 82621-12040 |
| 82641 | Integrated relay No. 1 | 82641-47050 |
| 82660B | Relay assembly | 82660-12360 · 82660-16530 |
| 82660C | Relay assembly | 82660-12390 |
| 82660D | Relay assembly | 82660-12400 |
| 82660E | Relay assembly | 82660-12470 |
| 82660F | Relay assembly | 82660-12410 |
| 82660G | Relay assembly | 82660-12460 |
| 82660K | ENS. BLOC RELAIS | 82660-0A060 |
| 82660Q | ENS. BLOC, RELAIS | 82660-0A050 |
| 82661 | No. 1 relay box cover | 82661-12350 |
| 82661A | No. 2 relay box cover | 82661-12340 |
| 82662A | No. 1 relay box upper cover | 82662-12E20 · 82662-12E70 · 82662-12E90 |
| 82662B | No. 2 relay box upper cover | 82662-12E40 · 82662-12F00 |
| 82663 | Relay box lower cover | 82663-12160 |
| 82663A | No. 2 relay box lower cover | 82663-12150 |
| 82663C | No. 4 relay box lower cover | 82663-47090 |
| 82666 | Connector holder | 82666-12650 |
| 82666H | Connector holder No. 2 | 82666-47620 |
| 82672F | Junction box cover | 82672-12610 · 82672-12640 · 82672-12650 |
| 82673A | Junction box bracket | 82673-12340 |
| 82673B | Junction box bracket | 82673-12350 |
| 82715 | Wire harness clamp bracket | 82715-12V90 |
| 82715W | SUPPORT, COLLIER DE FAISCEAU DE CABLAGE | 82729-20040 |
| 82715X | SUPPORT, COLLIER FAISCEAU CABLAGE, NO.2 | 82715-12X50 |
| 82715Y | SUPPORT, COLLIER FAISCEAU CABLAGE, NO.3 | 82715-12W60 · 82715-12X60 |
| 82730 | Instrument panel junction box assembly | 82730-12N90 · 82730-12Z20 · 82730-12Z30 · 82730-12Z50 |
| 82741 | Engine room relay box | 82741-0A020 |
| 82877 | Right ECU integrated box | 82877-16010 · 82877-47040 |
| 83320 | Fuel gauge sensor assembly | 83320-10260 |
| 83950M | Warning light assembly | 83950-12340 |
| 84040 | Multi-channel network main switch assembly | 84040-12210 · 84040-12240 · 84040-30320 |
| 84119 | Light control rheostat | 84119-12190 · 84119-12200 |
| 84153 | Automatic high beam switch | 84153-16010 · 84153-33040 |
| 84210 | Reversing light switch assembly | 84210-52050 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-53010 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-12690 · 84250-12730 |
| 84255 | Steering heater switch | 84255-16010 · 84255-33010 |
| 84306 | Spiral cable sub-assembly | 84308-11020 · 84308-12030 · 84308-78010 · 84308-78020 |
| 84319 | Steering wheel switch housing | 84319-11010 |
| 84329 | turn signal switch | 84329-12110 · 84329-12140 · 84329-12150 · 84329-33080 · 84329-33110 · 84329-33120 |
| 84330 | Hazard warning signal switch assembly | 84332-12600 |
| 84340 | brake light switch assembly | 84340-19085 · 84340-19095 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84390B | Electric parking brake switch assembly | 84390-12010 · 84390-12050 · 84390-12140 |
| 84523 | No. 1 switch harness | 84523-11010 |
| 84540 | Neutral start switch assembly | 84540-12240 · 89451-42010 |
| 84545 | INTERRUPTEUR, POSITION NEUTRE | 84545-52010 |
| 84610G | ENS. COM, BOITE VITESSES, NO.1 | 84610-33010 · 84610-33011 |
| 84610H | ENS. COM, BOITE VITESSES, NO.2 | 84610-33020 · 84610-33021 |
| 84650 | Windshield wiper switch assembly | 84652-12A60 · 84652-12A70 |
| 84751F | Seat heater switch | 84751-12120 · 84751-12140 |
| 84751G | Seat heater switch | 84751-12130 · 84751-12150 |
| 84794 | Front wiper de-icer switch | 84794-53020 · 84871-60060 |
| 84794A | Front wiper de-icer relay | 90987-02027 |
| 84804 | SOUS-ENS. COM, OUV HAYON | 84804-12050 |
| 84810 | Electric window lift switch assembly | 84810-12120 · 84810-30230 |
| 84810D | Rear electric window lift switch assembly | 84810-12120 · 84810-30230 |
| 84870A | Exterior rearview mirror switch assembly | 84872-12120 · 84872-12130 · 84872-12230 |
| 84930P | ENS. INT, COMMANDE PORTE | 84930-12270 · 84930-30110 |
| 84970 | Combination switch assembly | 84970-12160 · 84970-12170 · 84970-12280 · 84970-12310 · 84970-12530 |
| 85530 | No. 1 power socket assembly | 85530-42010 |
| 85532 | PRISE, CHARGEUR USB | 85532-12010 · 85532-12020 · 85532-60010 · 85532-60060 |
| 85532C | PRISE, CHARGEUR USB, NO.2 | 85532-60040 |
| 85535B | No. 1 power outlet cover | 85535-12080 |
| 85910E | Injector relay | 90987-02027 |
| 85910V | seat heater relay | 90987-02027 |
| 85912 | defogger relay | 90987-04010 |
| 85912K | RELAIS, VVT | 90987-02027 |
| 85913F | Steering heater relay | 90987-02027 |
| 85916D | fog light relay | 90987-02027 |
| 85927 | cooling fan relay | 90987-02027 |
| 85940 | Windshield wiper relay assembly | 85940-12230 |
| 85948 | windshield wiper relay | 90987-02027 |
| 85960D | RELAIS, PHARE, MD | 90987-02027 |
| 85960E | RELAIS, PHARE, MG | 90987-02027 |
| 86530 | Speaker relay assembly | 90987-02027 |
| 88162 | Blind spot monitor right sensor | 88162-12020 · 88162-12021 · 88162-12022 · 88162-12023 · 88162-12100 |
| 88172 | Blind spot monitor left sensor | 88162-12020 · 88162-12021 · 88162-12022 · 88162-12023 · 88162-12100 |
| 88280A | Clutch switch assembly | 88280-70010 |
| 89111 | Network gateway ECU | 89111-12030 · 89111-12190 |
| 89120A | Automatic light control sensor | 89121-30020 |
| 89221 | Multi-channel network body ECU | 89220-12770 · 89220-12780 · 89220-12790 · 89220-12800 · 89220-12810 · 89220-12820 · 89220-12830 · 89220-12840 · 89220-12850 · 89220-12860 · 89220-12870 · 89220-12880 · 89220-12890 · 89220-12A00 · 89220-12A10 · 89220-12A20 · 89220-12B10 · 89220-12B20 · 89220-12B30 · 89220-12B40 · 89220-12B50 · 89220-12B60 · 89220-12B70 · 89220-12B80 · 89220-12B90 · 89220-12C00 · 89220-12C10 · 89220-12C20 · 89220-12C30 · 89220-12C40 · 89220-12C50 · 89220-12C60 · 89220-12W80 · 89220-12W90 · 89220-12W91 · 89220-12X00 · 89220-12X10 · 89220-12X11 · 89220-12X20 · 89220-12X30 · 89220-12X31 · 89220-12X40 · 89220-12X50 · 89220-12X51 · 89220-12X60 · 89220-12X70 · 89220-12X71 · 89220-12X80 · 89220-12X90 · 89220-12X91 · 89220-12Y20 · 89220-12Y30 · 89220-12Y31 · 89220-12Y40 · 89220-12Y50 · 89220-12Y51 · 89220-12Y60 · 89220-12Y70 · 89220-12Y71 · 89220-12Y80 · 89220-12Y90 · 89220-12Y91 · 89220-12Z00 · 89220-12Z10 · 89220-12Z11 · 89220-12Z20 · 89220-12Z30 · 89220-12Z31 · 89220-1A120 · 89220-1A121 · 89220-1A130 · 89220-1A140 · 89220-1A150 · 89220-1A151 · 89220-1A160 · 89220-1A170 · 89220-1A171 · 89220-1A180 · 89220-1A190 · 89220-1A191 · 89221-12M00 · 89221-12M01 |
| 89245C | steering sensor | 8924B-50010 · 8924B-V1010 |
| 89257 | Cooling fan ECU | 89257-K0020 |
| 89280 | Clutch pedal stroke sensor assembly | 89280-10010 |
| 89419B | CAPTEUR COURSE RAPPORTS | 89419-12010 · 89419-12011 · 89419-K2010 |
| 89422A | water temperature sensor | 89422-33040 |
| 89439J | PLATINE FIXATION, DETECTEUR, NO.2 | 82715-47A60 |
| 89439K | PLATINE FIXATION, DETECTEUR, NO.3 | 82715-47690 |
| 89467B | air fuel ratio sensor | 89467-12280 · 89467-47040 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-12290 · 89467-12330 |
| 89491 | Engine oil level sensor | 89491-33051 · 89491-33052 |
| 89535B | ORDINATEUR, COMMANDE TRANSMISSION | 89535-12070 · 89535-12071 · 89535-12072 · 89535-12280 · 89535-12380 |
| 89539M | No. 1 transmission control ECU bracket | 89539-12070 |
| 89539N | No. 2 transmission control ECU bracket | 89539-12080 |
| 89561F | RELAIS, PRINCIPAL INJECTION CARB ELEC, NO.1 | 90987-02027 |
| 89561G | RELAIS, PRINCIPAL INJECTION CARB ELEC, NO.2 | 90987-02027 |
| 89561H | RELAIS, PRINCIPAL INJECTION CARB ELEC, NO.3 | 90987-02027 · 90987-02033 |
| 89611 | push button start switch | 89611-12010 · 89611-16020 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-12J30 · 89650-12J40 · 89650-12M00 · 89650-12M10 · 89650-12N70 |
| 89730A | Relay (for safety warnings) | 90987-02027 |
| 89747F | Blind spot monitor buzzer | 89747-52010 |
| 89870E | RELAIS, UNITE DE PILOTAGE ELECTRONIQUE | 90987-02027 |
