Toyota COROLLA 线束和卡夹 — Figure 8202

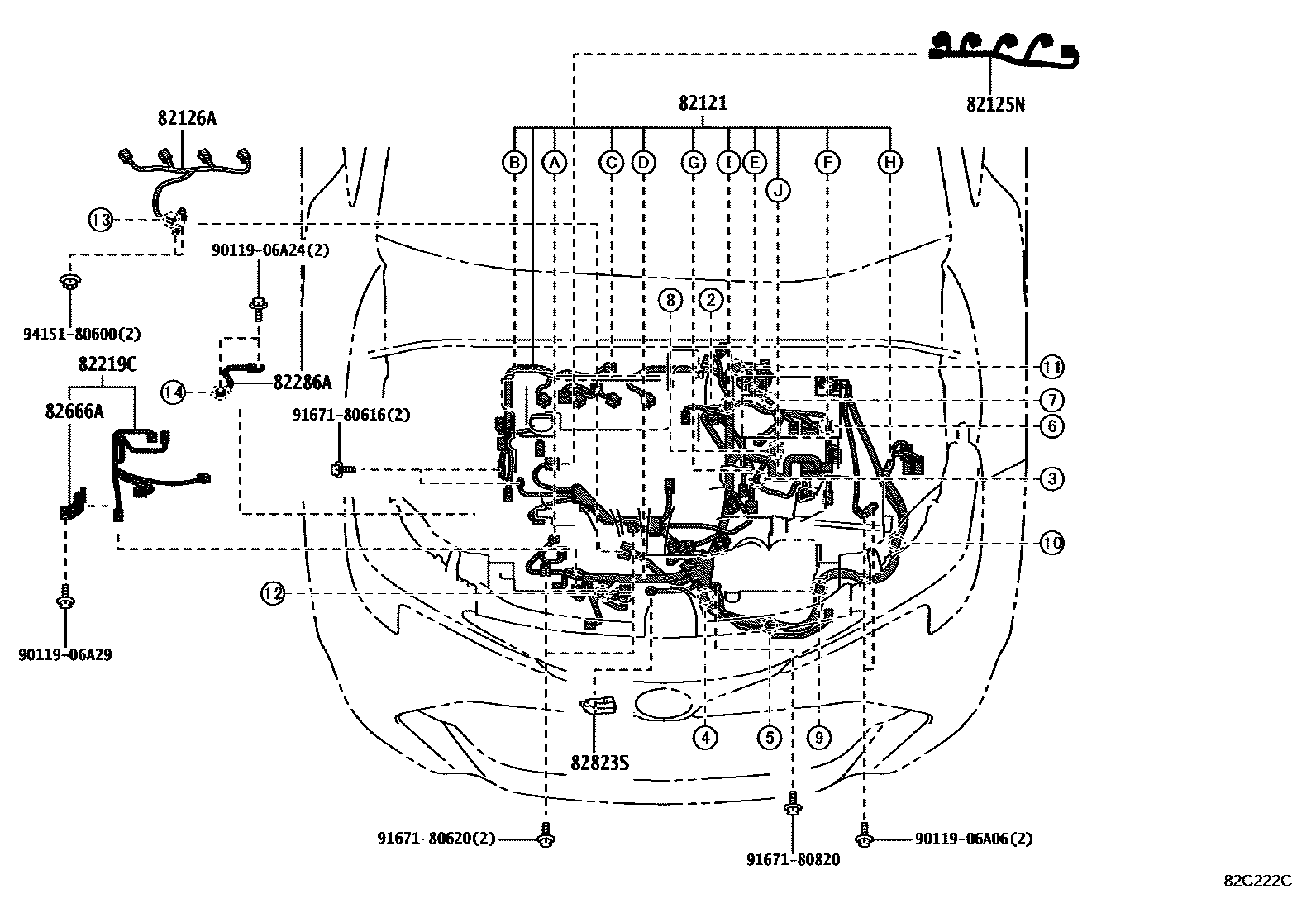

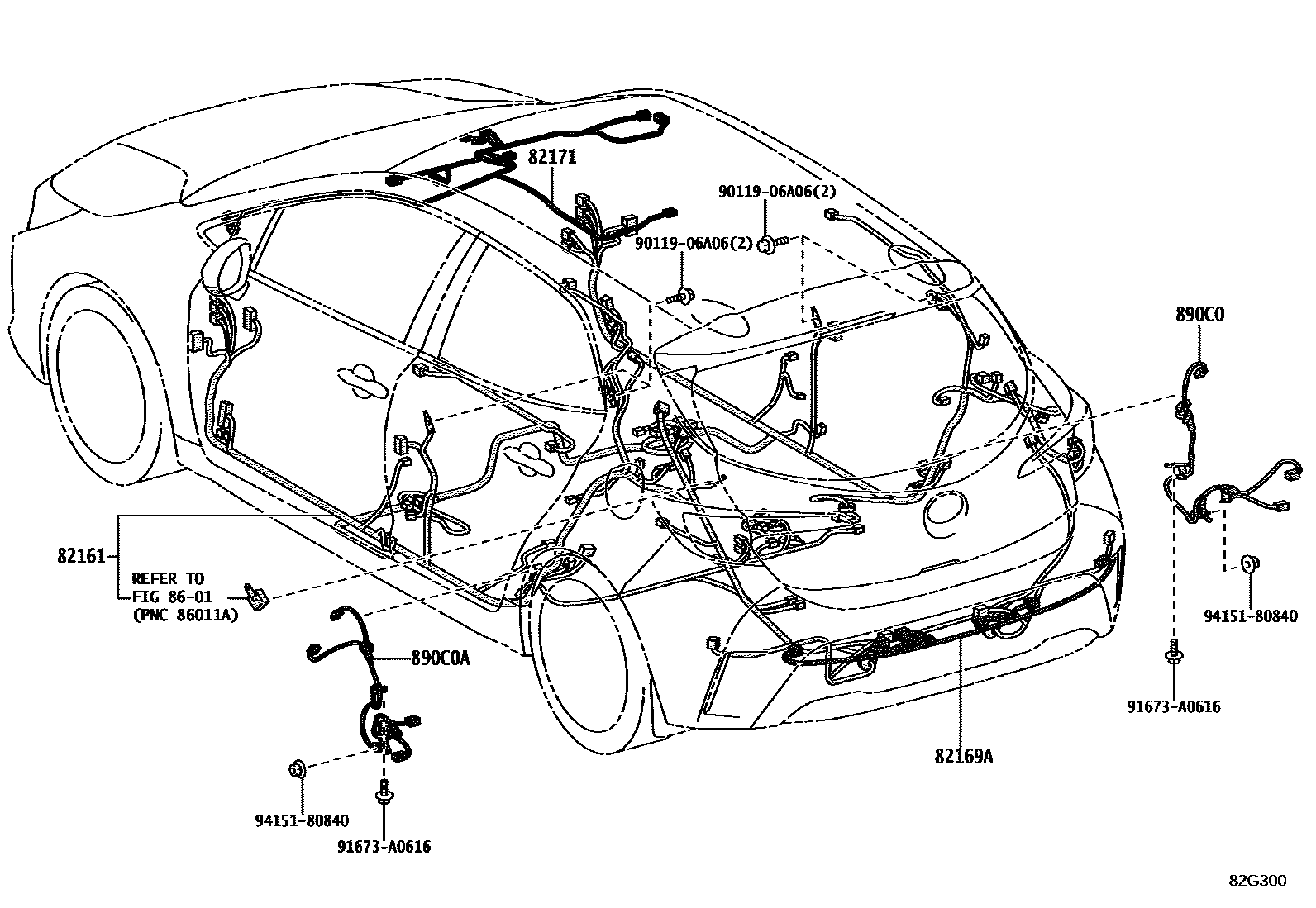

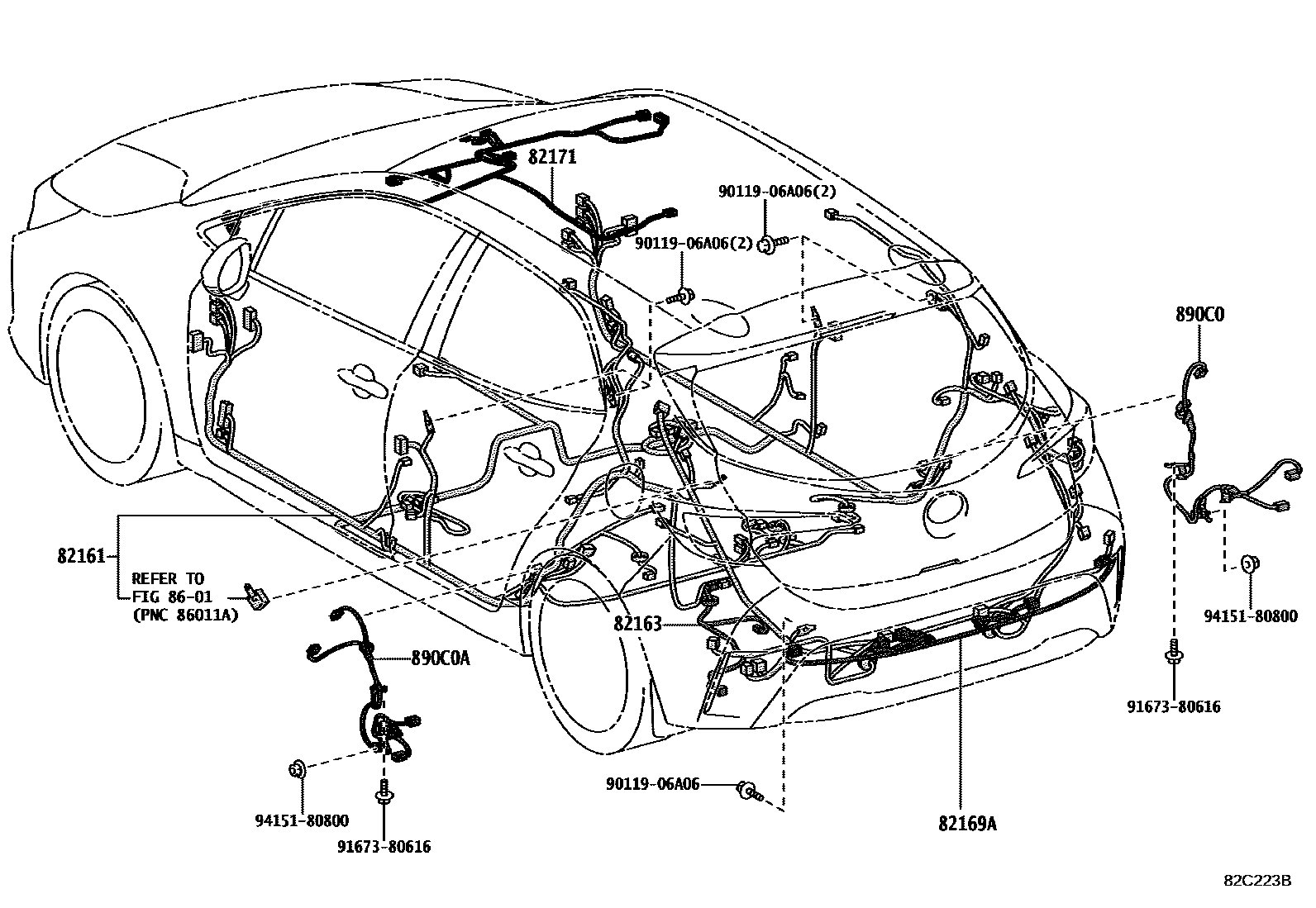

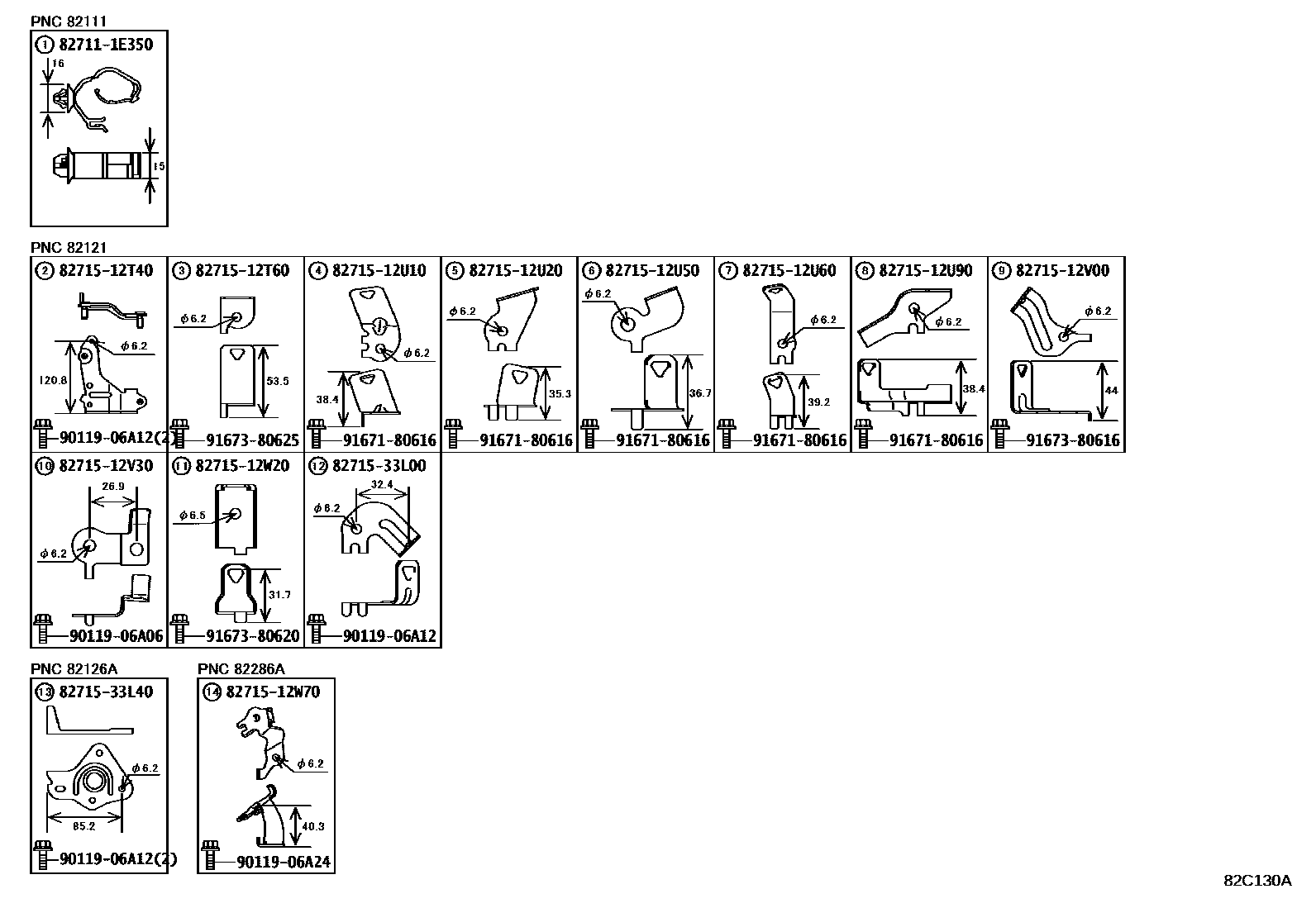

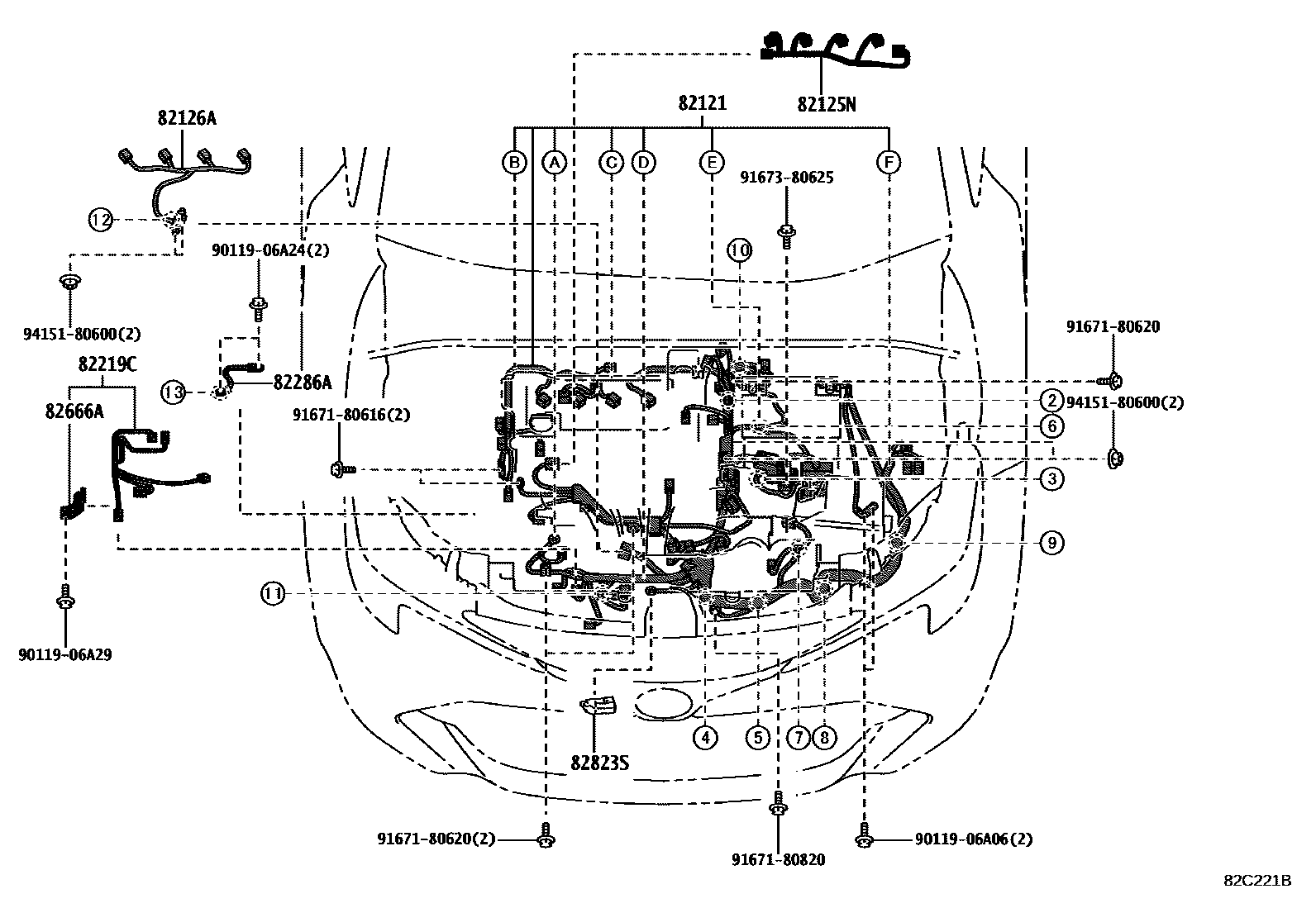

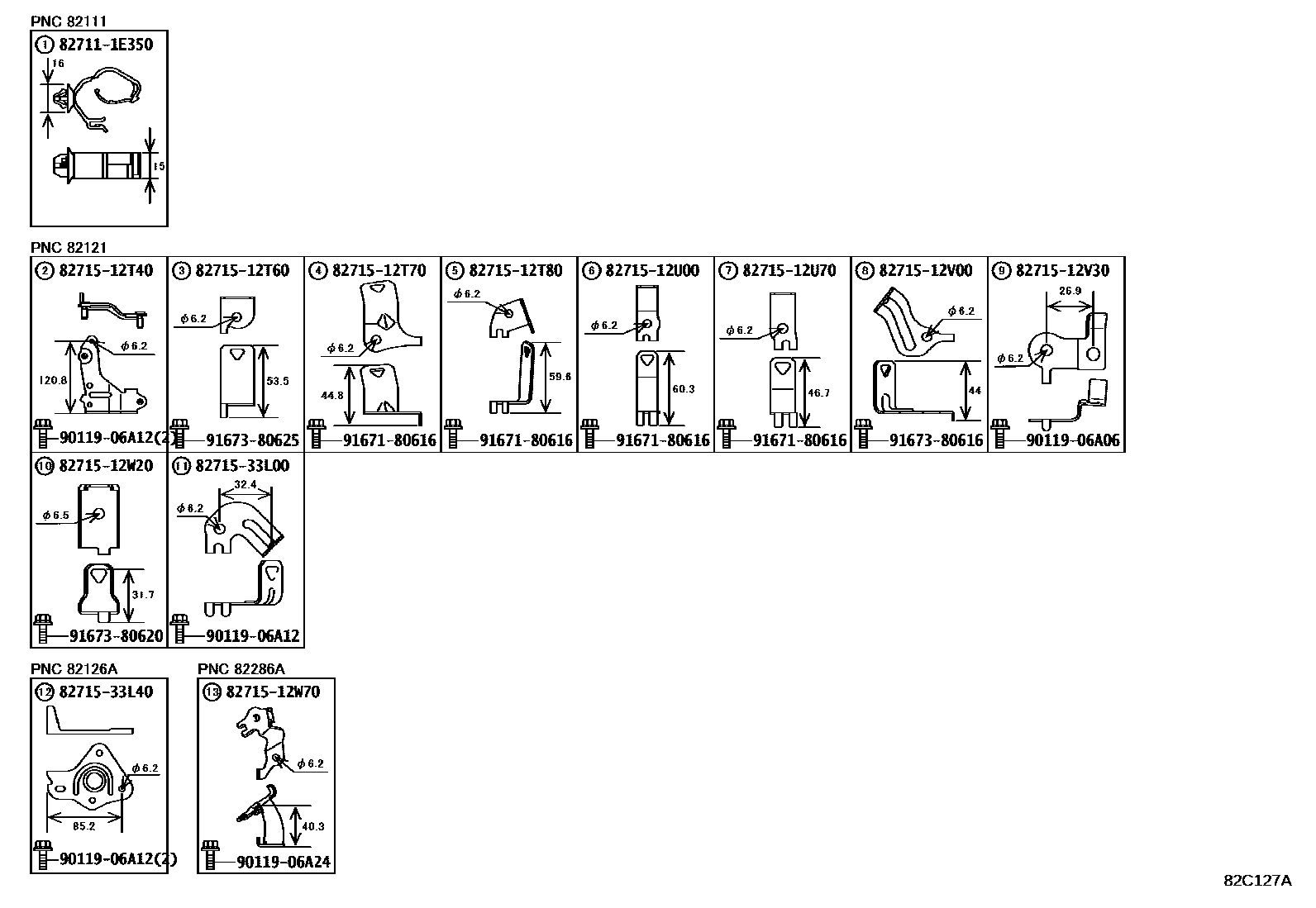

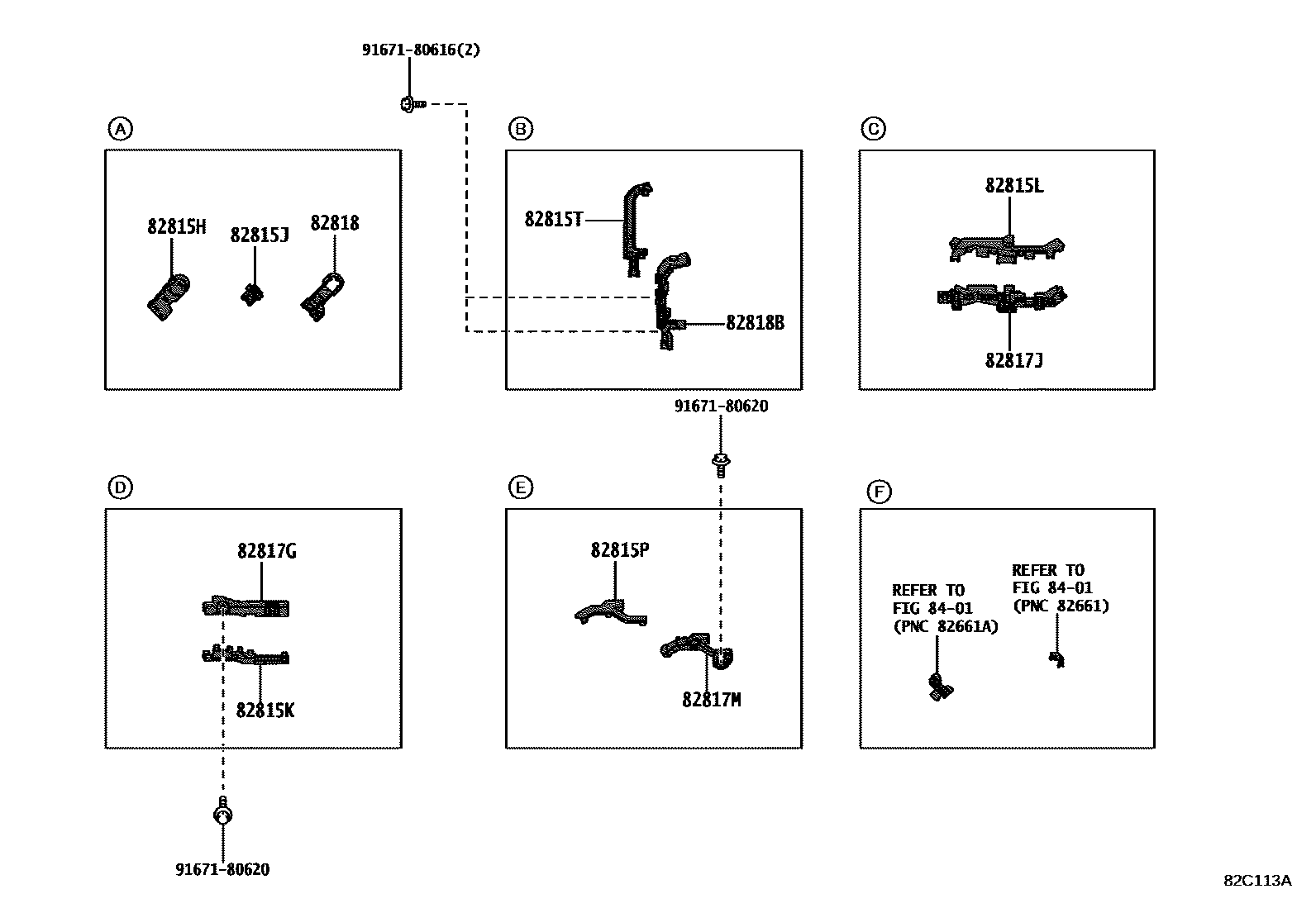

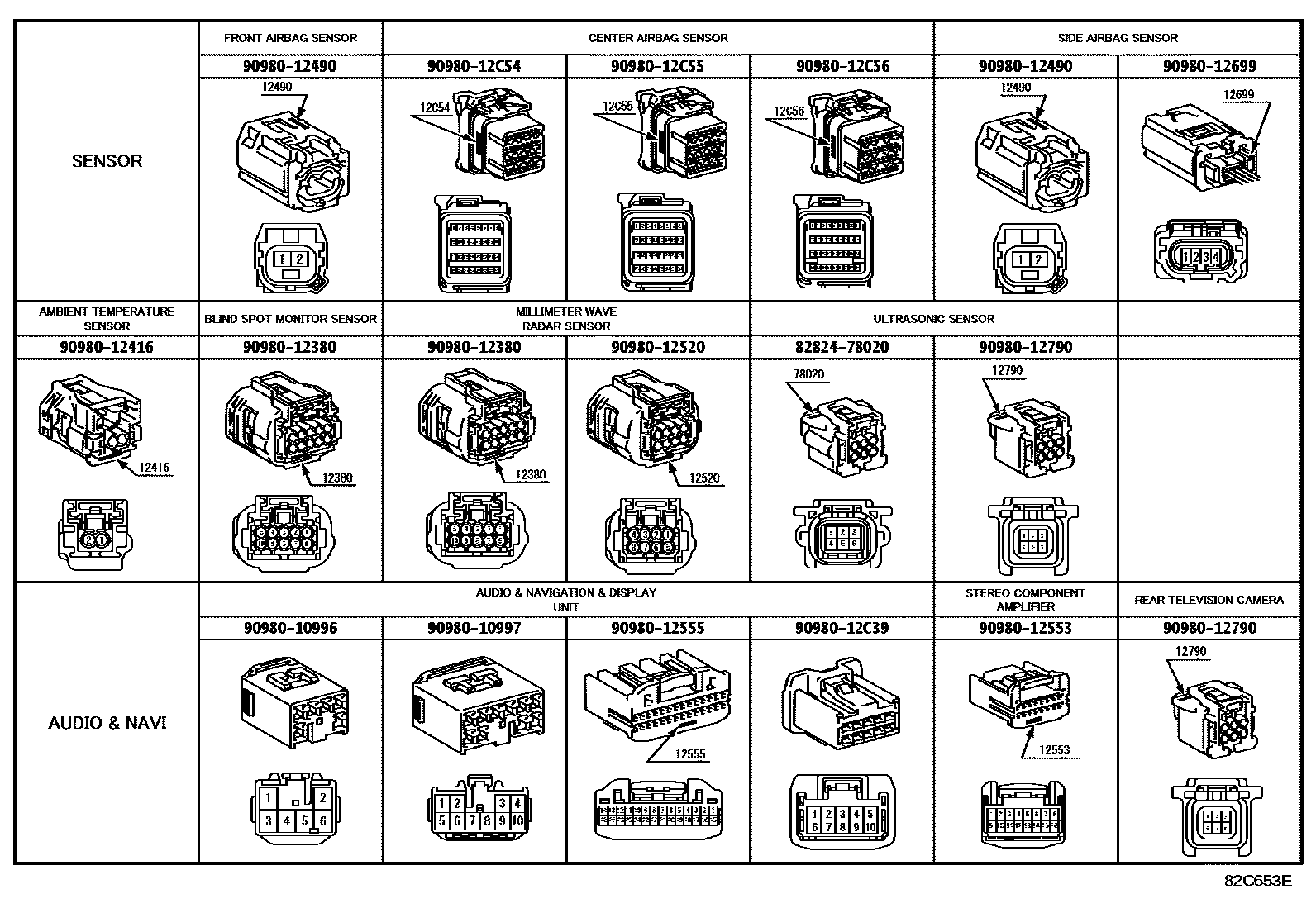

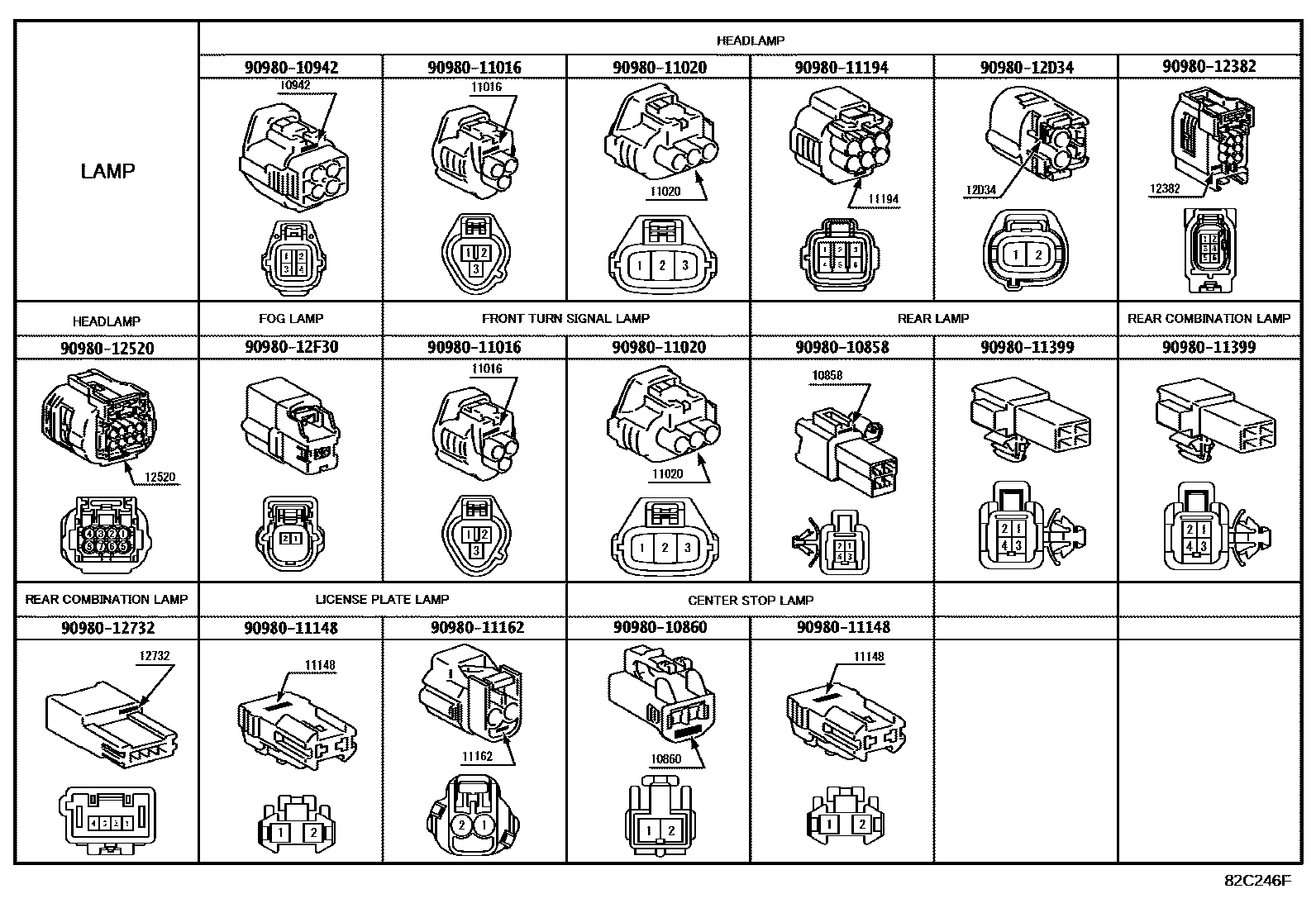

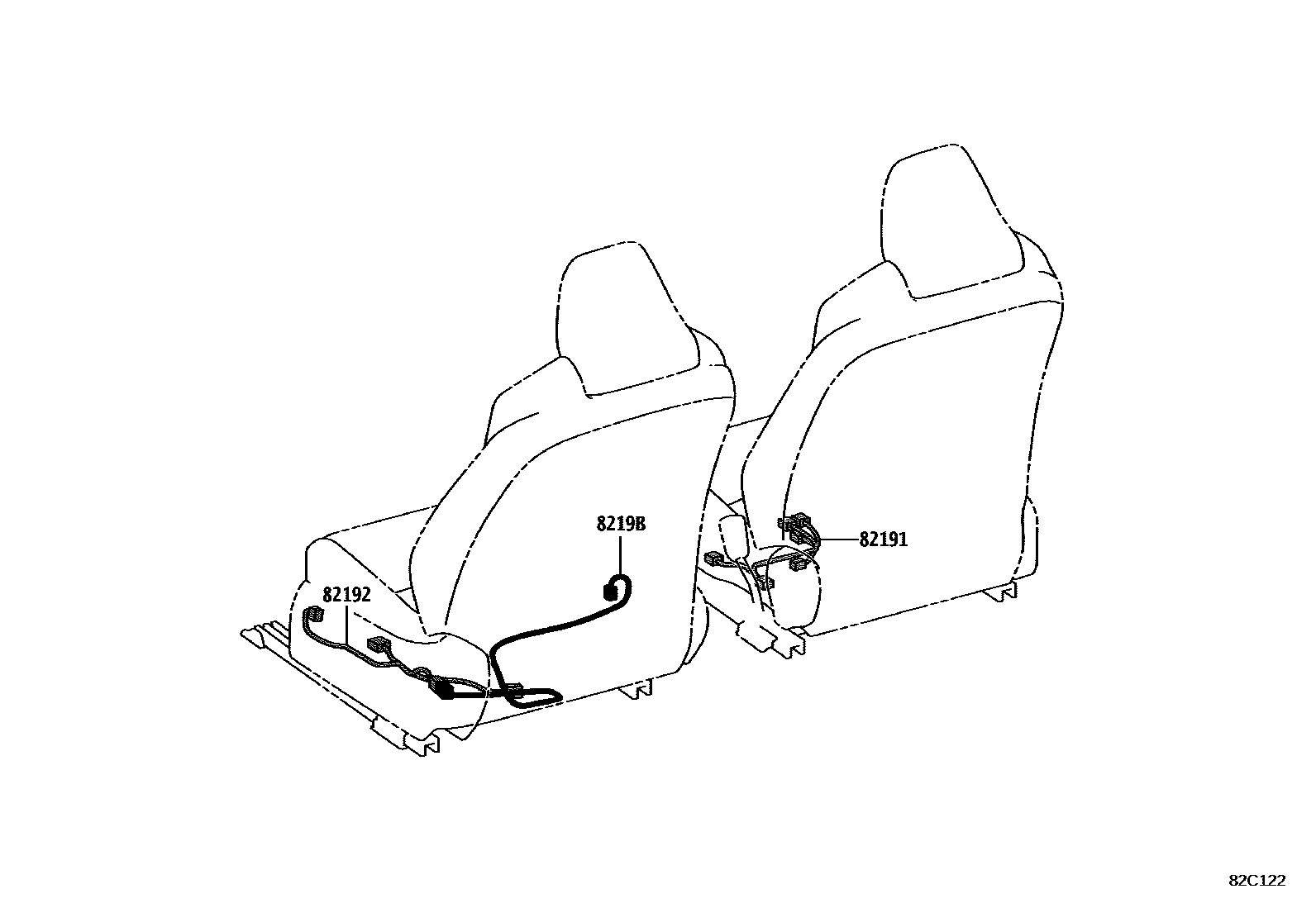

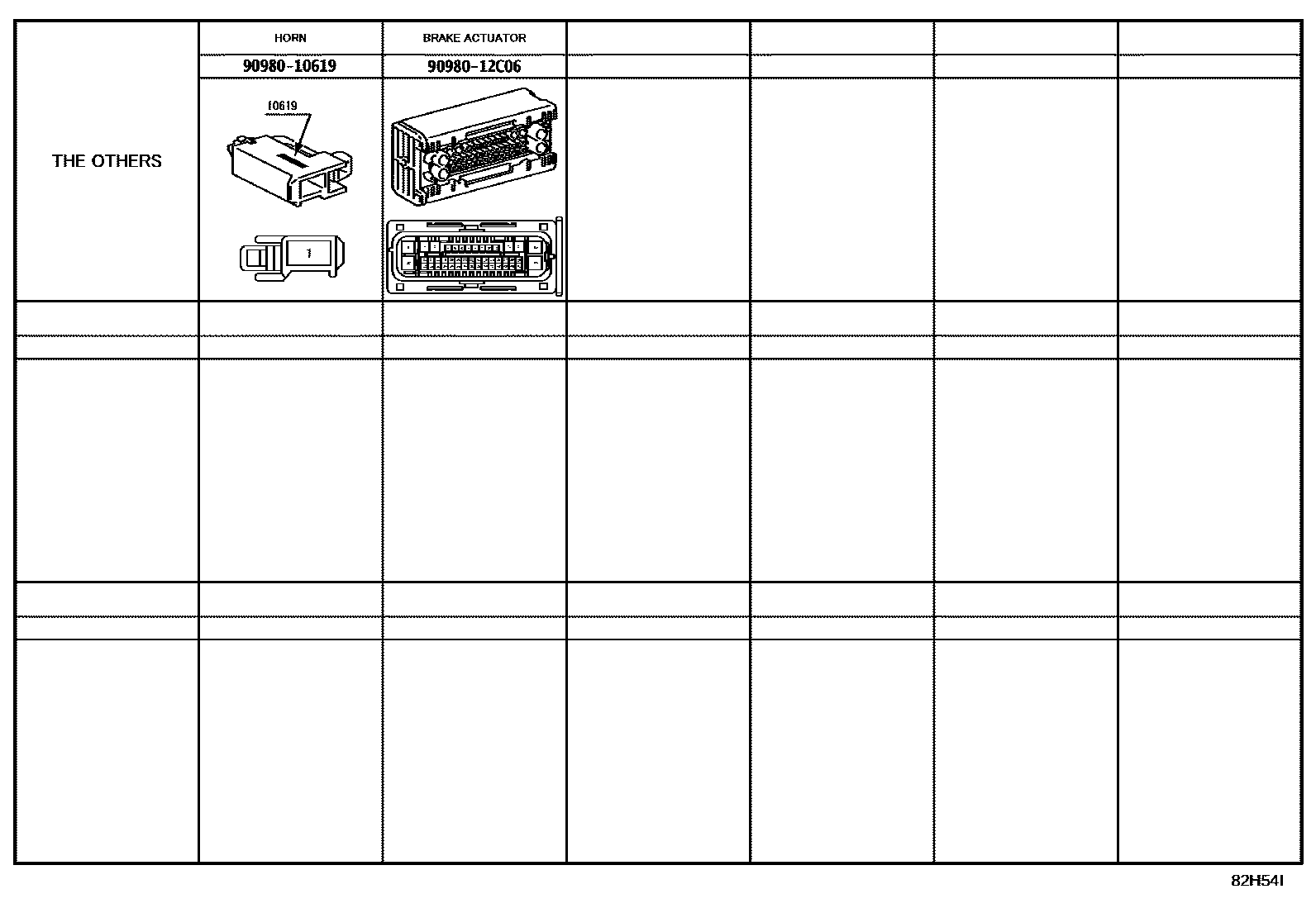

Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 18 images and 64 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

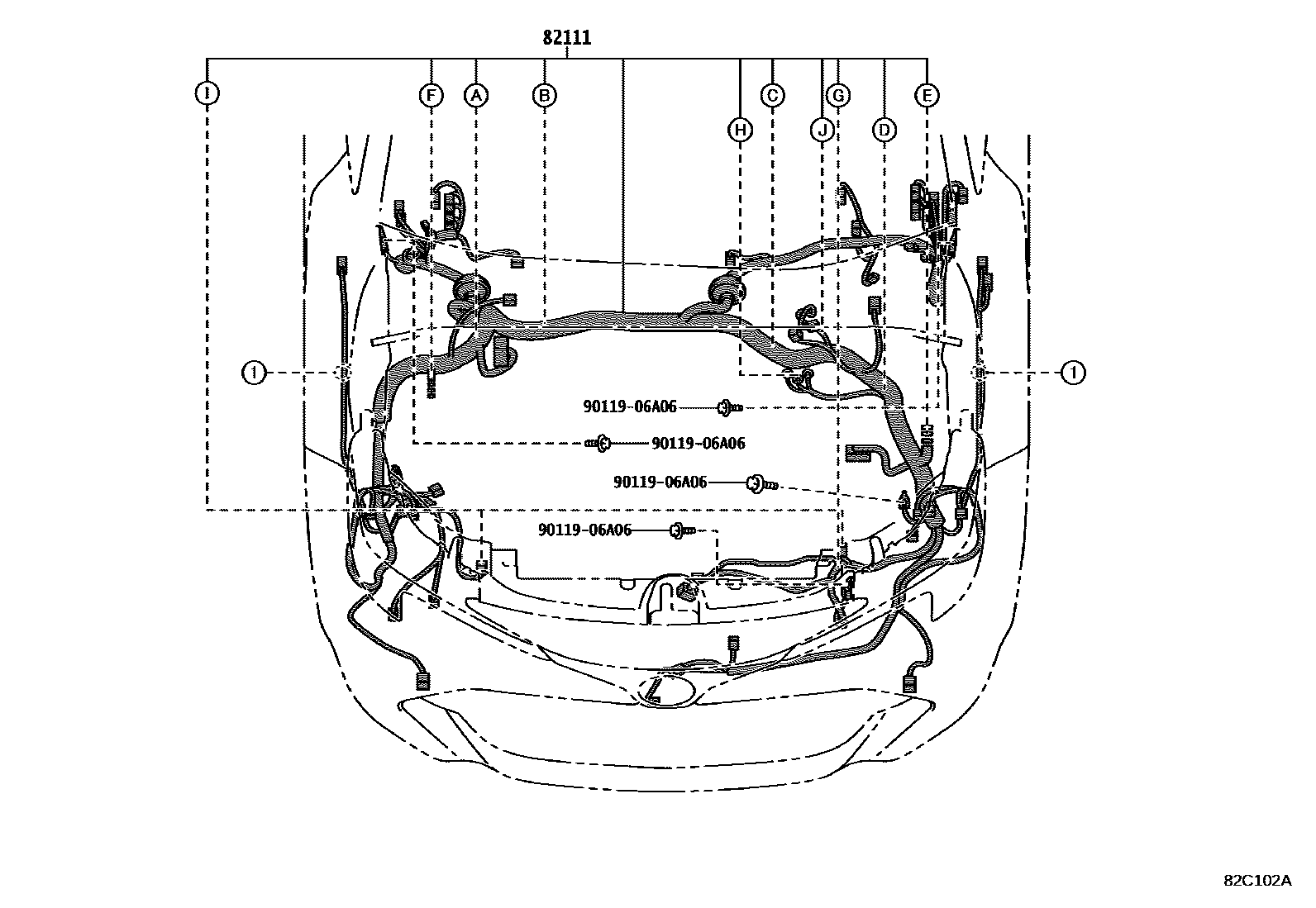

| 82111 | Engine room main wiring harness | 82111-1KB50 · 82111-1KB52 · 82111-1KB53 · 82111-1KB60 · 82111-1KB62 · 82111-1KB63 · 82111-1KJ60 · 82111-1KJ62 · 82111-1KJ70 · 82111-1KJ72 · 82111-1KM60 · 82111-1KM62 · 82111-1KM70 · 82111-1KM72 · 82111-1KQ10 · 82111-1KQ20 · 82111-1KX60 · 82111-1KX70 · 82111-1KZ30 · 82111-1KZ40 · 82111-1KZ80 · 82111-1KZ90 · 82111-1LB00 · 82111-1LB10 |
| 82121 | Engine wiring harness | 82121-12S20 · 82121-12S21 · 82121-12S30 · 82121-12S31 · 82121-12V20 · 82121-12W20 · 82121-12W21 |
| 82125N | Engine No. 5 wiring harness | 82125-12660 |
| 82126A | CABLE, MOTEUR, NO.6 | 82126-12010 |

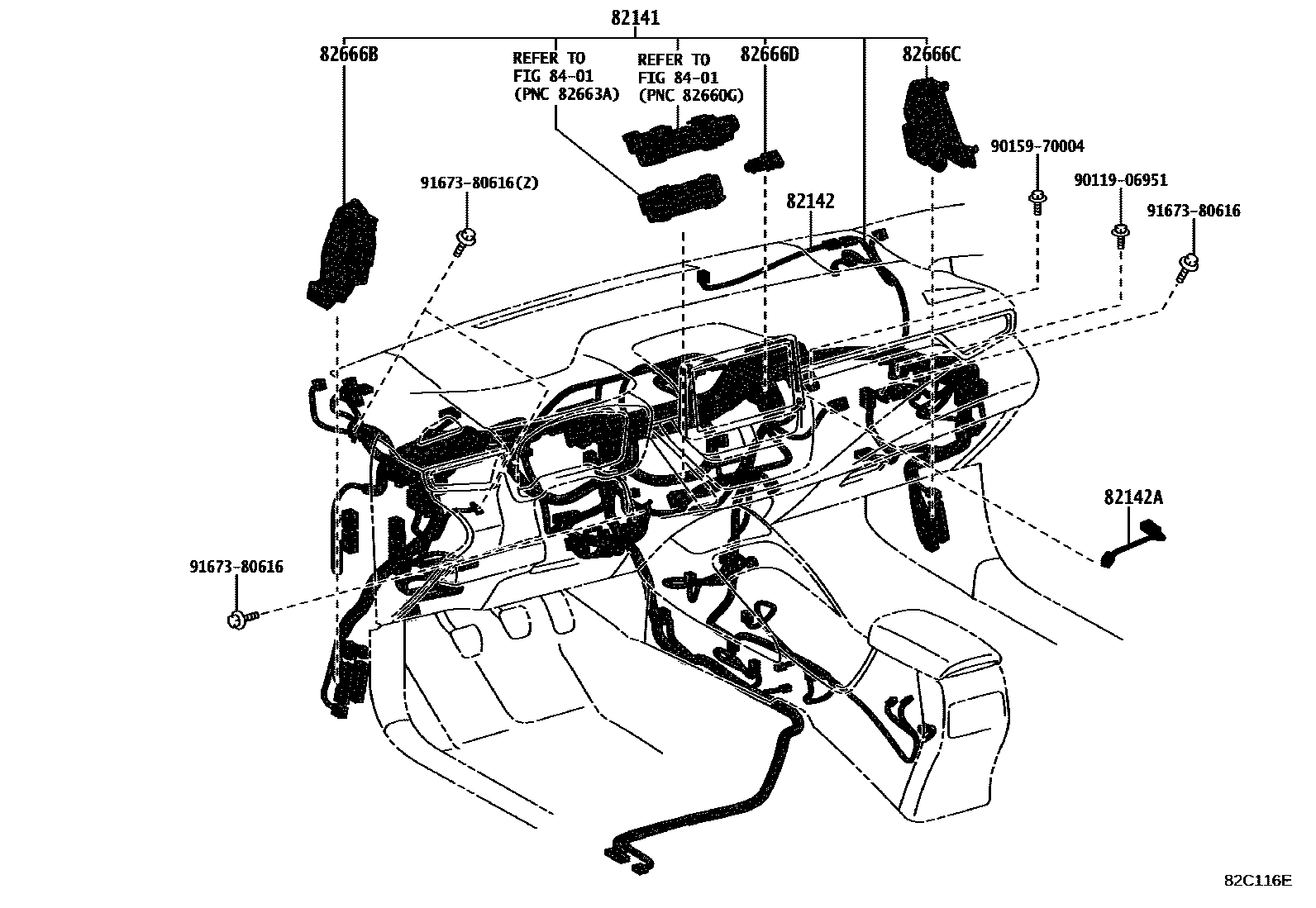

| 82141 | Dashboard wiring harness | 82141-1KV70 · 82141-1KV71 · 82141-1KV72 · 82141-1LD30 · 82141-1LD31 · 82141-1LD32 · 82141-1TR30 · 82141-1TR31 · 82141-1TR32 · 82141-1TR33 · 82141-1XA60 · 82141-1XA61 · 82141-1XA62 · 82141-1XA63 · 82141-1XA70 · 82141-1XA71 · 82141-1XA72 · 82141-1XA73 · 82141-1XB00 · 82141-1XB01 · 82141-1XB02 · 82141-1XB03 · 82141-1XG30 · 82141-1XG40 · 82141-1XJ20 · 82141-1XJ21 · 82141-1XJ22 · 82141-1XJ23 · 82141-1XJ30 · 82141-1XJ31 · 82141-1XJ32 · 82141-1XJ33 · 82141-1XR00 · 82141-1XR10 · 82141-1XU80 · 82141-1XU81 · 82141-1XV00 · 82141-1XV01 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-12670 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-12B60 |

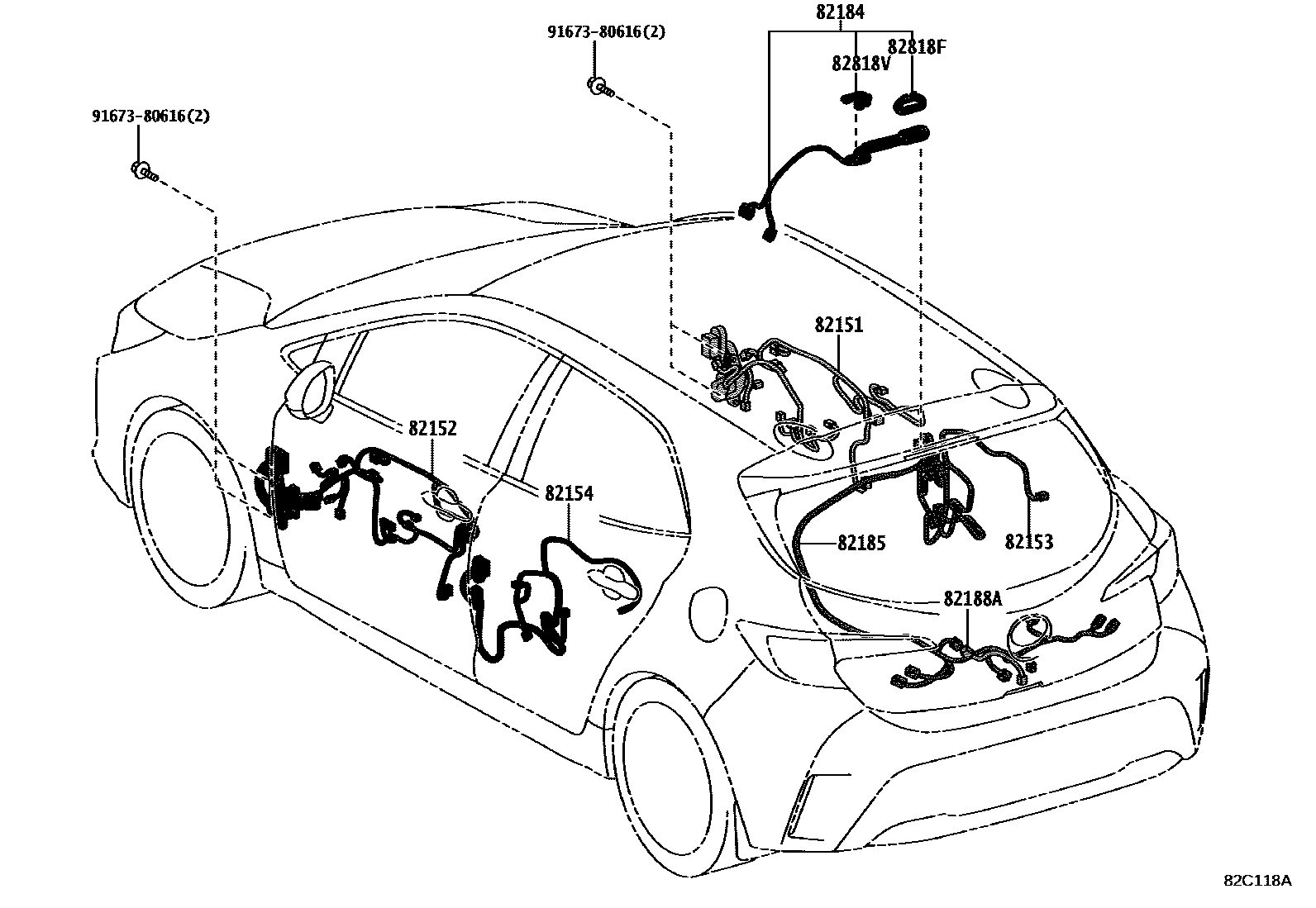

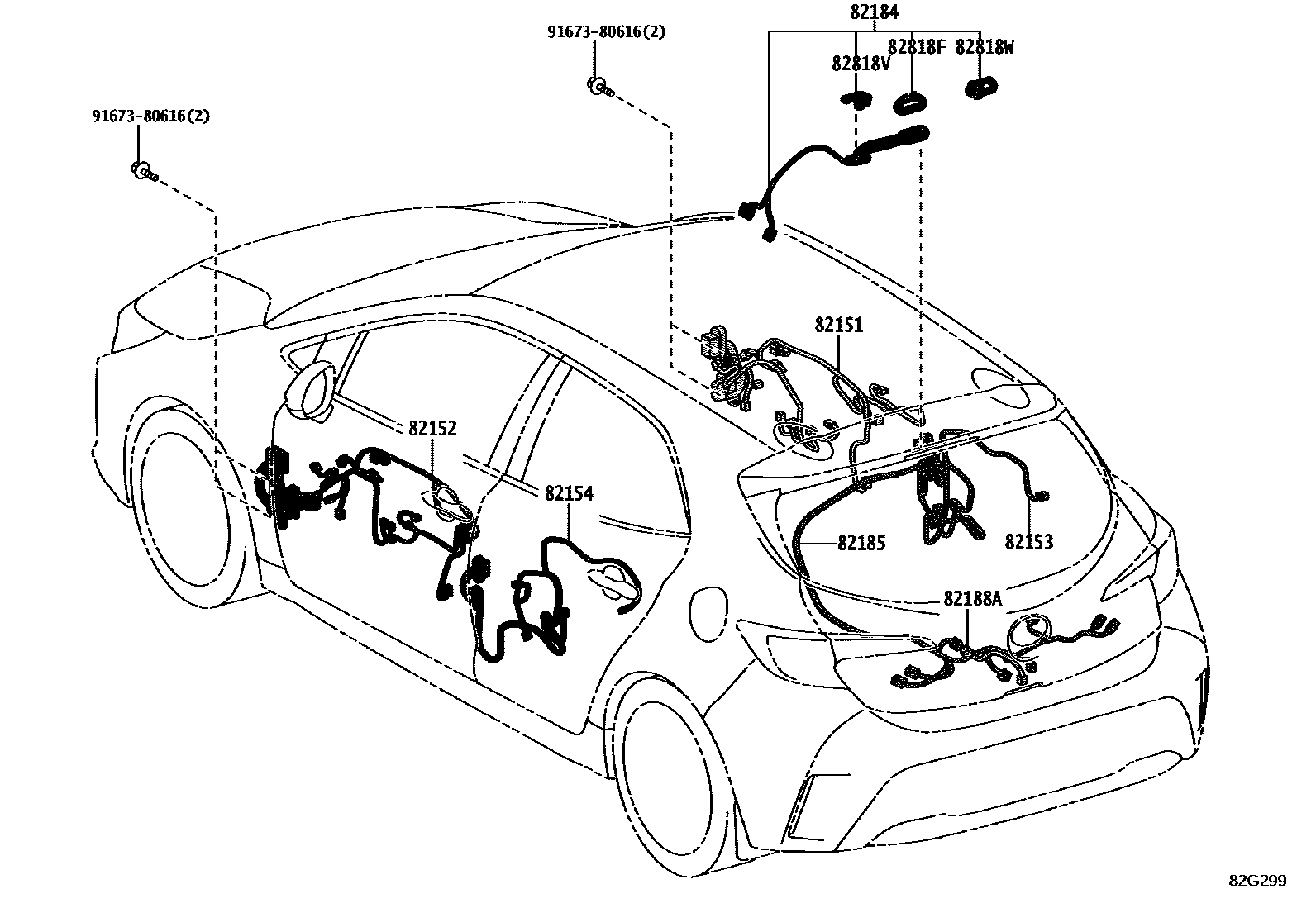

| 82151 | Right front door wiring harness | 82151-12N90 · 82151-12N91 · 82151-1AC00 · 82151-1AC01 · 82151-1AF50 · 82151-1AF60 |
| 82152 | Left front door wiring harness | 82152-12Y10 · 82152-12Y11 · 82152-1AB00 · 82152-1AB01 · 82152-1AE00 · 82152-1AE10 |
| 82153 | Rear door wiring harness No. 1 | 82153-12790 · 82153-12791 · 82153-12C00 · 82153-12C01 · 82153-12D30 · 82153-12D40 |
| 82154 | Rear door wiring harness No. 2 | 82154-12740 · 82154-12741 · 82154-12B50 · 82154-12B51 · 82154-12C80 · 82154-12C90 |
| 82161 | floor wiring harness | 82161-1AW90 · 82161-1AW91 · 82161-1AW93 · 82161-1AW94 · 82161-1AW95 · 82161-1AX00 · 82161-1AX01 · 82161-1AX03 · 82161-1AX04 · 82161-1AX05 · 82161-1AX10 · 82161-1AX11 · 82161-1AX13 · 82161-1AX14 · 82161-1AX15 · 82161-1AX20 · 82161-1AX21 · 82161-1AX23 · 82161-1AX24 · 82161-1AX25 · 82161-1ES60 · 82161-1ES70 · 82161-1ET00 · 82161-1ET10 |
| 82163 | Floor wiring harness No. 3 | 82163-12390 · 82163-12440 |
| 82169A | CABLE, PLANCHER, NO.6 | 82169-12040 |
| 82171 | Roof No. 1 wiring harness | 82171-12U10 · 82171-12U11 · 82171-12Z60 |
| 82184 | Rear door No. 1 wiring harness | 82184-12A40 · 82184-12A41 · 82184-12C00 |
| 82185 | Rear door wiring harness No. 2 | 82185-12830 · 82185-12840 · 82185-12841 · 82185-12A40 |
| 82188A | Rear door No. 3 wiring harness | 82184-12A90 |
| 82191 | Front right seat wiring harness | 82191-12110 · 82191-12130 |
| 82192 | Front left seat wiring harness | 82192-12030 · 82192-47100 |
| 82192B | Wire harness No. 2, left side of front seat | 82192-11080 |

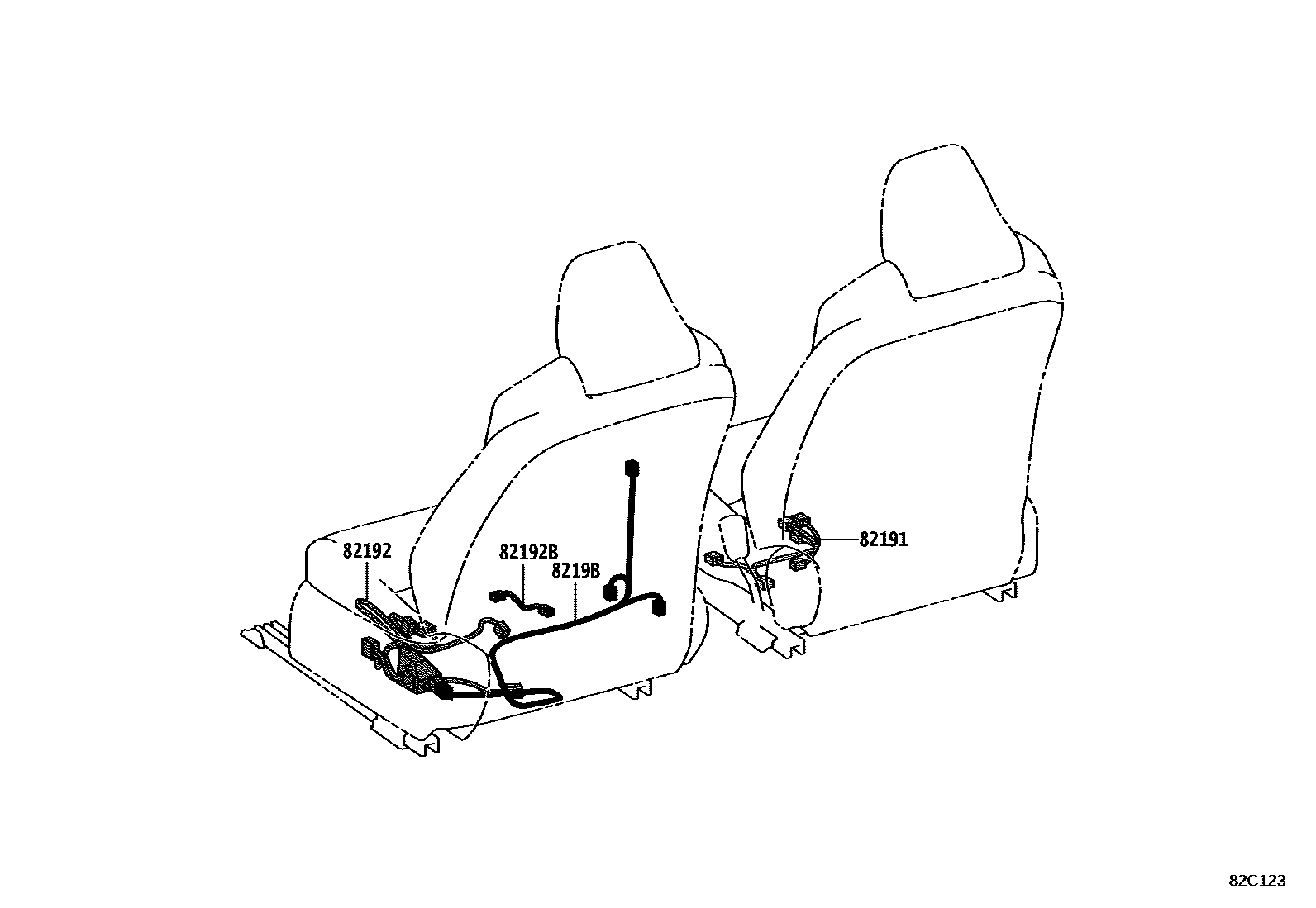

| 8219B | Wire harness No. 2, left side of front seat | 8219B-12020 · 8219B-33150 |
| 82219C | sensor harness | 82219-12140 · 82219-76020 |
| 82286A | Line 2 | 82286-12010 |
| 82666A | Connector holder No. 2 | 82666-12490 |
| 82666B | No. 3 connector holder | 82666-12670 |
| 82666C | No. 4 connector holder | 82666-12680 |
| 82666D | No. 5 connector holder | 82666-26180 |

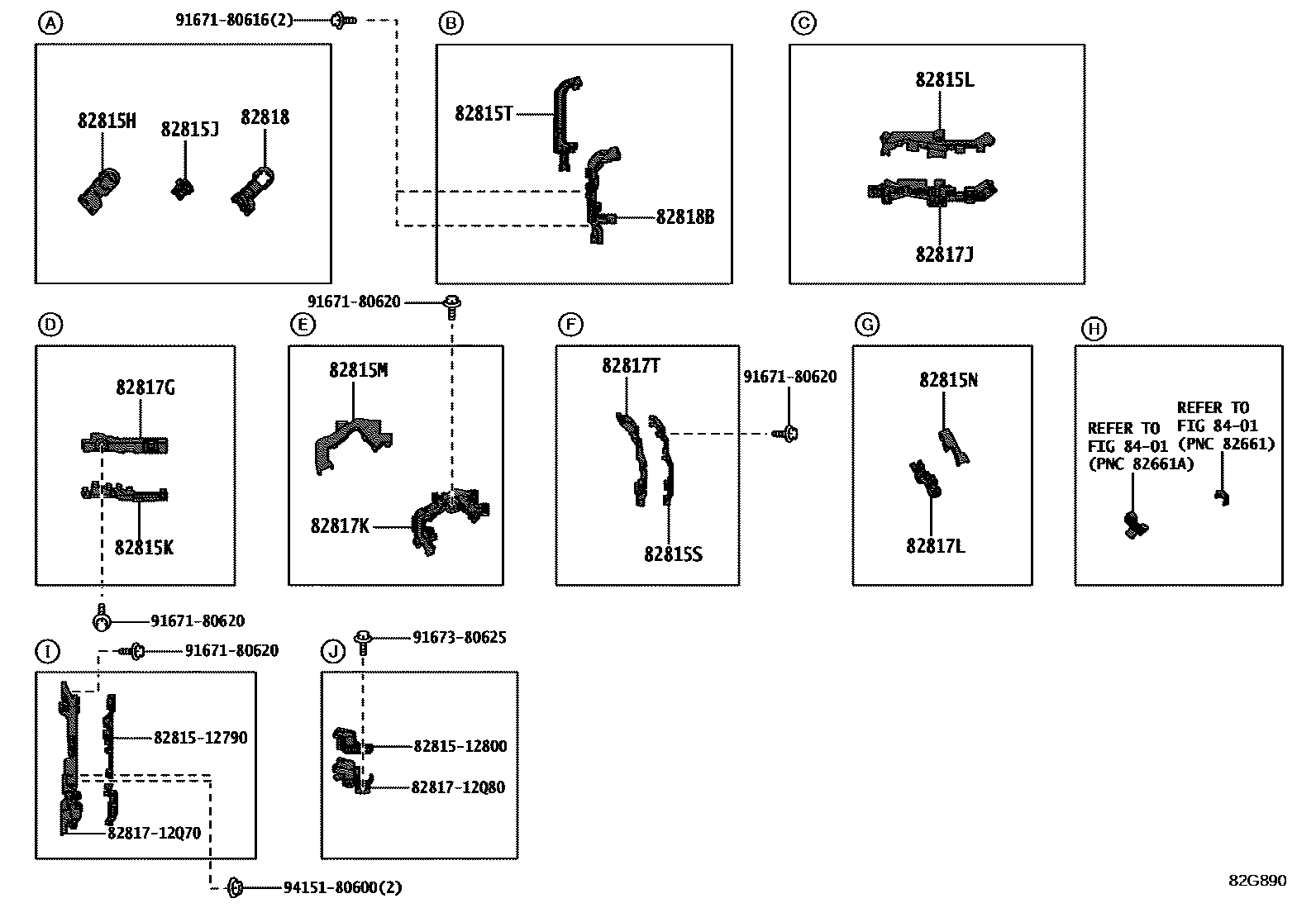

| 82815H | Wiring harness protector cover | 82815-33J10 |
| 82815J | No. 7 wire harness protector cover | 82815-33L00 |
| 82815K | No. 8 wire harness protector cover | 82815-12E00 |
| 82815L | No. 9 wire harness protector cover | 82815-12D60 |
| 82815M | No. 10 wire harness protector cover | 82815-12E40 |
| 82815N | No. 11 wire harness protector cover | 82815-12E60 |
| 82815P | No. 12 wire harness protector cover | 82815-12F20 |
| 82815S | No. 15 wire harness protector cover | 82815-12E50 |
| 82815T | No. 16 wire harness protector cover | 82815-12B00 |
| 82815V | No. 1 wire harness protector cover | 82815-12L00 |
| 82815W | No. 2 wire harness protector cover | 82815-12L10 |
| 82815X | No. 3 wire harness protector cover | 82815-12L20 |
| 82815Y | COUV., PROTECTEUR FAIS. FILS ELEC., NO.4 | 82815-12L30 |
| 82816B | COUV., PROTECTEUR FAIS. FILS ELEC., NO.1 | 82815-12D10 |

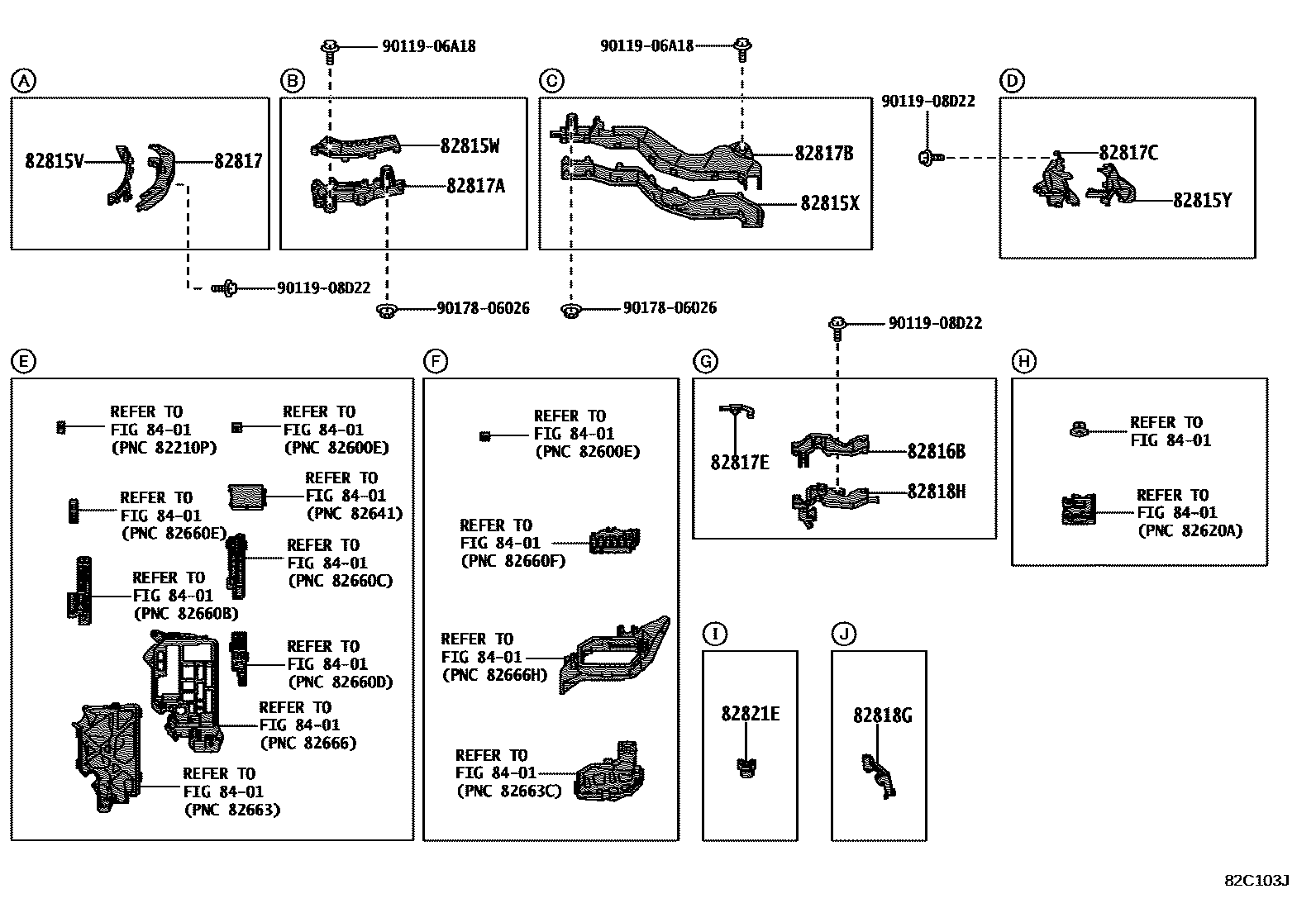

| 82817 | No. 1 wire harness protection device | 82817-12Y70 |
| 82817A | No. 2 wire harness protection device | 82817-12Y80 |
| 82817B | No. 3 wire harness protection device | 82817-12Y90 |
| 82817C | No. 4 wire harness protection device | 82817-12Z00 |
| 82817E | No. 6 wire harness protection device | 82817-12Z10 |
| 82817G | No. 8 wire harness protection device | 82817-12S00 |
| 82817J | No. 9 wire harness protection device | 82817-12R60 |
| 82817K | No. 10 wire harness protection device | 82817-12S40 |
| 82817L | No. 11 wire harness protection device | 82817-12S60 |
| 82817M | No. 12 wire harness protection device | 82817-12T20 |
| 82817T | No. 15 wire harness protection device | 82817-12S50 |
| 82818 | No. 2 wire harness protection device | 82817-33S70 |
| 82818B | No. 3 wire harness protection device | 82817-12V00 |
| 82818F | No. 7 wire harness protection device | 82817-1AA90 |
| 82818G | No. 8 wire harness protection device | 82817-12W30 |
| 82818H | PROTECTEUR, FAISCEAU DE FILS, NO.9 | 82817-12V50 |
| 82818V | PROTECTEUR, FAISCEAU DE FILS, NO.18 | 82817-47L50 |
| 82818W | PROTECTEUR, FAISCEAU DE FILS, NO.19 | 82817-12Q00 |
| 82821E | Connector cover | 82821-30650 |
| 82823S | BOUCHON, BORNE DEMARREUR | 28192-24030 |
| 890C0 | ENS. DE CABLE, FREIN DE STATIONNEMENT, NO.1 | 890C0-12010 |
| 890C0A | ENS. DE CABLE, FREIN DE STATIONNEMENT, NO.2 | 890C0-12020 |
