Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201

Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 4 PNC and OE references.

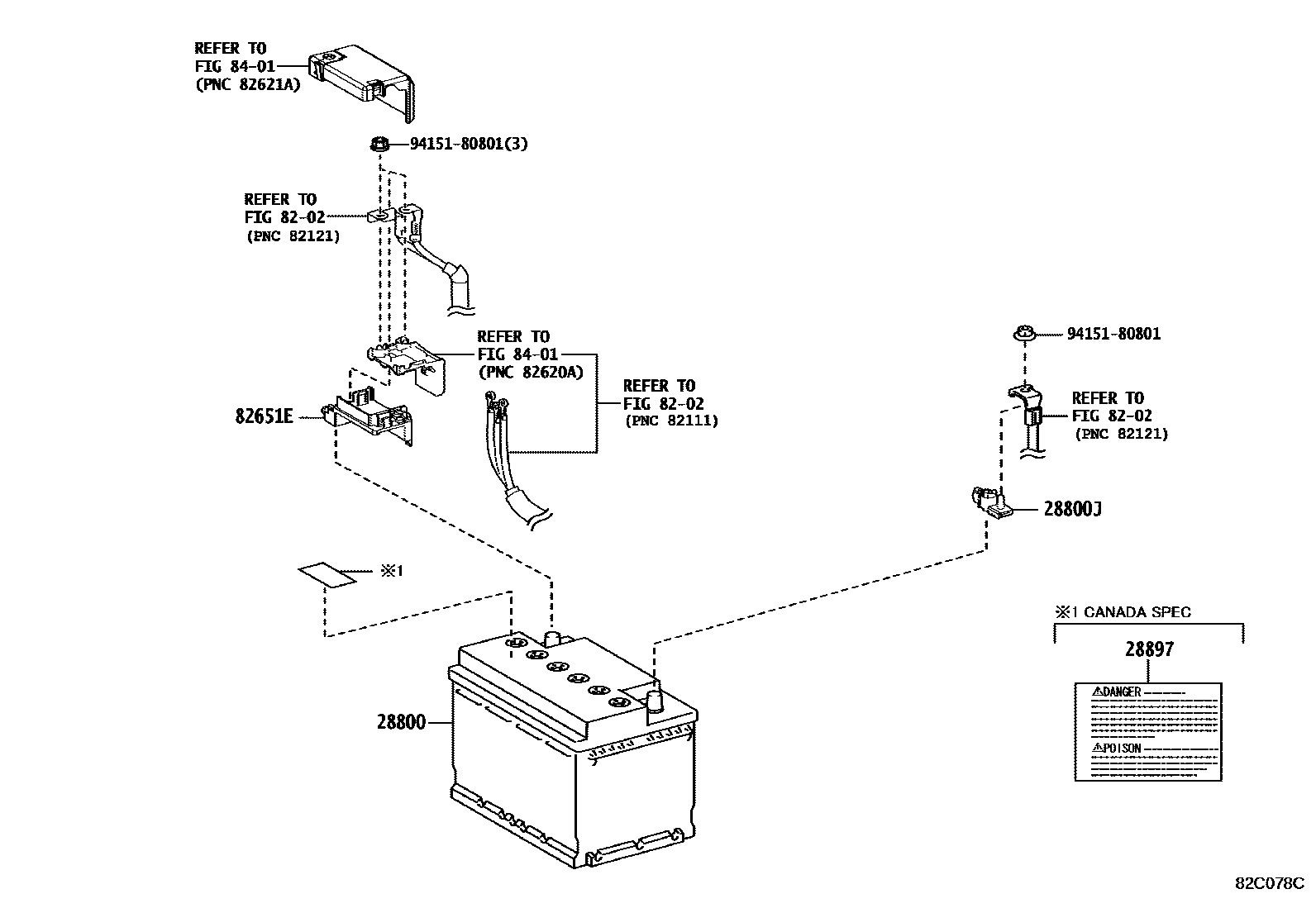

Toyota COROLLA 蓄电池和蓄电池电缆 EPC diagram — 82C078C
蓄电池和蓄电池电缆 — 82C078C (201806 – 999999)

PNC and OE references

PNCPart nameOE numbers
28800battery28800-25010 · 28800-37170 · 28800-37171 · 28800-37172
28800Jbattery negative terminal90982-06070
28897Battery warning nameplate28897-46020
82651EBLOC, TERMINAL82651-10010
