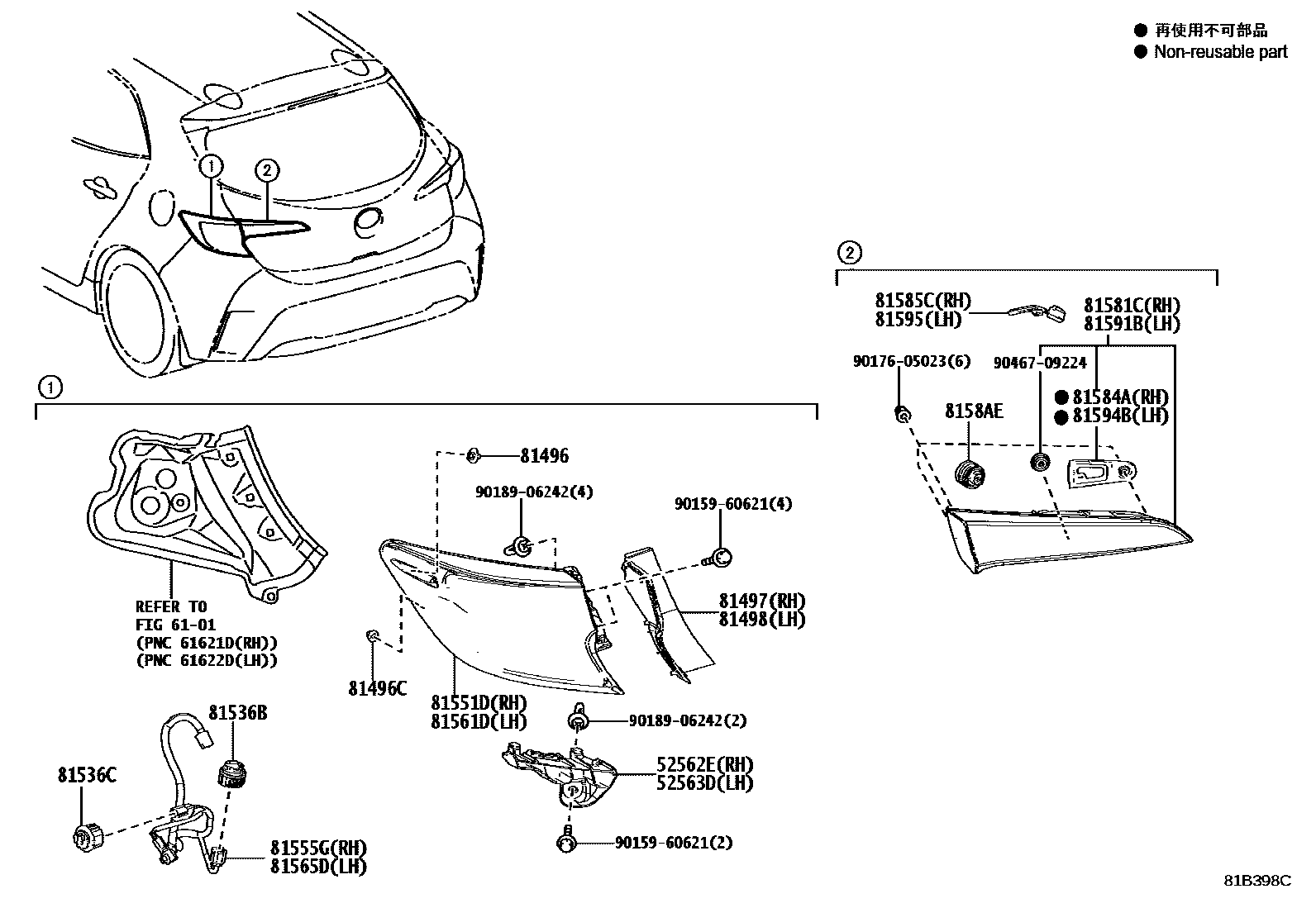

Toyota COROLLA 后组合灯 — Figure 8111
Toyota COROLLA EPC diagram 8111, 后组合灯, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52562E | Rear bumper upper right fixing bracket | 52562-12240 |
| 52563D | Rear bumper upper left fixing bracket | 52563-12240 |
| 81496 | Rear combination light guide block | 81496-50010 |
| 81496C | No. 2 rear combination light guide block | 81496-52020 |
| 81497 | Right rear combination lamp cover | 81497-12020 |
| 81498 | Left rear combination lamp cover | 81498-12020 |
| 81536B | LED, CLIGNOTANT ARRIERE | 81536-12D30 |
| 81536C | LED, FEU ARR & STOP | 81536-15120 · 81965-70010 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-12D30 · 81551-12D31 · 81551-12E50 |
| 81555G | CABLE, BLOC OPTIQUE ARRIERE, MD | 81555-12D30 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-12D30 · 81561-12D31 · 81561-12E50 |
| 81565D | CABLE, BLOC OPTIQUE ARRIERE, MG | 81565-12D30 |
| 81581C | Right rear light lampshade and lamp body | 81581-12260 · 81581-12261 · 81581-12440 |
| 81584A | Right rear light gasket | 81582-12260 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-12260 |
| 8158AE | LED, FEU RECUL | 8158A-12260 |
| 81591B | Left rear light shade and body | 81591-12230 · 81591-12231 · 81591-12440 |
| 81594B | Left rear light seal | 81582-12260 |
| 81595 | Left rear light lamp holder and wiring harness | 81585-12260 |
