Toyota COROLLA Headlamp — Figure 8101

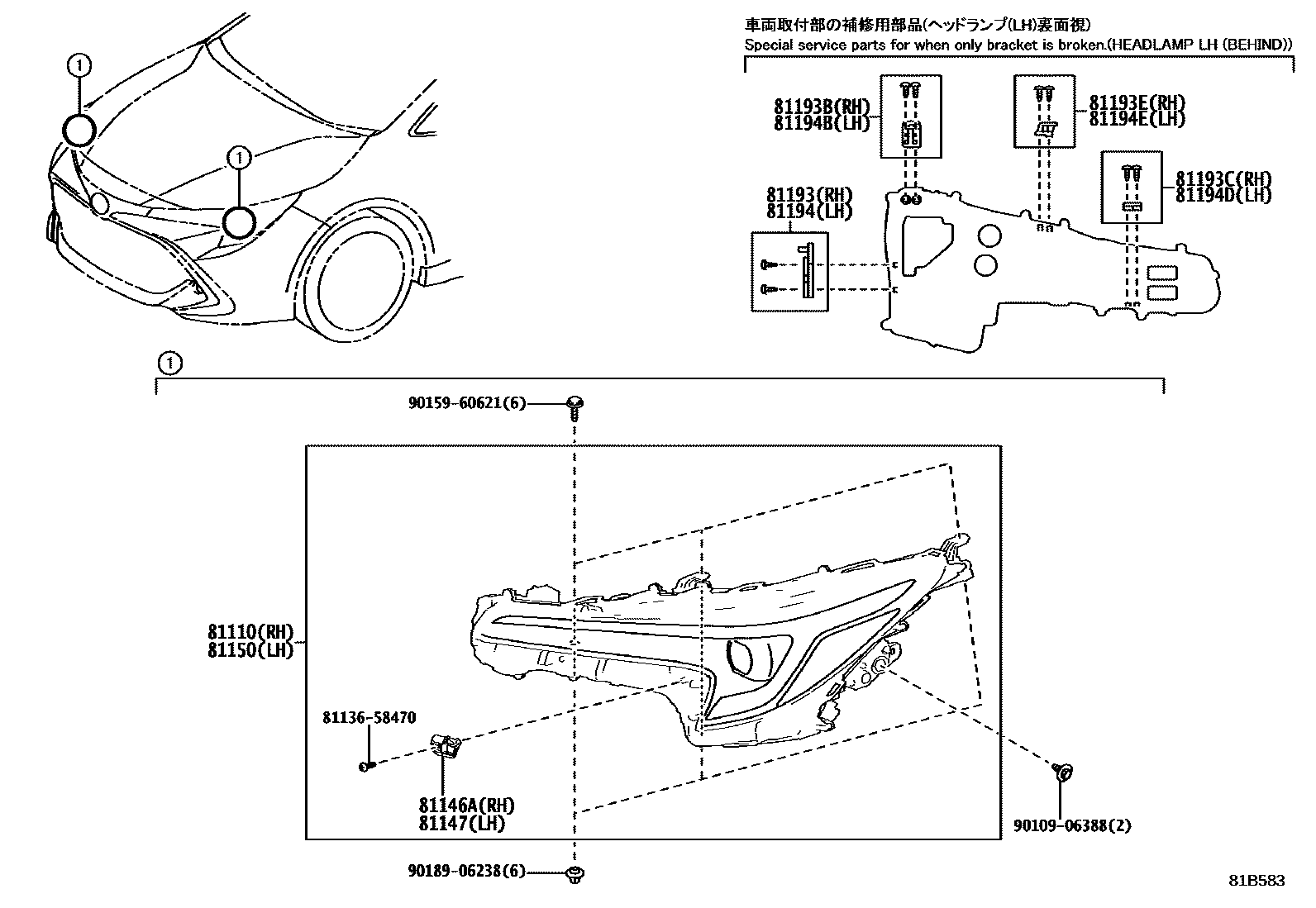

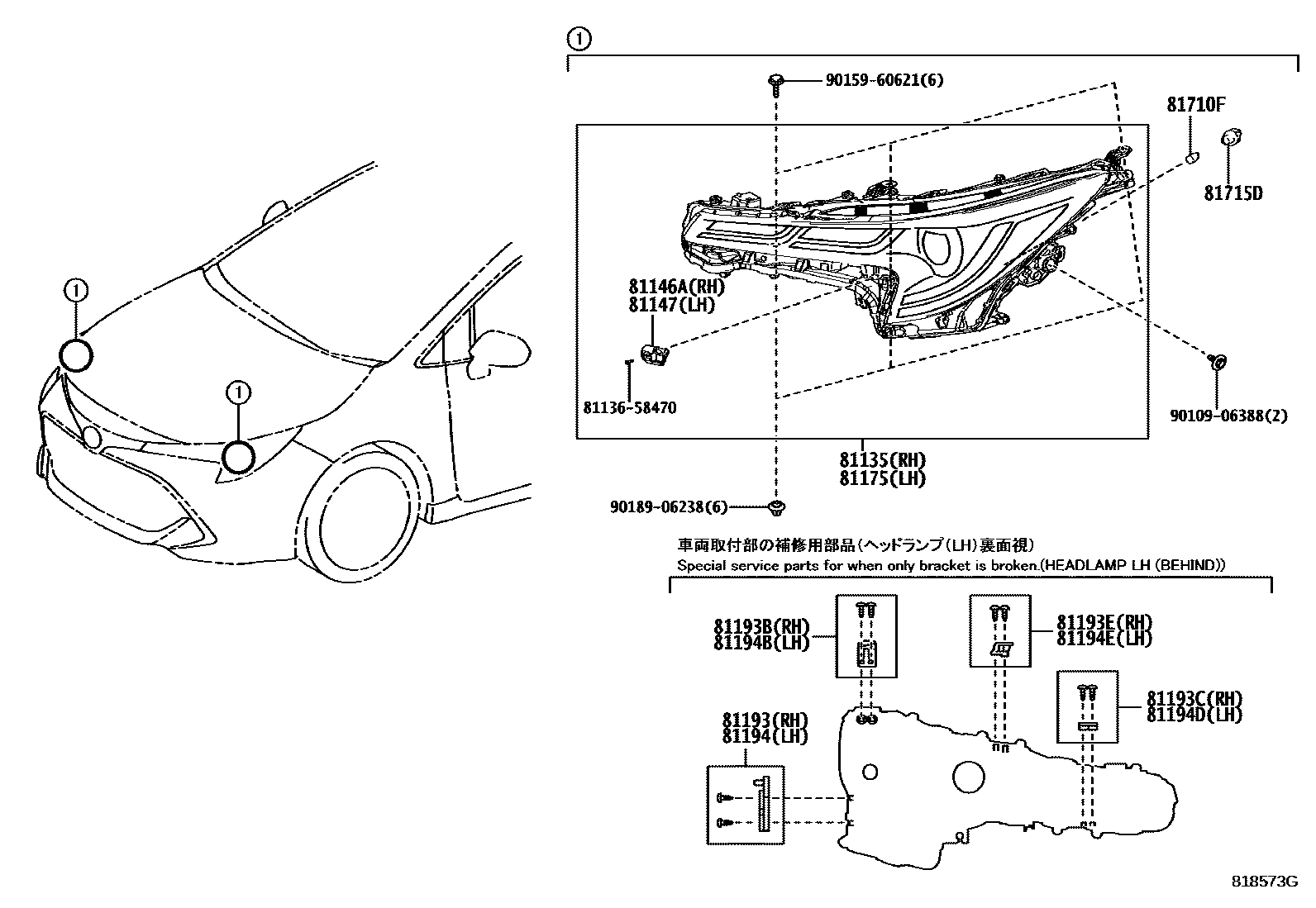

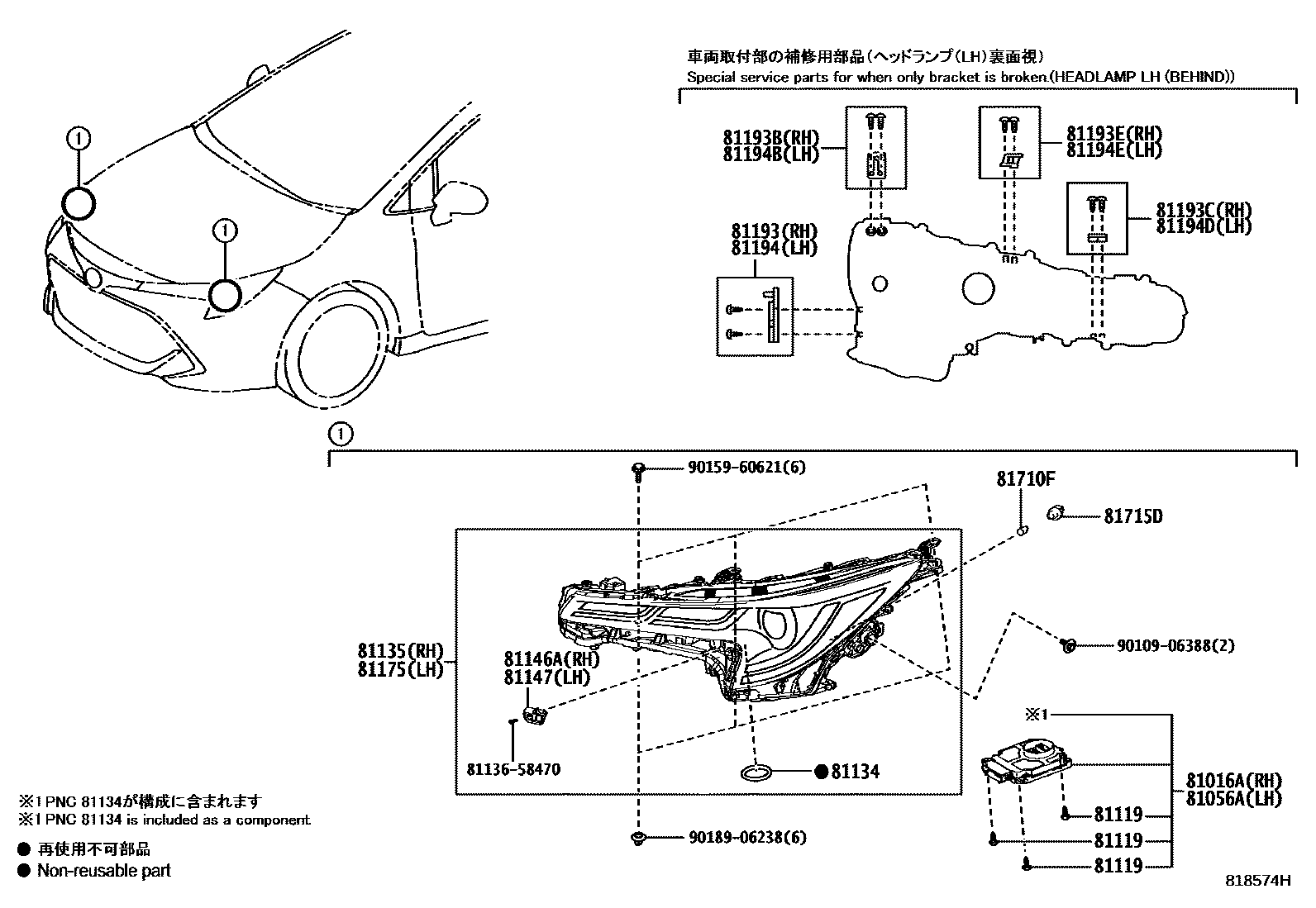

Toyota COROLLA EPC diagram 8101, Headlamp, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81016A | SOUS-ENS.ORDINATEUR, PROJECTEUR AVANT, DROIT | 81016-12L80 |
| 81056A | SOUS-ENS.ORDINATEUR, PROJECTEUR AVANT, GAUCHE | 81056-12L80 |
| 81110 | Right headlight assembly | 81110-12N20 |
| 81119 | headlight screw | 81136-12L80 |
| 81134 | headlight gasket | 81134-58340 |
| 81135 | Right headlight assembly | 81130-12L00 · 81130-12N00 · 81145-12L80 |
| 81146A | Right headlight accessories | 81146-12L00 |
| 81147 | Left headlight accessories | 81186-12L00 |
| 81150 | Left headlight assembly | 81150-12N20 |
| 81175 | Left headlight assembly | 81170-12L00 · 81170-12N00 · 81185-12L80 |
| 81193 | Right headlight upper protective ring | 81193-12250 |
| 81193B | No. 2 headlight upper protection ring on the right | 81193-12260 |
| 81193C | Right headlight upper right protection ring | 81193-12270 |
| 81193E | RETENUE, PROTECTEUR PHARE, SUP. DR. NO.3 | 81193-12280 |
| 81194 | Left headlight upper protective ring | 81194-12250 |
| 81194B | No. 2 headlight upper protective ring on the left | 81194-12260 |
| 81194D | Left headlight upper left protective ring | 81194-12270 |
| 81194E | RETENUE, PROTECTEUR PHARE, SUP. GAUCHE NO.3 | 81194-12280 |
| 81710F | Front width light bulb | 90981-11067 |
| 81715D | PRISE, FEUX GABARIT AVANT | 90075-60077 |
