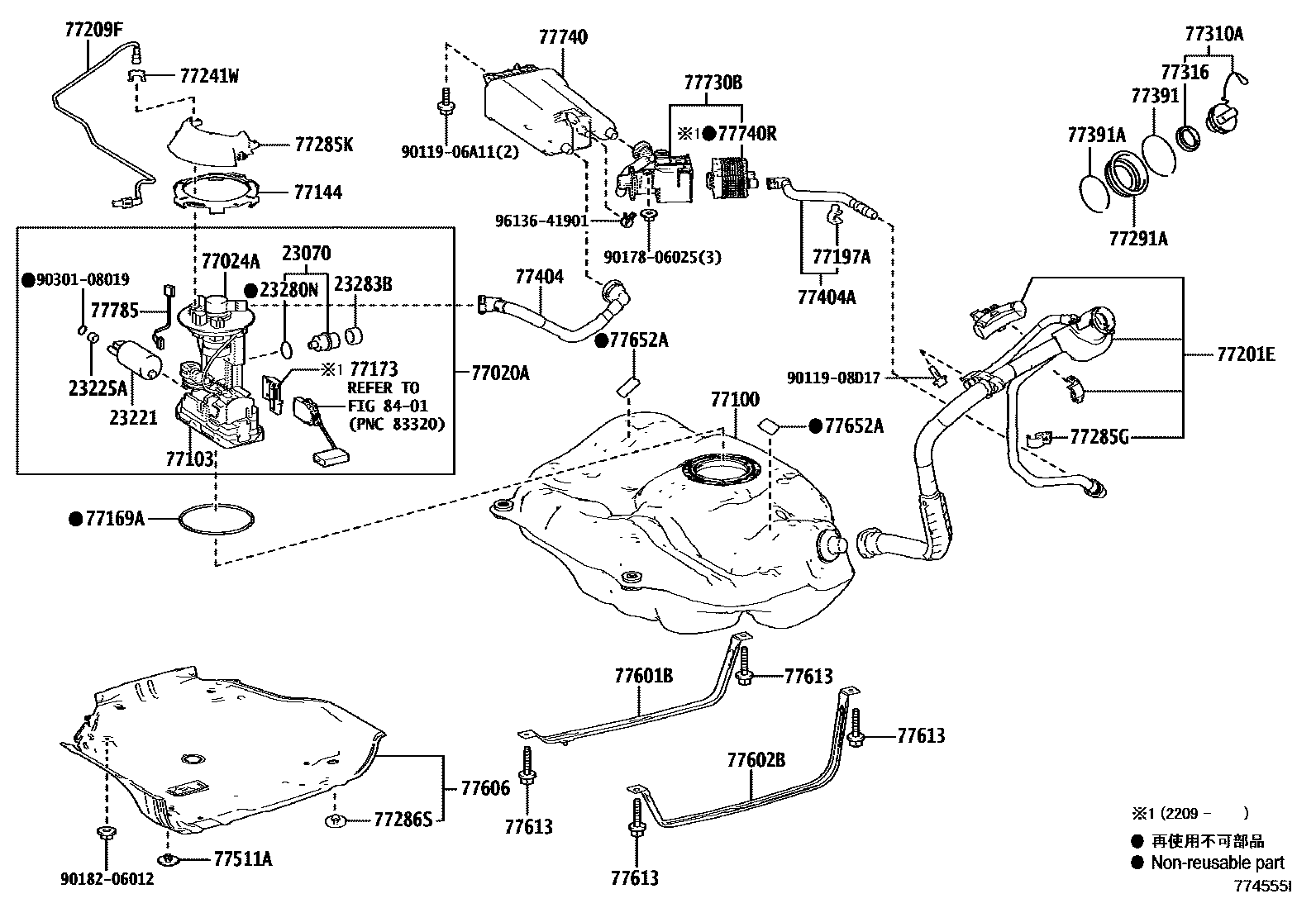

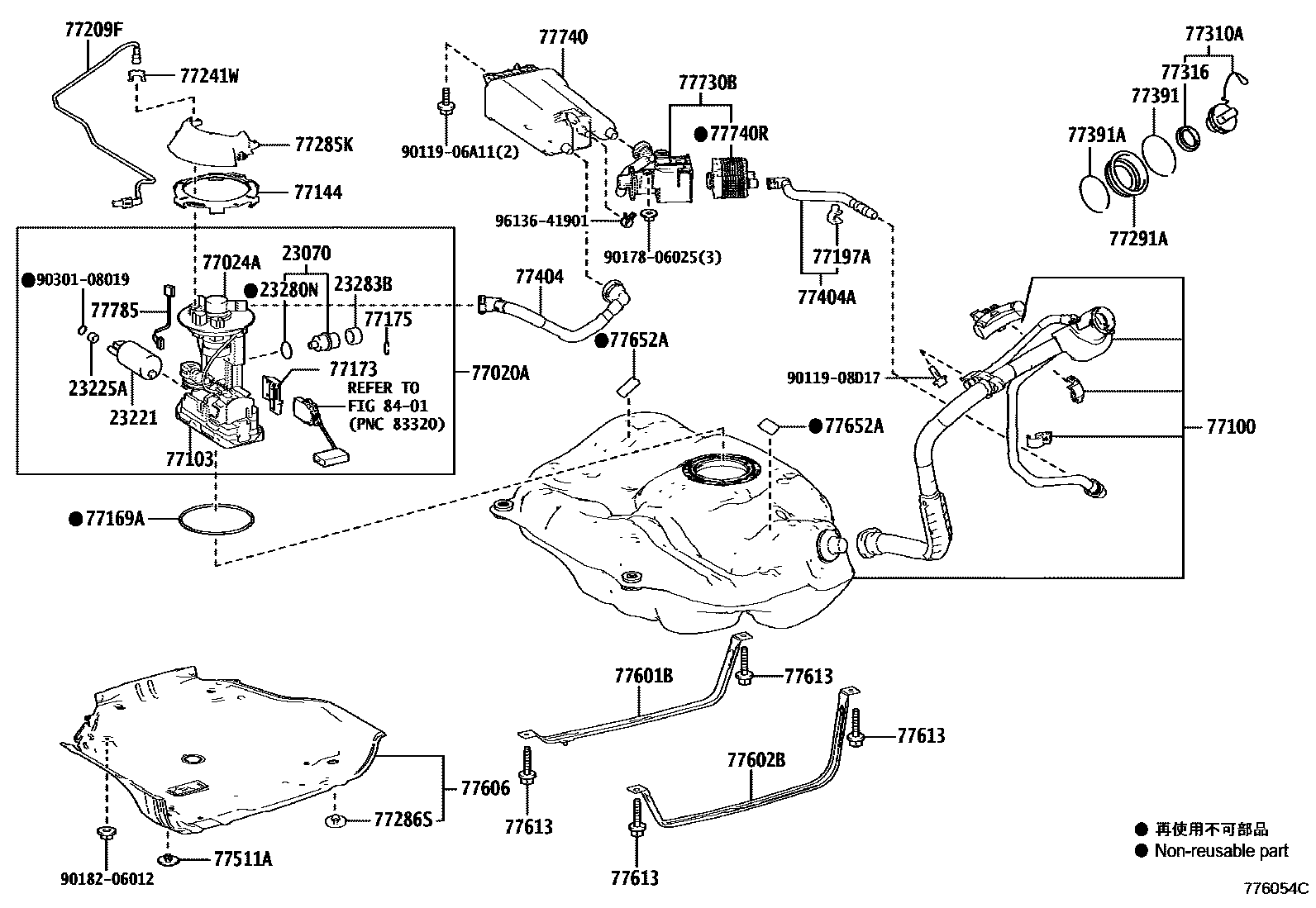

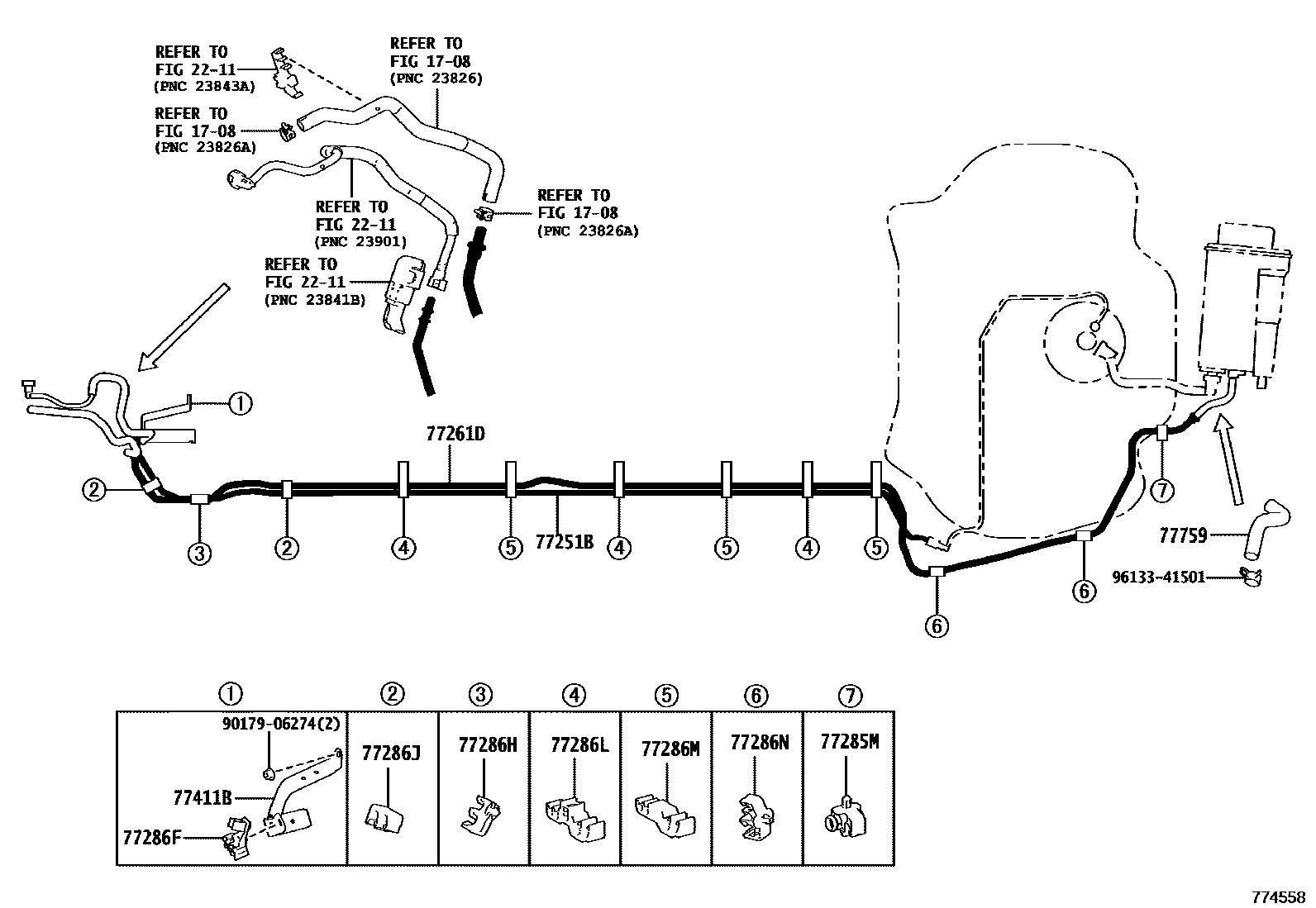

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 4 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-25020 |
| 23221 | fuel pump | 23221-25030 |
| 23225A | fuel pump septum | 23225-31020 |
| 23280N | JOINT TORIQUE (DE REGULATEUR PRESSION ESSENCE), NO.2 | 90301-15024 |
| 23283B | SUPPORT REGULATEUR PRESSION ESSENCE | 23283-24010 |
| 64648A | Trunk door lock opener seal | 64648-12020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-12A00 |
| 77024A | Fuel absorber sub-assembly | 77024-12350 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-12670 |
| 77100 | fuel tank assembly | 77001-12D60 · 77001-12F00 |
| 77103 | SOUS-ENS. RESERVOIR AUX, CARB | 77103-12160 · 77103-12190 |
| 77144 | Fuel pump instrument fixture | 77144-30030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-47040 |
| 77173 | SUPPORT, JAUGE CARB | 77173-12010 |
| 77175 | No. 2 oil suction pipe bracket | 77175-12030 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-47010 |
| 77201E | Fuel tank filling pipe sub-assembly | 77210-12610 · 77210-12611 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-12310 |
| 77241W | Pipe joint clip | 77241-33011 · 77241-60550 |
| 77251B | main fuel pipe | 77251-12890 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-12710 |
| 77285G | No. 1 fuel pipe clamp | 77285-47120 |
| 77285K | No. 1 fuel pipe clamp | 77285-10060 |
| 77285M | No. 1 fuel pipe clamp | 77285-12170 |
| 77286F | No. 2 fuel pipe clamp | 77286-12250 |
| 77286H | No. 3 fuel pipe clamp | 77286-12220 |
| 77286J | No. 4 fuel pipe clamp | 77289-12070 |
| 77286L | No. 5 fuel pipe clamp | 77298-12160 |
| 77286M | No. 6 fuel pipe clamp | 77298-12170 |
| 77286N | No. 7 fuel pipe clamp | 77286-12230 |
| 77286S | Fuel tank protective shell cushion | 77286-12110 |
| 77291A | Fuel tank filler pipe cover | 77291-12260 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-12020 |
| 77310A | Fuel tank cap assembly | 77300-53030 |
| 77316 | fuel tank cap gasket | 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-12580 |
| 77366 | Fuel filler cap hinge spring | 77366-52010 |
| 77377 | Fuel filler cap lock retainer | 77377-12100 |
| 77391 | fuel inlet ring | 77391-33060 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-12210 |
| 77404A | Fuel tank vent hose sub-assembly | 77404-12200 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-12020 |
| 77511A | fuel tank bracket | 77512-35140 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-10080 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-10030 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-10060 |
| 77613 | Fuel tank strap fixing bolts | 90119-10995 |
| 77652A | No. 2 fuel tank liner | 77652-10070 |
| 77730B | ENS. CARTOUCHE, CHARBON AV TUYAU SORTIE | 77730-12010 |
| 77740 | Carbon canister assembly | 77740-33220 |
| 77740R | Leak detection pump sub-assembly | 90910-14008 |
| 77759 | Carbon canister hose | 77759-12110 |
| 77785 | fuel pump wiring harness | 77785-12040 · 77785-12060 |
