Toyota COROLLA 挡泥板和扰流板 — Figure 7601

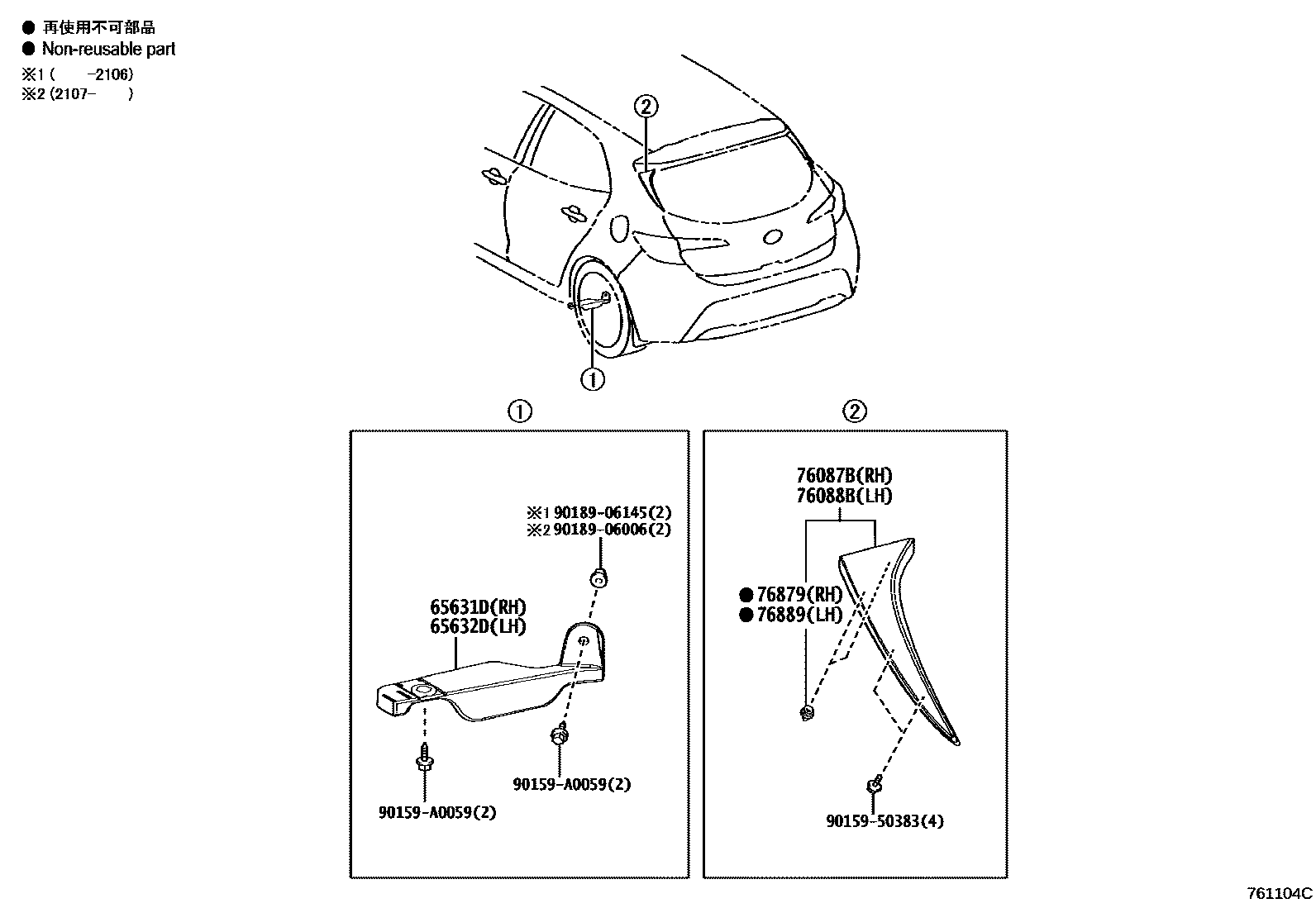

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-12110 |
| 65632D | Left rear wheel house front panel | 65632-12110 |
| 76087B | Right rear spoiler sub-assembly | 76087-12060 |
| 76088B | Left rear spoiler sub-assembly | 76088-12060 |
| 76879 | No. 1 rear spoiler clip | 90467-09233 |
| 76889 | No. 2 rear spoiler clip | 90467-09233 |
