Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

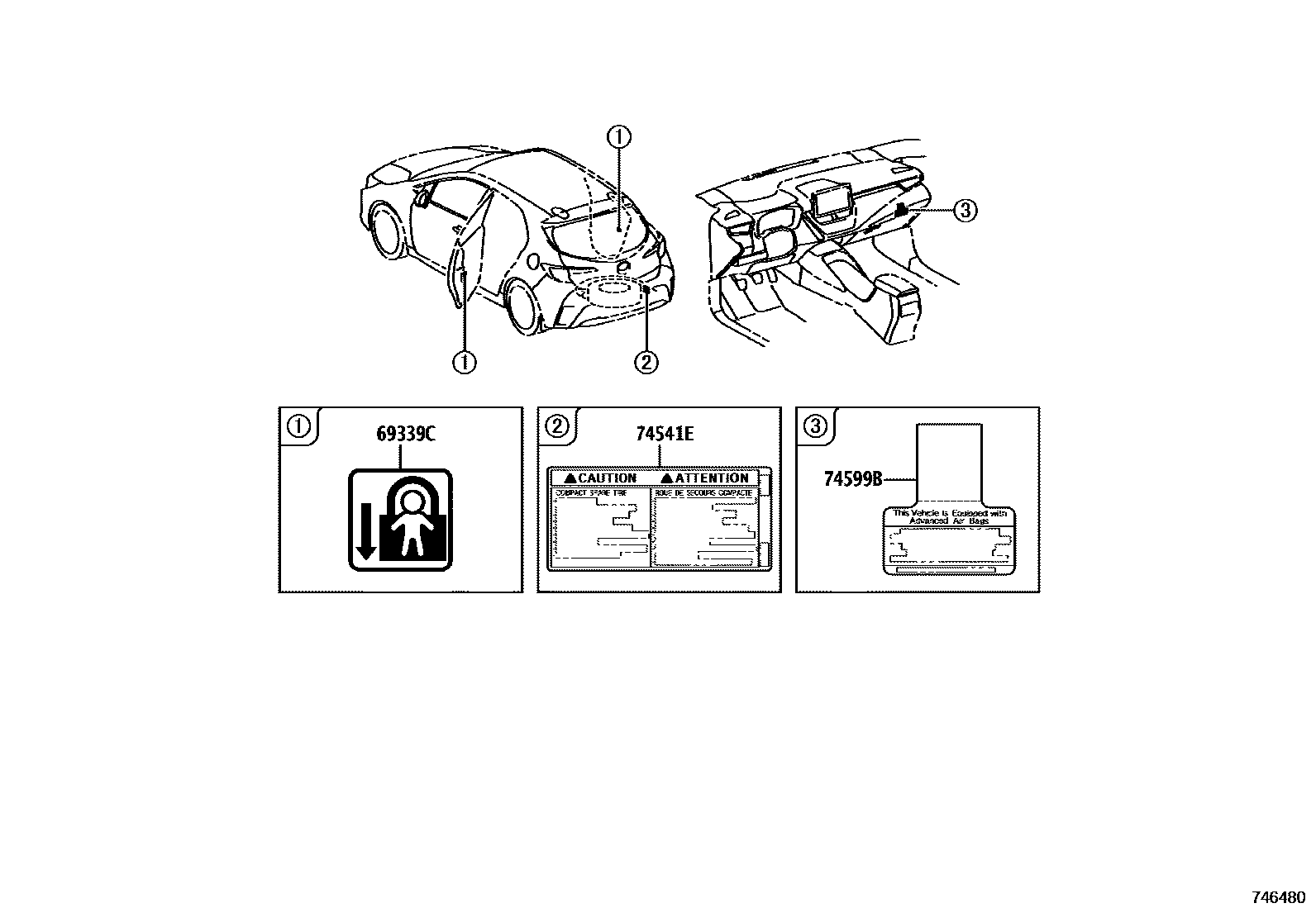

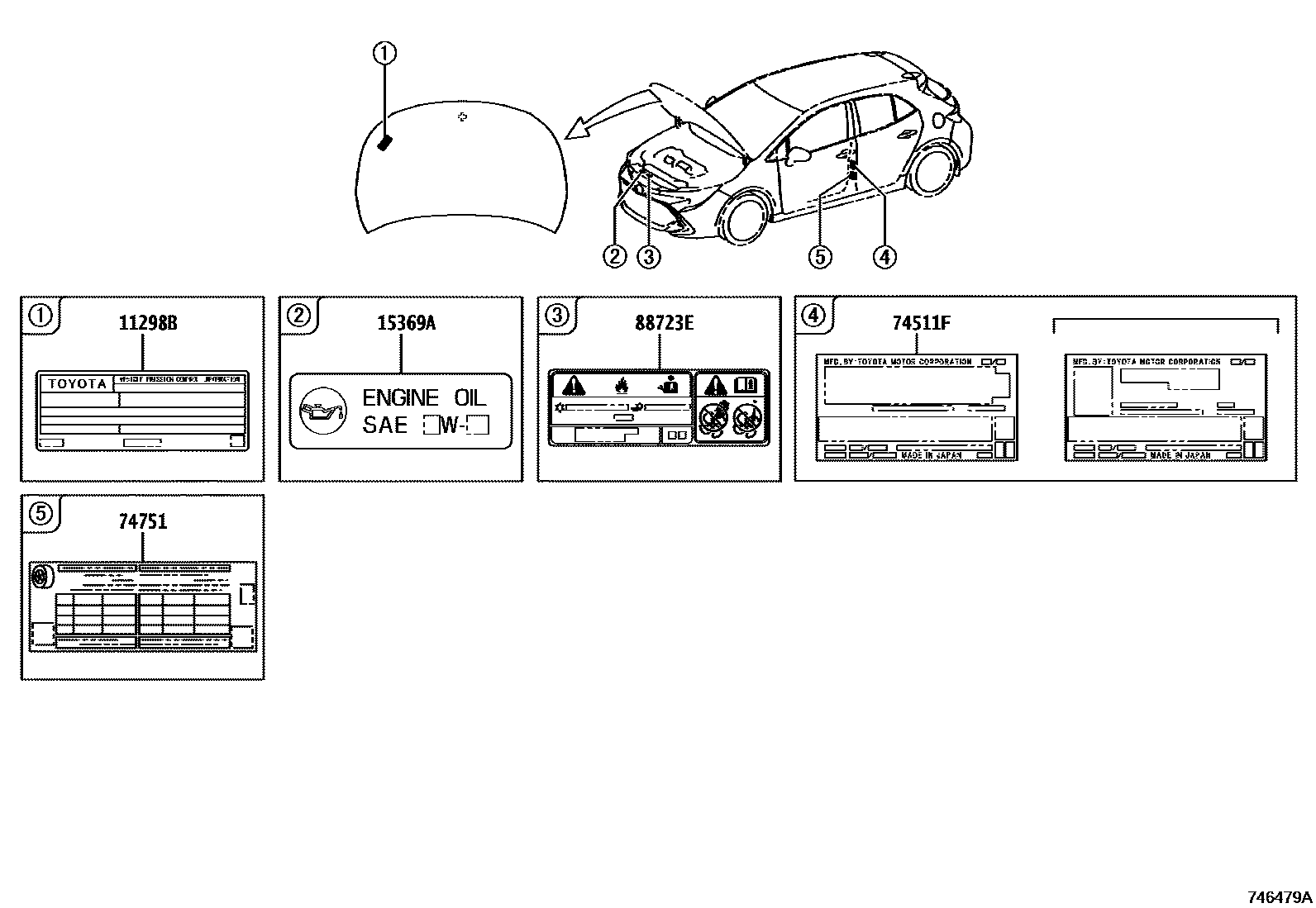

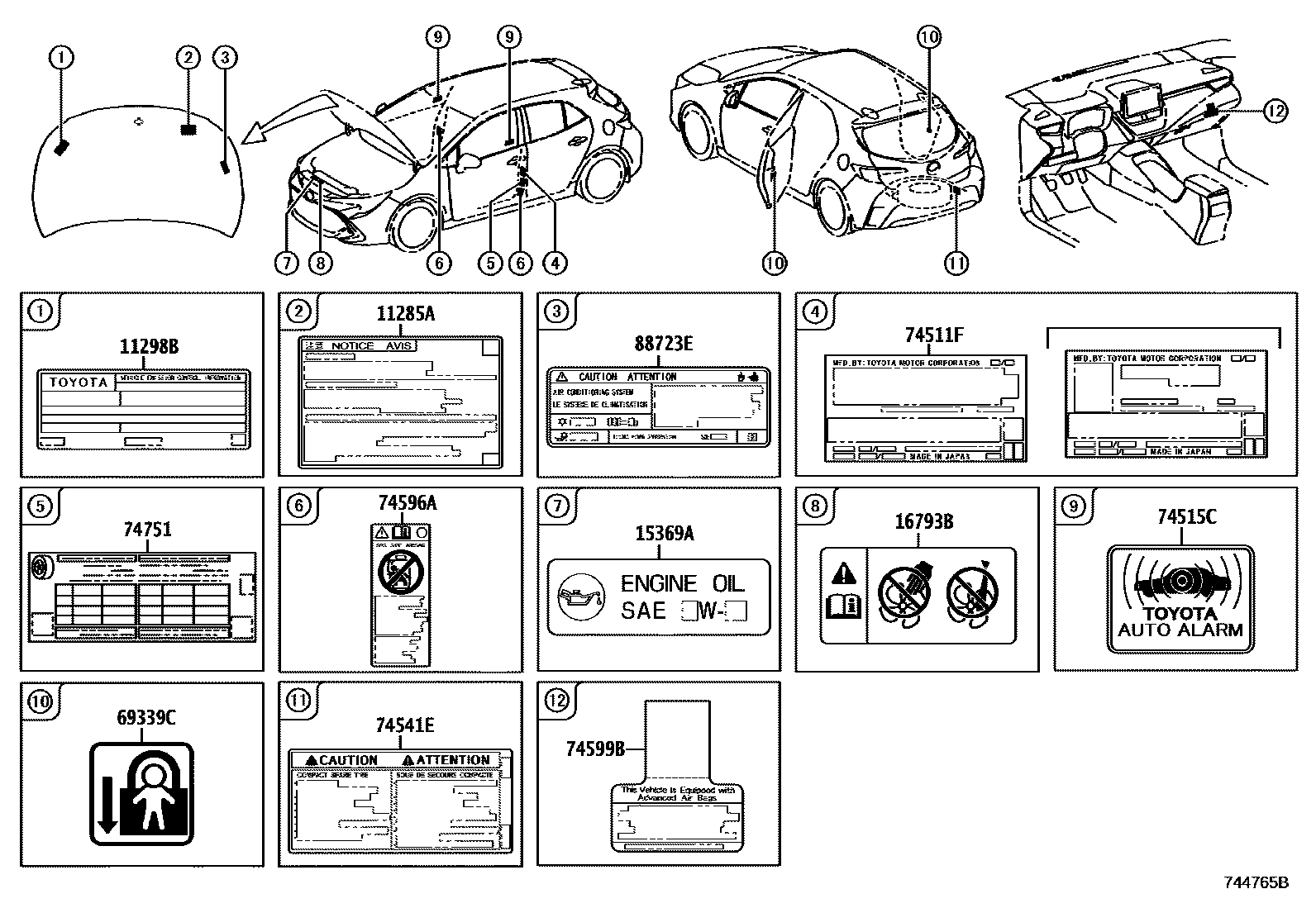

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-33030 |
| 11298B | Emission Control Information Label | 11298-24070 · 11298-24120 · 11298-24121 · 11298-24122 · 11298-24123 · 11298-24124 · 11298-24125 · 11298-24126 |
| 15369A | Engine oil information label | 15369-25010 · 15369-25020 |
| 16793B | Cooling fan information label | 16793-36030 |
| 69339C | Child Restraint Information Label | 69339-33040 |
| 74511F | Nameplate (laser identification label) | 74514-33010 · 74514-33020 |
| 74515C | Anti-theft warning information label | 74515-33020 |
| 74541E | Small spare tire warning plate | 42668-28090 |
| 74596A | Side air bag warning label | 74596-78010 |
| 74599B | Driver and passenger air bag information labels | 74599-48020 |
| 74751 | tire pressure information label | 42661-12N00 · 42661-12N10 · 42661-12N20 · 42661-12N30 · 42661-12N40 · 42661-12S90 |
| 88723E | Cooler maintenance warning label | 88723-12280 · 88723-12350 · 88723-12390 |
