Toyota COROLLA 锁芯组件 — Figure 6712

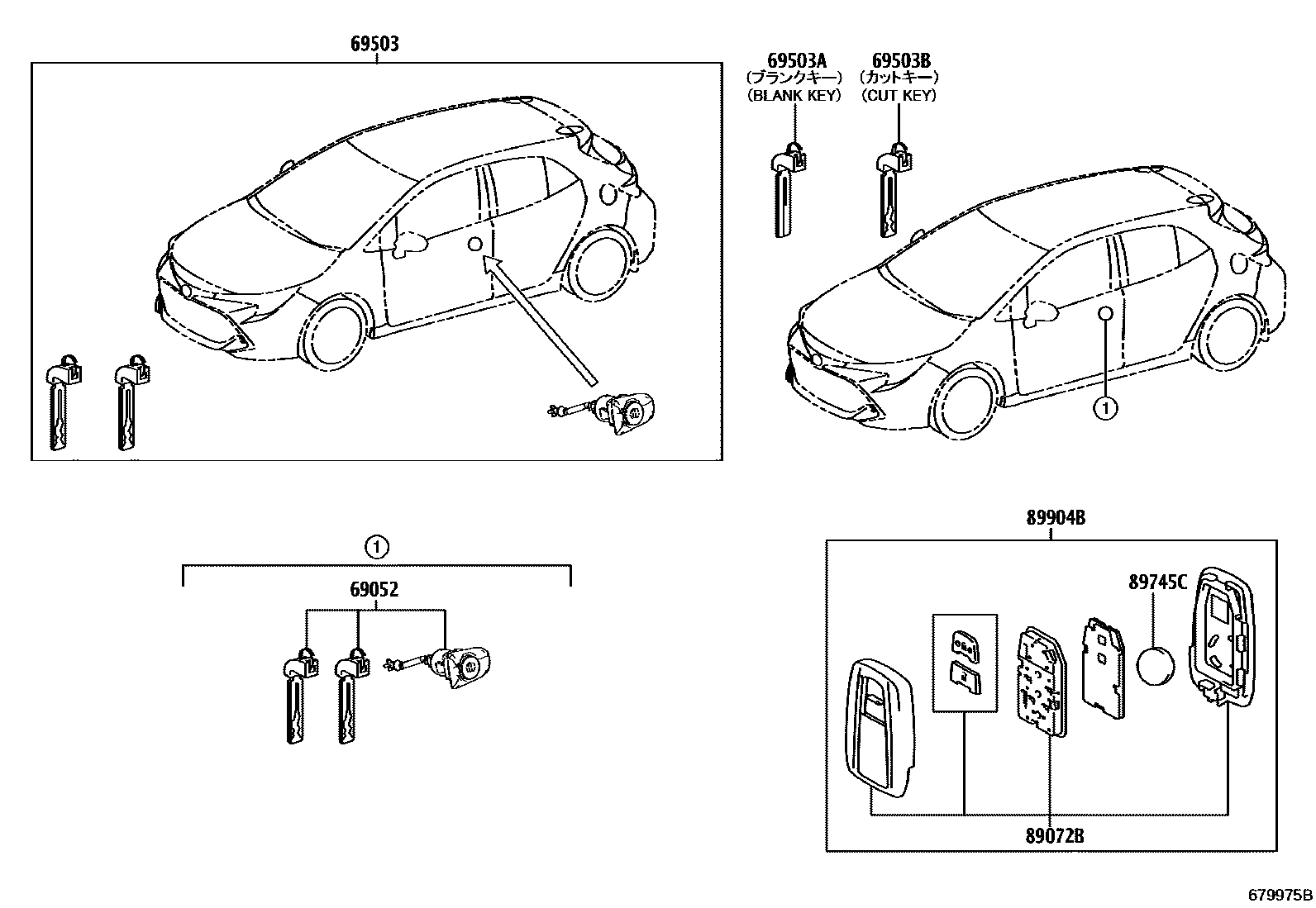

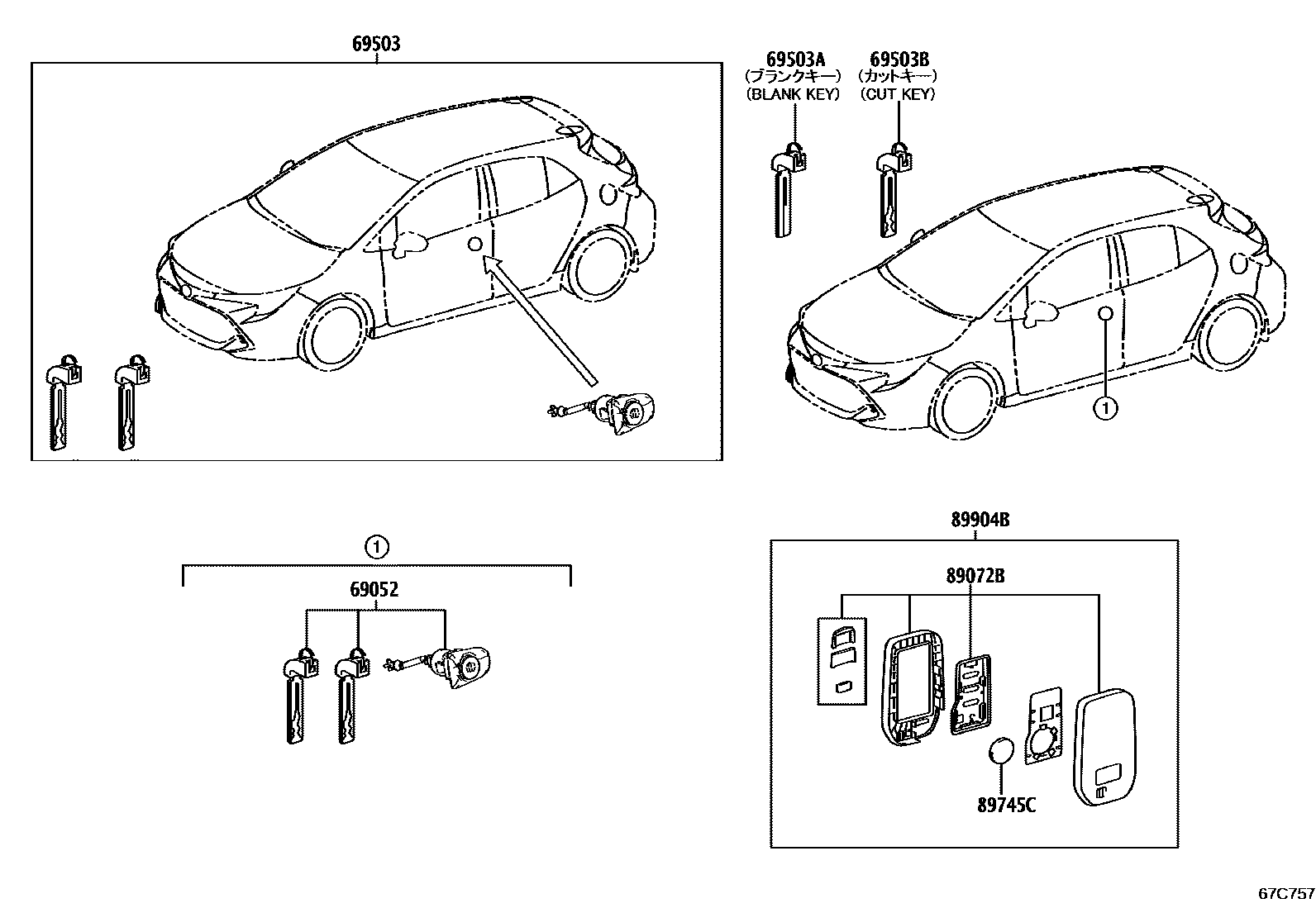

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-12710 · 69052-12711 |
| 69503 | Door lock cylinder components | 69005-12J20 · 69005-12J21 |
| 69503A | external tooth key | 69515-16110 · 69515-47030 · 69515-K0020 |
| 69503B | internal tooth key | 69515-16100 · 69515-47020 · 69515-K0010 |
| 89072B | Remote key shell assembly (for smart key) | 89072-12540 · 89072-16180 |
| 89745C | Transmitter battery | 89745-45010 · 89745-50020 · 89745-K0010 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-12180 · 8990H-12560 · 8990H-12561 |
