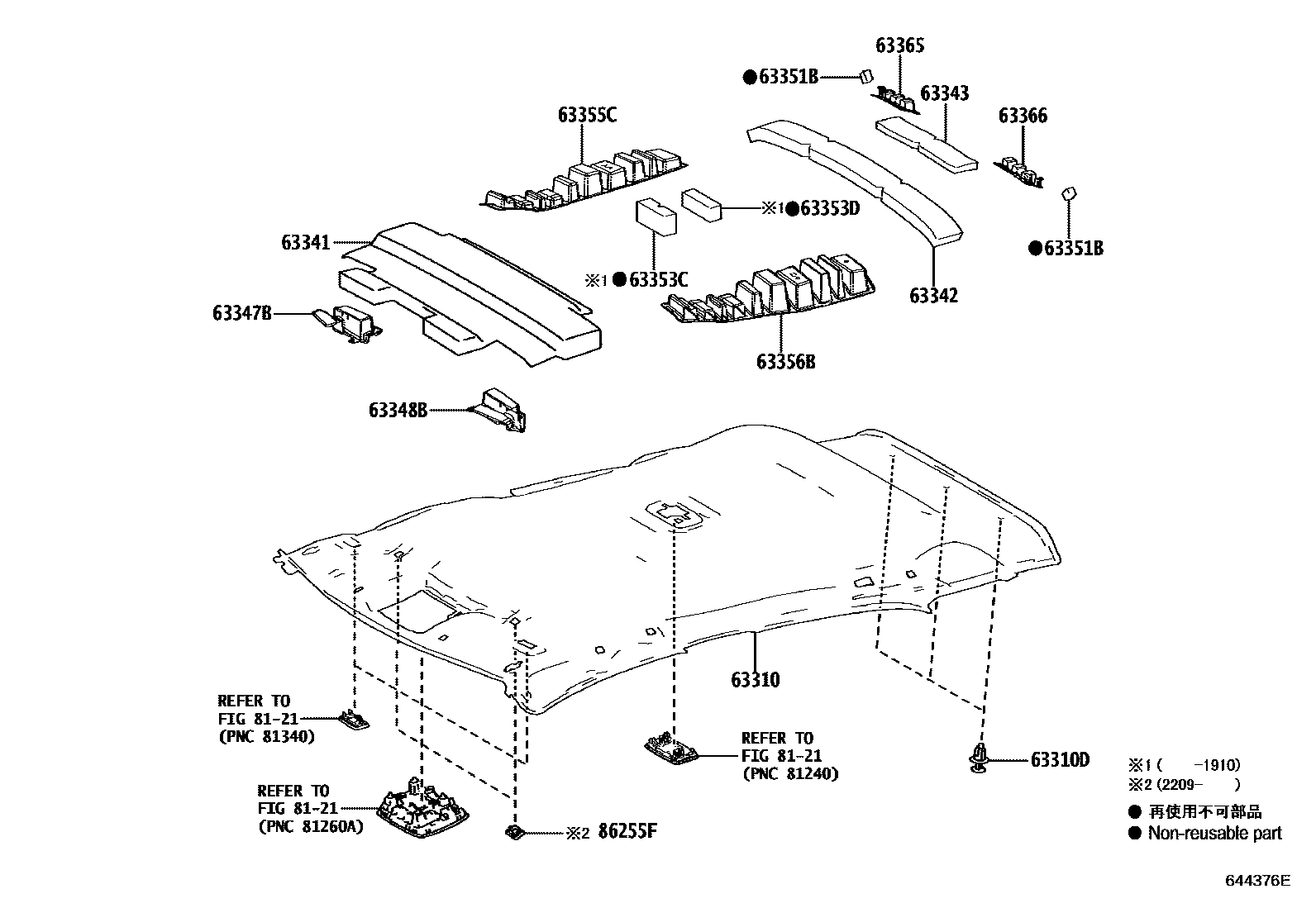

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-12370 · 63341-12381 |
| 63342 | No. 2 roof muffler pad | 63342-12410 |
| 63343 | No. 3 roof muffler pad | 63342-12420 |
| 63347B | Roof right longitudinal beam muffler pad | 63347-12050 |
| 63348B | Roof left side rail silencer pad | 63348-12030 |
| 63351B | roof lining pads | 63351-12110 |
| 63353C | Center roof lining lining | 63353-12030 |
| 63353D | Center roof lining lining | 63353-12050 |
| 63355C | Right side roof lining | 63355-12080 |
| 63356B | Roof left inner lining block | 63356-12060 |
| 63365 | No. 5 headliner bracket | 63365-12050 |
| 63366 | No. 6 roof lining bracket | 63366-12040 |
