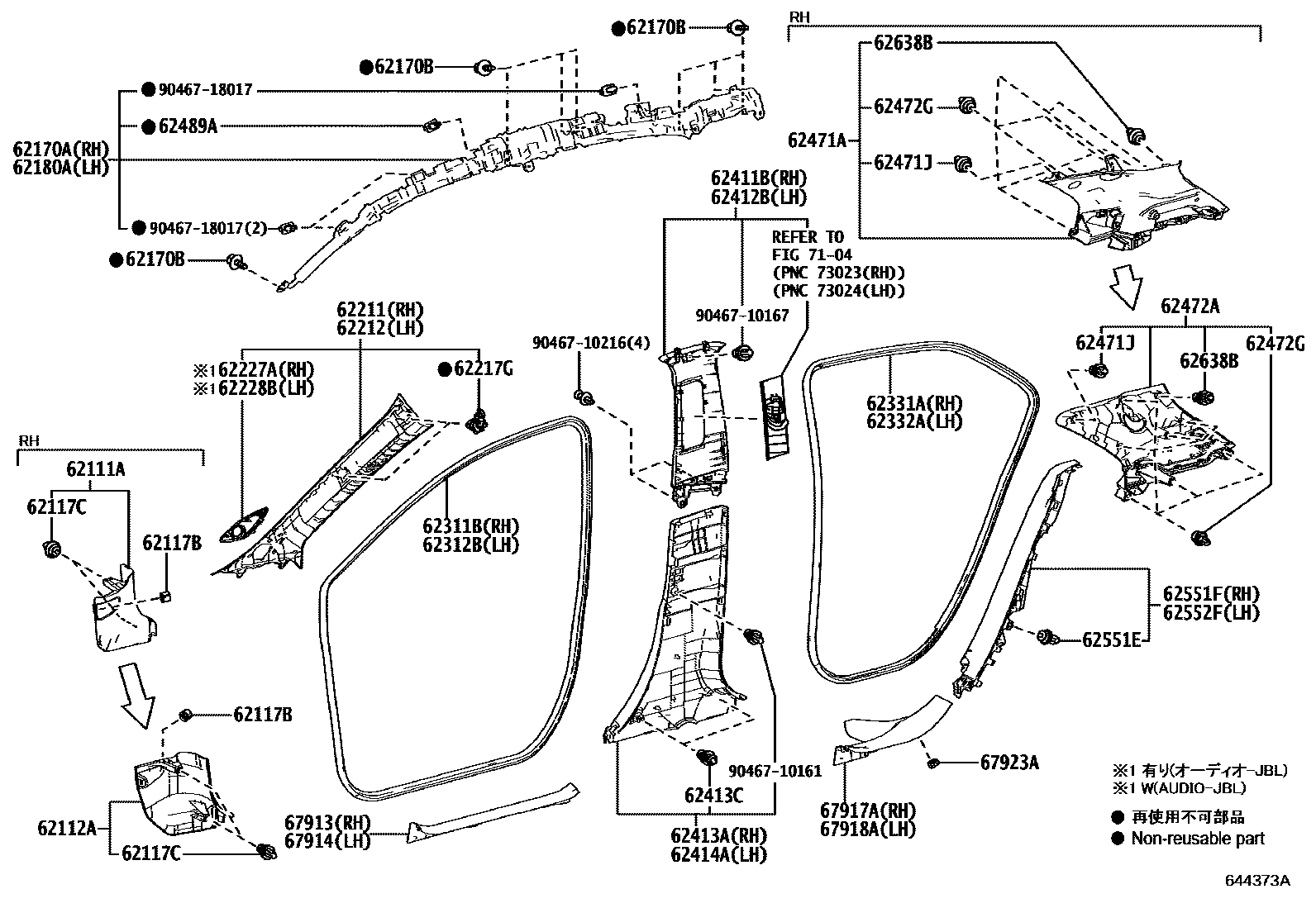

Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401
Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62117B | No. 1 clip (for cowl side trim panel) | 90467-06147 |
| 62117C | No. 2 clip (for cowl side trim panel) | 90467-10167 |
| 62170A | Right curtain air bag assembly | 62170-12140 · 62170-12320 |
| 62170B | Bolts with washers | 91673-80616 |
| 62180A | Left curtain air bag assembly | 62180-12140 · 62180-12320 |
| 62217G | Front pillar decorative plate clip | 62217-11010 · 62217-42050 |
| 62227A | Right front pillar speaker decorative grille | 62227-12010 |
| 62228B | Left front pillar speaker decorative grille | 62228-12010 |
| 62311B | Right front door opening waterproof tape | 62311-12290 |
| 62312B | Left front door opening waterproof tape | 62312-12300 |
| 62331A | Right rear door opening waterproof tape | 62331-12300 |
| 62332A | Left rear door opening waterproof tape | 62332-12300 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-09236 · 90467-10161 |
| 62471J | Clips (for roof side trim panels) | 90467-10188 |
| 62472G | Clips (for roof side trim panels) | 90467-09240 |
| 62489A | Roof side interior panel clips | 62489-28010 |
| 62551E | Clips (for rear seat side trim panels) | 62217-13010 |
| 62638B | clip | 90467-09236 |
| 67923A | Car door No. 1 wear plate clip | 67923-20090 |
