Toyota COROLLA 侧梁 — Figure 6101

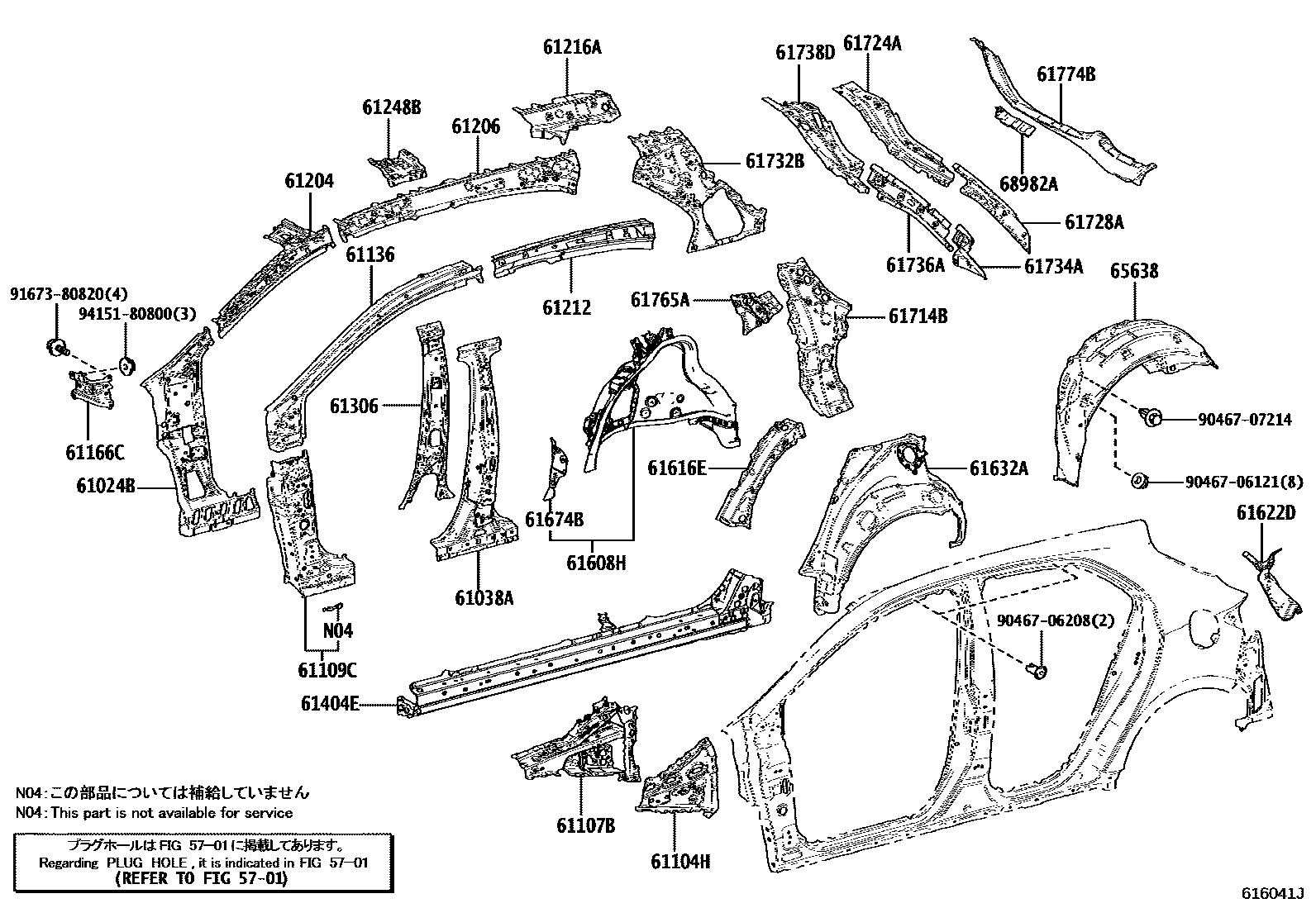

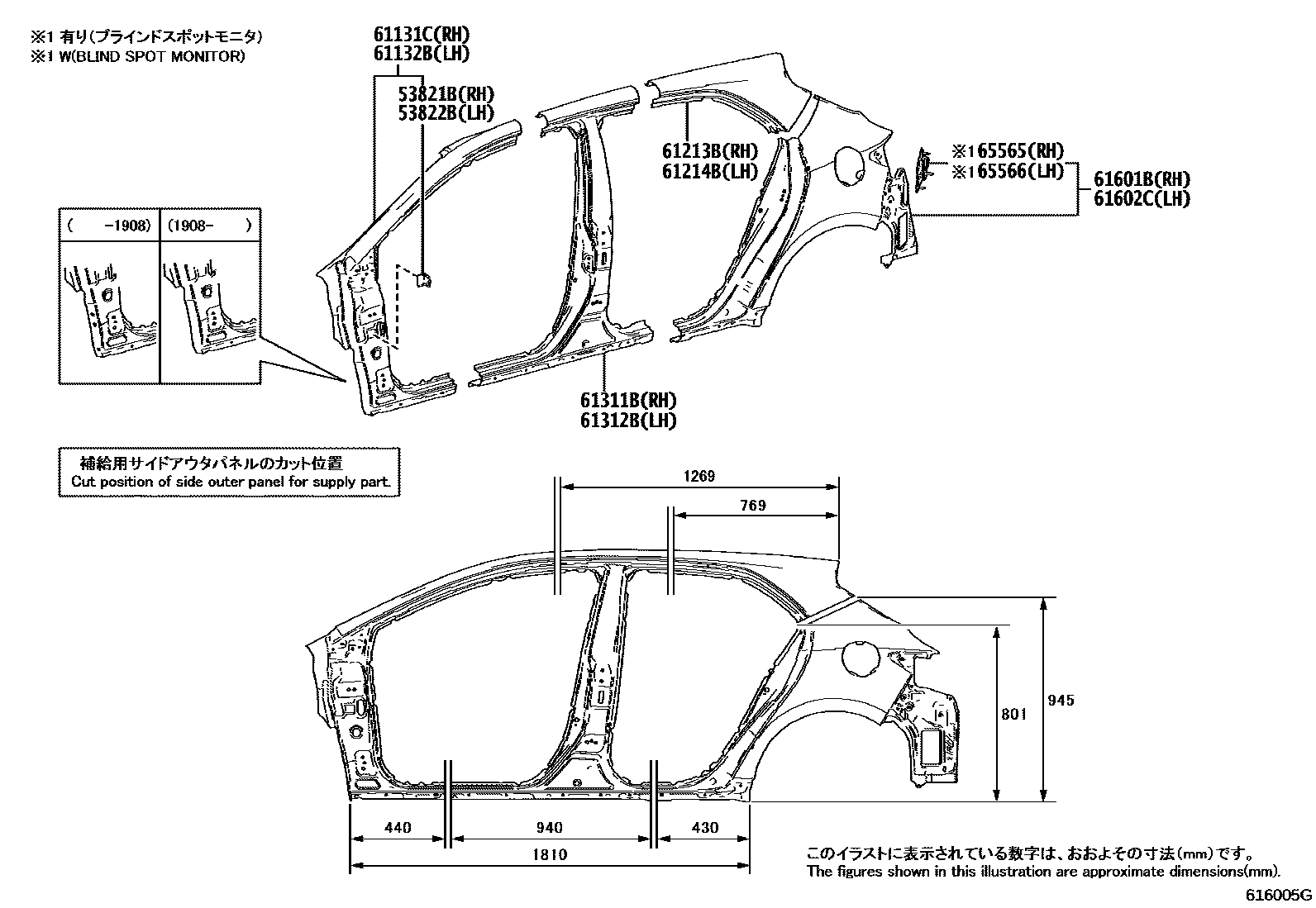

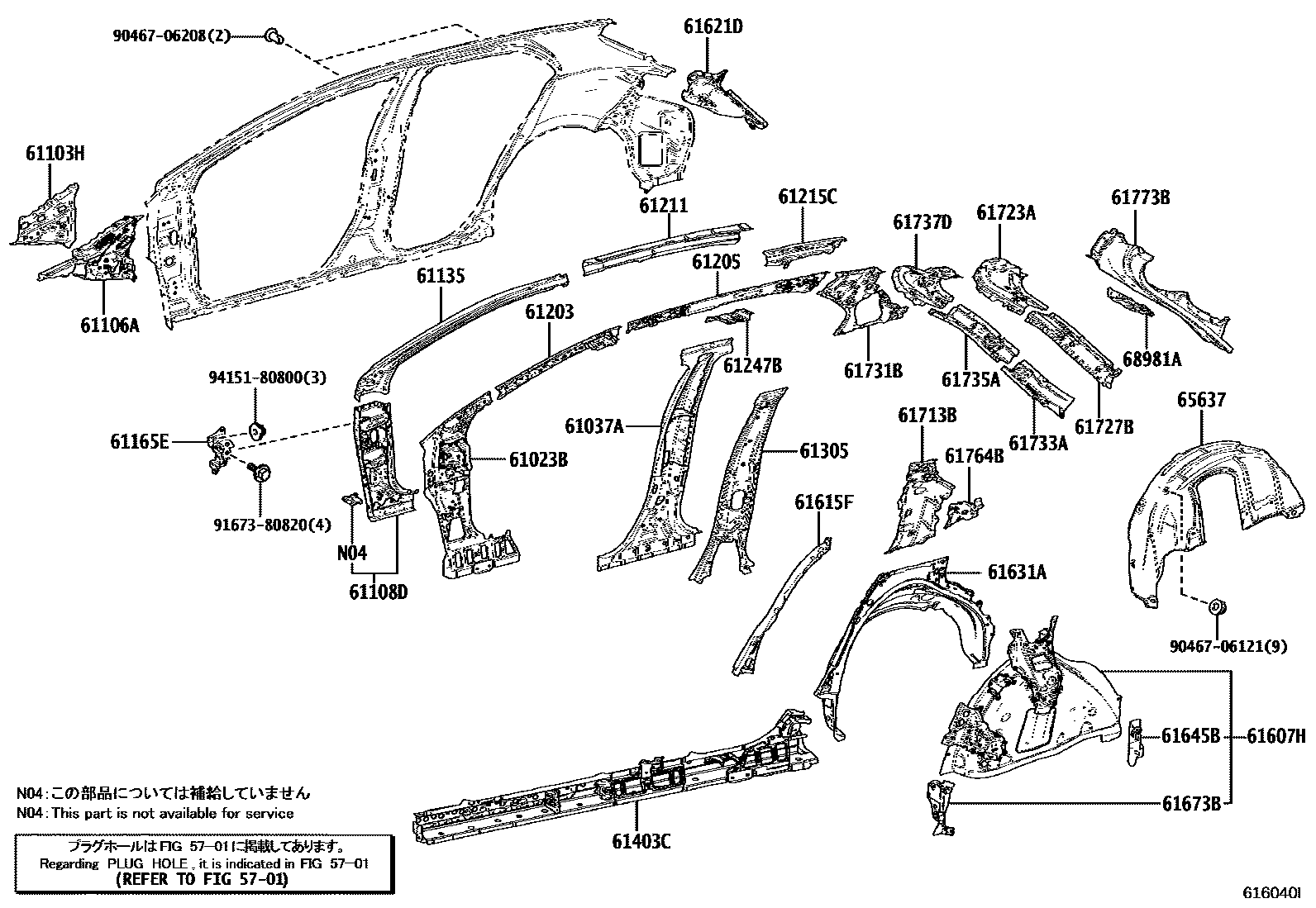

Toyota COROLLA EPC diagram 6101, 侧梁, with 3 images and 73 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53879-68020 |
| 53822B | Left front fender rear support | 53879-68020 |
| 61023B | Right body inner front pillar sub-assembly | 61023-12460 |
| 61024B | Left body inner front pillar sub-assembly | 61024-12450 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-12360 · 61037-12361 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-12360 · 61038-12361 |
| 61103H | SOUS-ENS. PANNEAU, LATERAL, NO.2 MD | 61113-12020 |
| 61104H | SOUS-ENS. PANNEAU, LATERAL, NO.2 MG | 61114-12010 |
| 61106A | Right body front pillar reinforcement sub-assembly | 61106-12170 |
| 61107B | Left side body front pillar reinforcement sub-assembly | 61107-12170 |
| 61108D | Front panel right lower reinforcement sub-assembly | 61108-12330 |
| 61109C | Front panel left lower reinforcement sub-assembly | 61109-12320 |
| 61131C | Right body outer front pillar | 61131-12820 · 61131-12870 |
| 61132B | Left body outer front pillar | 61132-12800 · 61132-12850 |
| 61135 | Reinforcement member on the right front body pillar | 61135-12360 |
| 61136 | Reinforcement member on left front body pillar | 61136-12350 |
| 61165E | SUPPORT, TABLEAU BORD AU COTE AUVENT, MD | 61165-12120 |
| 61166C | SUPPORT, TABLEAU BORD AU COTE AUVENT, MG | 61166-12130 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-12340 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-12320 |
| 61205 | Right rear roof inner longitudinal beam sub-assembly | 61205-12040 |
| 61206 | Left rear roof inner longitudinal beam sub-assembly | 61206-12040 |
| 61211 | Roof right outer longitudinal beam | 61211-12550 |
| 61212 | Roof left outer longitudinal beam | 61212-12550 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-12110 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-12110 |
| 61215C | Right rear roof outer longitudinal beam | 61215-12010 |
| 61216A | Left rear roof rail | 61216-12010 |
| 61247B | Roof right inner longitudinal beam reinforcement | 61247-12110 |
| 61248B | Roof left inner longitudinal beam reinforcement | 61248-12040 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-12210 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-12210 |
| 61311B | Right body outer center pillar | 61311-12530 |
| 61312B | Left body outer center pillar | 61312-12570 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-12905 · 61403-12907 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-12905 · 61404-12907 |
| 61601B | Right side enclosure sub-assembly | 61601-12B90 · 61601-12C00 · 61601-12C10 · 61601-12C20 |
| 61602C | Left side enclosure sub-assembly | 61602-12B90 · 61602-12C00 · 61602-12C10 · 61602-12C20 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-12C80 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-12C70 |
| 61615F | Right side enclosure outer panel reinforcement | 61615-12060 |
| 61616E | Left side enclosure outer panel reinforcement | 61616-12090 |
| 61621D | Back door right opening slot | 61621-12580 |
| 61622D | Rear door left opening slot | 61622-12580 |
| 61631A | Right wheel cover outer panel | 61631-12540 |
| 61632A | Left side wheel cover outer panel | 61606-12220 |
| 61645B | Right rear side wheel housing corner panel | 61645-12180 |
| 61673B | Right wheel housing lining panel reinforcement | 61673-12060 |
| 61674B | Left side wheel housing lining plate reinforcement | 61674-12090 |
| 61713B | Roof right outer reinforcement | 61713-12150 |
| 61714B | Roof left outer reinforcement | 61714-12140 |
| 61723A | No. 1 right corner window opening fixing piece | 61723-12120 |
| 61724A | No. 1 left corner window opening fixing piece | 61724-12120 |
| 61727B | EXTENSION, RENFORT PANNEAU CUSTODE, MD | 61727-12020 |
| 61728A | EXTENSION, RENFORT PANNEAU CUSTODE, MG | 61728-12040 |
| 61731B | Roof right inner panel | 61731-12850 · 61731-12851 · 61731-12852 |
| 61732B | Roof left inner panel | 61732-12810 |
| 61733A | Right front roof inner panel | 61733-12180 |
| 61734A | Left front roof inner panel | 61734-12180 |
| 61735A | Right rear roof inner panel | 61735-12460 |
| 61736A | Left rear roof inner panel | 61736-12470 |
| 61737D | Roof right inner reinforcement | 61737-12180 |
| 61738D | Roof left inner reinforcement | 61738-12190 |
| 61764B | Seat belt anchor reinforcement for seat No. 2, right | 61077-12020 |
| 61765A | Seat belt anchor reinforcement for No. 2 left seat | 61078-12020 |
| 61773B | Back door upper right opening frame | 61773-12020 |
| 61774B | Back door upper left opening frame | 61774-12020 |
| 65565 | Right side panel rear end lining | 65565-50010 |
| 65566 | Left side panel rear end lining | 65565-50010 |
| 65637 | Right rear wheel house lining | 65637-12070 · 65637-12080 |
| 65638 | Left rear wheel house lining | 65638-12080 · 65638-12090 |
| 68981A | Back door right side support rod fixing | 68981-12080 |
| 68982A | Back door left support rod fixing | 68982-12070 |
