Toyota COROLLA hole plug — Figure 5701

Toyota COROLLA EPC diagram 5701, hole plug, with 4 images and 0 PNC and OE references.

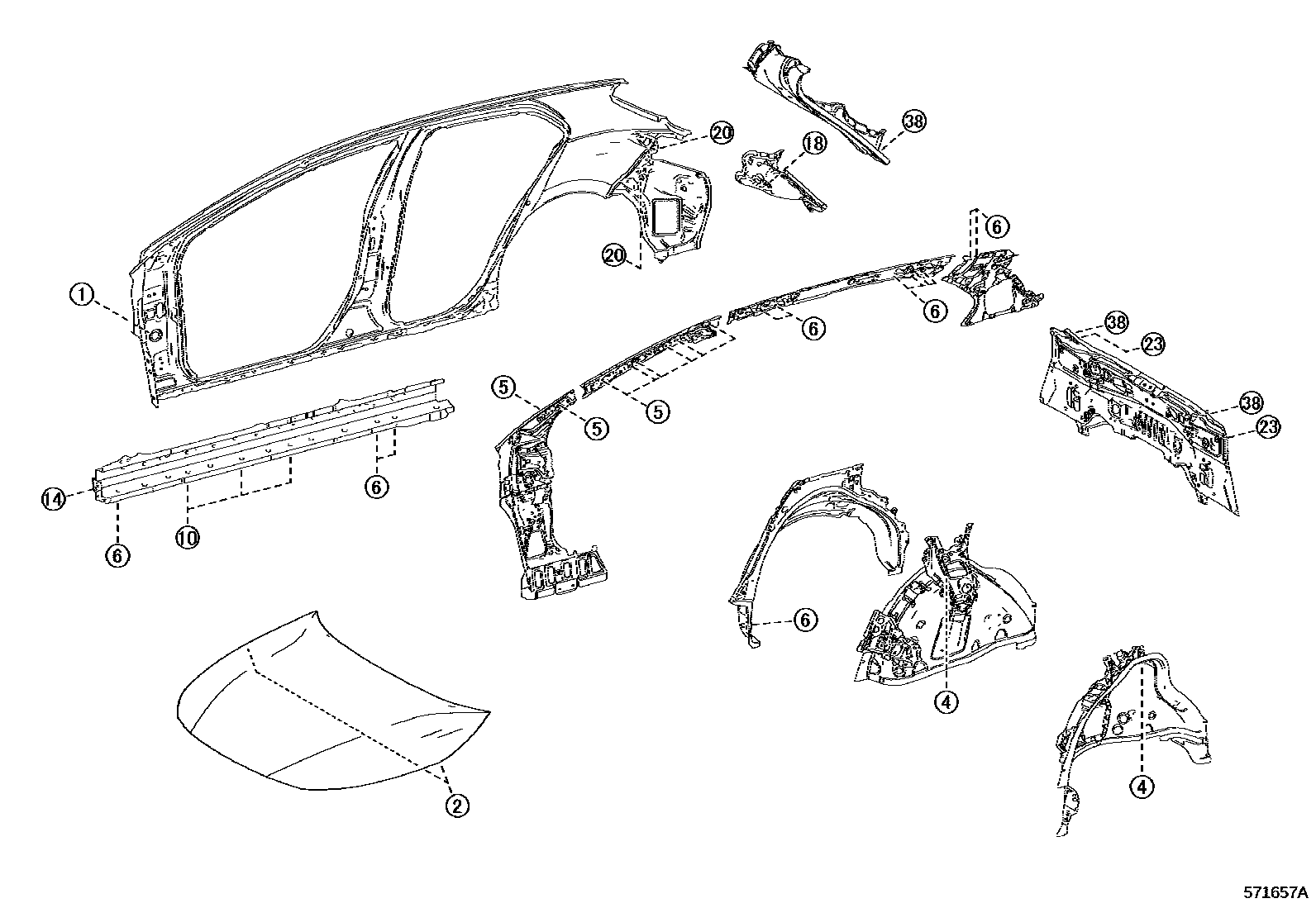

Toyota COROLLA hole plug EPC diagram — 571657A
hole plug — 571657A (201806 – 999999)

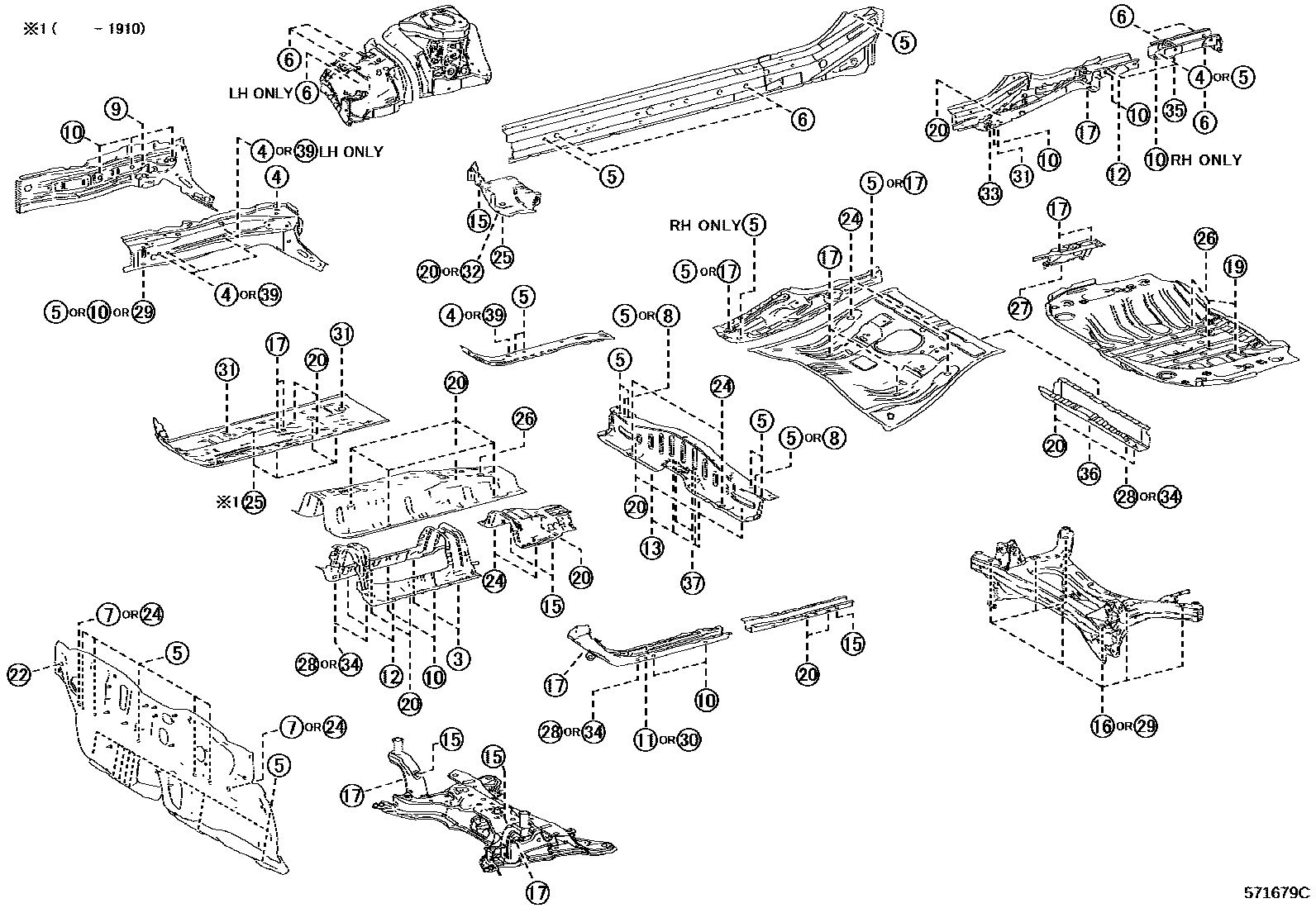

Toyota COROLLA hole plug EPC diagram — 571679C
hole plug — 571679C (201806 – 999999)

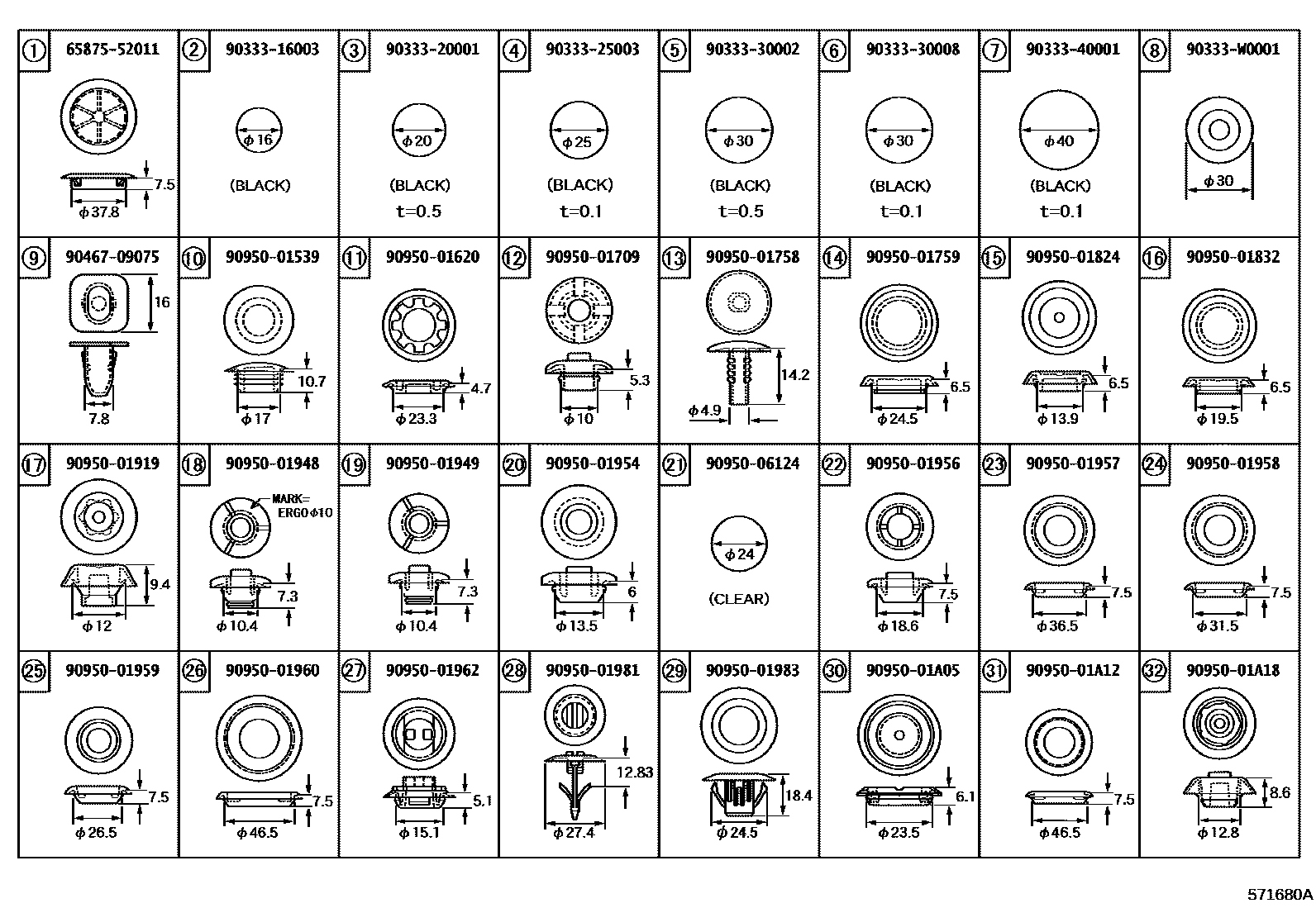

Toyota COROLLA hole plug EPC diagram — 571680A
hole plug — 571680A (201806 – 999999)

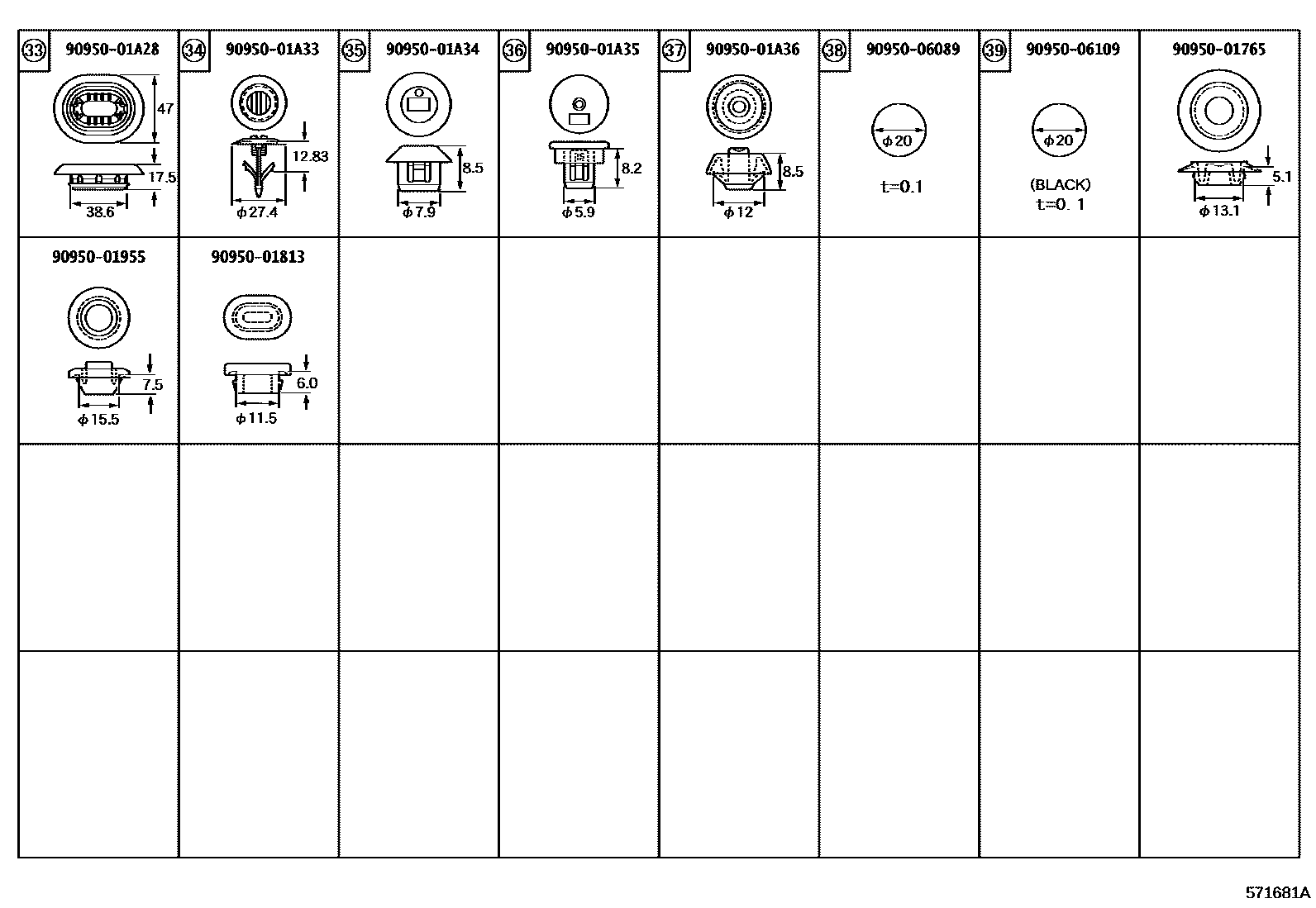

Toyota COROLLA hole plug EPC diagram — 571681A
hole plug — 571681A (201806 – 999999)
