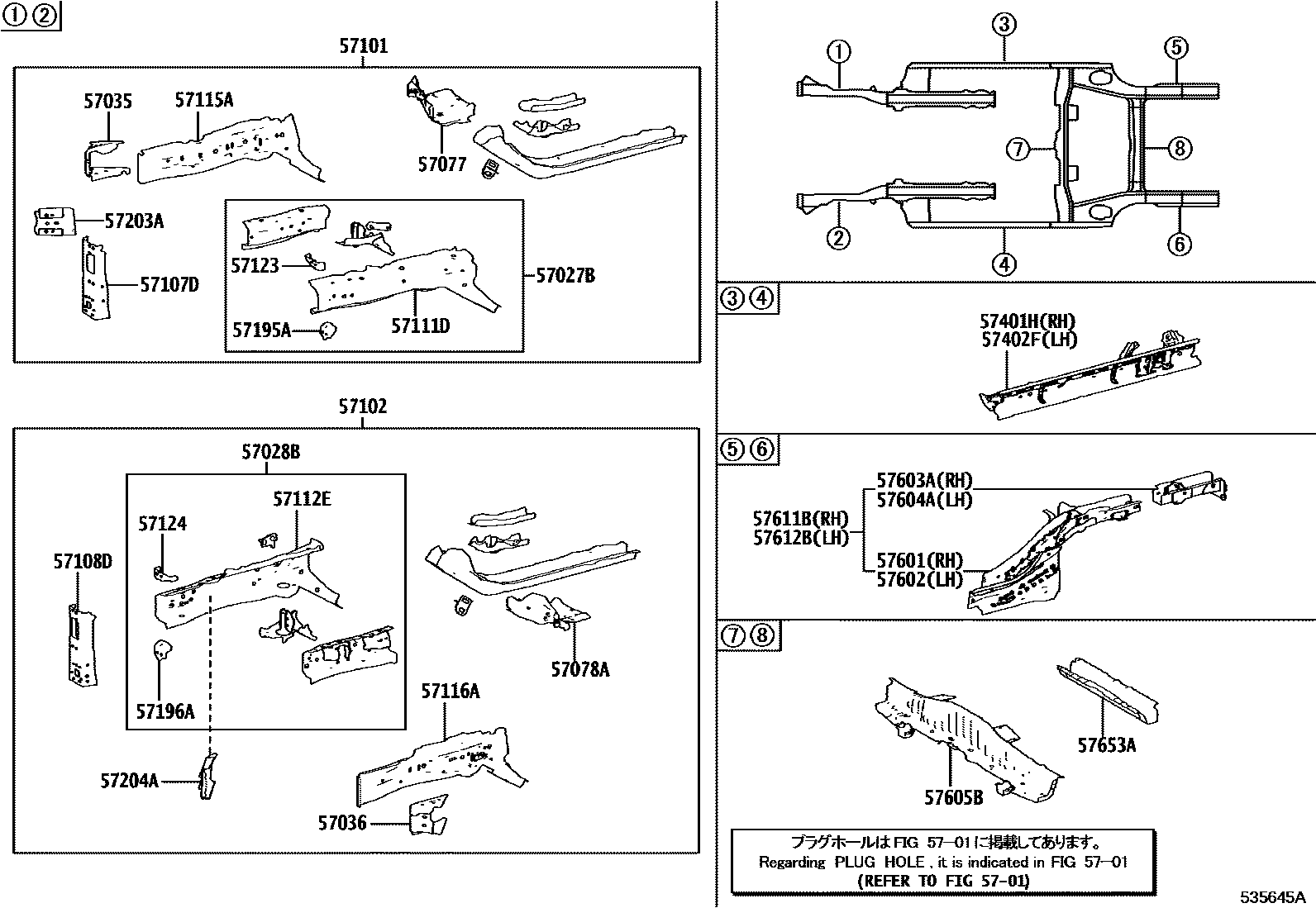

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-47021 |
| 57028B | Left front inner longitudinal beam sub-assembly | 57028-47040 |
| 57035 | Right front running board panel sub-assembly | 57035-47021 |
| 57036 | Left front running board panel sub-assembly | 57036-47031 |
| 57077 | Right front anti-torsion box-section sub-assembly | 57077-47040 · 57077-47041 |
| 57078A | Left front anti-torsion box-section sub-assembly | 57078-47040 · 57078-47041 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-47070 · 57101-47071 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-47090 · 57102-47091 |
| 57107D | Front bumper right side installation reinforcement sub-assembly | 57107-47030 |
| 57108D | Front bumper left side installation reinforcement sub-assembly | 57108-47030 |
| 57111D | Inner right front longitudinal beam | 57111-47030 |
| 57112E | Inboard left front longitudinal beam | 57112-47030 |
| 57115A | Right front longitudinal beam outer panel | 57115-47901 |
| 57116A | Left front longitudinal beam outer panel | 57116-47902 |
| 57123 | Right front longitudinal beam bracket | 57123-47020 |
| 57124 | Left front longitudinal beam bracket | 57124-47020 |
| 57195A | Right front longitudinal beam front reinforcement | 57195-47010 |
| 57196A | Left front longitudinal beam front reinforcement | 57196-47030 |
| 57203A | No. 2 right front longitudinal beam extension sub-assembly | 57203-47011 |
| 57204A | No. 2 left front longitudinal beam extension sub-assembly | 57204-47011 |
| 57401H | Floor right inner longitudinal beam sub-assembly | 57401-12640 |
| 57402F | Floor left inner longitudinal beam sub-assembly | 57402-12640 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-12B70 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-12C50 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-10020 |
| 57604A | Rear floor left rear longitudinal beam sub-assembly | 57604-10020 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-10071 |
| 57611B | LONGERON, PLANCHER ARR, AV MD | 57611-47904 |
| 57612B | LONGERON, PLANCHER ARR, AV MG | 57612-47907 |
| 57653A | No. 2 rear floor cross member | 57653-47040 · 57653-47050 |
