Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304
Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 3 images and 53 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

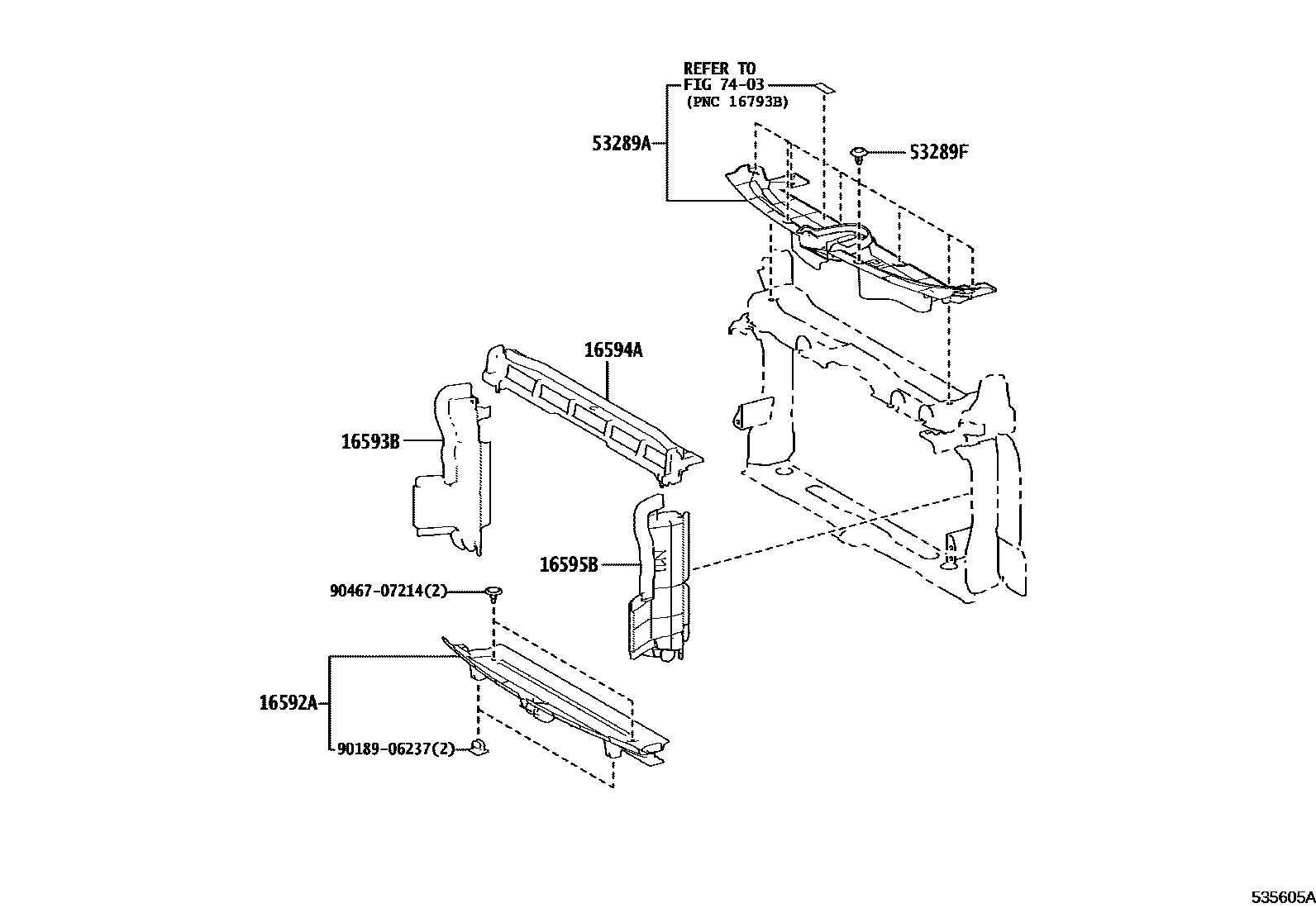

| 16592A | GUIDE, AIR DU RADIATEUR, NO.3 | 16592-24010 · 16592-24050 |
| 16593B | GUIDE, AIR DU RADIATEUR, NO.1 MD | 16593-24020 |
| 16594A | GUIDE, AIR DU RADIATEUR, NO.2 | 16594-24010 · 16594-24040 |
| 16595B | GUIDE, AIR DU RADIATEUR, NO.1 MG | 16595-24020 |
| 52143F | Front bumper right side bracket | 52143-47030 |
| 52144G | Front bumper left bracket | 52144-47050 |

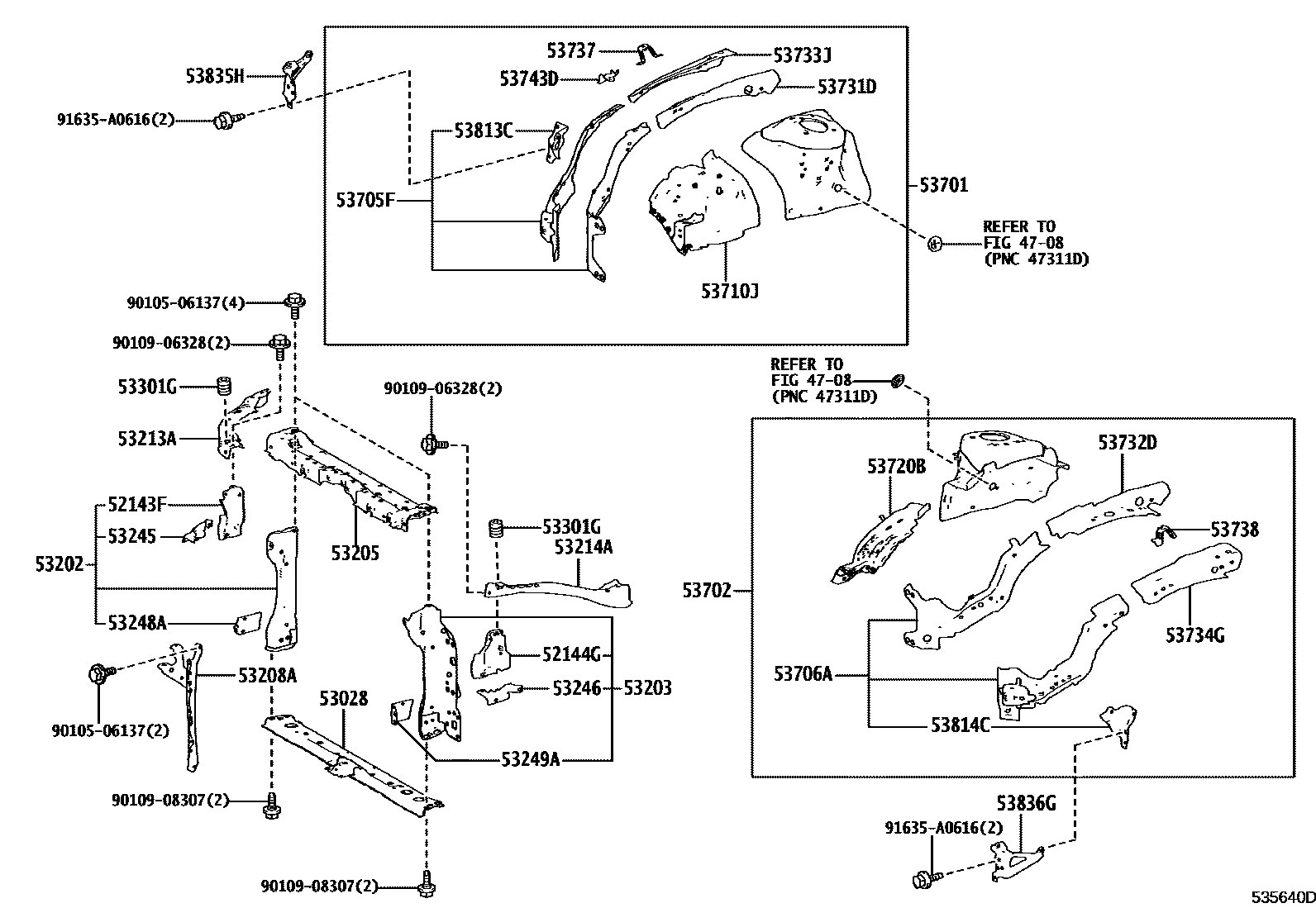

| 53028 | Radiator lower bracket sub-assembly | 53028-12040 |
| 53202 | Radiator right side bracket sub-assembly | 53202-47903 · 53202-47904 |
| 53203 | Radiator left bracket sub-assembly | 53203-47903 |
| 53205 | Radiator upper bracket sub-assembly | 53205-12350 · 53205-12370 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-12580 |
| 53213A | Radiator upper right bracket | 53213-12190 · 53213-12220 |
| 53214A | Radiator upper left bracket | 53214-12150 · 53214-12180 |
| 53245 | Right headlight bracket | 53245-12150 |
| 53246 | Left headlight bracket | 53246-12090 |
| 53248A | Radiator shutter right bracket | 53248-47010 |
| 53249A | Radiator shutter left bracket | 53249-47010 |
| 53289A | Radiator bracket opening cover | 53289-12090 · 53289-12130 |
| 53289F | CLIP(POUR CACHE OUVERTURE SUPPORT RADIATEUR) | 90467-07214 · 90467-07217 |
| 53301G | engine cover cushion | 90541-15037 · 90541-15111 |
| 53701 | Right front fender fender sub-assembly | 53701-12A70 |
| 53702 | Left front fender fender sub-assembly | 53702-12A80 |
| 53705F | Right fender fender bracket sub-assembly | 53705-47901 |
| 53706A | Left fender fender bracket sub-assembly | 53706-47901 |
| 53710J | Right front fender fender assembly | 53710-47060 |
| 53720B | Left front fender fender assembly | 53720-47070 |
| 53731D | Right front fender to cowl side upper beam | 53731-47031 |
| 53732D | Left front fender to cowl side upper beam | 53732-47020 |
| 53733J | TRVRSE, TABLIER AVNT AU COTE D'AUVENT, AVNT EXTER MD | 53733-47020 |
| 53734G | TRVRSE, TABLIER AVNT AU COTE D'AUVENT, AVNT EXTER MG | 53734-47020 |
| 53737 | Right front fender to front wall side sill | 53737-12140 |
| 53738 | Left front fender to front wall side sill | 53738-12100 |
| 53743D | RENFORT, EXTENSION AVANT TABLIER AILE AVANT, MD | 53743-47020 |
| 53813C | Right front fender extension | 53813-47050 |
| 53814C | Left front fender extension | 53814-47030 |
| 53835H | ENTRETOISE, AILE AVANT A EXTENSION DROITE | 53835-12140 |
| 53836G | ENTRETOISE, AILE AVANT A EXTENSION GAUCHE | 53836-12090 |

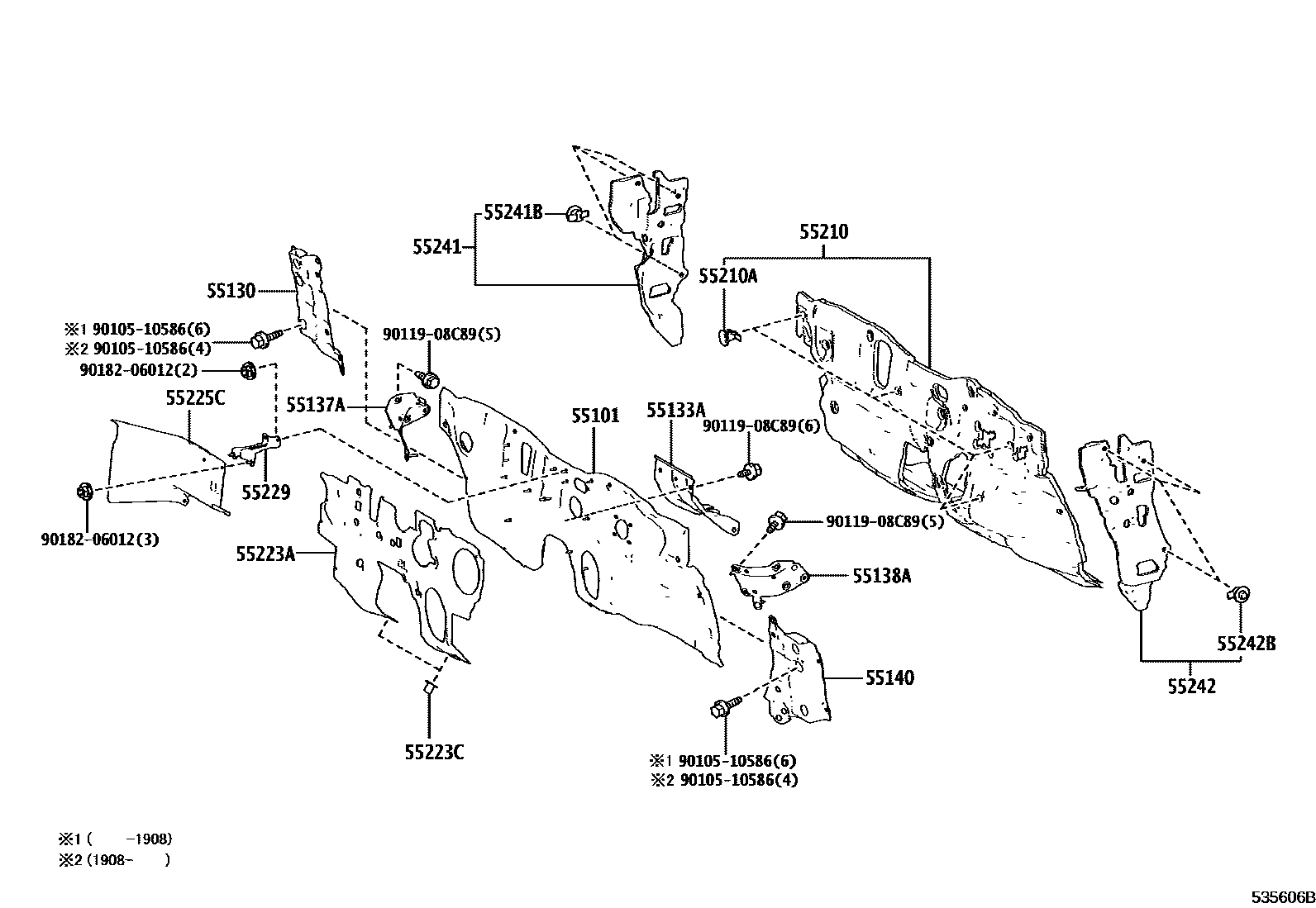

| 55101 | Front apron sub-assembly | 55101-12E00 · 55101-12E10 |
| 55130 | Right fender fender fixing plate assembly | 55130-47010 · 55130-47011 |
| 55133A | Right reinforcement (front wall to floor) | 55133-47010 |
| 55137A | Right side bracket (front wall to frame) | 55137-47040 |
| 55138A | Left side bracket (front wall to frame) | 55138-47070 |
| 55140 | Left fender fender fixing plate assembly | 55140-47010 · 55140-47011 |
| 55210 | Front wall insulation pad assembly | 55210-12680 |
| 55210A | clip | 90467-11122 |
| 55223A | Front wall outer heat insulation pad | 55223-47090 |
| 55223C | clip | 90467-06197 |
| 55225C | ISOLANT, THERMIQUE TABLEAU BORD | 55225-12010 |
| 55229 | No. 4 heat insulation pad for front wall | 55229-10020 |
| 55241 | Front panel No. 1 right side silencer | 55241-12030 · 55241-12040 |
| 55241B | ATTACHE, SILENCIEUX COTE PANNEAU AVANT | 90467-13079 |
| 55242 | Front panel No. 1 left side silencer | 55242-12010 · 55242-12020 |
| 55242B | ATTACHE, SILENCIEUX COTE PANNEAU AVANT | 90467-13079 |
