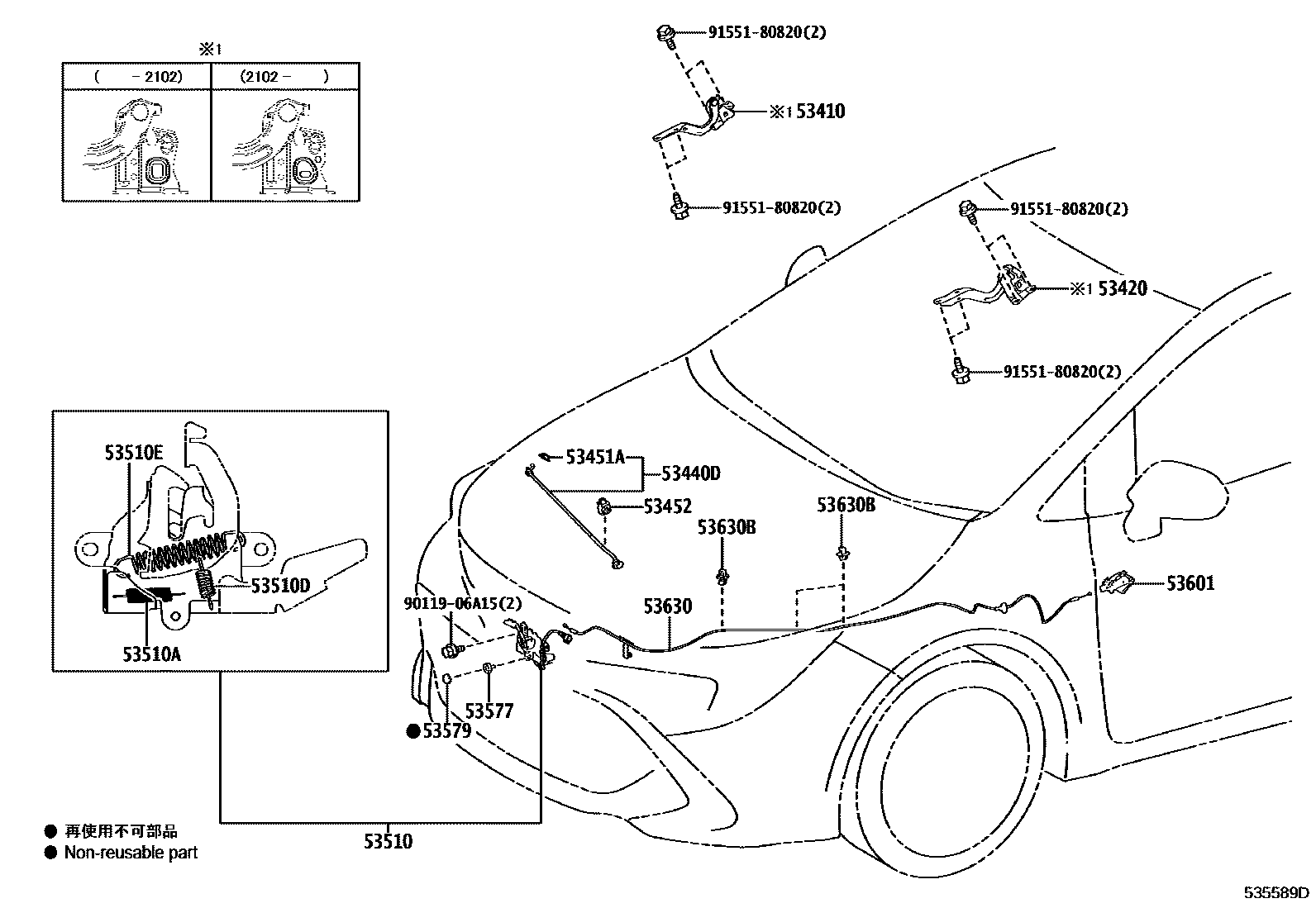

Toyota COROLLA 发动机盖锁和铰链 — Figure 5303
Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-12680 · 53410-12740 |
| 53420 | Engine cover left hinge assembly | 53420-12670 · 53420-12730 |
| 53440D | Engine cover support rod assembly | 53440-12220 |
| 53451A | Gasket (for engine cover support rod) | 90480-15025 |
| 53452 | Engine cover stay rod fixing | 53452-12130 · 53452-15020 |
| 53510 | Engine cover lock assembly | 53510-12B90 · 53510-12B91 · 53510-12C00 · 53510-12C01 · 53510-12C02 |
| 53510A | Tension spring (for hood lock) | 90506-09055 |
| 53510D | Tension spring (for hood lock) | 90506-12063 |
| 53510E | Tension spring (for hood lock) | 90506-16077 · 90506-18067 |
| 53577 | engine cover lock bolt | 53577-33010 |
| 53579 | Engine hood lock nut cover | 53579-50010 |
| 53630 | Engine hood lock control cable assembly | 53630-12720 · 53630-12721 |
| 53630B | Clip (for hood lock control cable) | 90469-06005 |
