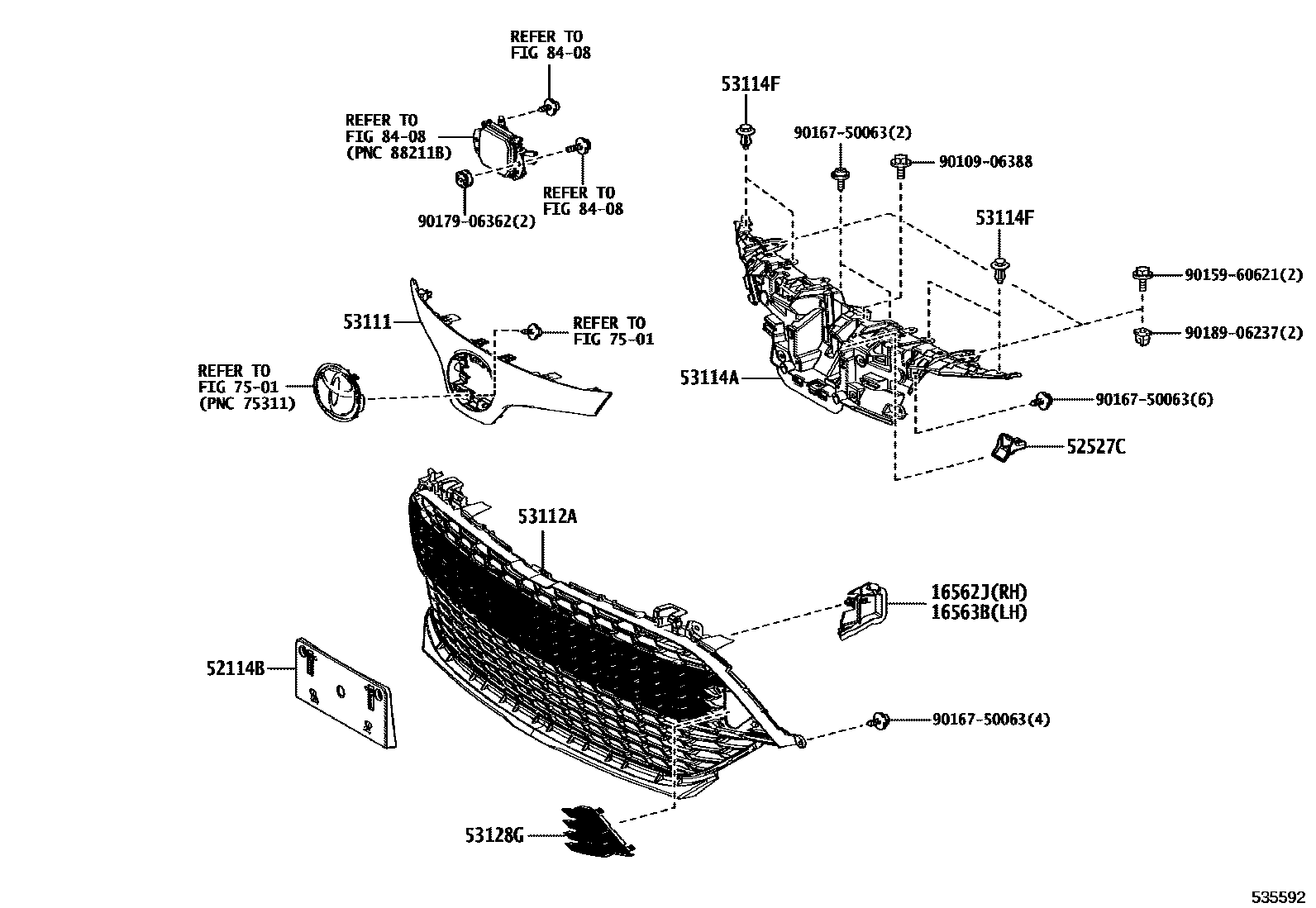

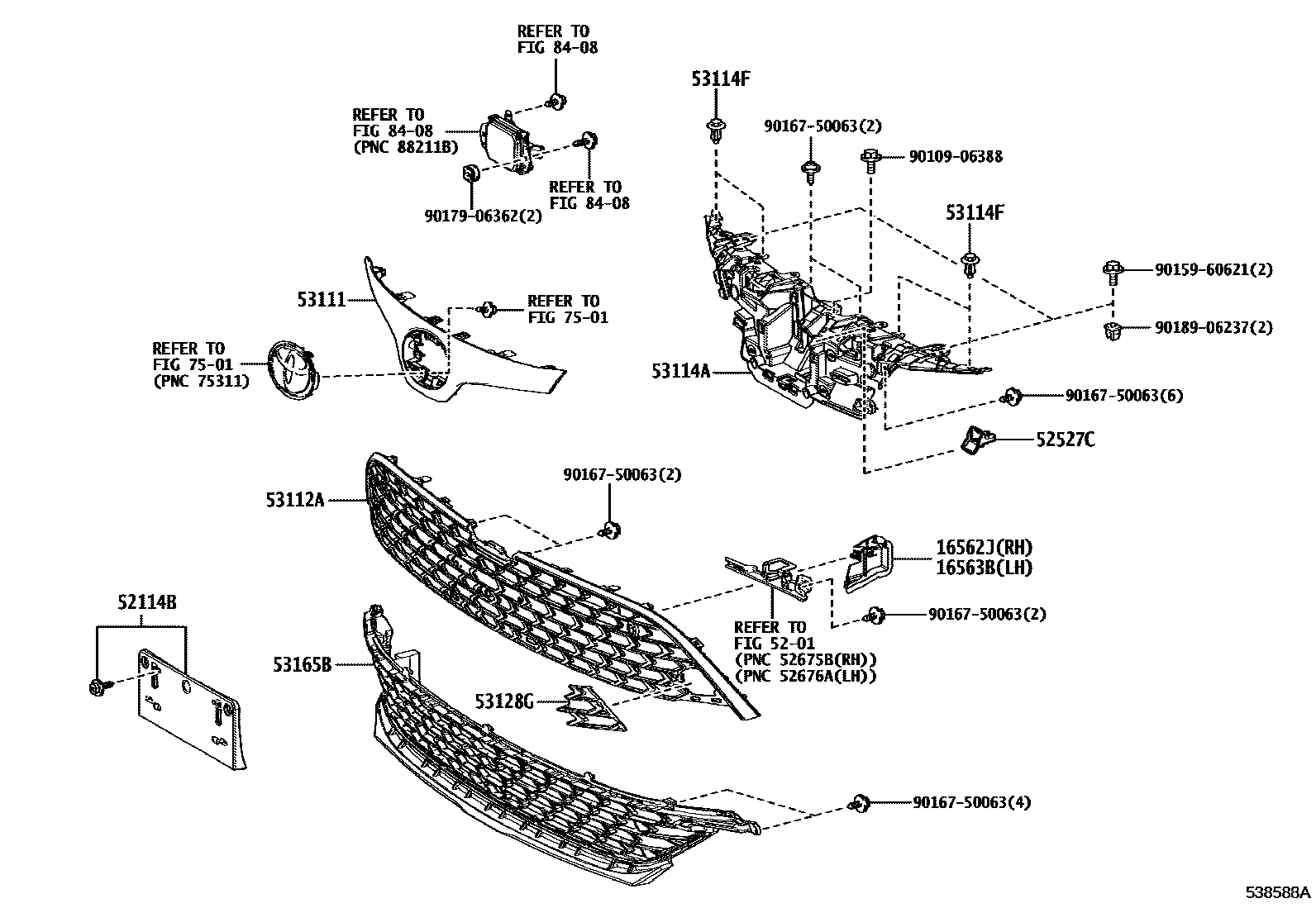

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16562J | JOINT, RADIATEUR AU SUPPORT, NO.2 | 16562-37050 |
| 16563B | JOINT, RADIATEUR AU SUPPORT, NO.3 | 16563-37050 |
| 52114B | CONSOLE DE MONTAGE DE RALLONGE DE PARE-CHOC AV | 52114-12300 · 52114-12390 · 52114-12391 |
| 52527C | Front bumper No. 2 lower fixing bracket | 52527-12060 |
| 53111 | radiator grille | 53111-12E90 |
| 53112A | Lower radiator grille | 53112-12420 · 53112-12790 |
| 53114A | inner radiator grille | 53114-12230 |
| 53128G | GRILLE, RADIATEUR, LAT INF MG | 53128-12100 · 53128-12220 |
| 53165B | Radiator center bracket | 53165-12060 |
