Toyota COROLLA Front Drive Shaft — Figure 4302

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 3 images and 28 PNC and OE references.

Toyota COROLLA Front Drive Shaft EPC diagram — 434004
Front Drive Shaft — 434004 (201806 – 999999)

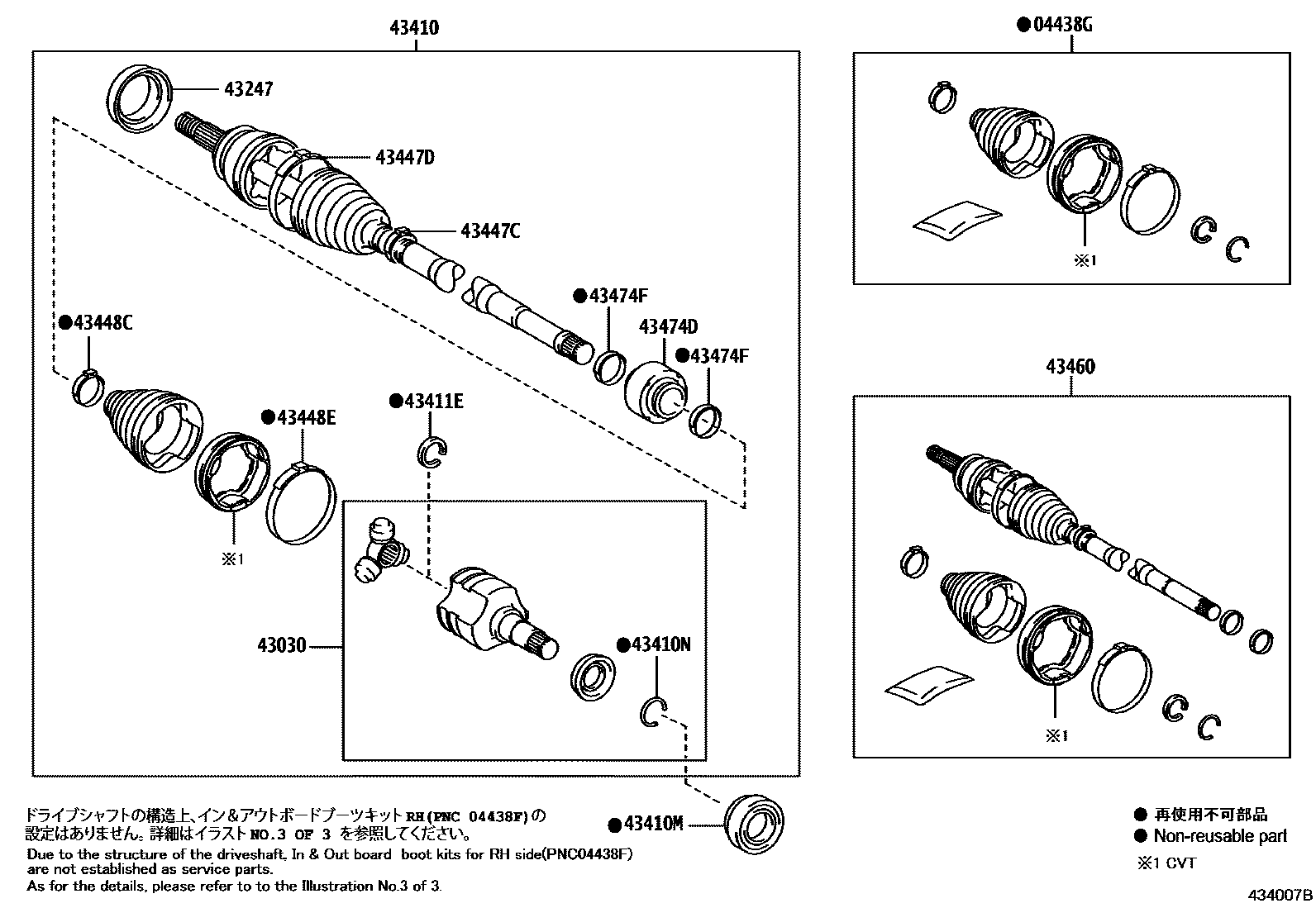

Toyota COROLLA Front Drive Shaft EPC diagram — 434007B
Front Drive Shaft — 434007B (201806 – 999999)

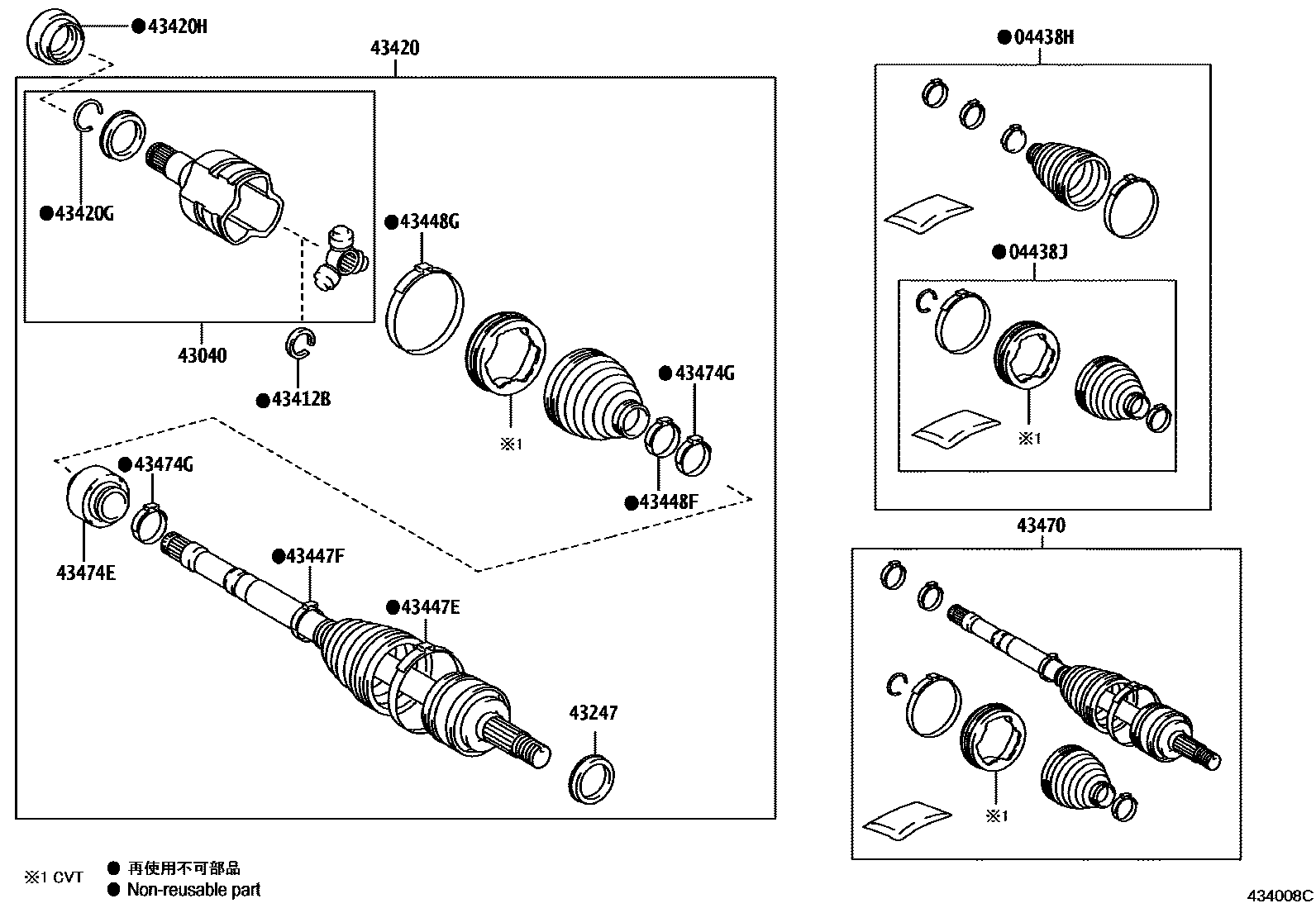

Toyota COROLLA Front Drive Shaft EPC diagram — 434008C
Front Drive Shaft — 434008C (201806 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438GRight front drive shaft inner universal joint dust boot assembly04437-12440 · 04437-47033
04438HLeft front driveshaft inboard and outboard dust boot assembly04428-12790 · 04428-47065 · 04428-47066
04438JLeft front drive shaft inner universal joint dust boot assembly04437-12440 · 04437-47033
43030Right front drive shaft inner universal joint assembly43040-12160
43040Left front drive shaft inner universal joint assembly43040-12170
43247No. 2 front wheel bearing dust cover43247-47010 · 43247-76010
43410Right front driveshaft assembly43410-12B60 · 43410-12C10
43410MJOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD90311-40047
43410NHole snap ring (for right front driveshaft)90521-33002
43411EInner shaft snap ring (for right front axle inner drive shaft)43425-12070 · 43425-13010
43412BInner shaft snap ring (for left front axle inner drive shaft)43425-12070 · 43425-13010
43420Left front drive shaft assembly43420-12B00 · 43420-12B40
43420GHole snap ring (for left front driveshaft)43425-10040 · 90521-33002
43420HJOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG90311-50058
43447CClamp (for the outer universal joint dust cover of the right front axle)42345-12230 · 43425-10040
43447DNo. 2 clip (for the universal joint dust cover on the outside of the right front axle)42345-12240
43447EClamp (for left front axle outer universal joint dust cover)42345-12240
43447FNo. 2 clip (for left front axle outer universal joint dust cover)42345-12230
43448CClamp (for the universal joint dust cover inside the right front axle)42345-12230
43448ENo. 2 clip (for the universal joint dust cover inside the right front axle)42345-12180
43448FClamp (for left front axle inner universal joint dust cover)42345-12230
43448GClamp No. 2 (for the universal joint dust cover inside the left front axle)42345-12180
43460Right front outer drive universal joint shaft assembly43460-49427 · 43460-80187
43470Left front outer drive universal joint shaft assembly43470-80407 · 43470-80443
43474DRight front driveshaft shock absorber43474-12240 · 43474-47020
43474ELeft front driveshaft shock absorber43474-12160 · 43474-12250
43474FClamp (for right front driveshaft shock absorber)42345-12100 · 42345-12370
43474GClamp (for left front driveshaft shock absorber)42345-12090 · 42345-74130
